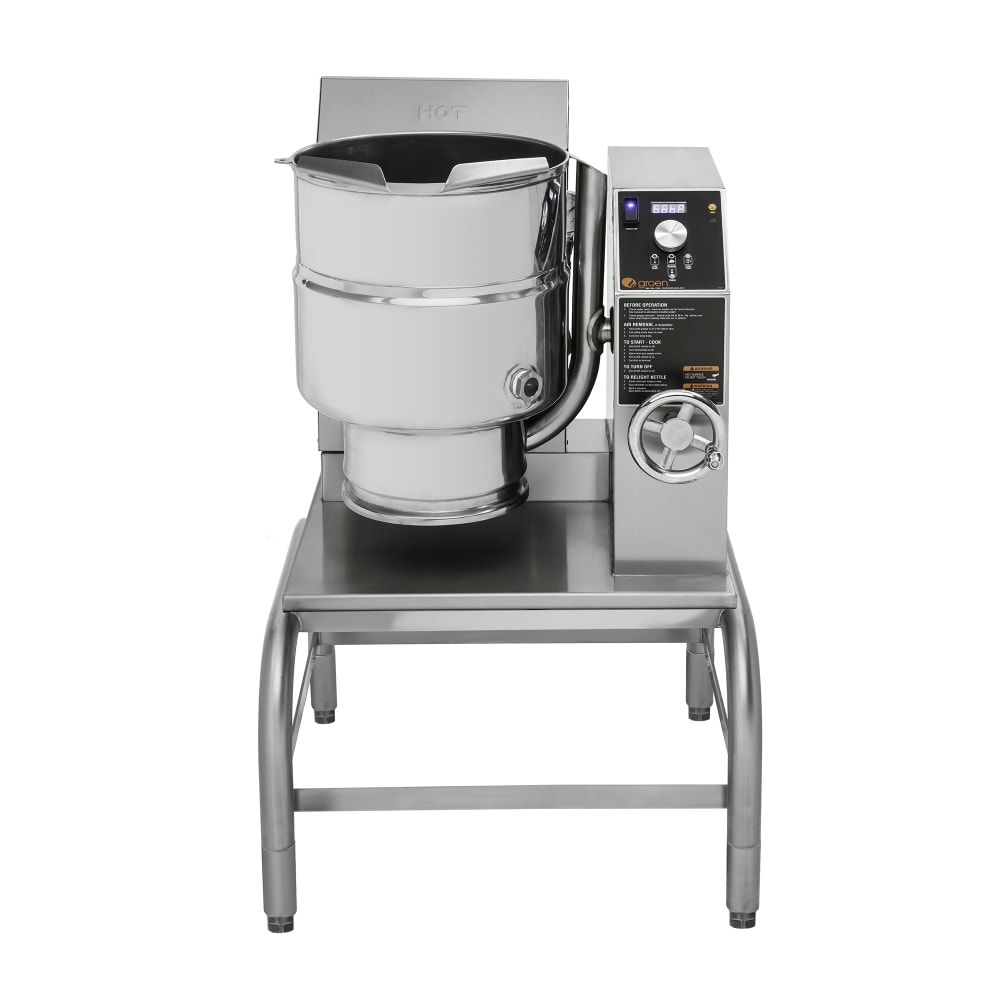

Groen TDHC-40C 10 gal Steam Kettle - Manual Tilt, 2/3 Jacket, Liquid Propane

Designed to cook large batches of soups, stews, and sauces, the Groen TDHC-40C tabletop tilting kettle has a 40-quart (10-gallon) capacity and cooks food with self-contained steam, which does not require a generator or boiler. The kettle body has a jacket around the lower two-thirds, and when the pre-filled water is heated, it boils and forms steam that expands into the jacket, enabling heat distribution that is more uniform than stockpot ranges. Operators can adjust the temperature using the control knob, which has 10 increment marks showing the available heat levels. The thermostat regulates the heat, turning it on or off to get the current internal temperature to match the set level.

Users tilt cooked contents out by turning the manual hand crank, which provides more control over the tilt motion than a hand lever. When the kettle body is tilted, the pour spout directs food into pans up to 4 inches deep, which fit under the rim—reinforced to resist dents that could alter the steam pressure level. Durable to support heavy-duty operations, the Groen TDHC-40C steam kettle is made of welded stainless steel, a material that resists corrosion and facilitates cleaning.

Product Details

• 40-qt. (10-gal.) capacity
• Self-contained steam source operates without a generator or boiler
• Two-thirds jacketed around the lower kettle body
• Pre-charged water is heated by burners and generates steam that flows into the jacket
• Manual tilt with a right-mounted crank
• Accommodates 4-in.-deep pans under the tilted kettle body
• Reinforced rim uses a welded, butterfly-shaped pour lip to move food into the pan without drips
• Constructed of 1-piece, welded, 304 stainless steel for durability and rust resistance
• Tabletop design
• Rear-mount faucet bracket
• Maximum 50 PSI steam pressure
• 52,000 BTU

Classic Control System

• Temperature control knob has 1-10 increments
• Approximate temperature range: 150-295 degrees F
• Thermostat regulates the cooking temperature to match the set level by turning heat on and off
• On/off power switch with indicator light
• Heat-on indicator light
• Low-water indicator light
• Right mounted in housing that resists water damage

Safety Features

• Low-water cut-off feature cuts the gas supply to the burners when the jacket water level is low
• High-limit pressure switch shuts off the burners when the pressure reaches 43 PSI, keeping it off until the pressure decreases
• Pressure relief valve releases jacket steam when pressure exceeds 50 PSI
• Safety tilt cut-off feature shuts off the heat when the kettle body is tilted past 12 degrees
• Gas supply shuts off automatically when the body tilts

Dimensions & Utilities

• 28 in. W x 32 in. D x 29.5 in. H
• Uses LP gas

From The Manufacturer

Kettle, gas, table top, 40 quart capacity, 2/3 jacket, IPX6 water rated electronic Classic controls, 304 stainless steel liner, crank tilt, support console on right, stainless steel construction, 50 PSI, 0 - 2000' elevation, 52,000 BTU, cCSAus, NSF, Made in USA

*Image may not depict product color, inclusions or accessories.

Limited 1-year Parts & Labor/2000 Operating Hours; 10-year Hemisphere; 2-year Parts & Labor/4000 Operating Hours for K-12 School
