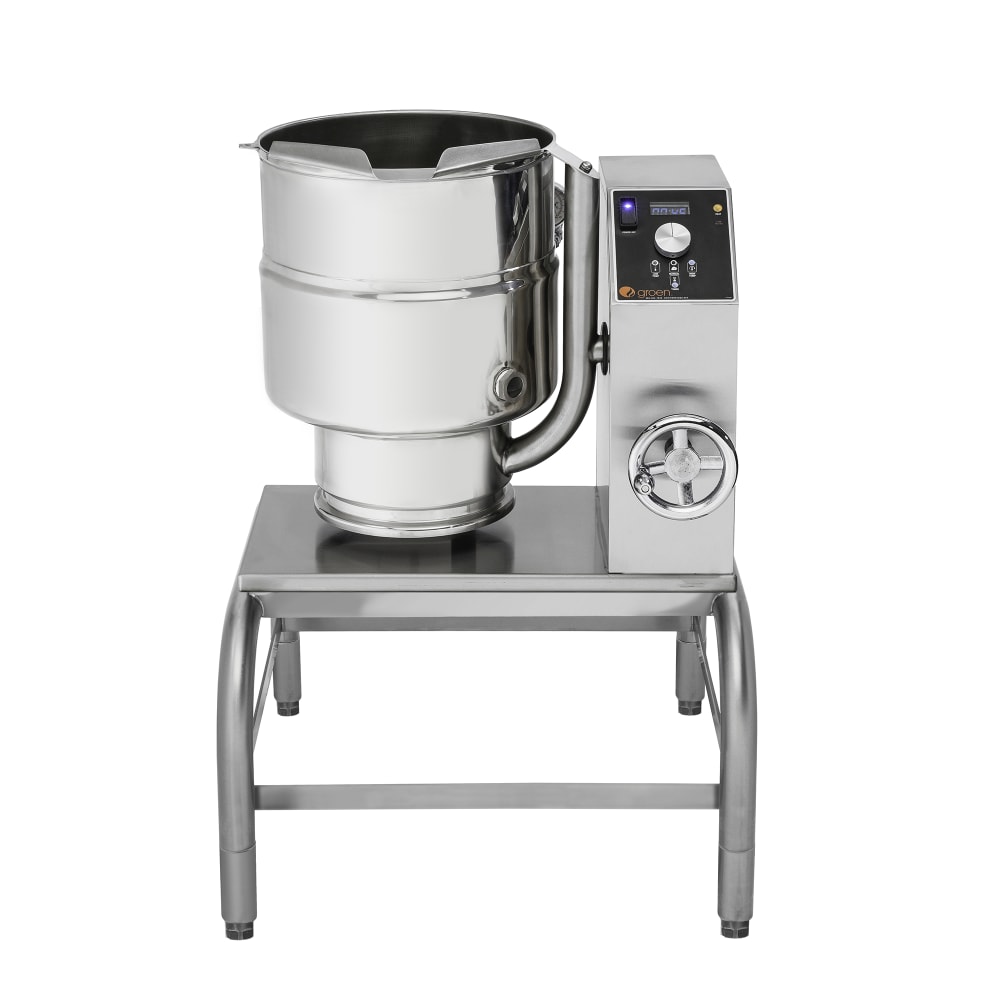

Groen TDBC-40C 10 gal Steam Kettle - Manual Tilt, 2/3 Jacket, 208v/1ph
$10,985.85 /Each
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Groen TDBC-40C Description
The Groen TDBC-40C tilting kettle has a 40-quart (10-gallon) capacity that is ideal for high-volume batch cooking on the countertop. When the unit is heated, water in its jacket—which covers the lower two-thirds of the kettle body—turns into self-contained steam to eliminate the need for an external generator or boiler. It cooks food with this steam, a method that requires less effort than cooking on a stock pot range, but also provides a more even heat.
With a manual tilt mechanism, the Groen TDBC-40C steam kettle is operated using a crank, which provides more precise control over the tilt motion than a hand lever, emptying cooked food into a container or pan as deep as 4 inches underneath the welded-in pouring lip. Shaped to smoothly direct food into the container below, the pour lip reduces dripping and product waste, and while rims on kettles like this one often get dented, this unit has a reinforced design that protects it, preventing the steam pressure from fluctuating. A faucet bracket is included with the kettle so users can add a single- or double-pantry faucet for a constant supply of water.
- 40-qt. (10-gal.) capacity
- Self-contained steaming without a generator or boiler
- Two-thirds steam jacket with pure, factory-charged water
- Jacket water is heated and turns into steam
- Manual crank tilt mechanism
- 4-in.-deep pan fits below the pour path
- Welded-in, butterfly pouring lip directs food into pan without dripping
- Rim has a reinforced construction that prevents denting
- Made of welded, 1-piece, 304 stainless steel for strength and rust resistance
- Heat automatically turns off when the kettle body is tilted past 12 degrees
- Pressure relief valve
- High-limit pressure switch
- Low-water cut-off feature prevents burnout by turning power off if water is low
- Tabletop model
- Rear-mount faucet bracket
- Temperature control knob with 10 levels
- Approximate temperature range: 150-295 degrees F
- Thermostatic control senses the temperature and turns the power on and off to regulate it
- Power on/off switch
- Power indicator light
- Heat indicator light
- Low-water indicator light
- Mounted on the right in a water-resistant enclosure
- 28 in. W x 25 in. D x 25 1⁄8 in. H
- 52 A, 10.8 kW
- 208 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Groen TDBC-40C within the 48 contiguous states.
From The Manufacturer
Kettle, electric, table top, 40 quart capacity, 2/3 jacket, IPX6 water rated electronic Classic controls, 304 stainless steel liner, crank tilt, faucet bracket, support console on right, stainless steel construction, cULus, NSF, Made in USA
Groen TDBC-40C Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Groen |
| Base | Console |
| Capacity (gallons) | 10 |
| Design | 2/3 Jacket |
| Heat | Electric |
| Hertz | 60 |
| No. of Kettles | 1 |
| Phase | 1 |
| Tilt Mechanism | Crank |
| Type | Countertop |
| Voltage | 208 |
| Warranty | 1-year Limited Parts & Labor/2000 Operating Hours; 10-year Hemisphere; 2-year Parts & Labor/4000 Operating Hours for K-12 School |
| Weight | 190.00 |
