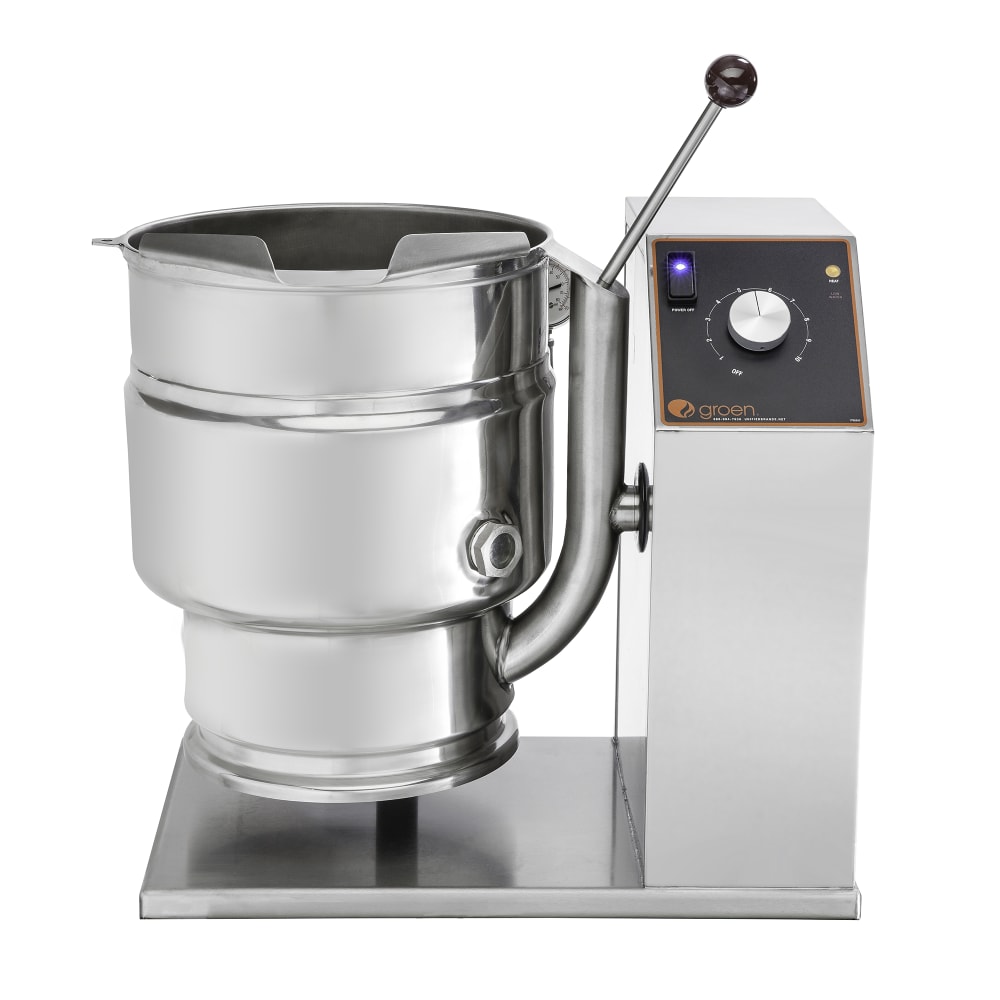

Groen TDB-48C 12 gal Steam Kettle - Manual Tilt, 2/3 Jacket, 208v/3ph

With a 12-gallon capacity, the Groen TDB-48C tilting kettle is great for warming large volumes of soup, rice, chili, stew, or pasta. This self-contained unit doesn't require an external boiler or steam generation system to power its two-thirds steam jacket, unlike direct-steam configurations. Its electronic heating system can produce and maintain temperatures from 150 to 295 degrees Fahrenheit to accommodate holding requirements, and once it reaches set temperatures, it's thermostatically controlled to shut off for energy conservation. If food temperature drops below the set point, the thermostat will turn back on to regulate heat. For simple operation, its right-mounted classic controls include a power switch with an indicator light, temperature-control knob with 1-to-10 increments, heat indicator light, and low-water warning light.

This Groen TDB-48C tabletop tilting kettle measures 28 inches wide by 22²/₅ inches deep by 27¹/₃ inches high and is made of exceptionally durable 304 stainless steel for long-term wear, rust, and corrosion resistance. Once product is cooked, operators can use the hand tilt to pour contents from its butterfly-shaped pouring lip into a 4-inch-deep pan. To accommodate specific kitchen setups or user requirements, it includes right- and left-hand tilt handle mounts for flexibility.

Product Details

• 12-gal. capacity
• Operating temperature range: 150-295 degrees F
• Self-contained, electrically heated steam source
• Two-thirds steam jacket
• Tabletop configuration
• Welded, 1-piece 304 stainless steel construction
• 180 emery grit interior finish
• Bright, high-buff exterior finish
• Field-reversible tilt handle
• Heavy, reinforced rim
• Butterfly-shaped pouring lip
• Classic controls: power switch with indicator light, temperature control knob with 1-10 increments, heat indicator light, low-water warning light
• Thermostatically controlled to shut off when desired temperature is reached
• Safety system: safety-tilt cutoff, pressure relief valve, high-limit pressure switch, low water cutoff, and 24-V control system
• Maximum working pressure: 50 PSI

Dimensions & Utilities

• 28 in. W x 22²/₅ in. D x 27¹/₃ in. H
• 52 A, 10.8 kW
• 208 V/60 Hz/3 ph
• ³⁄₄-in. water-resistant conduit

Product Features

*Free shipping on Groen TDB-48C within the 48 contiguous states.

From The Manufacturer

Kettle, electric, table top, 48 quart capacity, 2/3 jacket, IPX6 water rated electronic Classic controls, 304 stainless steel liner, hand tilt, faucet bracket, support console on right, stainless steel construction, cULus, NSF, Made in USA

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor/2000 Operating Hours; 10-year Hemisphere; 2-year Parts & Labor/4000 Operating Hours for K-12 School
