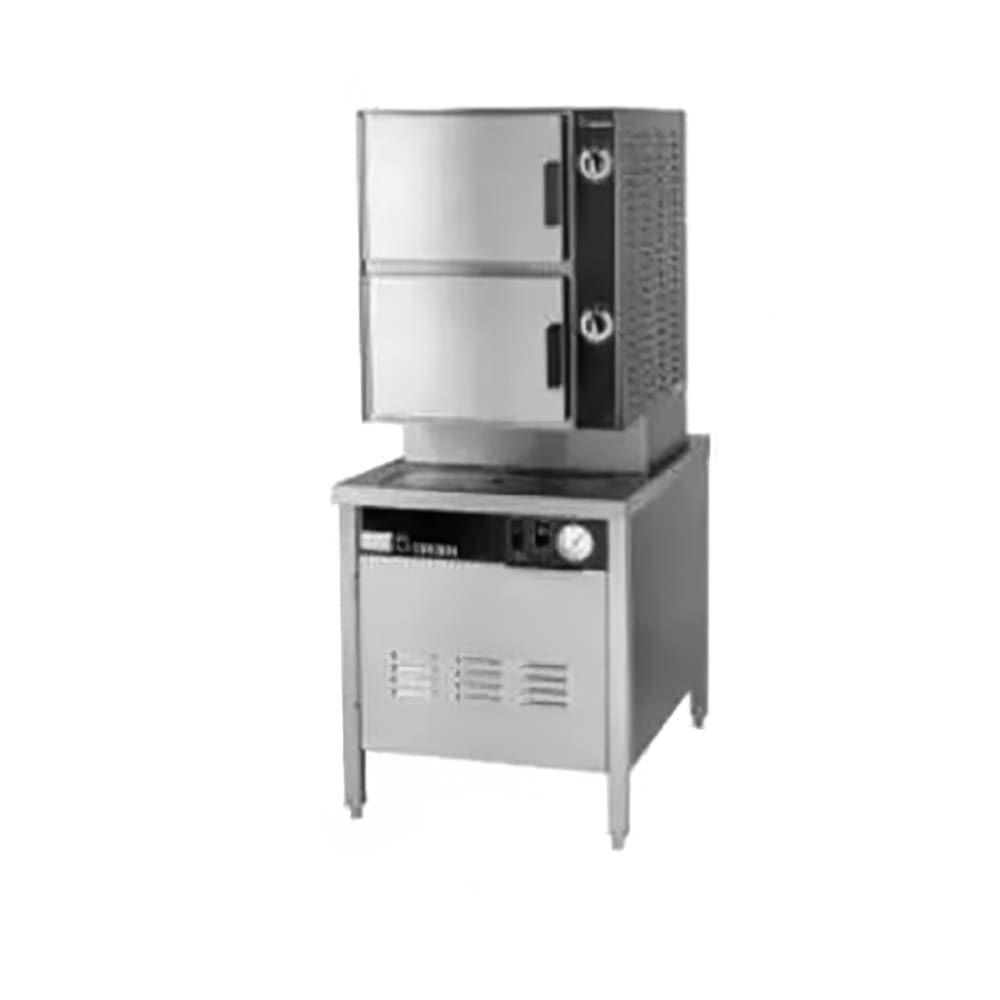

Groen HY-6SG-36 (6) Pan Convection Steamer - Cabinet, Liquid Propane
Typically ships in 4 - 6 weeks
$26,784.01 /Each
Selected Gas Type: Liquid Propane
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Groen HY-6SG-36 Description
The Groen HY-6SG-36 HyPlus™ pressureless steamer features two steamer compartments that hold three 12-inch by 20-inch by 2 1⁄2-inch pans each. Made of durable stainless steel, the compartments feature removable side panels for accessing internal components. These compartments sit on a 36-inch-wide, stainless steel cabinet and top deck, while the base houses the gas-heated boiler and has a removable front panel for boiler access. Two field-reversible, stainless steel doors have easy-open handles and latches to ensure the doors remain closed.
The Groen HY-6SG-36 convection steamer's boiler creates an atmospheric steam temperature of 212 degrees Fahrenheit in the compartments. Sight glass on the boiler enables users to monitor the water levels, and a gas control valve enables adjustment of gas levels. Preventing damage to internal components, a sensor alerts users when water levels are getting too low. Once the unit is powered off and water has cooled to 170 degrees Fahrenheit, the boiler automatically drains.
- 2 steamer compartments
- Holds (6) 12-in. x 20-in. x 2 1⁄2-in. pans
- 36-in.-wide, stainless steel cabinet and top deck have a removable front panel
- Durable stainless steel compartments
- Right side panels are removable, enabling user to reach internal components
- Field-reversible, stainless steel doors open with handles and latches
- Magnetic door switches cuts off power to blowers and generators when the doors are opened
- Removable stainless steel pan support racks
- Wide drip sink and condensate drain located underneath doors
- Front-mounted controls include on/off switch and a 60-min. timer with constant steam for each compartment
- Steam is evenly distributed in each compartment by side-mounted blowers
- Unit shuts off if water level gets too low or pressure builds too high
- Part of the HyPlus series
- Gas heated and mounted in the cabinet base
- Operating temperature: 212 degrees F
- 200,000 BTU
- Sight glass enables monitoring of water levels
- Gas control valve lets users adjust gas levels
- Low-water sensor prevents water levels from getting too low
- Power-on switch
- Automatically drains once the unit is powered off and the water has cooled to 170 degrees F
- 36 1⁄8 in. W x 34 3⁄16 in. D x 57 3⁄16 in. H
- Uses LP gas
- 5 A, 6 kW
- 120 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Groen HY-6SG-36 within the 48 contiguous states.
From The Manufacturer
HyPlus™ Pressureless Steamer, gas, 2 compartments, 36" cabinet base, (3) 12" x 20" x 2-1/2" deep pans /compartment, stainless steel construction, dual water connection, 200,000 BTU, CSA-Star, NSF, Made in USA (CSD-1 compliant)
Groen HY-6SG-36 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Groen |
| Application | High Volume |
| Base | Cabinet |
| Controls | Manual |
| Depth (in) | 34.25 |
| Gas Type | LP |
| Heat | Gas |
| Height (in) | 58.75 |
| Hertz | 60 |
| kW | 6 |
| No. of Compartments | 2 |
| Pan Capacity | 3 to 9 Pans |
| Pan Type | Full Size Steam Pans |
| Product | Steamers |
| Product Type | Cooking Equipment |
| Series | HyPlus™ |
| Steam Generator | Boilerless |
| Steamer Type | Convection |
| Total BTU | 200000 |
| Warranty | 1-year Limited Parts & Labor/2000 Operating Hours; 5-year Cavity; 2-year Parts & Labor/4000 Operating Hours for K-12 School |
| Water Source | Plumbed |
| Width (in) | 36.13 |
| Weight | 805.00 |
