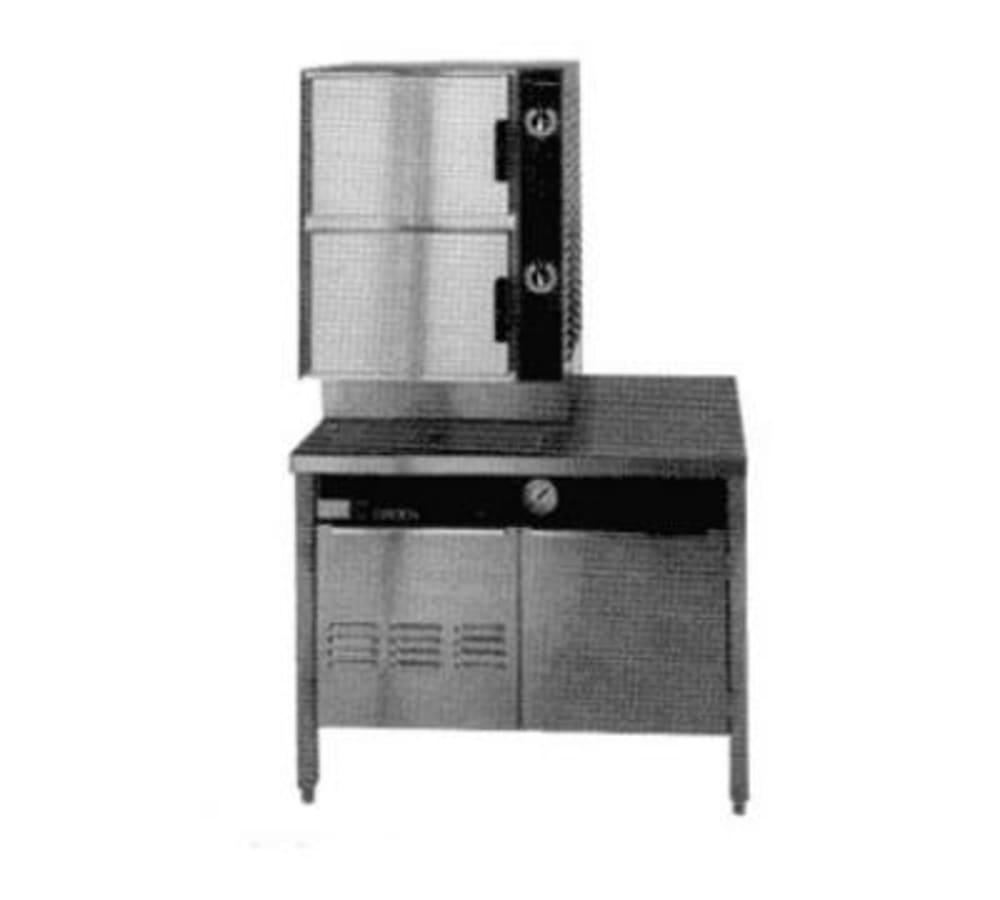

Groen HY-6SG-36 (6) Pan Convection Steamer - Cabinet, Includes Worktop, Natural Gas
Typically ships in 4 - 6 weeks
$33,599.50 /Each
Call us for pricing
Selected Gas Type: Natural Gas
Liquid Propane
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Similar Products in Stock Now
Groen HY-6SG-36 Description
The cabinet base in this Groen HY-6SG-36 HyPlus™ commercial steamer has a pressure boiler that provides atmospheric steam at 212 degrees Fahrenheit. Blowers move steam throughout the three-pan compartments, and pan rack supports hold the pans in place. Providing additional space beside the steaming compartments for a steam-jacketed kettle, the base is 36 inches wide.
Because the doors on this Groen HY-6SG-36 gas floor-model steamer are field reversible, they can open from the left or right. Their stainless steel construction provides strength, while the one-piece seals contain steam in the compartments. If a door is opened during a cycle, the magnetic switch shuts off steam flow and the blowers, and the automatic shut-off feature prevents operation if the water gets too low or the pressure reaches an unsafe level. When this commercial food steamer is shut off, the boiler automatically drains when the water is cooled to 170 degrees Fahrenheit, minimizing sediment buildup.
Product Details
- Pressure boiler is integrated into the cabinet base, providing atmospheric steam to cook product
- Steam temperature: 212 degrees F
- Side-mounted blowers are powerful and evenly move steam between the hotel pans
- Each compartment accommodates (3) 12-in. x 20-in. x 21⁄2-in. pans
- Removable pan support racks are stainless steel
- Stainless steel compartments resist rusting and scratching
- Right-side panel is removable to provide component access
- Stainless steel doors are field reversible to open from the right or left
- Doors have replaceable, 1-piece seals for insulation
- Magnetic switch cuts off steam flow and blowers when doors are opened
- Automatic shut-off activates when pressure is too high or water is too low
- Boiler drains to automatically minimize sediment buildup when power is off and water has cooled to 170 degrees F
- Front and rear legs use adjustable bullet feet to stabilize on uneven surfaces
- 200,000 input BTU
- 120,000 output BTU
Steam and Boiler Control Systems
- Steam power on/off switch
- 60-min. electromechanical timers for steam cycles
- Continuous setting eliminates timing for steam
- Boiler power-on switch with reset switch
- Boiler water level sight glass
- Boiler low-water sensor
Dimensions & Utilities
- 361⁄8 in. W x 343⁄16 in. D x 573⁄16 in. H
- Heated by natural gas
From The Manufacturer
HyPlus™ Pressureless Steamer, gas, 2 compartments, 36" cabinet base, (3) 12" x 20" x 2-1/2" deep pans /compartment, stainless steel construction, dual water connection, 200,000 BTU, CSA-Star, NSF, Made in USA (CSD-1 compliant)
*Image may not depict product color, inclusions or accessories.
Groen HY-6SG-36 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Groen |
| Application | High Volume |
| Base | Cabinet |
| Total BTU | 200000 |
| Controls | Manual |
| Depth (in) | 34.25 |
| Gas Type | NG |
| Heat | Gas |
| Height (in) | 58.75 |
| Pan Capacity | 10 or More Pans |
| Steam Generator | External Source |
| Warranty | Limited 1-year Parts & Labor/2000 Operating Hours; 5-year Cavity; 2-year Parts & Labor/4000 Operating Hours for K-12 School |
| Width (in) | 36.13 |
| Series | HyPlus™ |
| Product | Steamers |
| Product Type | Cooking Equipment |
| No. of Compartments | 2 |
| Water Source | Plumbed |
| Steamer Type | Convection |
| Weight | 805.00 |
