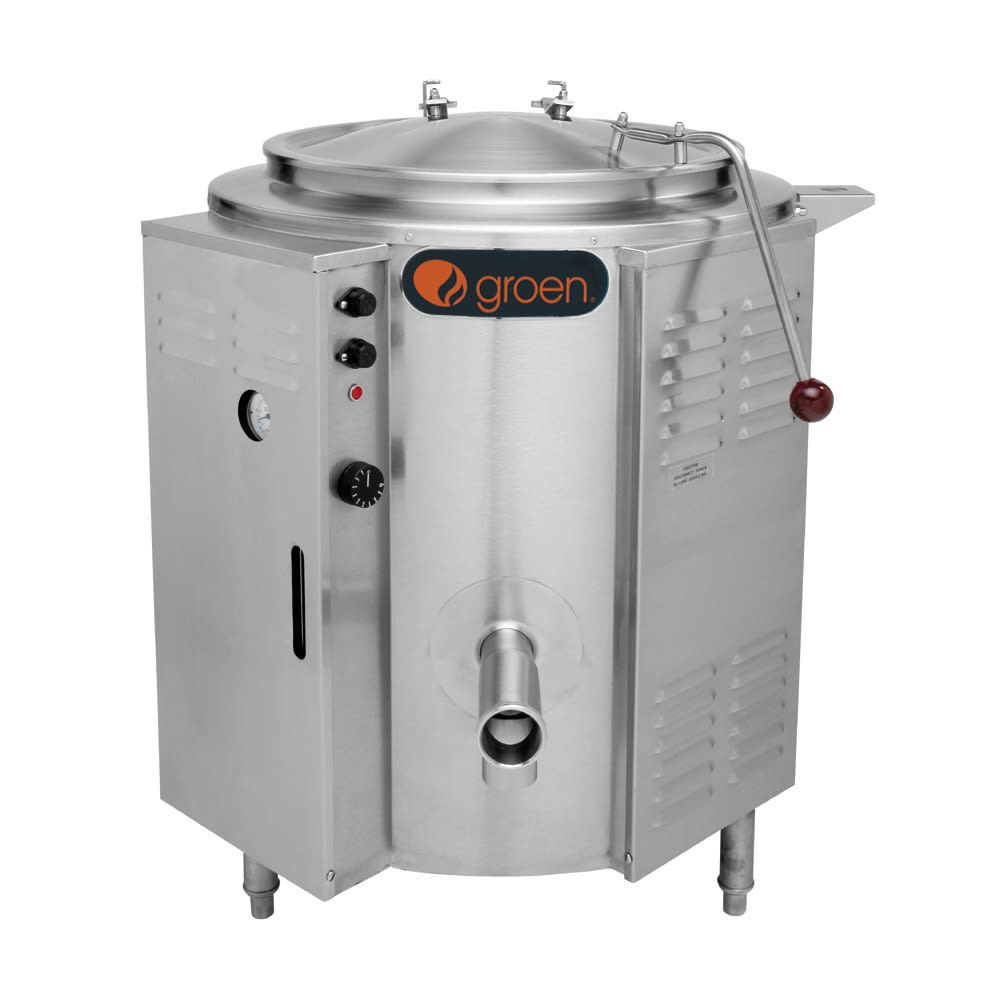

Groen EE-80 80 gal Steam Kettle - Stationary, 2/3 Jacket, 208v/3ph

With an 80-gallon capacity, the Groen EE-80 steam kettle is best used for high-volume cooking. Between the interior and exterior, a hollow jacket is filled with water, so when the unit is heated, steam forms. The jacket covers the bottom two-thirds of the kettle, which is more affordable than fully jacketed options, though it may not heat as evenly. Because the unit cooks with steam, it is an easier-to-use alternative to a stock pot range. For cooking barbeque sauce and other acidic products, the interior of this stationary kettle is lined with 316 stainless steel—a more corrosion-resistant material than 304 stainless steel.

Sheathed in stainless steel and air-gap insulated, the unit keeps heat inside to maintain even temperatures and a cool-to-the-touch exterior. The unit is covered by a counterbalanced, spring-assisted lid that opens and closes smoothly while a draw-off valve is integrated into the unit, so users can remove liquid from the kettle. This comes in handy for getting broths out of the unit and cleaning the interior. Operating with a temperature range from 150 to 270 degrees Fahrenheit, this Groen EE-80 steam-jacketed kettle is thermostatically controlled.

Product Details

• 80-gal. capacity
• Temperature holding range: 150-270 degrees F
• Steam forms when water in the jacket is heated by the element
• Self-contained with water already in the jacket
• Jacket covers the bottom two-thirds of the kettle
• Maximum steam pressure: 30 PSI
• 316 stainless steel liner resists corrosion with highly acidic product
• Insulated and sheathed in stainless steel to prevent steam from escaping, keeping the exterior cool
• 1-piece dome cover has a counterbalanced, spring-assisted design that smoothly opens and closes
• 2-in. tangent draw-off valve eases broth removal and water cleaning
• ¹⁄₄-in. perforated strainer catches solid food and debris to prevent valve clogging
• Valve can be disassembled without tools
• Open tri-leg base

Control System

• Pilot light shows the heating elements are on
• Thermostat controls the contactor so it can turn the heating elements on and off
• Pressure/vacuum gauge monitors steam pressure and checks for air in the jacket
• Safety valve lets steam out of the jacket if pressure is too high
• Water level sight glass shows water amounts in the jacket
• Low-water cut-off feature shuts off power if the water level is too low, preventing the heating element from burning out
• Components are enclosed in a reachable, stainless steel housing for splash protection

Dimensions & Utilities

• 44¹⁄₈ in. W x 44³⁄₄ in. D x 44 in. H (H is measured to the rim; 74-in. H with the cover open)
• 90 A, 32.4 kW
• 208 V/60 Hz/3 ph

*Free shipping on Groen EE-80 within the 48 contiguous states.

From The Manufacturer

Kettle, electric, 80-gallon capacity, 2/3 jacket, 316 stainless steel liner, insulated & sheathed, open tri-leg base, stainless steel construction, 2" TDO, 1/4" perforated strainer & power aid cover, bullet feet, 30 PSI

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor/2000 Operating Hours; 10-year Hemisphere; 2-year Parts & Labor/4000 Operating Hours for K-12 School

Groen EE-80 Specifications

Documents

Spec Sheet

Warranty
