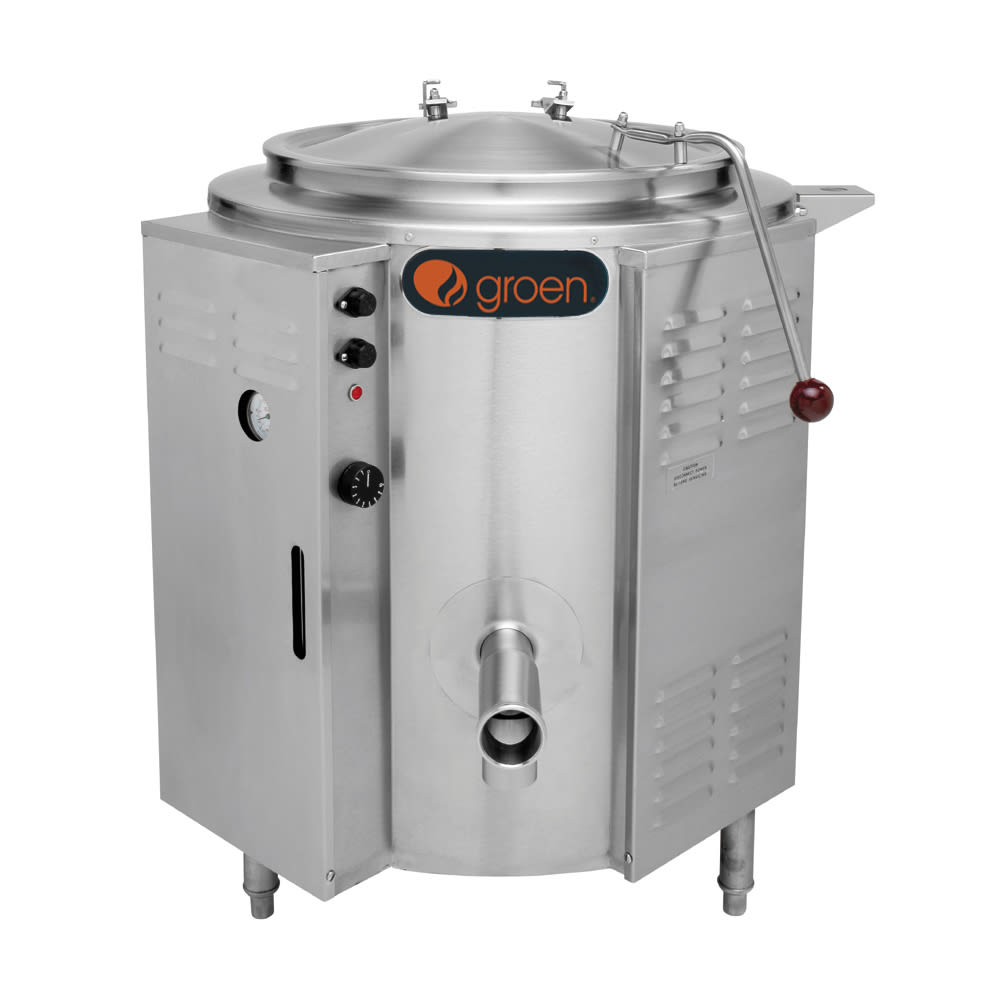

Groen EE-100 100 gal Steam Kettle - Stationary, 2/3 Jacket, 208v/3ph

The Groen EE-100 steam kettle has a 100-gallon capacity for large, high-volume operations. Added at the factory, water in the jacket is a self-contained steam source, so the unit does not require a water supply. With a two-third jacket, steam covers the bottom section of the kettle, saving power and water compared to full-jacketed models, though it can provide an uneven heat. Its interior liner is made of 316 stainless steel—a material that resists corrosion even with highly acidic products.

The controls on this Groen EE-100 stationary steam-jacketed kettle are in a stainless steel enclosure to protect them from damage and are still within close reach. A pilot light shines when the unit is heating while the temperature can be set on the thermostat. When the temperature reaches its set level, the unit shuts off, and when it requires heat, it turns back on. Operators can monitor the steam pressure in the jacket on the gauge and check the jacket water level on the sight glass while the safety valve releases steam in the jacket if the pressure gets too high.

Product Details

• 100-gal. capacity
• Temperature range: 150-270 degrees F
• Self-contained steam operation with factory-charged water in the jacket creates steam when it is heated
• Two-third steam jacket covers the bottom two-thirds of the kettle
• Maximum steam pressure: 30 PSI
• 316 stainless steel interior liner resists corrosion with highly acidic food
• Sheathed in stainless steel and insulated to prevent air from escaping and keep the exterior cool to the touch
• 1-piece dome cover is counterbalanced and spring assisted for smooth opening and closing
• 2-in. tangent draw-off valve drains contents and simplifies cleaning
• ¹⁄₄-in. perforated strainer prevents clogging in the draw-off valve
• Valve can be disassembled without tools
• Open tri-leg base

Control System

• Pilot light illuminates when the unit is heating
• Thermostat controls the temperature, turning on when it needs to be higher and shutting off when the set temperature is met
• Contactor is controlled by the thermostat, turning the heating element on and off
• Pressure/vacuum gauge shows steam pressure and if there is air in the jacket
• Safety valve releases steam if jacket pressure is too high
• Water level sight glass shows the water level in the steam jacket
• Low-water cut-off feature turns off power if water is low to prevent element overheating
• Stainless steel housing protects against splashing
• Within close reach of operator

Dimensions & Utilities

• 44¹⁄₈ in. W x 44³⁄₄ in. D x 50 in. H (H is measured to the rim; 80-in. H with the cover open)
• 90 A, 32.4 kW
• 208 V/60 Hz/3 ph

*Free shipping on Groen EE-100 within the 48 contiguous states.

From The Manufacturer

Kettle, electric, 100-gallon capacity, 2/3 jacket, 316 stainless steel liner, insulated & sheathed, open tri-leg base, stainless steel construction, 2" TDO, 1/4" perforated strainer & power aid cover, bullet feet, 30 PSI

*Image may not depict product color, inclusions or accessories.

Groen EE-100 Specifications

Spec Attribute	Spec Value
Manufacturer	Groen
Base	Tri Leg
Capacity (gallons)	100
Design	2/3 Jacket
Heat	Electric
Hertz	60
No. of Kettles	1
Phase	3
Tilt Mechanism	Stationary
Type	Floor Model
Voltage	208
Warranty	1-year Limited Parts & Labor/2000 Operating Hours; 10-year Hemisphere; 2-year Parts & Labor/4000 Operating Hours for K-12 School
Weight	905.00
