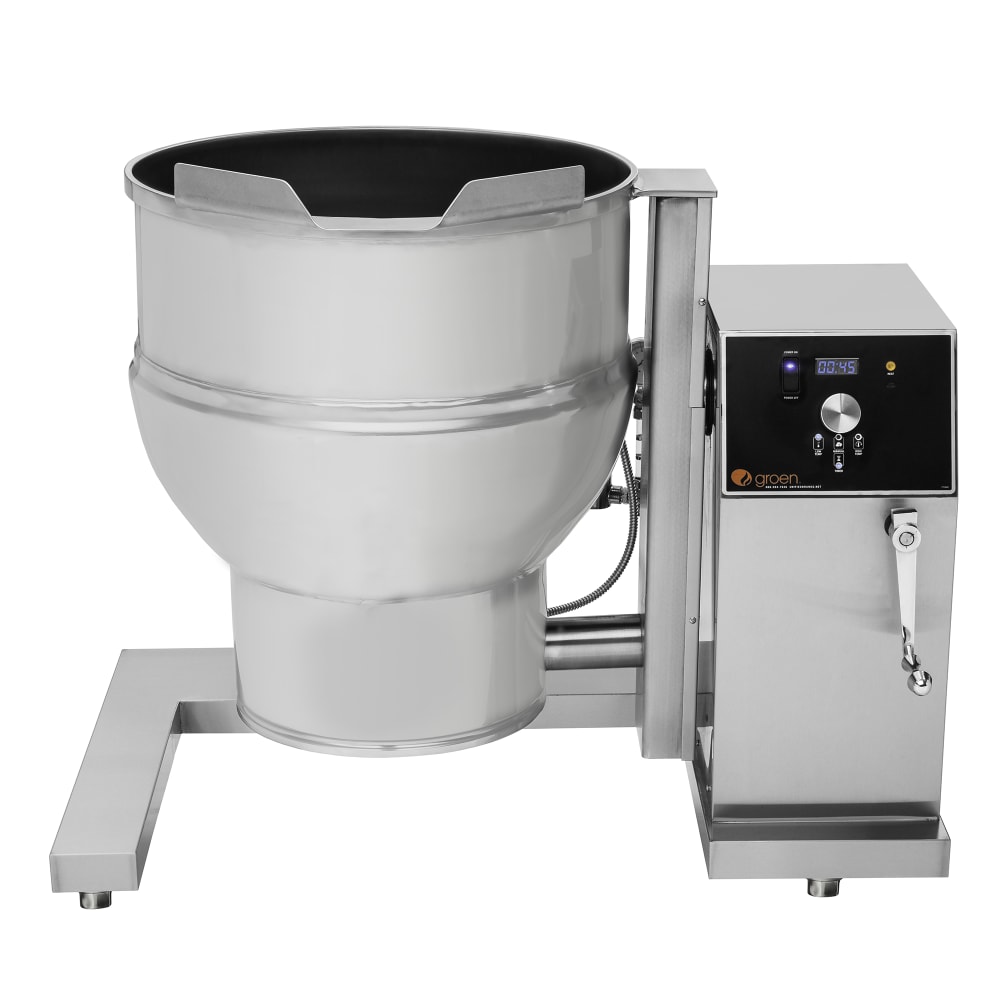

Groen DEE/4-40C 40 gal. Steam Kettle - Manual Tilt, 2/3 Jacket, 208v/3ph

Because of its 40-gallon capacity, the Groen DEE/4-40C tilting steam kettle can cook large portions of food for correctional institutions, hospitals, and schools. Surrounding the interior, a two-thirds jacket covers this kettle, and when turned on, water in the jacket heats up and turns into steam. This steam jacket cooks more evenly than traditional, bottom-only heat sources. For extended use, rust inhibitors reduce the chances of rust forming in the inner jacket layer, while a low-water cut-off ensures the system only operates when there is the correct amount of water inside. Employees can check the water level periodically using the sight glass, or they can refill it whenever the low-water light comes on.

This Groen DEE/4-40C floor model steam kettle has such a large capacity that it comes with a manual hand crank. Using the crank, employees can pour cooked product into separate containers, even when it is still warm. The tilt mechanism self-locks while in motion so product does not slosh out, and to prevent splashing, the pouring lip has a butterfly shape. For strength, the rim is reinforced with a bar, and the kettle has been welded into a single piece. Its stainless steel construction is durable, rust resistant, and quick to wipe down.

Product Details

• 40-gal. capacity
• 1-piece, welded kettle and reinforced rim are sturdy
• Two-thirds jacket comes filled with water for first use
• Rust inhibitors prevent rusting in the jacket
• Butterfly-shaped lip for controlled pouring
• Stainless steel external surfaces streamline cleaning
• Polished finish enhances appearance
• Self-contained steam source eliminates need for a boiler connection
• Adjustable bullet feet
• Rear requires 6-in. space from wall

Product Features

Classic Controls

• Power switch with indicator light
• Heat knob with levels 0-10
• Heat indicator light
• Approximate temperature range: 150-295 degrees F
• Thermostatic controls turn heat on only when below the desired level
• Low-water indicator light tells users when to refill the jacket
• Water sight glass for checking jacket fill level
• Low-water cut-off stops operation when water level is too low
• Pressure-vacuum gauge shows current pressure
• Pressure limit and relief valve ensure pressure stays at the correct levels
• Manual tilt control
• Self-locking tilt mechanism ensures pouring is smooth
• Water-resistant housing for controls

Dimensions & Utilities

• 47 in. W x 29¹⁄₂ in. D x 40³⁄₈ in. H
• 59 A, 21 kW
• 208 V/60 Hz/3 ph

*Free shipping on Groen DEE/4-40C within the 48 contiguous states.

From The Manufacturer

Tilting Kettle, electric, 40-gallon capacity, 2/3 jacket, IPX6 water rated electronic Classic controls, 316 stainless steel liner, crank tilt, floor mounted control console, stainless steel construction, bullet feet, 50 PSI, cULus, NSF, Made in USA

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor/2000 Operating Hours; 10-year Hemisphere; 2-year Parts & Labor/4000 Operating Hours for K-12 School
