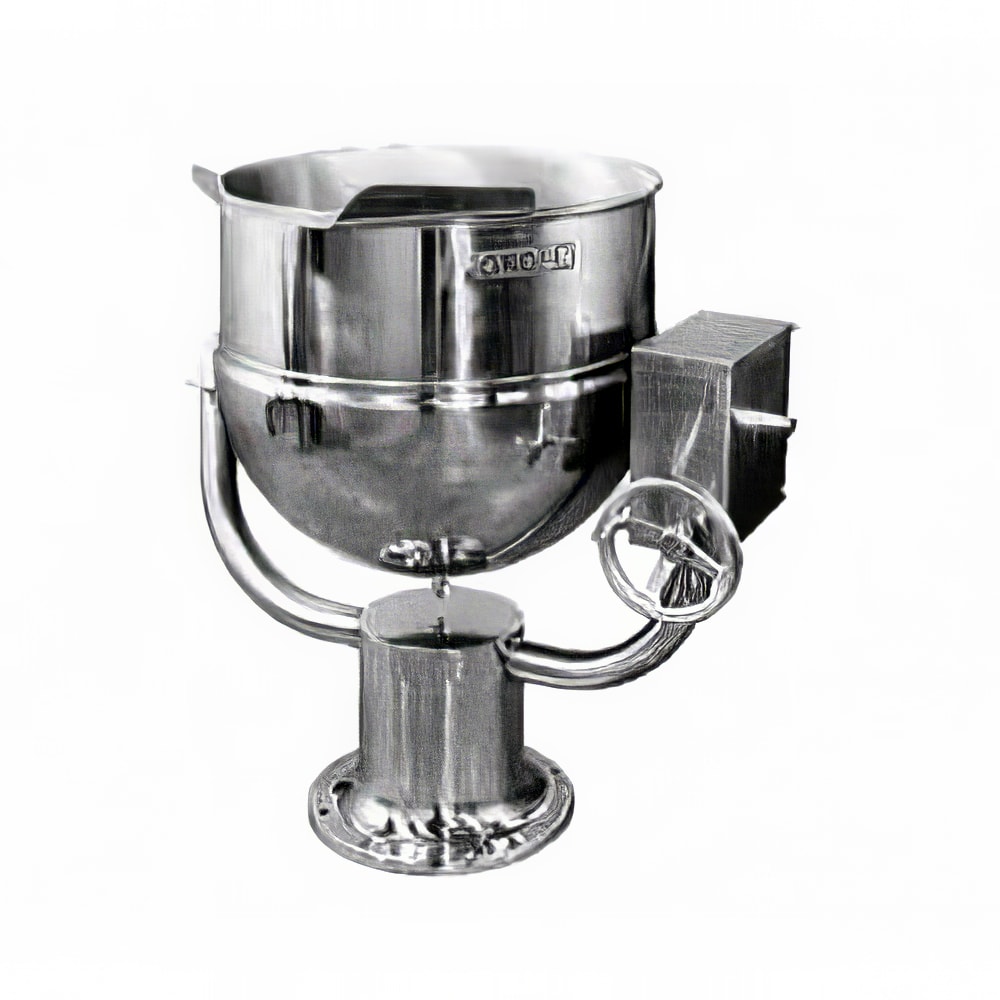

Groen D-60 60 gal Steam Kettle - Manual Tilt, 2/3 Jacket, Direct Steam
$17,071.76 /Each
Groen D-60 Description
The Groen D-60 tilting kettle has a 60-gallon capacity for high-volume applications. With a 316 stainless steel interior, it is highly resistant to corrosion, so it is best for acidic, tomato-based food. This kettle operates with direct steam, meaning it needs to be piped to a remote steam source, and steam flows into the unit through an adjustable inlet operators ensure can reach an ideal heat level. Steam kettles can either be fully jacketed or two-thirds jacketed, and this unit has a two-third jacket. With this design, steam only covers the bottom two-thirds of the kettle, saving power and water, though it can create an uneven heat transfer.
A manual hand crank is integrated into this Groen D-60 direct steam kettle, tilting the kettle so operators can efficiently remove its contents. Manually tilting is more economical than power tilting, though it can be more jerky and lead to spills. When the operator stops rotating the hand crank, the kettle self-locks into place, while the pour lip on the rim directs product into a separate pan. Reinforced for strength, the rim avoids denting, preventing it from altering steam pressure.
- 60-gal. capacity
- Direct steam operation heats product with steam from a remote source
- Steam comes into the inlet valve, which can be adjusted to alter the heat level
- Steam pressure range: 5-25 PSI
- Two-third jacket has steam two-thirds the way up the kettle from the bottom
- Durable jacket has a 1-piece, 304 stainless steel construction
- 316 stainless steel interior resists corrosion for use with highly acidic product
- Manually tilts when the large hand crank is rotated, efficiently emptying the contents
- Tilt mechanism self-locks to hold the kettle in the position it is stopped in
- Reinforced rim has a butterfly-shaped pour lip that directs product into a pan below
- Vertical flange around the pedestal base's outer edge secures the unit to the surface under it
- Includes faucet mounting bracket
- 47 in. W x 34 in. D x 43 in. H
- Direct steam
*Image may not depict product color, inclusions or accessories.
*Free shipping on Groen D-60 within the 48 contiguous states.
From The Manufacturer
Groen D-60 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Groen |
| Base | Pedestal |
| Capacity (gallons) | 60 |
| Design | 2/3 Jacket |
| Heat | Direct Steam |
| No. of Kettles | 1 |
| Tilt Mechanism | Crank |
| Type | Floor Model |
| Warranty | 1-year Limited Parts & Labor/2000 Operating Hours; 10-year Hemisphere; 2-year Parts & Labor/4000 Operating Hours for K-12 School |
| Weight | 280.00 |
Compare to Similar Items
| Attributes |
Groen D-60 Groen D-60 60 gal Steam Kettle - Manual Tilt, 2/3 Jacket, Direct Steam Current Item |
|
|---|---|---|
| Customer Rating |
|
|
| Price | $17,071.76 / Each | $20,257.00 / Each |
| Shipping | Free Shipping | Free Shipping |
| Type | Floor Model | Floor Model |
| Capacity (gallons) | 60 | 60 |
| No. of Kettles | 1 | 1 |
| Heat | Direct Steam | Direct Steam |
| Tilt Mechanism | Crank | Crank |
| Design | 2/3 Jacket | 2/3 Jacket |
| Warranty | 1-year Limited Parts & Labor/2000 Operating Hours; 10-year Hemisphere; 2-year Parts & Labor/4000 Operating Hours for K-12 School | 1-year Limited Parts & Labor; 10-year Hemisphere |
