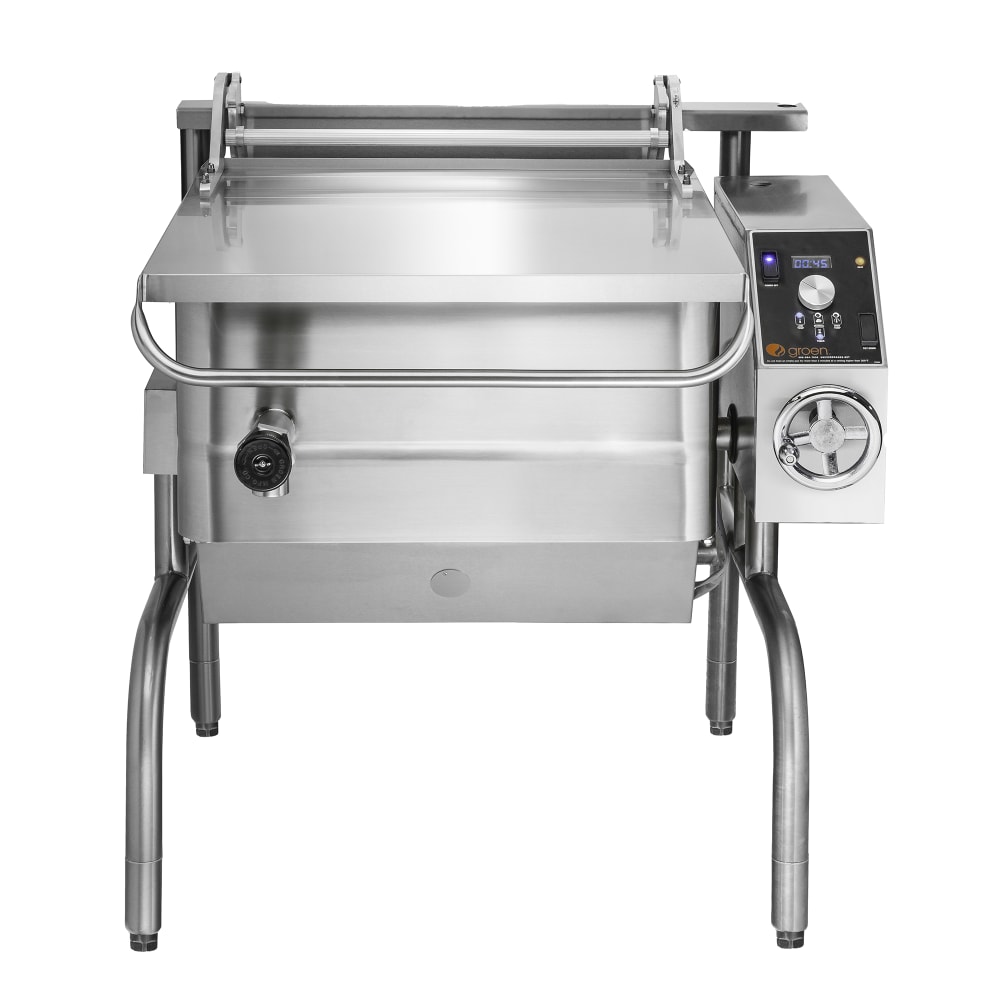

Groen BPM-30EC 30 gal. Tilt Skillet - Open Leg Base, Polished Pan, Measurement Marks, 208v/3ph

The Groen BPM-30E tilting braising pan has a 30-gallon capacity with a 10-inch pan depth and 38-inch pan height, meaning it is ideal for cooking in large batches. It tilts manually using a crank and a worm-gear-tilt mechanism and will tilt to a vertical position in 24 turns for pouring contents. For even heat distribution, the cooking surface is composed of a thick, stainless steel clad plate with flat bar, electric heating elements. So it will shut on and off automatically and maintain a consistent temperature, the unit is thermostatically controlled.

The Groen BPM-30E braising pan has a temperature control knob can set the pan between 175 and 400 degrees Fahrenheit while the front-facing controls are in a water-resistant enclosure on the right side. To accurately measure contents, the stainless steel body has etched marks in gallons and liters. For versatile faucet installation, the faucet mounting bracket enables right-side, left-side, or right-rear mounting.

Product Details

• 30-gal. capacity
• Stainless steel body has a 10-in. pan depth and 38-in. pan height
• Body features graduated fill marks in gallons and liters
• Faucet mounting bracket for left-side, right-side, or rear placement
• Cooking surface composed of a ⁵⁄₈-in.-thick, stainless steel clad plate
• Flat bar electric heating elements effectively transfer heat over the cooking surface
• Front-mounted controls are in an enclosure that resists water damage
• Controls include a power on/off switch with indicator light, temperature control knob, and heat indicator light
• High-limit thermostat monitors temperature
• Temperature range: 175-400 degrees F
• Thermostatically controlled to automatically shut on and off for the proper temperature

Manual Tilt

• Features a manual crank and worm-gear-tilt mechanism
• 24 turns to tilt to a vertical position
• Tilts past vertical to aid in cleaning
• 7-degree tilting angle for griddling

Dimensions & Utilities

• 45³/₁₀ in. W x 39³/₄ in. D x 43³/₁₀ in. H
• 32 A
• 208 V/60 Hz/3 ph

*Free shipping on Groen BPM-30EC within the 48 contiguous states.

From The Manufacturer

Braising Pan, electric, 30-gallon capacity, 10" deep pan, 38" pan height, IPX6 water rated electronic Classic controls, manual tilt, standard etch marks, faucet bracket, round tubular open leg base, stainless steel construction, bullet feet, 11.5 kW, cUL, UL, NSF, Made in USA, 208v/60/1ph

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor/2000 Operating Hours; 10-year Pan; 2-year Parts & Labor/4000 Operating Hours for K-12 School

Groen BPM-30EC Specifications

Documents

Spec Sheet

Warranty

Manual
