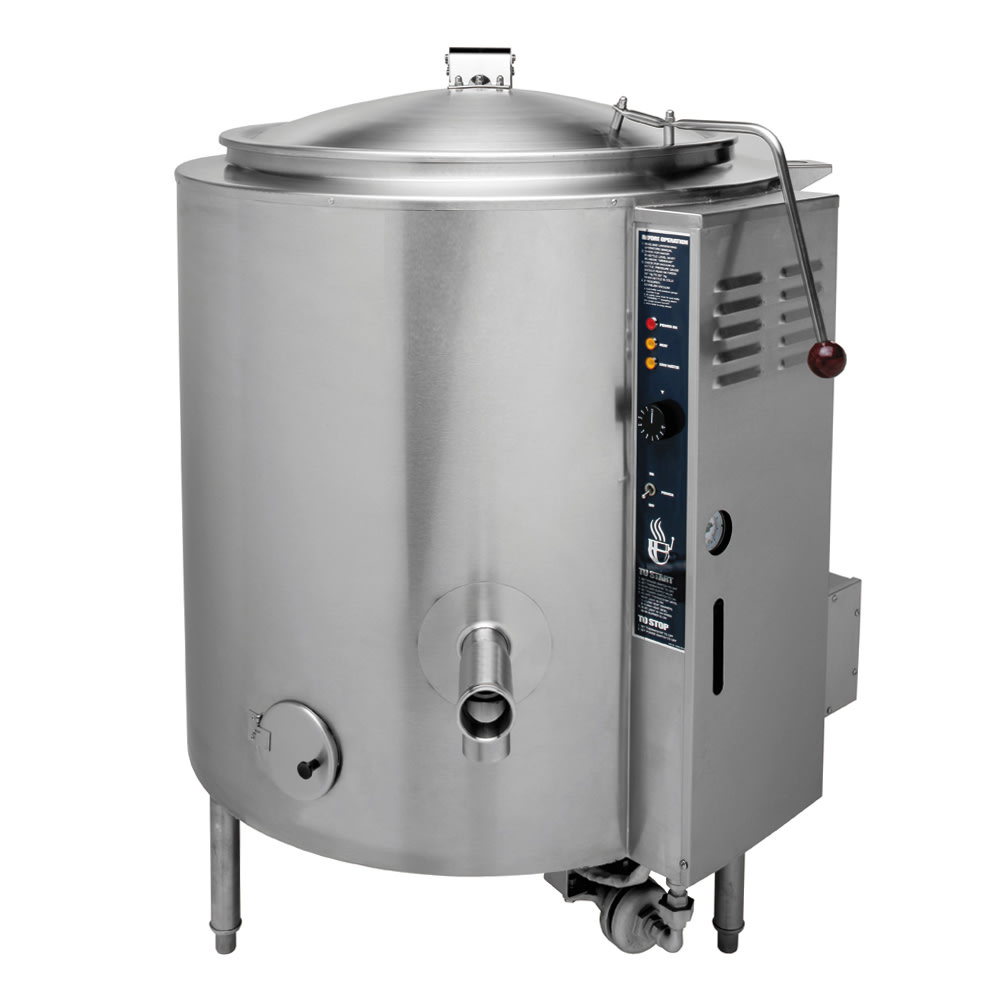

Groen AH/1E-80 80 gal. Steam Kettle - Stationary, 2/3 Jacket, Liquid Propane

The 80-gallon capacity in the Groen AH/1E-80 stationary steam kettle is perfect for high-volume batch cooking, from soups and stews to pasta and rice. The unit uses steam to cook, which takes less effort and is more forgiving than cooking on a range. Steam is self-contained inside the water-filled hollow jacket, so it does not require a connection to a generator or boiler. The jacket covers the lower two-thirds of the kettle, providing a more uniform heat than range-top cooking. Operators can set the temperature at a level between 150 and 270 degrees Fahrenheit using the thermostat.

This kettle has a one-piece, 316 stainless steel liner, which is more corrosion resistant than 304 stainless steel, so it can be used with highly acidic food. The kettle body has an insulated design, sheathed in stainless steel for heat retention and preventing the exterior from getting hot to the touch. A counterbalanced cover—lockable in open and closed positions—is included with the Groen AH/1E-80 steam-jacketed kettle, holding heat to shorten cook times and reduce energy use. The integrated 2-inch draw-off valve enables users to remove stocks and broths from the kettle, while a strainer on the valve keeps out large debris to prevent clogging.

Product Details

• 80-gal. capacity
• Self-contained steam source has a water-filled, hollow jacket around the kettle body
• Jacket surrounds the lower two-thirds of the body
• 1-piece, 316 stainless steel liner resists acidic corrosion
• Body is sheathed in stainless steel and insulated to retain heat and keep the exterior cool to the touch
• Cover holds heat inside, reducing cook times and saving energy
• Counterbalanced cover design can be locked in open or closed positions
• 3 adjustable legs
• Faucet bracket is included
• 30 PSI maximum working pressure
• 145,000 BTU

Control System

• Thermostat regulates the temperature based on the set level
• Temperature range: 150-270 degrees F
• Power-on switch with an indicator light
• Heating indicator light
• Low-water indicator light
• Low-water cut-off feature turns off the burner if the jacket water level is low
• Water sight gauge shows jacket water level
• Pressure gauge shows jacket steam pressure and if too much air is inside
• Pressure limit control regulates the steam pressure, turning off the burner if jacket pressure rises to 27 PSI and lighting the burner if pressure drops to 22 PSI
• Pressure safety valve lets out steam if pressure is more than 30 PSI
• Controls are mounted on the front in a water-resistant enclosure

Tangent Draw-off Valve

• Drains broths, stocks, and other liquid
• Standard 2-in. diameter
• ¹/₄-in. stainless steel, perforated strainer eliminates clogging
• Rubber compression disk seals the valve, preventing leaks
• Durable, insulated handle
• Disassembly without tools

Dimensions & Utilities

• 48 in. W x 56¹/₄ in. D x 56¹/₂ in. H (H measured to the rim; 91.5-in. H with the cover raised)
• Uses LP gas

*Free shipping on Groen AH/1E-80 within the 48 contiguous states.

From The Manufacturer

Kettle, gas, 80-gallon capacity, 2/3 jacket, 316 stainless steel liner, stainless steel insulated body, 2" TDO, 1/4" perforated strainer, power aid cover, faucet bracket, bullet feet, 30 PSI, 145,000 BTU, CSA Star, CSA Flame, NSF, Made in USA

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor/2000 Operating Hours; 10-year Hemisphere; 2-year Parts & Labor/4000 Operating Hours for K-12 School

Groen AH/1E-80 Specifications

Documents

Spec Sheet

Warranty

Manual
