American Metalcraft FS911 Flat Tongs Replacement Spring

Read 1 reviewKaTom #: 166-FS911 • MPN: FS911
  • 166-FS911 Primary Thumbnail Image
  • 166-FS911 Multiple Thumbnail Image #1
  • 166-FS911 Multiple Thumbnail Image #2
  • 166-FS911 Multiple Thumbnail Image #3

IN STOCK: Ships in 1 Business Day

100+ in Stock

Free Shipping Eligible

Retail Price: $1.00

$0.47 /Each

Attention: Order by 08-01-2025 to save before the price increases!

American Metalcraft FS911 Description

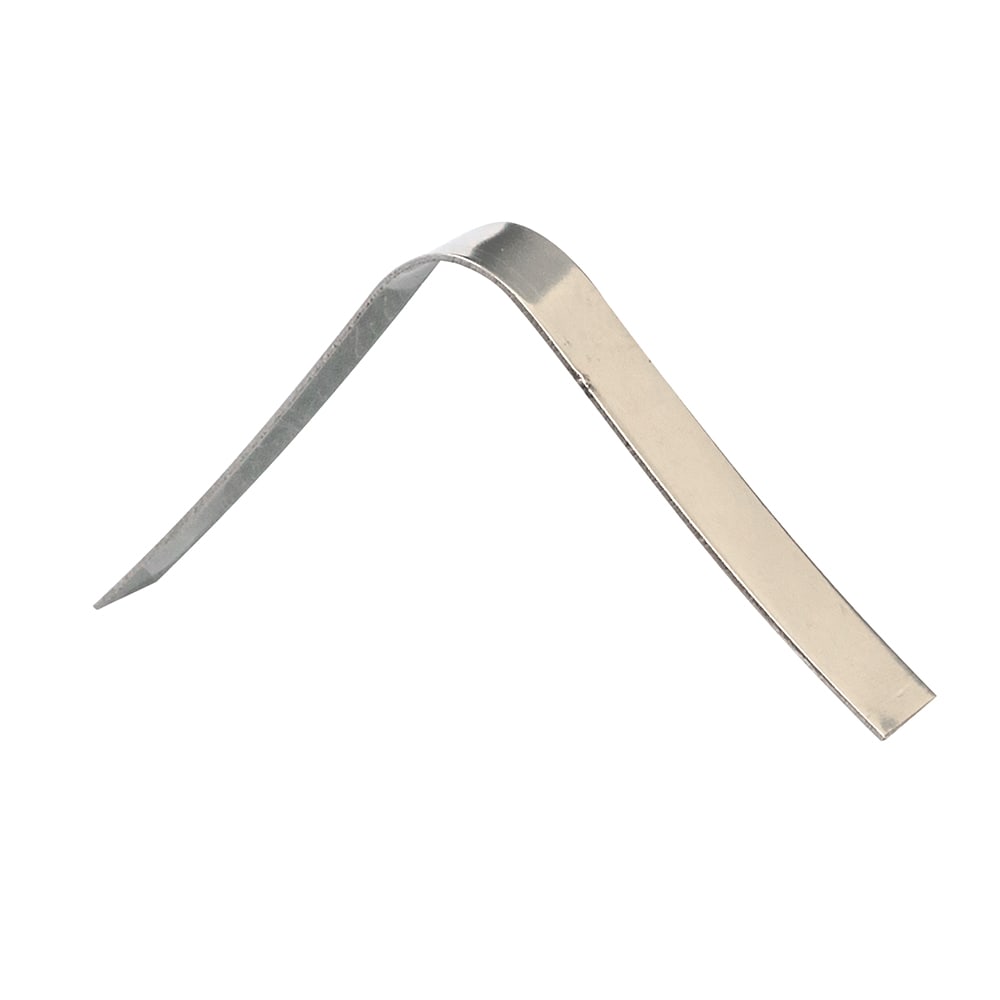

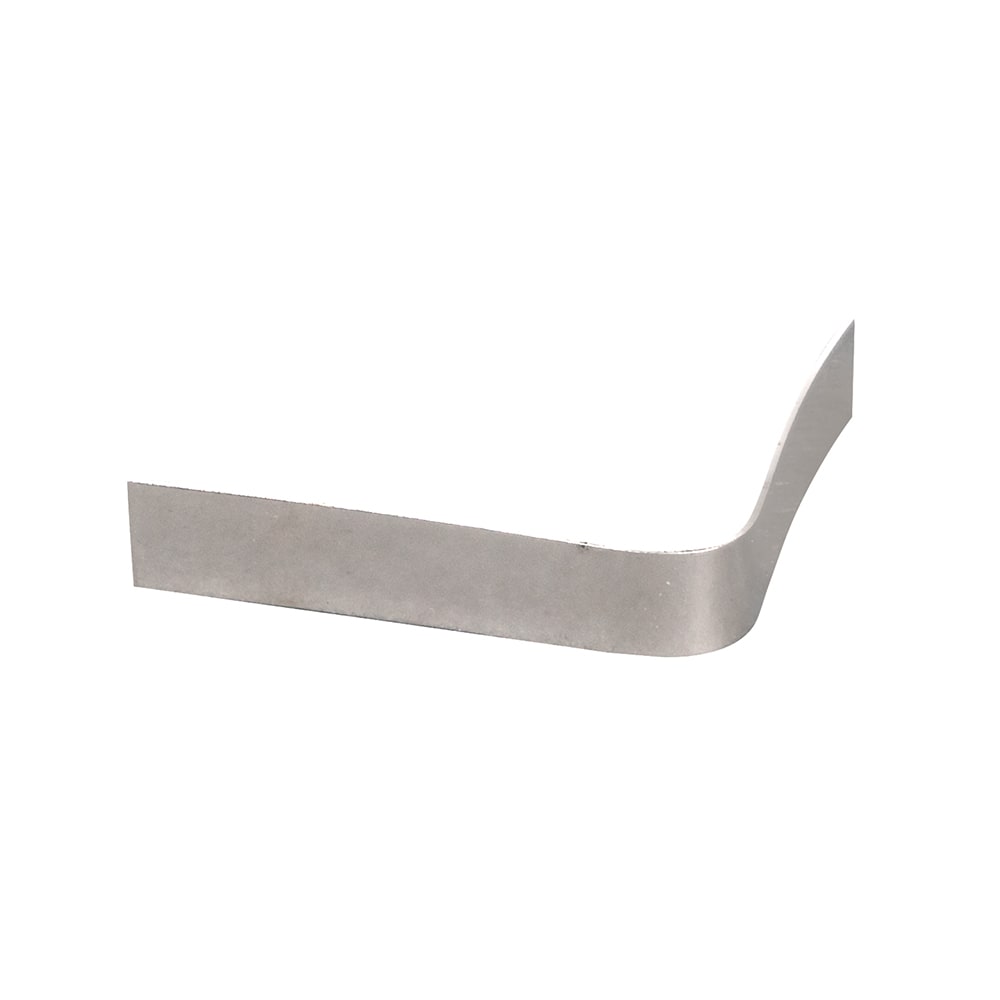

The American Metalcraft FS911 flat tongs replacement spring is designed to fit the UT-975, UT-1200, UT-1600 heavy-weight tongs, as well as the HDUT-975, HDUT-1200, and HDUT-1600 extra-heavy-weight tongs. It is easy to swap the damaged spring out for this working piece, getting your work station back to the desired production capacity quickly. The American Metalcraft FS911 flat tongs replacement spring is made from tempered flat steel for durability and long-lasting use.

Product Details

  • Replacement spring for tongs
  • Fits American Metalcraft UT-975, UT-1200, UT-1600 heavy-weight tongs, as well as HDUT-975, HDUT-1200, HDUT-1600 extra-heavy-weight tongs
  • Tempered flat steel construction is durable for long-lasting use
  • Easily swap the damaged spring with this replacement

*American Metalcraft FS911 is free shipping eligible. Users must be signed in with an order total greater than $500 and be shipping to the 48 contiguous states.

From The Manufacturer

Spring, flat, replacement for models UT-975, UT-1200, UT-1600, HDUT-975, HDUT-1200, HDUT-1600

*Image may not depict product color, inclusions or accessories.

American Metalcraft FS911 Specifications

Documents

American Metalcraft FS911 Comparable Products

Previous
Next
Customer Reviews
  • 4 out of 5
  • 1 review
  • 5 Star 0%
  • 4 Star 100%
  • 3 Star 0%
  • 2 Star 0%
  • 1 Star 0%

Reviews make the world go round!

Write your own review about this product today. Share how you use this item and what you like or dislike about it.

  • How I Installed My New Tong Spring

    By Ann on August 19, 2021

    "I repaired 6 tongs with these stainless steel springs. The original springs were not stainless steel and they rusted out and broke eventually. These new springs fit in all of my tongs, which all have about the same dimensions in the pivot area. I just drilled out the pivot rivet (5 were aluminum and 1 was stainless steel) and replaced them with stainless steel 2 mm diameter (M2) metric machine screws 20 mm long. The distance between the two halves of the tongs was about 17 mm side to side. That left 3 mm of screw length to accomodate a flat washer under the screw head, a flat washer and lock washer under the hex nut at the other end of the pivot screw. Tighten the M2 hardware (don't worry if the tongs feel too tight to move freely now since they will move smoothly after the spring is installed). Then I put the new spring in as follows: put the spring into a bench vise with the two ends facing up about 1/2" above the top of the vice grips. Close the vise until the two spring ends are far enough apart to fit over both tongs ends. Slide the tongs over the spring ends and slowly open the vise while pushing up on the spring from below. The spring will easily slide all the way in and stay in place inside the tongs. Job done! The tongs have just the right amount of tension when compressed and they release smoothly when you release pressure on the grip. They should last forever with all stainless steel hardware that won't rust."
