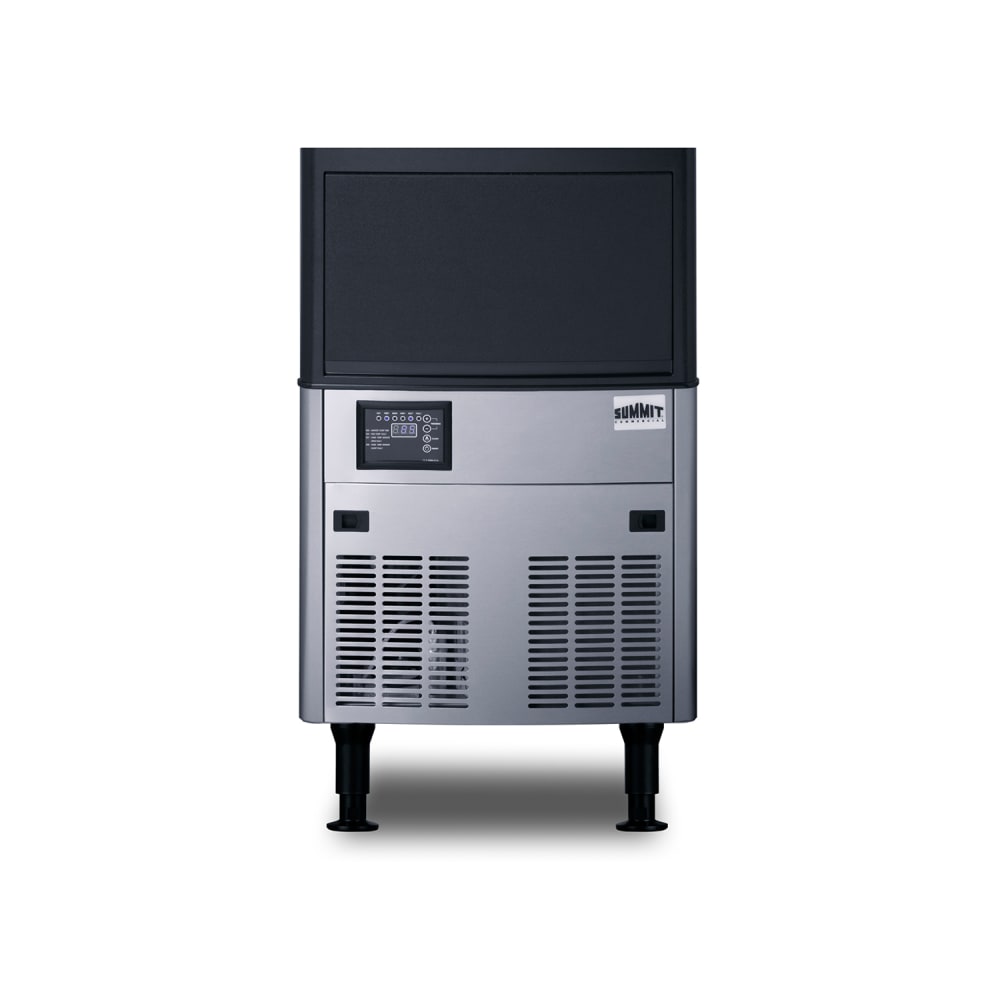

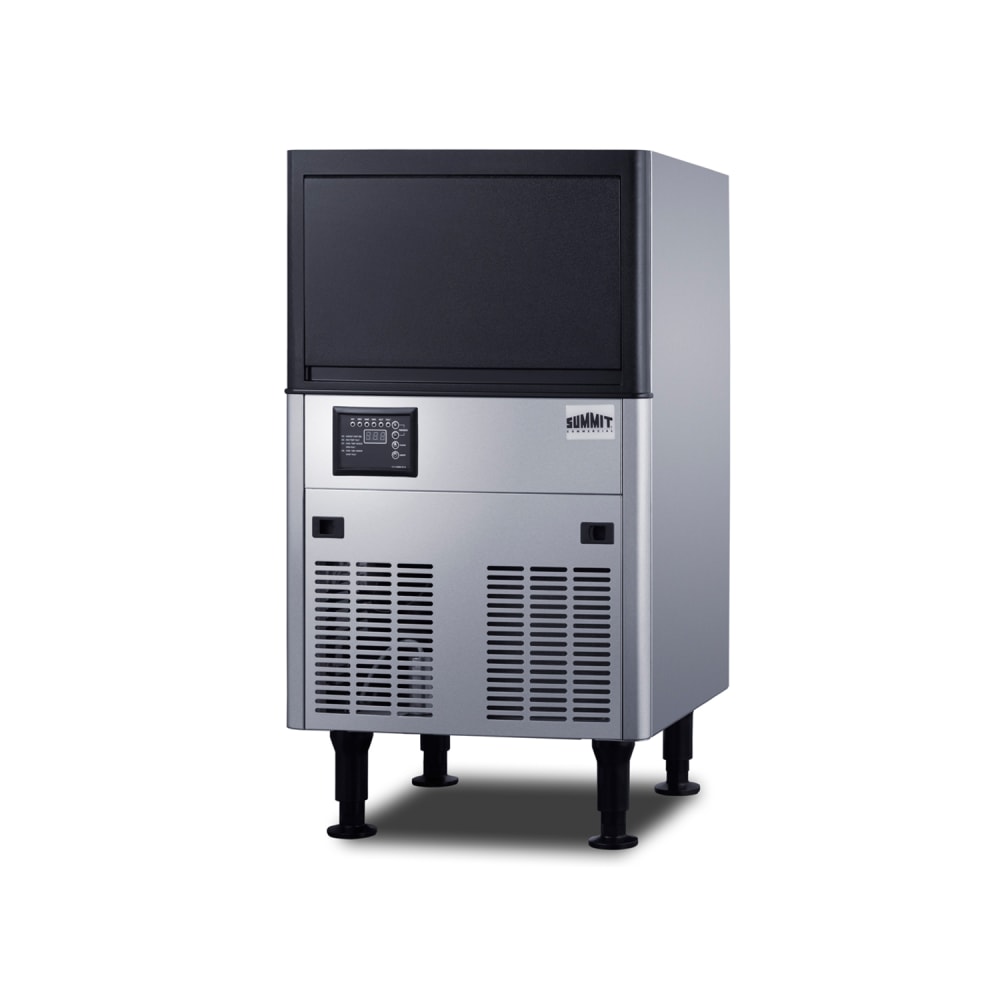

Summit BIM85 19 3/4"W Full Cube Undercounter Ice Machine - 80 lbs/day, Air Cooled

Featuring an 80-pound production capacity and a shallow 17³⁄₄-inch depth, the Summit BIM85 undercounter ice machine is ideal for installations in tight spaces such as bars, island kitchens, and compact commercial environments. The unit produces full-cube ice in two selectable sizes and stores up to 33 pounds in its internal bin. A full bin sensor halts ice production when capacity is reached, and a sliding lift-up door improves operator access during service. The stainless steel cabinet exterior is fully finished for freestanding placement, while a lift-up gliding lid covers the ice bin during non-use.

The Summit BIM85 ice maker is equipped with digital controls that enable users to fine-tune cube thickness. Its clean mode supports internal cleaning using a neutral detergent, and a removable rear mesh air filter protects the condenser from debris buildup. Interior LED lighting improves visibility during scooping, and the included ice scoop ensures hygienic ice retrieval. The cabinet’s built-in leg set raises the unit to simplify floor cleaning, while foamed-in-place insulation ensures user-set conditions are maintained during use.

Product Details

• 80-lb. daily ice production
• Makes full-cube ice
• 2 selectable cube sizes
• Stainless steel cabinet exterior
• Foamed-in-place insulation
• Black lift-up door

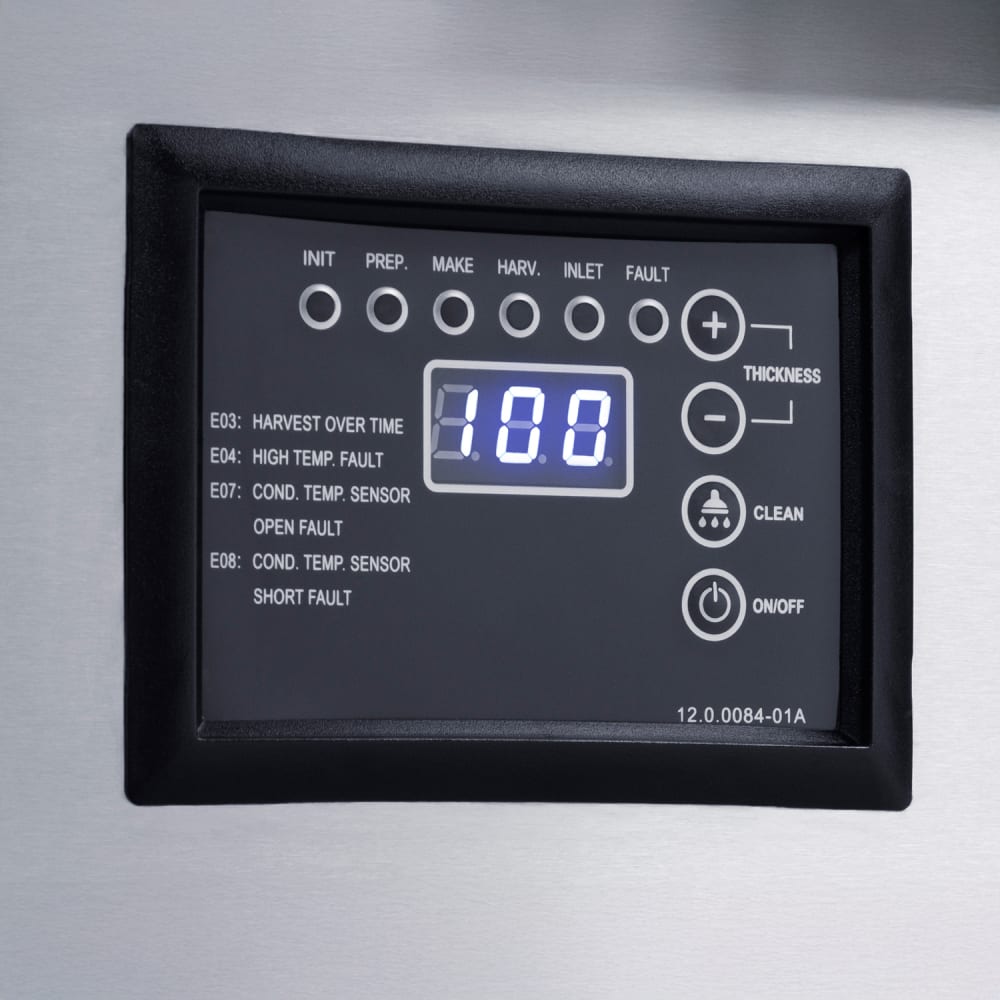

• Digital controls for thickness adjustment
• Clean mode
• Sliding lift-up bin door

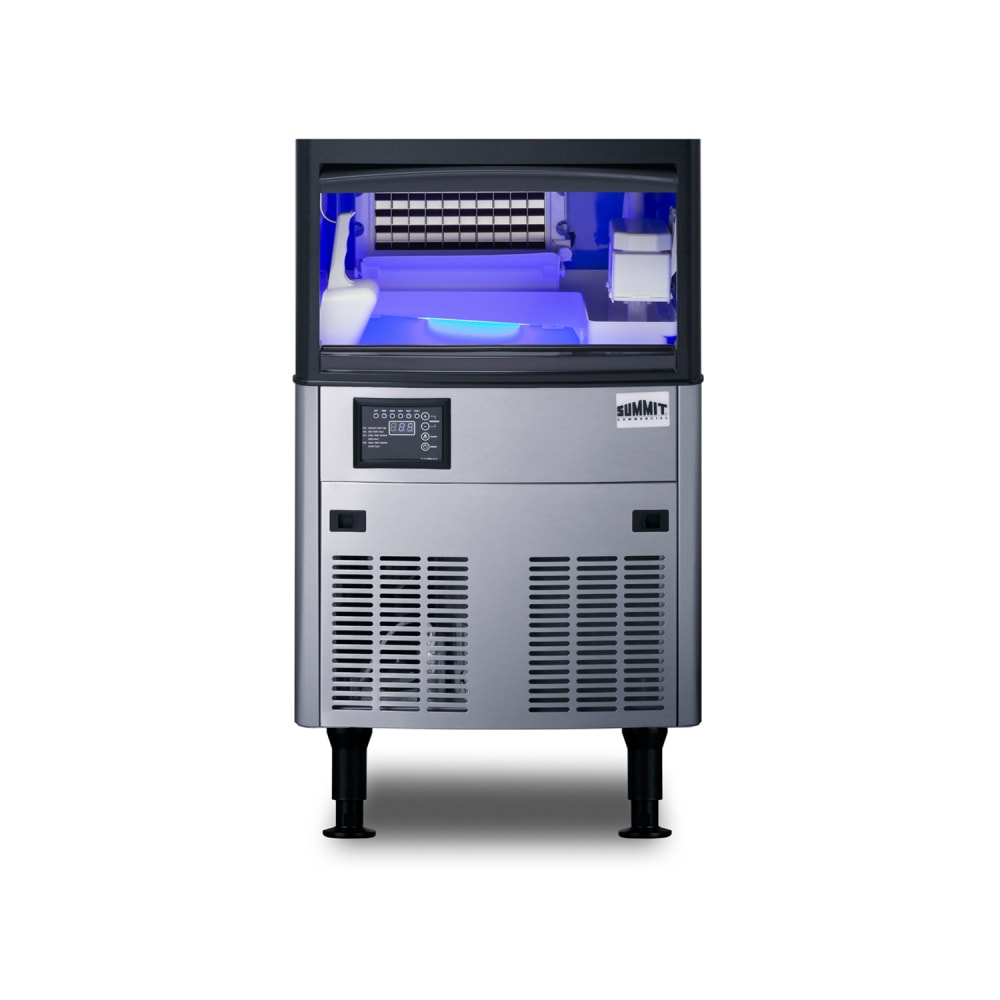

• Interior LED lighting
• Removable mesh air filter (rear mounted)
• Includes ice scoop
• Includes 4 leveling legs
• Gravity drain

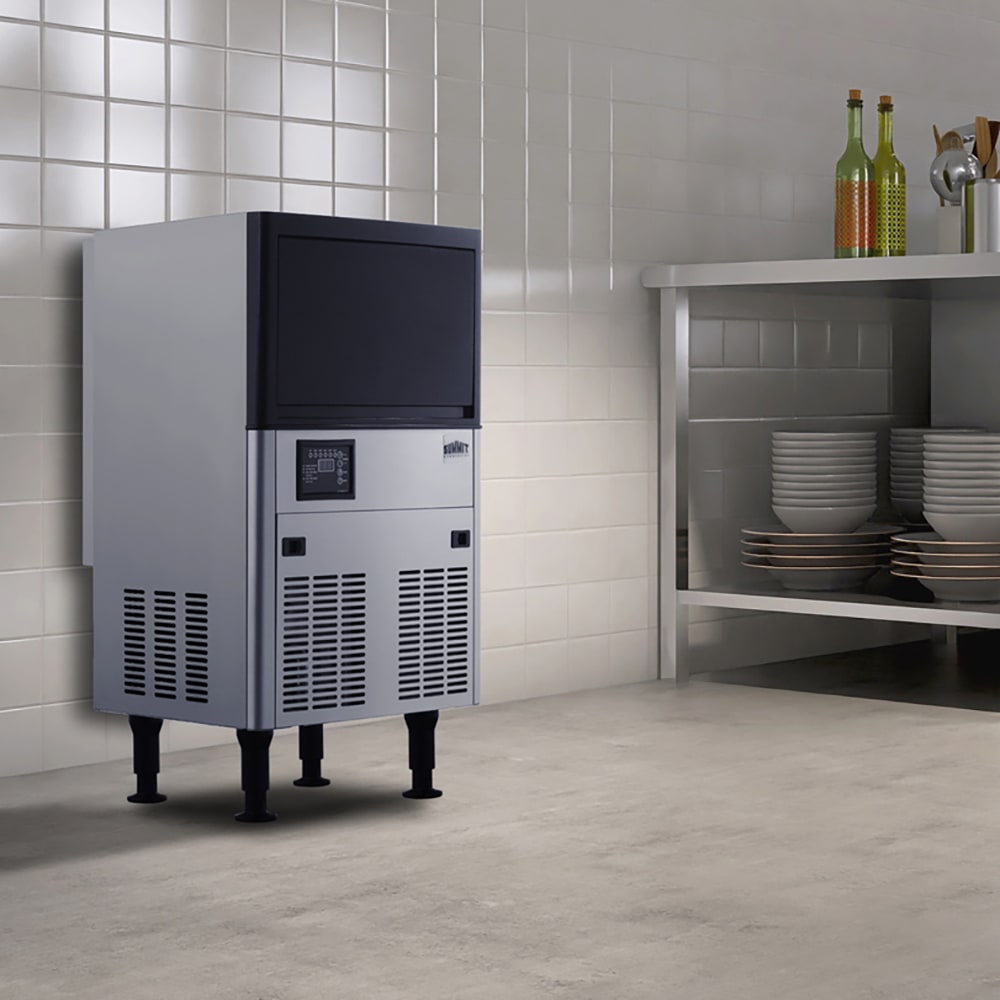

• Fully finished cabinet for freestanding use

Bin Details

• 33-lb. storage capacity
• Lift-up gliding top lid
• Interior light
• Automatic full bin sensor

Refrigeration System

• Air-cooled compressor
• Rear ventilation
• Uses R290 hydrocarbon refrigerant
• Interior fan
• Automatic defrost cycle
• Drain connection required

Dimensions & Utilities

• Interior dimensions: 18 in. W x 17¹⁄₄ in. D x 18 in. H
• Overall dimensions: 19³⁄₄ in. W x 17³⁄₄ in. D x 36 in. H
• 3.5 A
• 115 V/60 Hz/1 ph, cord with NEMA 5-15P plug

*Summit BIM85 is free shipping eligible. Users must be signed in with an order total greater than $500 and be shipping to the 48 contiguous states.

From The Manufacturer

Commercial clear cube Ice Machine, 19.75" W, sliding door, large capacity 80 lb. clear cube ice production, store up to 33 lbs, full bin sensor, unique 18" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space, air and water filter, easily increase or decrease ice thickness to desired size via digital controls, ice scoop, clean mode allows you to periodically clean the system as needed with a neutral detergent, Included leg set allows you to clean the space below the icemaker, fully finished cabinet, CARB Compliant, Lead-free, 115v/60/1-ph, 3.5 amps, ETL, ETL-C, ETL-S, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor; 5-year Compressor

Summit BIM85 Specifications

A division of Felix Stroch, Inc., Summit Appliance provides the largest collection of undercounter and ADA-compliant refrigeration products in the industry. It also provides a diverse selection of appliances for healthcare settings, hotels, and universities, as well as its own residential brand. Summit has been creating and developing products in its New York headquarters since 1969.

Documents

Spec Sheet

Manual
