Summit BIM47OSADA 14 1/2"W Full Cube Undercounter Ice Machine - 50 lbs/day, Air Cooled, ADA, Pump Drain, 115v
Typically ships in 4 - 6 weeks
Retail Price: $3,310.00
$1,935.67 /Each
Summit BIM47OSADA Description
Ideal for residential bars and office spaces, the Summit BIM47OSADA ice maker produces 45 pounds of full-size ice cubes per day and features an interior storage bin that holds 25 pounds of ice. This bin is insulated to minimize the rate at which the ice melts. This unit's air-cooled condenser circulates its R290 refrigerant away from the evaporator to produce ice, and to reduce maintenance needs, the automatic defrost system warms the coils to protect them from excess freezing. An interior control panel features indicator lights and alerts users when the bin is full. It ships with an ice scoop to reduce contamination when removing ice.

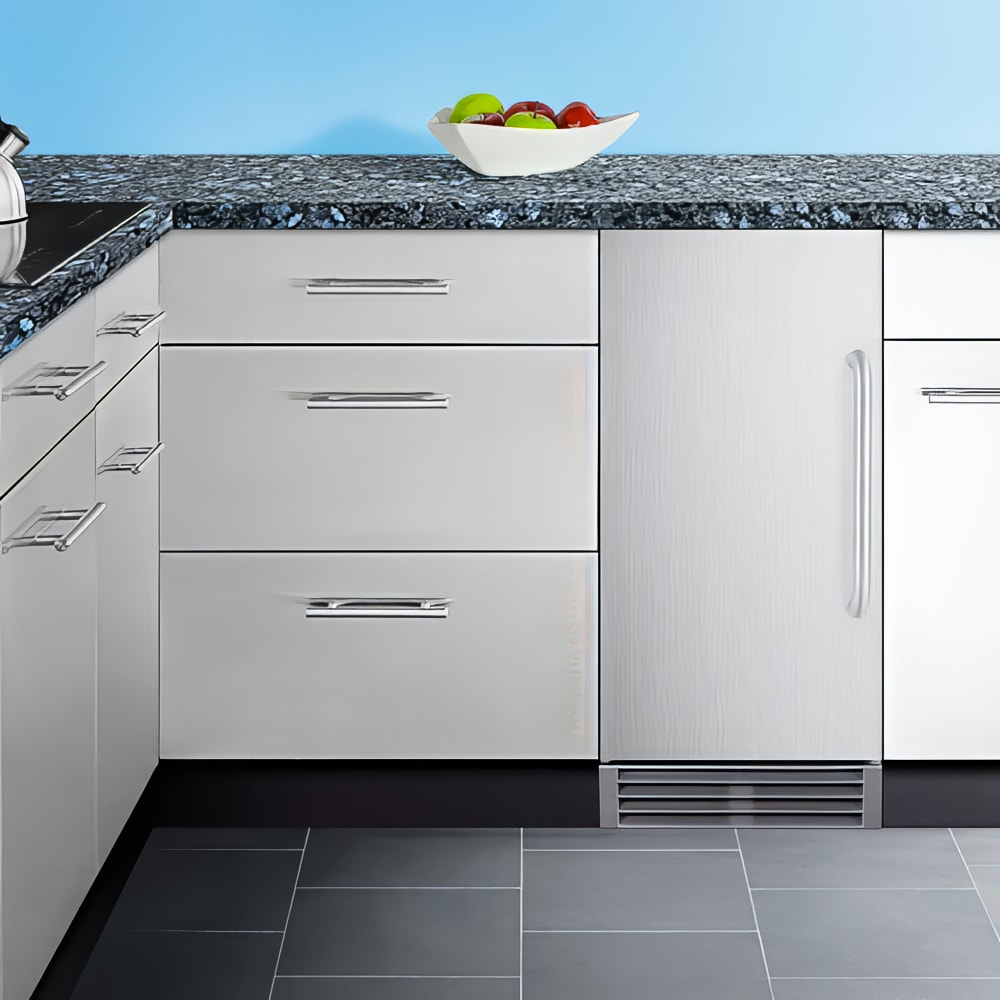

Overall, the Summit BIM47OSADA ice maker machine measures 14 5⁄8 inches wide by 22 1⁄2 inches deep by 31 7⁄8 inches high. This ADA-compliant unit fits under counters or can be freestanding for flexible integration into residential and office spaces. It's constructed of durable stainless steel to minimize corrosion and fortify its exterior, making it suitable for indoor or outdoor applications. To access the interior, its left-hinged door flaunts a towel bar handle, and for enhanced visibility, its interior is illuminated with blue LED lighting. To stabilize on tiled or smooth floors, it stands on adjustable leveling legs.
- 45-lb. daily production rate
- Holding capacity: 25 lbs.
- Insulated storage bin
- Cube dimensions: 7⁄8 in. x 7⁄8 in. x 7⁄8 in.
- Cubes produced in breakable sheets
- Field-reversible door with solid hinges
- Interior lighting enhances visibility
- Towel bar handle
- Stainless steel finish with sealed back
- For indoor or outdoor settings
- Built-in or freestanding configuration
- Leveling legs adjust to uneven surfaces
- Interior control panel with touch controls
- Ice scoop included
- Air-cooled condenser
- Front breathing
- Built-in drain pump
- Automatic defrost
- R290 refrigerant
- Overall: 14 5⁄8 in. W x 22 1⁄2 in. D x 31 7⁄8 in. H
- Interior: 11 1⁄4 in. W x 15 1⁄2 in. D x 18 3⁄4 in. H
- 3⁄8-in. dia. water inlet connection
- 3⁄4-in. dia. drain connection
- 2.5 A
- 115 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
From The Manufacturer
Icemaker, cube-style, built-in or freestanding, air-cooled, outdoor or indoor use, 14.5"W x 25"D x 32.38"H, (50) lbs production/24 hours, (25) lbs holding capacity, front-breathing, built-in pump, (1) reversible solid hinged door, auto defrost, ice scoop included, stainless steel finish, level legs, R134a refrigerant, 115v/60/1-ph, 4.8 amps, NSF, UL, ULC, ETL-Sanitation, ADA Compliant (Commercial)
Summit BIM47OSADA Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Summit |
| 24 Hr. Production (lb) | 50 |
| Bin Capacity (lb) | 25 |
| Compressor Type | Air Cooled |
| Depth (in) | 25 |
| Design | ADA Height |
| Drain Type | Pump |
| Front Style | Stainless Door |
| Height (in) | 32.38 |
| Hertz | 60 |
| Ice Type | Full Cube |
| Phase | 1 |
| Product | Undercounter Ice Machines |
| Product Type | Ice Makers & Bins |
| Rating | Good |
| Refrigerant | R134a |
| Special Features | Outdoor Rated |
| Suggested Use | Commercial |
| Suggested Use | Home/Office |
| Suggested Use | Outdoor |
| Voltage | 115 |
| Warranty | 1-year Limited Parts & Labor; 5-year Compressor Parts |
| Width (in) | 14.5 |
| Weight | 100.00 |
