Summit BIM47OS 14 1/2"W Full Cube Undercounter Ice Machine - 50 lbs/day, Air Cooled, Pump Drain, 115v

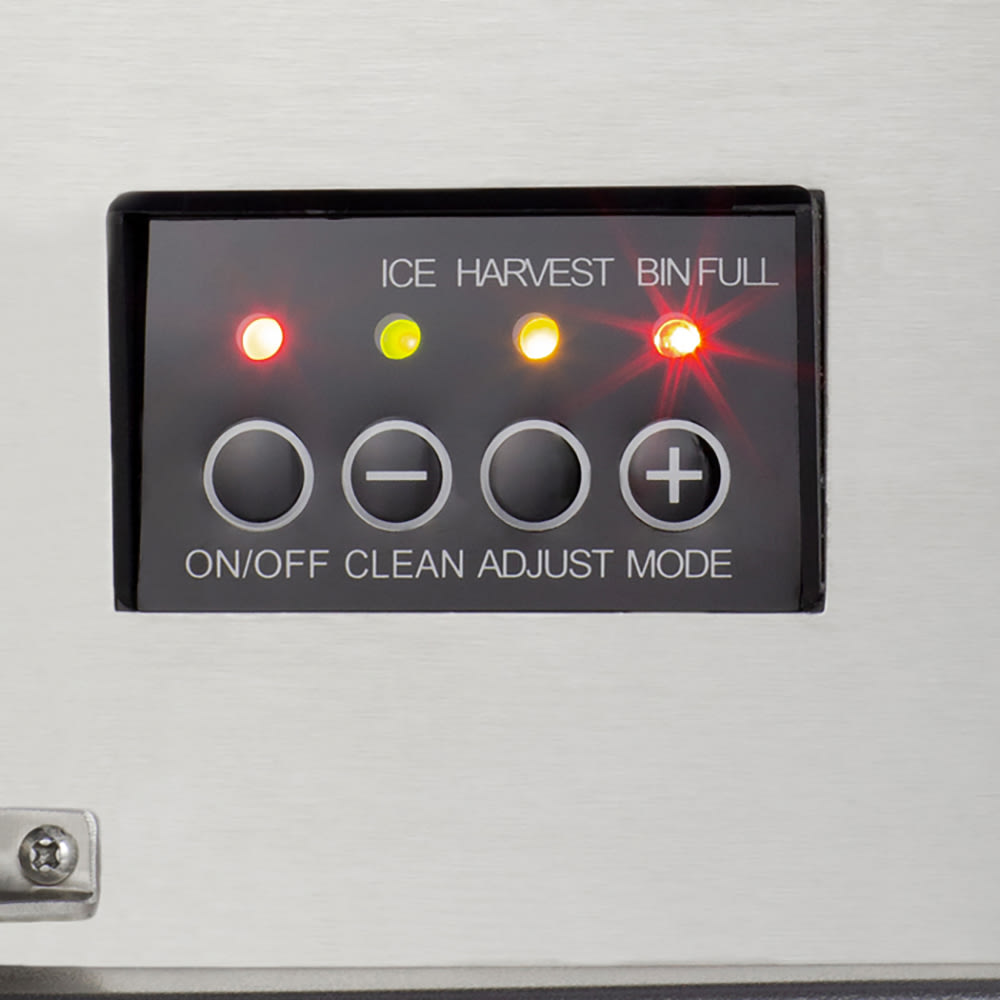

The Summit BIM47OS full-cube ice machine produces 50 pounds of ice per day and can store 25 pounds inside its ice bin, which is insulated to reduce the melting rate. For efficient cooling, it uses R134a refrigerant, and its air-cooled condenser circulates the refrigerant away from the evaporator to craft its ice cubes. To monitor internal conditions and processes, its control panel features four indicator lights that notify operators when the bin is full.

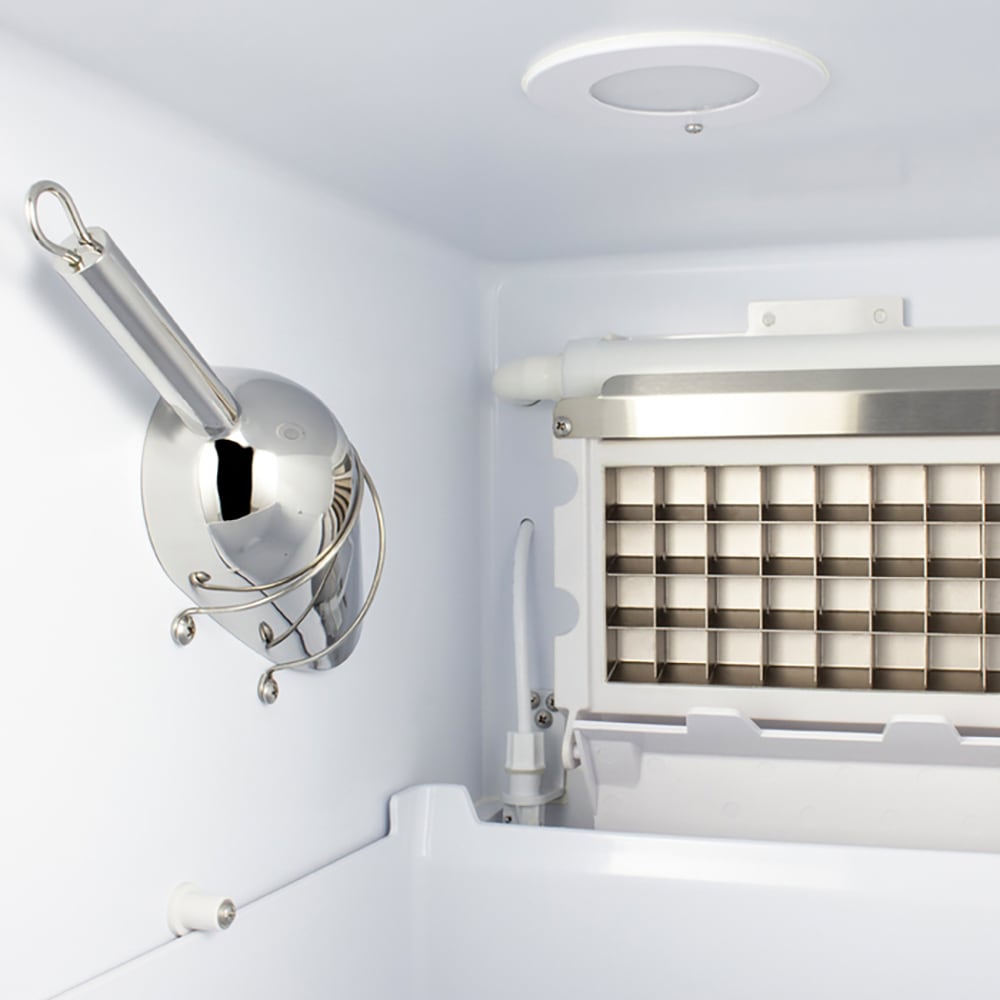

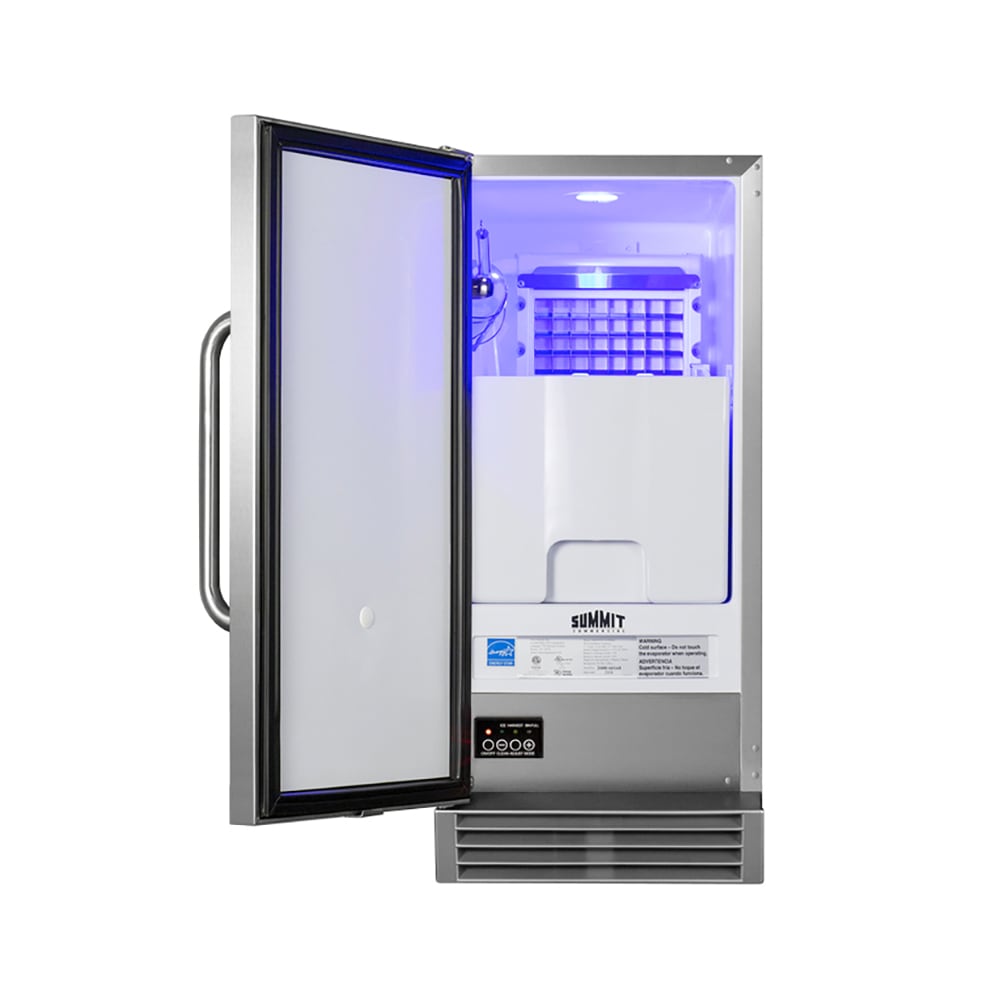

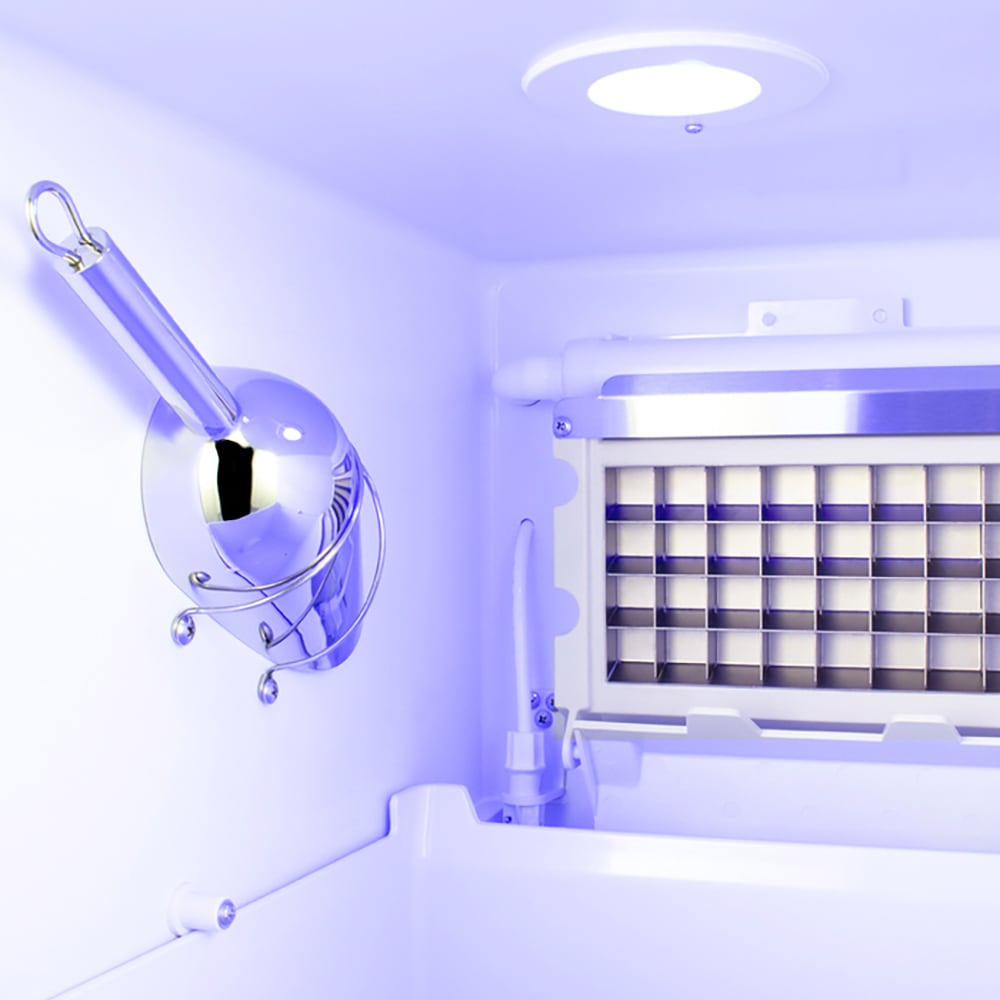

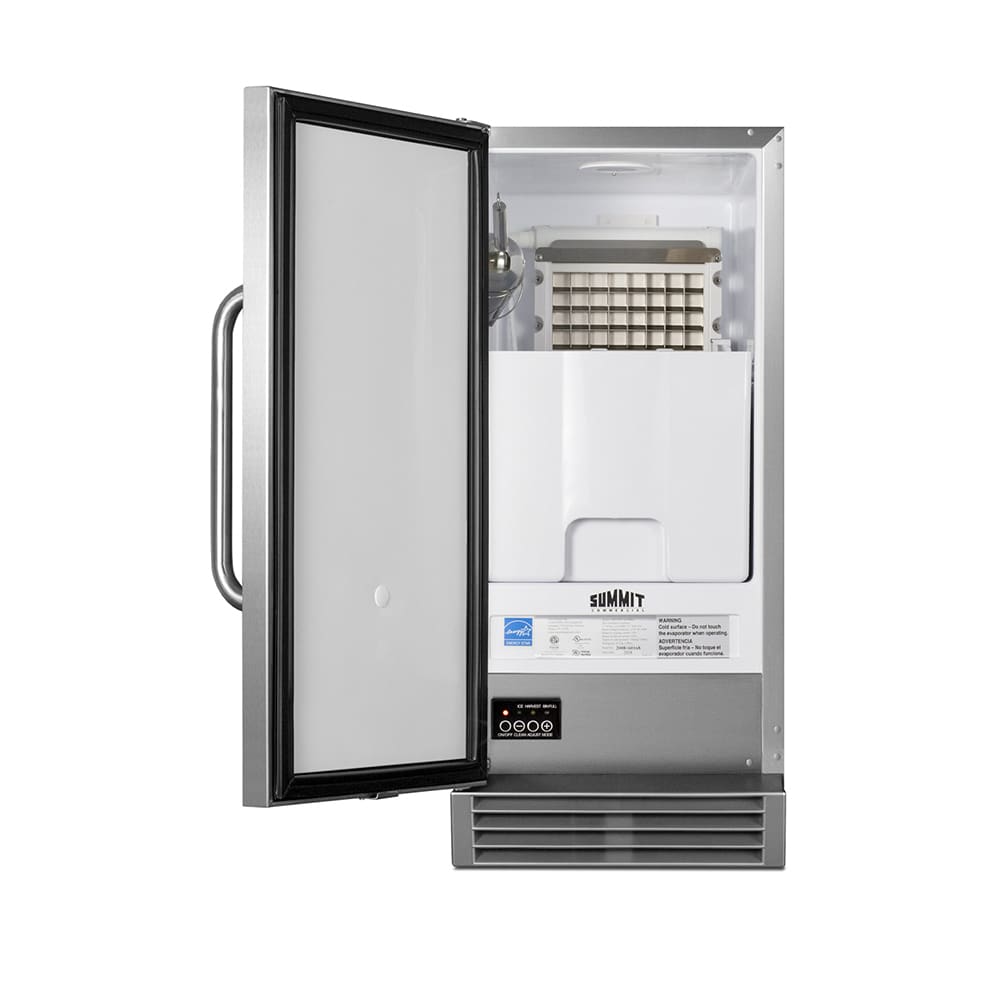

The Summit BIM47OS full-cube ice machine can be installed under counters or be used freestanding. Overall, it measures 14¹/₂ inches wide by 25¹/₄ inches deep by 33 inches high with a sealed back for a snug fit. Users can employ the use of its towel bar handle to access the interior, which is illuminated by blue lighting for increased visibility. For practicality, the interior wall features an ice scoop bracket, and to increase stability, it sits on level legs.

Product Details

• Produces 50 pounds of ice over 24 hours
• Storage capacity: 25 lbs.
• Insulated storage bin
• Cube dimensions: ³⁄₄ in. x ³⁄₄ in. x 1 in.
• Cubes produced in breakable sheets
• 1 reversible door with solid hinges
• Illuminated interior
• Towel bar-style handle
• Stainless steel exterior featuring sealed back

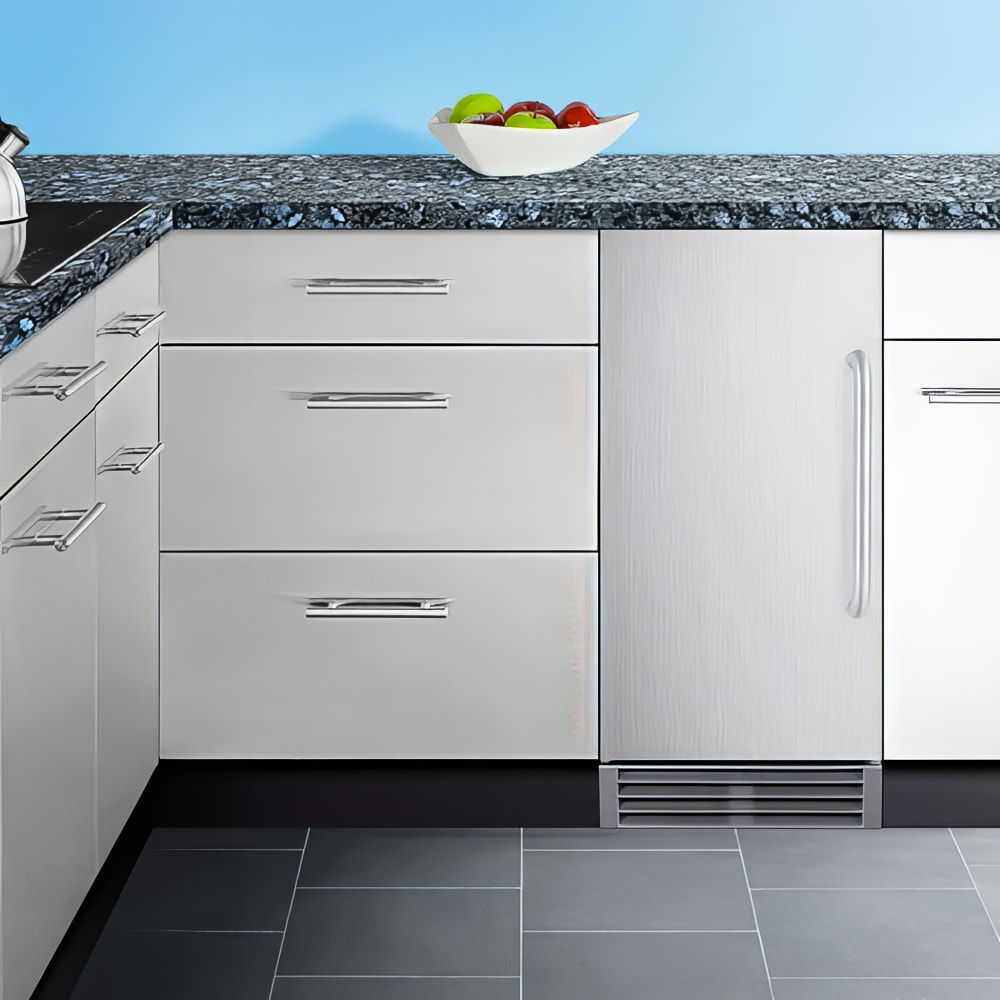

• Can be built-in under countertops or used freestanding
• Compatible with indoor or outdoor use
• Leveling legs increase stability
• Interior touch control panel
• Includes ice scoop

Refrigeration Details

• Air-cooled, front-breathing design
• Built-in drain pump
• Auto-defrost setting
• R134a refrigerant

Dimensions & Utilities

• Overall: 14¹/₂ in. W x 25 in. D x 33 in. H
• Interior: 12 in. W x 16 in. D x 18¹⁄₂ in. H
• ³/₈-in. dia. water inlet connection
• ³/₄-in. dia. drain connection
• 4.8 A
• 115 V/60 Hz/1 ph

Product Features

From The Manufacturer

Icemaker, cube-style, built-in or freestanding, air-cooled, outdoor or indoor use, 14.5"W x 25"D x 33"H, (50) lbs production/24 hours, (25) lbs holding capacity, front-breathing, built-in pump, (1) reversible solid hinged door, touch controls, auto defrost, ice scoop included, stainless steel finish, level legs, R134a refrigerant, 115v/60/1-ph, 4.8 amps, NSF, UL, ULC, ETL-Sanitation, ENERGY STAR® (Commercial)

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor; 5-year Compressor Parts

Summit BIM47OS Specifications

A division of Felix Stroch, Inc., Summit Appliance provides the largest collection of undercounter and ADA-compliant refrigeration products in the industry. It also provides a diverse selection of appliances for healthcare settings, hotels, and universities, as well as its own residential brand. Summit has been creating and developing products in its New York headquarters since 1969.

Documents

Spec Sheet

Manual
