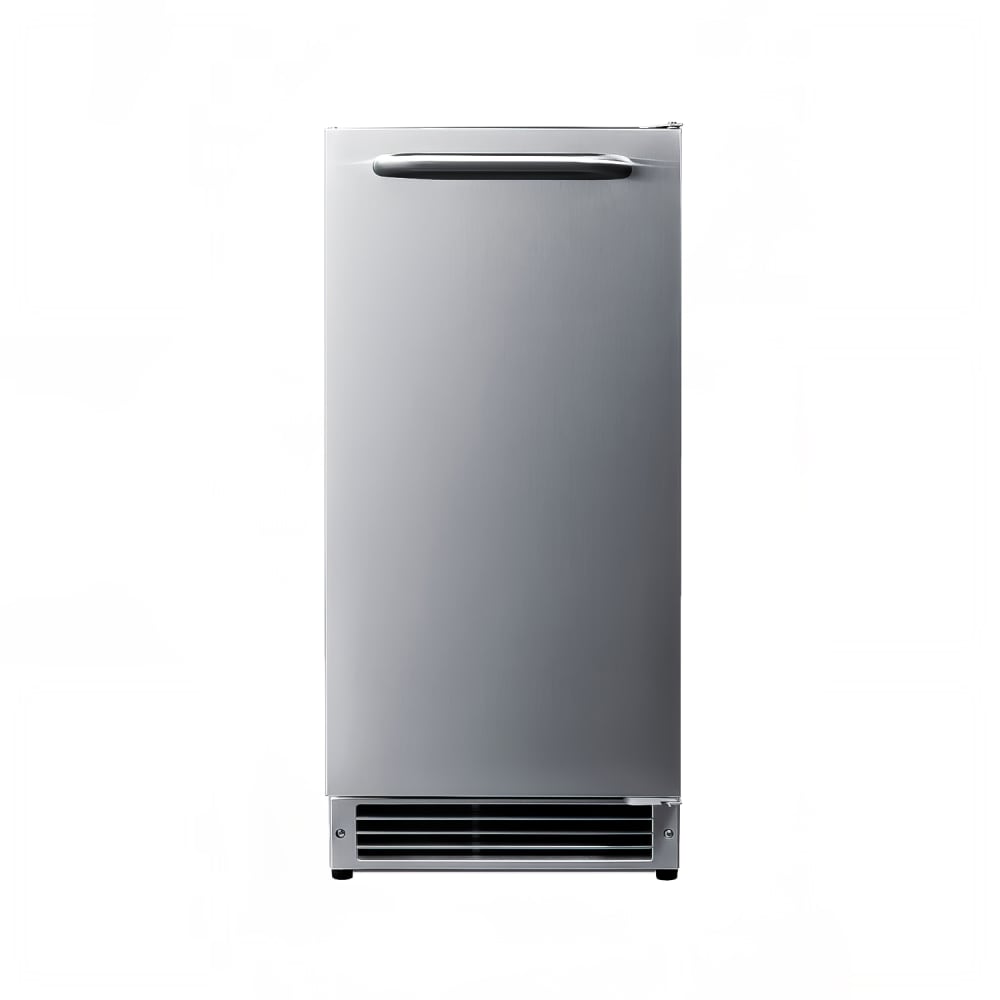

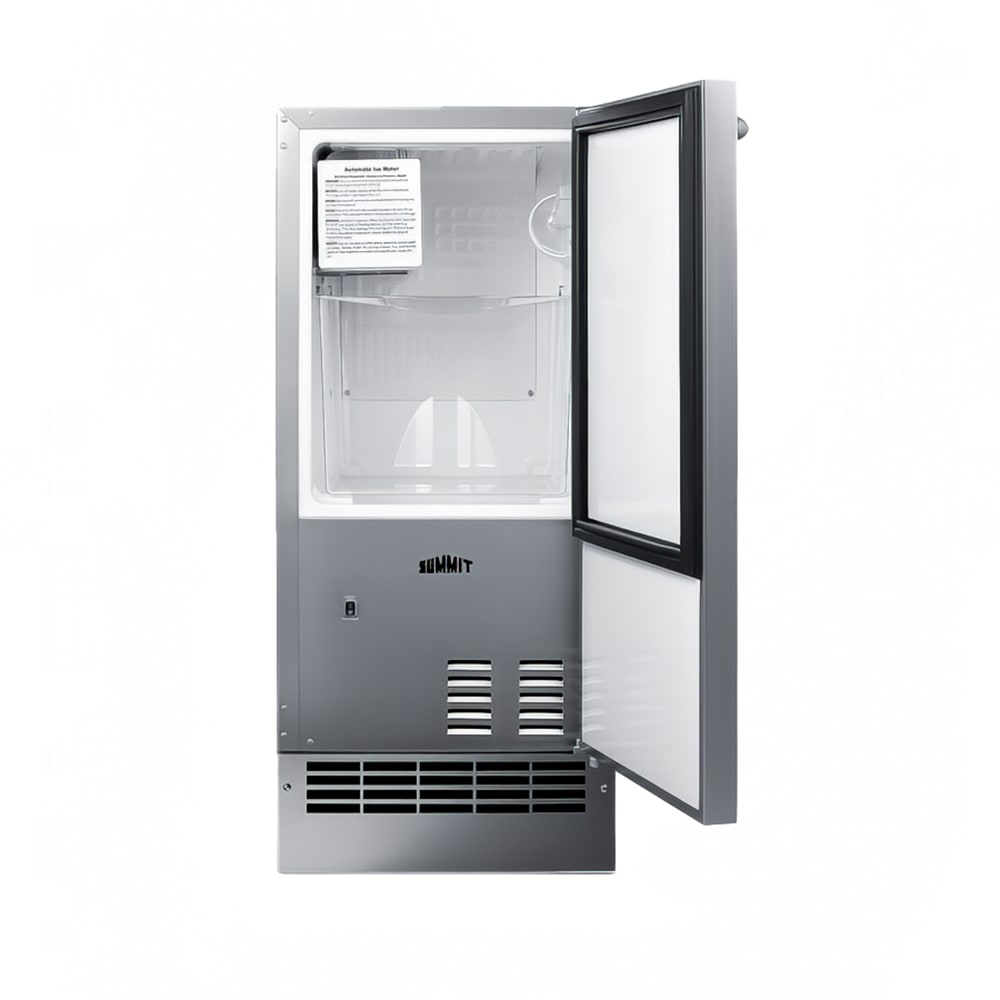

Summit BIM26H34 15"W Crescent Cube Undercounter Ice Machine - 25 lbs/day, Air Cooled, No Drain Needed, 115v
Typically ships in 6 - 8 weeks
Retail Price: $2,270.00
$1,373.27 /Each
Summit BIM26H34 Description

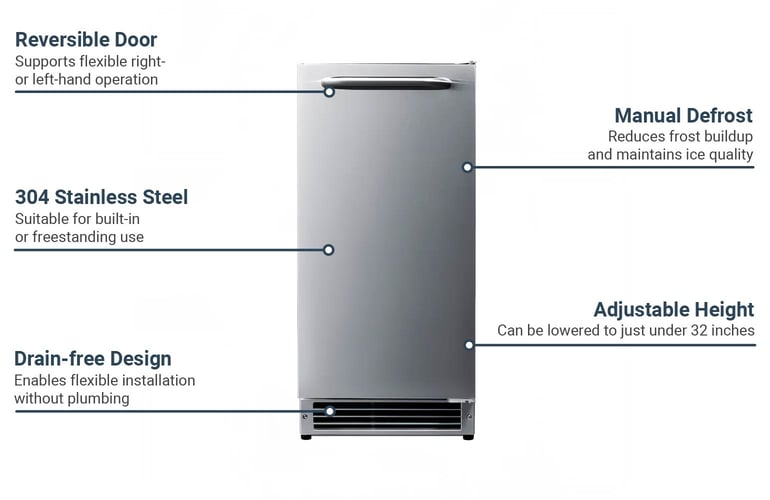

The Summit BIM26H34 undercounter ice machine produces up to 25 pounds of crescent-shaped ice cubes daily and stores up to 22 pounds in its insulated storage bin. Featuring a drain-free design, this unit allows flexible installation without additional plumbing. The fully finished 304-grade stainless steel cabinet enables both built-in and freestanding use, while the reversible right-hinged door provides versatile placement. A sealed back protects internal components, and an included ice scoop supports easy dispensing.
With an adjustable height, the Summit BIM26H34 ice machine can be lowered to just under 32 inches, making it compatible with ADA-compliant countertops. A manual defrost system helps maintain ice quality by reducing frost buildup, while the static cooling system keeps ice frozen longer. The unit operates with a standard 1⁄4-inch OD water supply line and uses environmentally friendly R600a refrigerant for energy-efficient performance. Four leveling legs stabilize the unit on uneven surfaces, and a smaller kickplate is included for seamless integration.
- Undercounter design
- Crescent-shaped ice cubes
- 25-lb. daily ice production
- 22-lb. storage capacity
- 304 stainless steel exterior
- Fully finished cabinet
- Reversible right-hinged door
- Sealed back

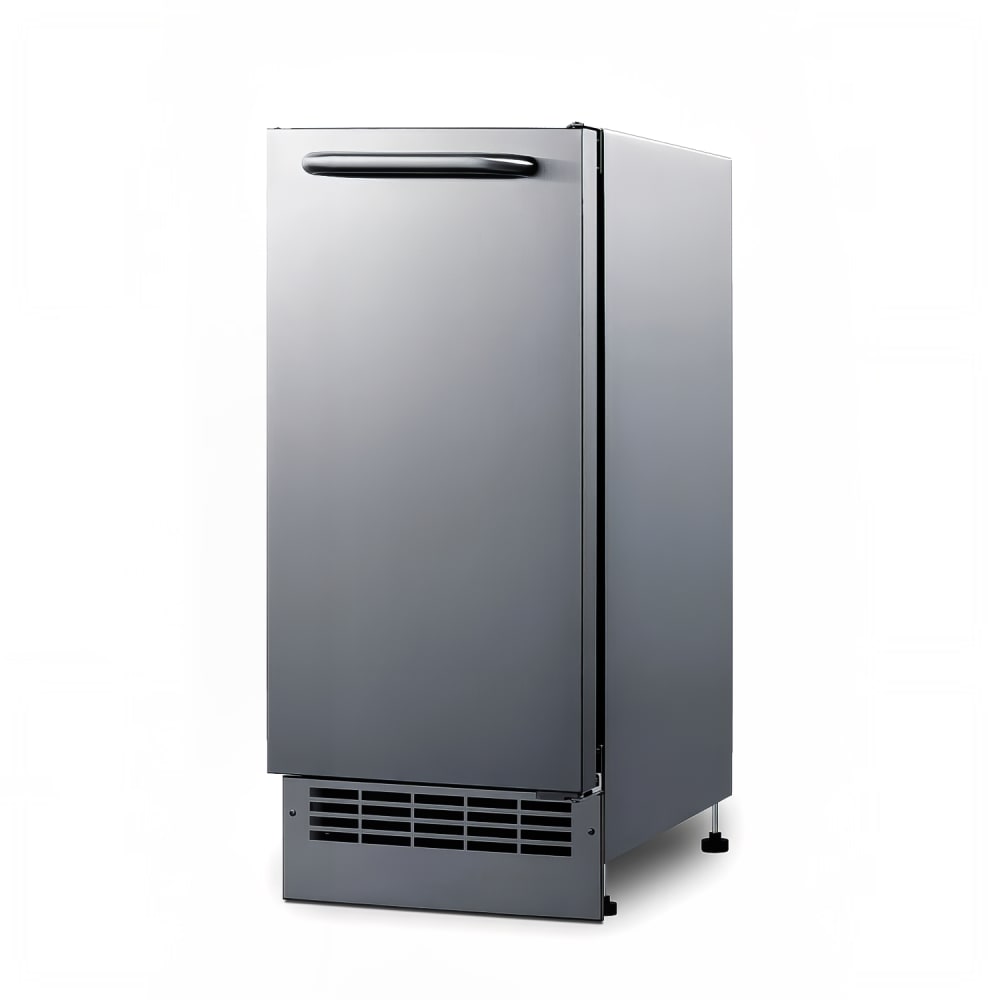

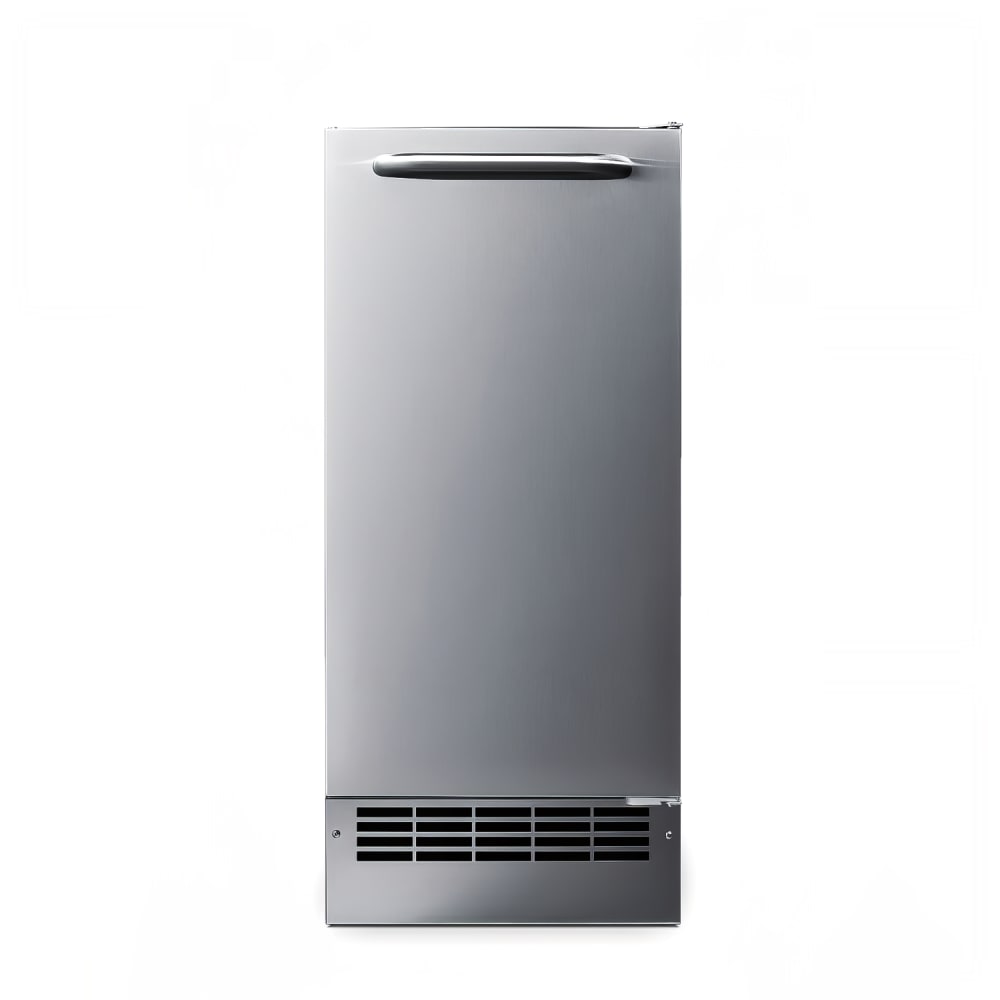

- Smaller kickplate
- Drain-free design

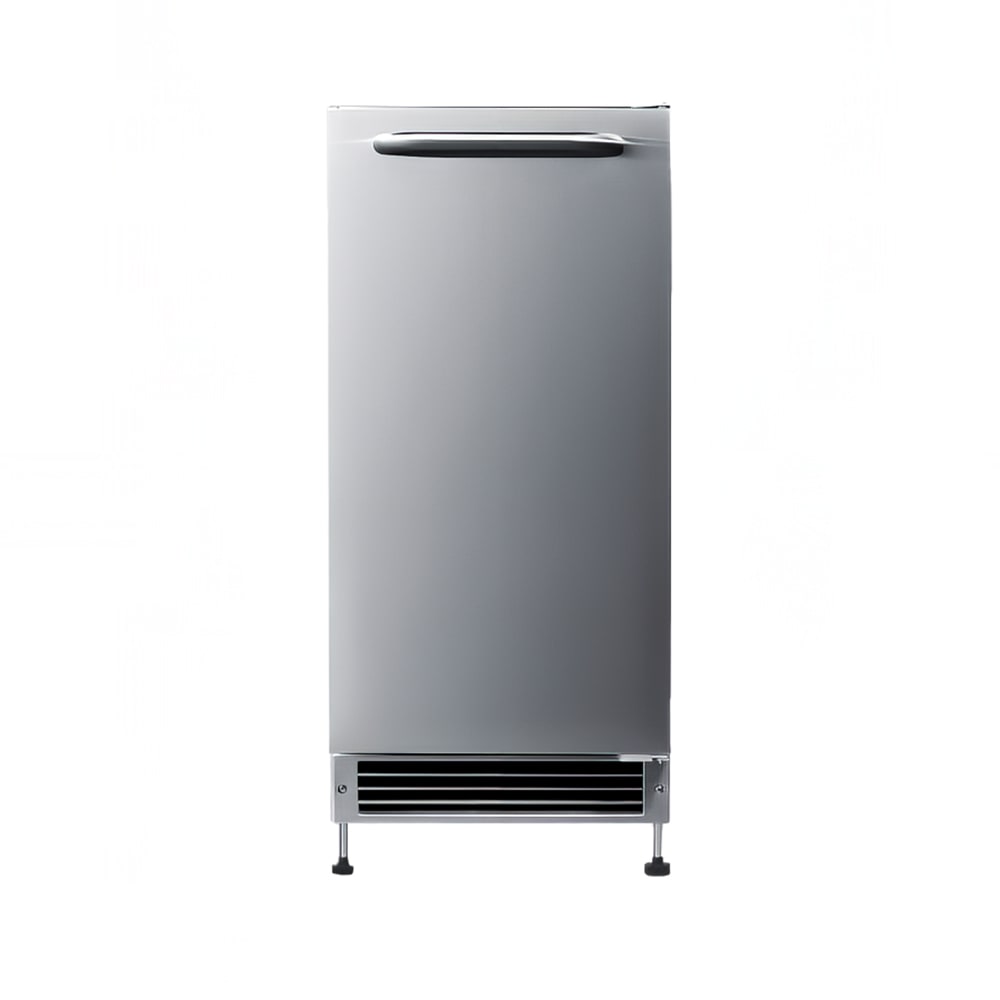

- Adjustable height (can be lowered to under 32-in.)
- Includes ice scoop

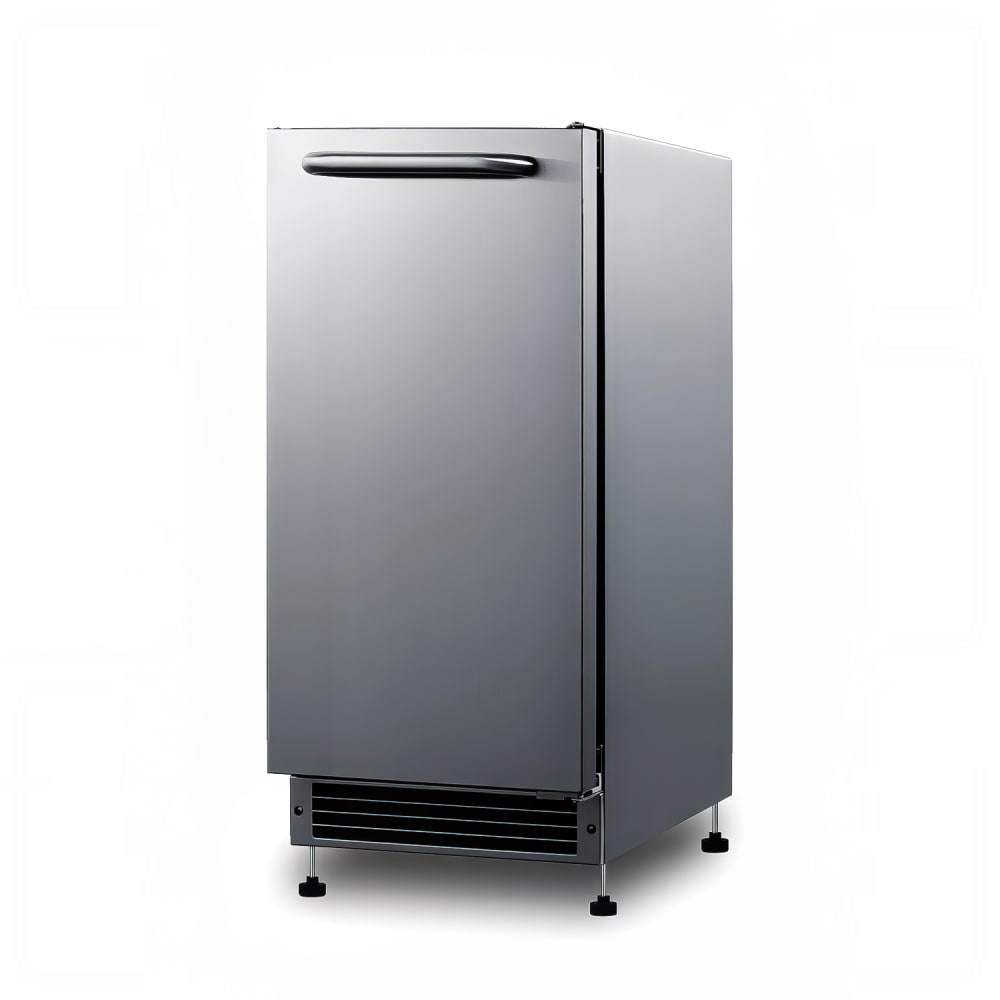

- 4 leveling legs
- Self-contained
- Air-cooled compressor
- R600a refrigerant
- Static cooling system
- Manual defrost
- Overall: 14 7⁄8 in. W x 19 3⁄8 in. D x 34 in. H
- Interior: 11 7⁄8 in. W x 12 3⁄8 in. D x 15 7⁄8 in. H
- 1.9 A
- 115 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
From The Manufacturer
Summit BIM26H34 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Summit |
| 24 Hr. Production (lb) | 25 |
| Bin Capacity (lb) | 22 |
| Compressor Type | Air Cooled |
| Depth (in) | 19.38 |
| Design | ADA Height |
| Drain Type | None |
| Front Style | Stainless Door |
| Height (in) | 34 |
| Hertz | 60 |
| Ice Type | Crescent Cube |
| Phase | 1 |
| Product | Undercounter Ice Machines |
| Product Type | Ice Makers & Bins |
| Rating | Good |
| Refrigerant | R600a (Hydrocarbon) |
| Special Features | Removable & Insulated Bin |
| Suggested Use | Home/Office |
| Voltage | 115 |
| Warranty | 1-year Limited Parts & Labor; 5-year Compressor |
| Width (in) | 14.88 |
| Weight | 90.00 |
Important Prop 65 information for California residents.
- 5
- 4
- 3
- 2
- 1
Review this product!
No. It uses a drain-free design.
This unit uses a standard 1⁄4-in. OD line.
Yes. This model lowers to just under 32 in.
A 22-lb. storage compartment is included.
Yes. It comes with a scoop for serving.

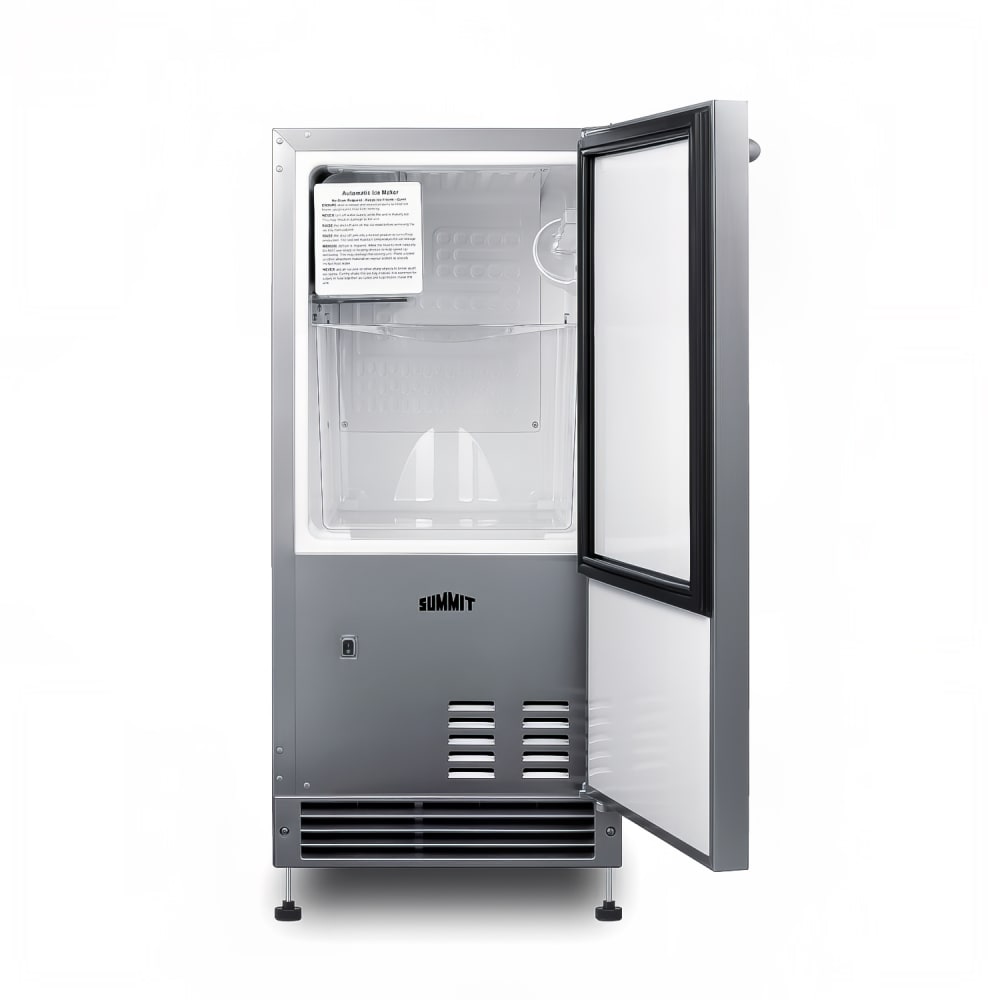

An insulated storage compartment reduces melting.
The cabinet supports built-in or freestanding placement.
