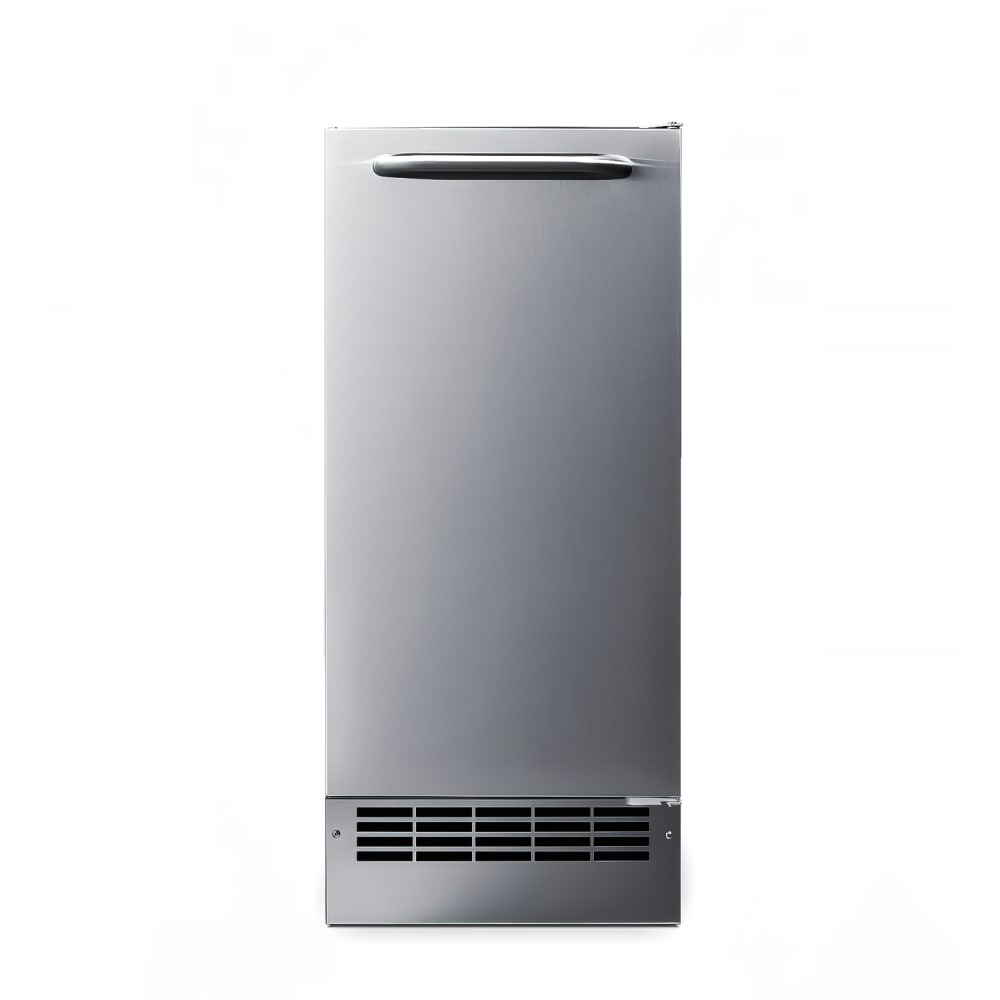

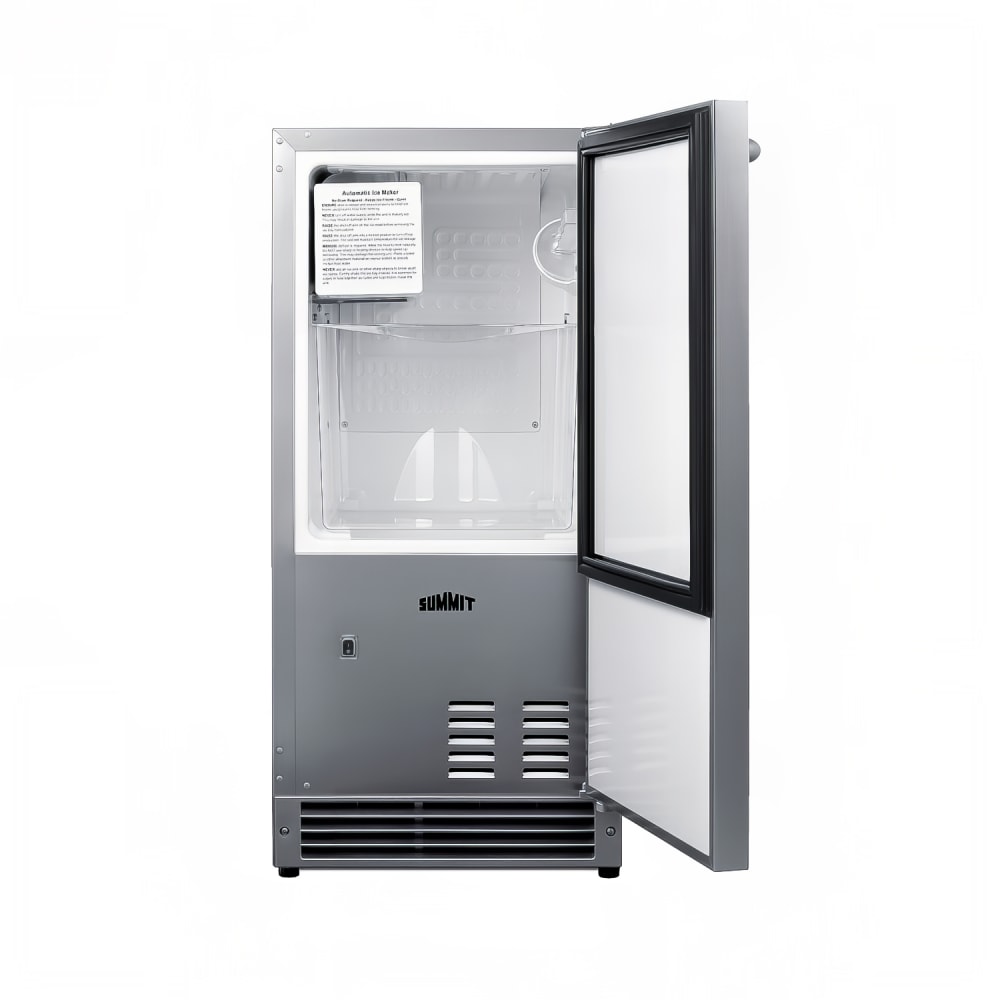

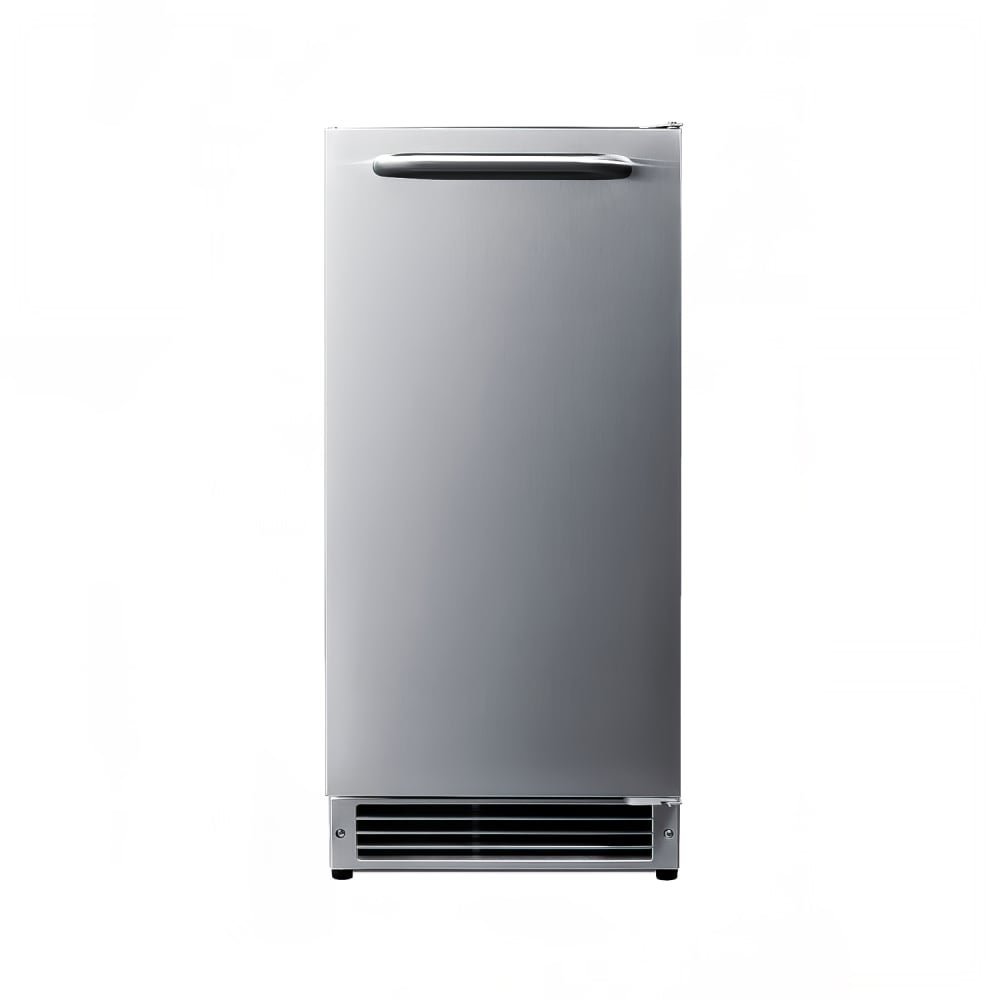

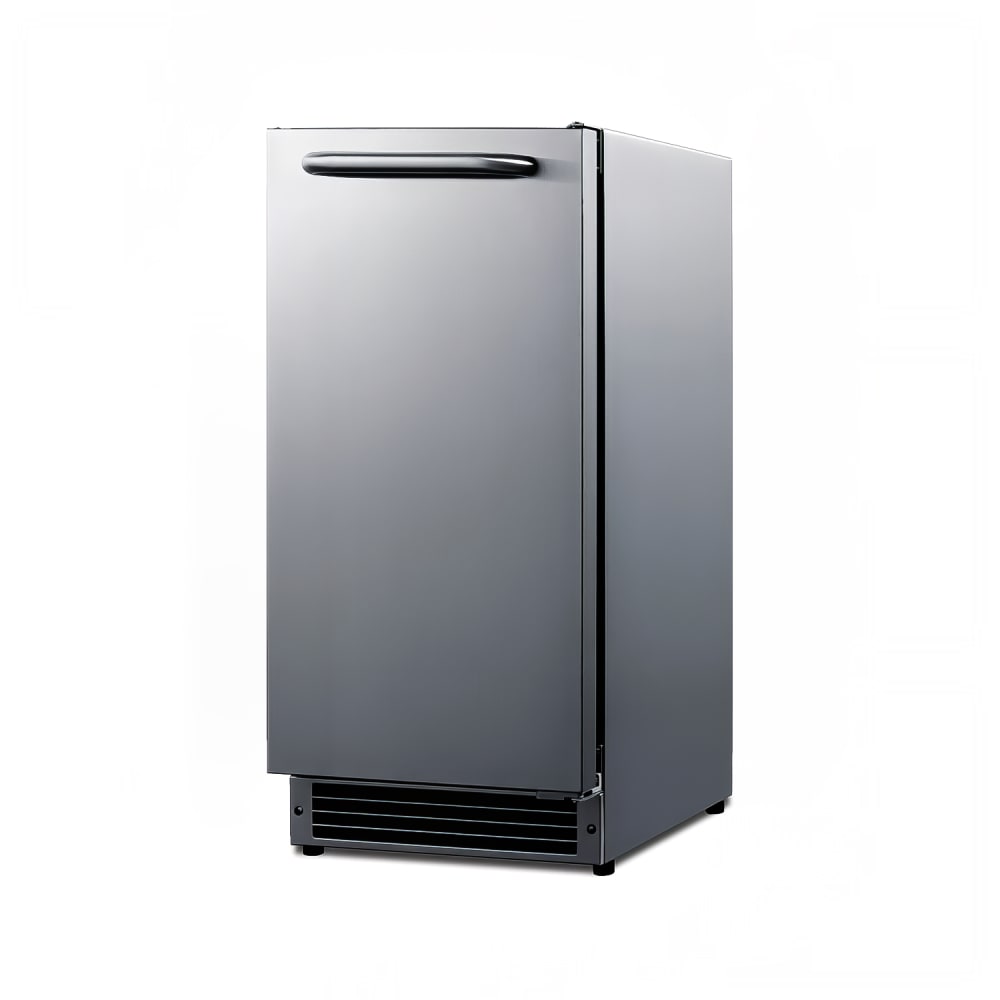

Summit BIM26H32 15"W Crescent Cube Undercounter Ice Machine - 25 lbs/day, Air Cooled, No Drain Needed, 115v
Typically ships in 8 - 10 weeks
Retail Price: $2,270.00
$1,325.99 /Each
Selected Height: ADA Height
| ADA Height |
| Standard Height |
Summit BIM26H32 Description
The Summit BIM26H32 undercounter ice machine is designed for compact spaces, producing as much as 25 pounds of 1-inch crescent ice cubes per day and storing 22 pounds in its insulated bin. Its 304 stainless steel exterior finish resists rust and corrosion, while the reversible solid swing door provides flexible installation. To ensure stability on uneven surfaces, its kickplates and levelers can extend up to 2 1⁄4 inches.
Equipped with a drain-free static cooling system, the Summit BIM26H32 undercounter ice maker operates with manual defrost to maintain efficiency. It uses an air-cooled refrigerant system with R600a to regulate internal temperatures. A standard 1⁄4-inch OD water supply line is required for operation, and an ice scoop is included for user convenience. For installation, the unit runs on 115 volts and includes a three-pronged plug.
- Undercounter installation
- Produces 25 lbs. of ice daily
- Stores 22 lbs. of ice
- Makes 1-in. crescent ice cubes
- 304 stainless steel exterior finish
- Reversible solid swing door
- Drain-free operation
- Kickplates and levelers extend to 2 1⁄4 in.
- Standard 1⁄4-in. OD water supply line required
- Ice scoop included
- Static cooling system
- Manual defrost
- Air-cooled operation
- R600a hydrocarbon refrigerant
- Overall: 14 7⁄8 in. W x 19 3⁄8 in. D x 31 3⁄4 in. H
- Interior: 11 7⁄8 in. W x 12 3⁄8 in. D x 15 7⁄8 in. H
- 1.9 A
- 115 V/60 Hz/1 ph, includes cord with 3-pronged plug
*Image may not depict product color, inclusions or accessories.
From The Manufacturer
Icemaker, 15"W, crescent cube style, drain-free design, , makes up to 25 lbs/24 hrs., adjustable height (can be raised to 34", with a taller kickplate included for a seamless aesthetic), stainless steel exterior finish, fully finished cabinet, built-in or freestanding use, operates with a standard 1/4” OD water supply line, manual defrost, ice scoop included, insulated storage bin, reversible right hand door swing, sealed back, lead-free certified, R600a hydrocarbon refrigerant, CARB compliant, 100% CFC free, 115v/60/1-ph, 1.9 amps, ADA compliant, ETL, ETL-C (Residential)
Summit BIM26H32 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Summit |
| 24 Hr. Production (lb) | 25 |
| Bin Capacity (lb) | 22 |
| Compressor Type | Air Cooled |
| Depth (in) | 19.38 |
| Design | ADA Height |
| Drain Type | None |
| Front Style | Stainless Door |
| Height (in) | 31.75 |
| Hertz | 60 |
| Ice Type | Crescent Cube |
| Phase | 1 |
| Product | Undercounter Ice Machines |
| Product Type | Ice Makers & Bins |
| Rating | Good |
| Refrigerant | R600a (Hydrocarbon) |
| Special Features | Removable & Insulated Bin |
| Suggested Use | Home/Office |
| Voltage | 115 |
| Warranty | 1-year Limited Parts & Labor; 5-year Compressor |
| Width (in) | 14.88 |
| Weight | 90.00 |
