Summit BIM182OSADAIFLHD 18"W Full Cube Undercounter Ice Machine - 60 lbs/day, Air Cooled, ADA
Retail Price: $3,950.00
$2,646.50 /Each
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Summit BIM182OSADAIFLHD Description

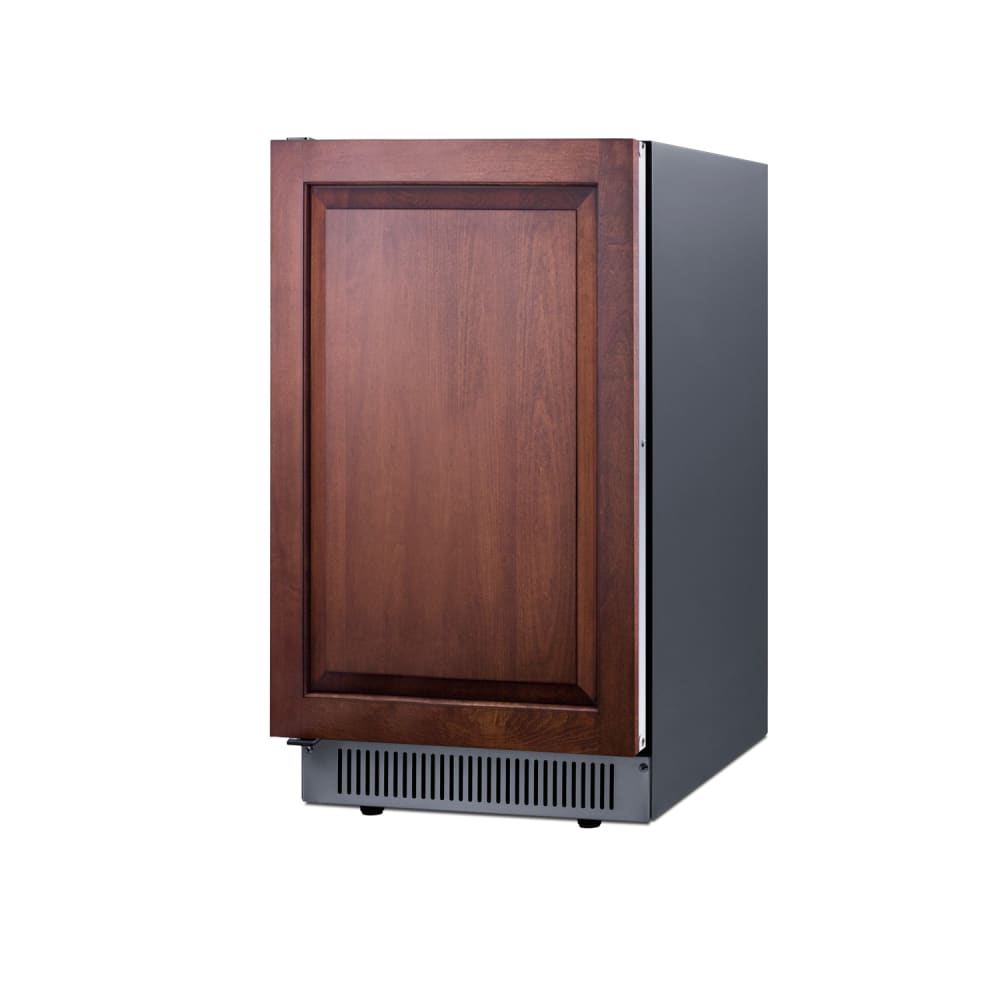

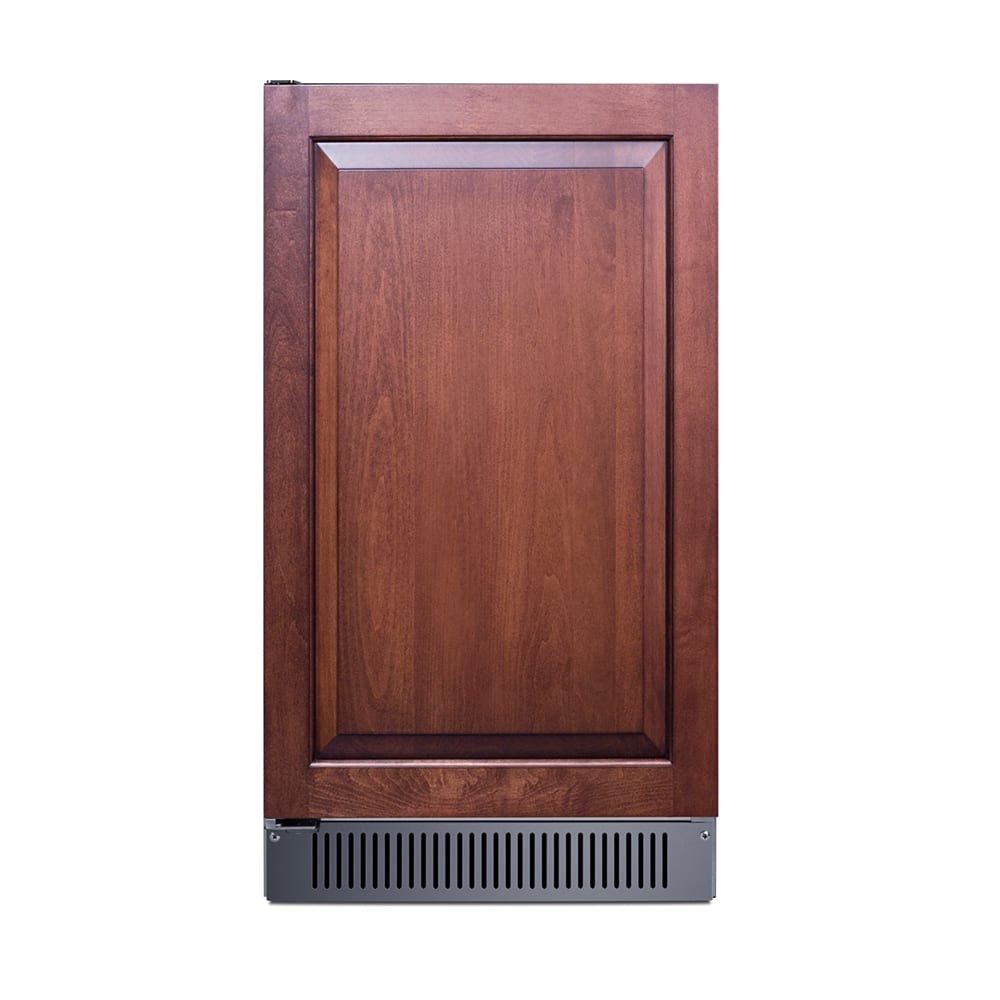

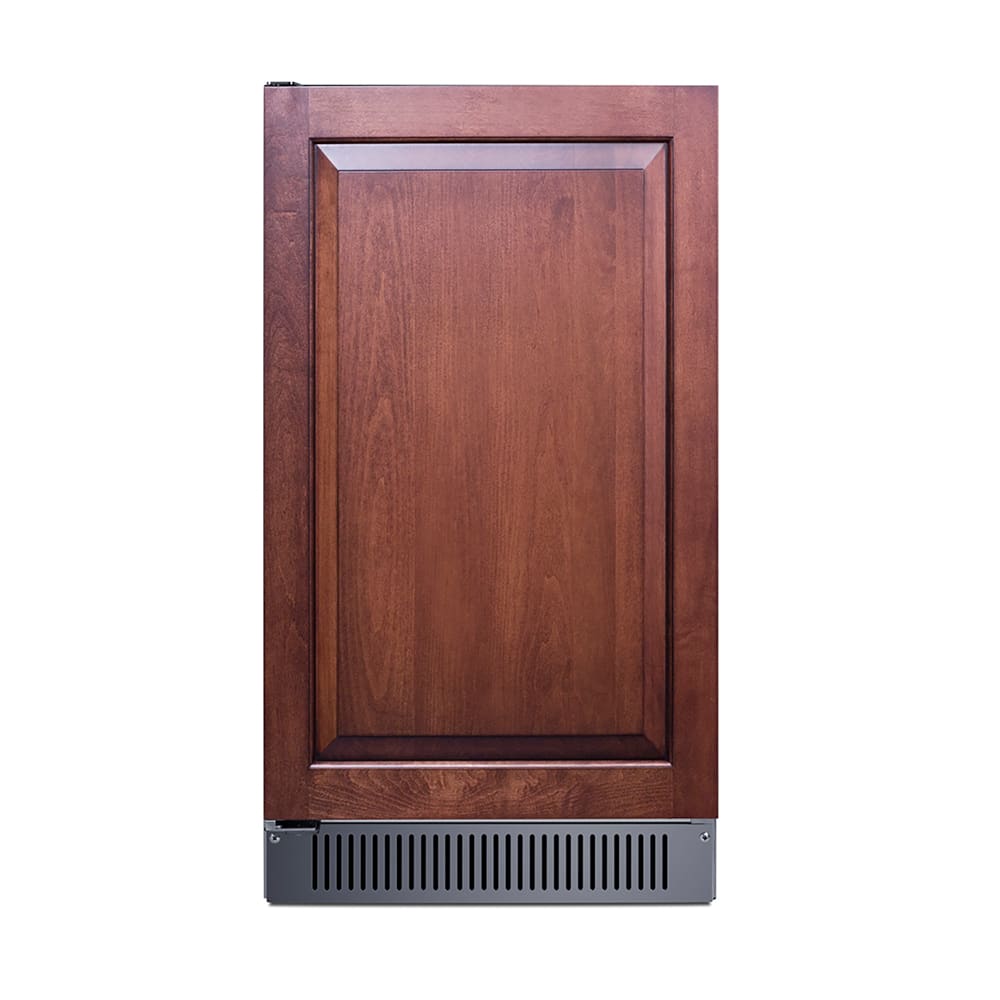

Featuring a panel-ready, left-hinged stainless steel door, the Summit BIM182OSADAIFLHD undercounter ice machine is designed to accept full overlay panels for seamless cabinetry integration. The unit’s 32 1⁄2-inch height fits beneath lowered counters, while its front-breathing, air-cooled system supports built-in or freestanding installation. Up to 60 pounds of full-cube ice can be produced daily, with 33 pounds stored in the removable, insulated bin. The touch control panel enables small, medium, or large cube selection and features LED indicators for each production stage.

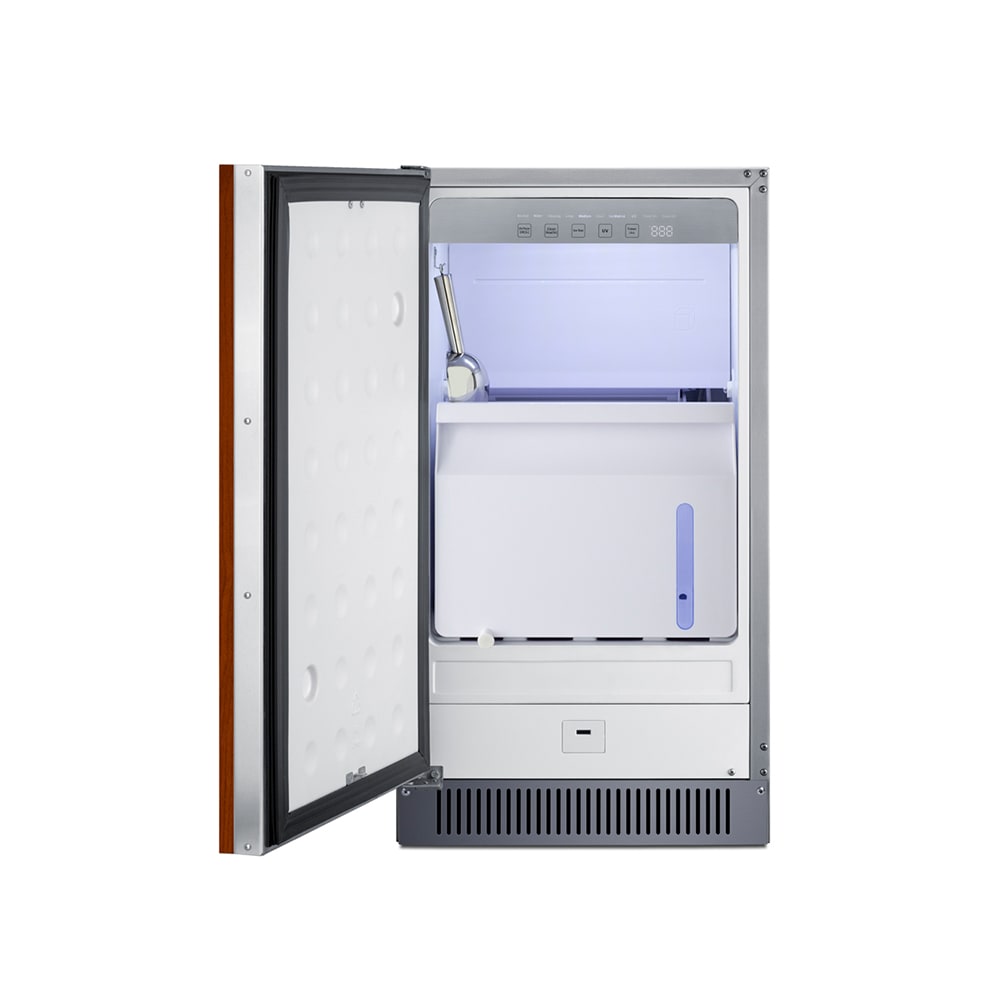

The Summit BIM182OSADAIFLHD outdoor ice maker is constructed of stainless steel and rated for exterior use, with a sealed back and four leveling legs for placement flexibility in open-air environments. Access to the interior is provided through the factory-installed door, which opens to reveal LED lighting and a UV light that supports a more sanitary environment. A taller kickplate is included to raise the installed height if needed, and foamed-in-place polyurethane insulation helps retain cold air and preserve the integrity of stored ice.
- BIM182 series
- Built-in or freestanding configuration
- Produces 60 lbs. of full-cube ice daily

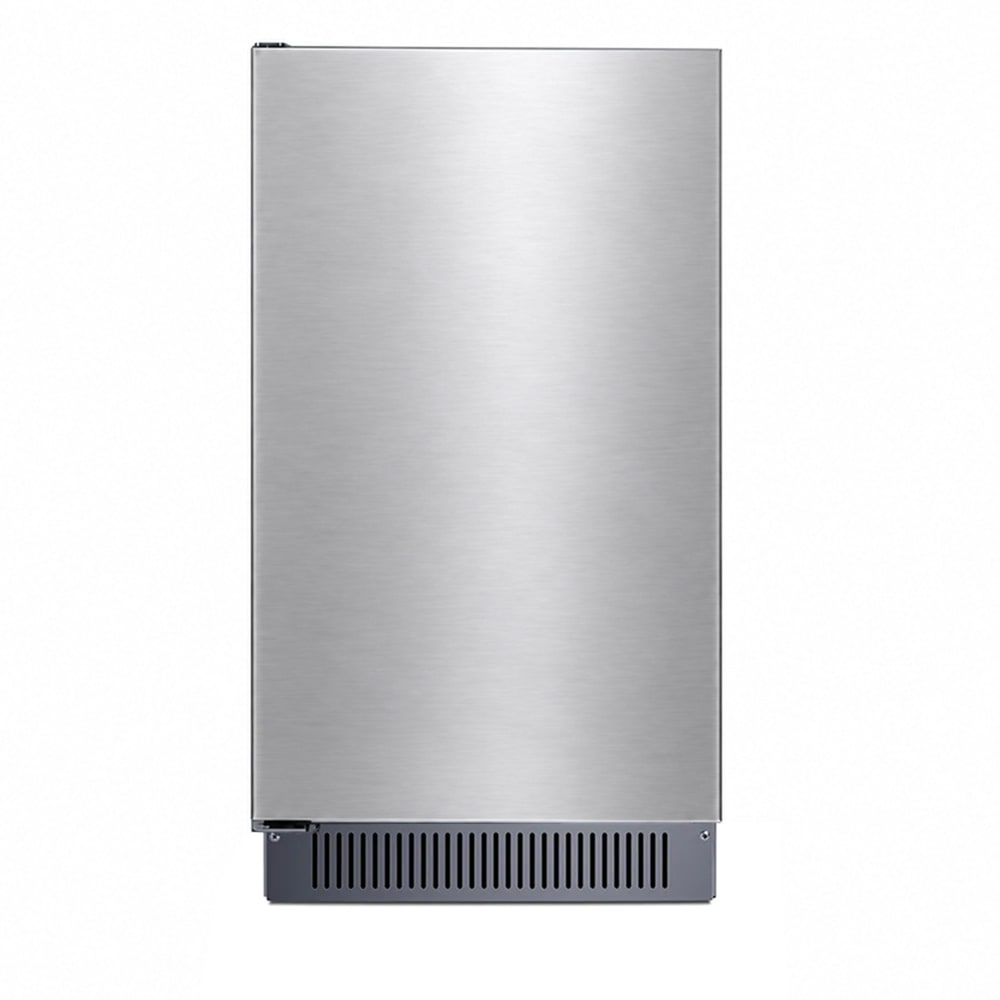

- Stainless steel cabinet
- Panel-ready door with left-hinged swing

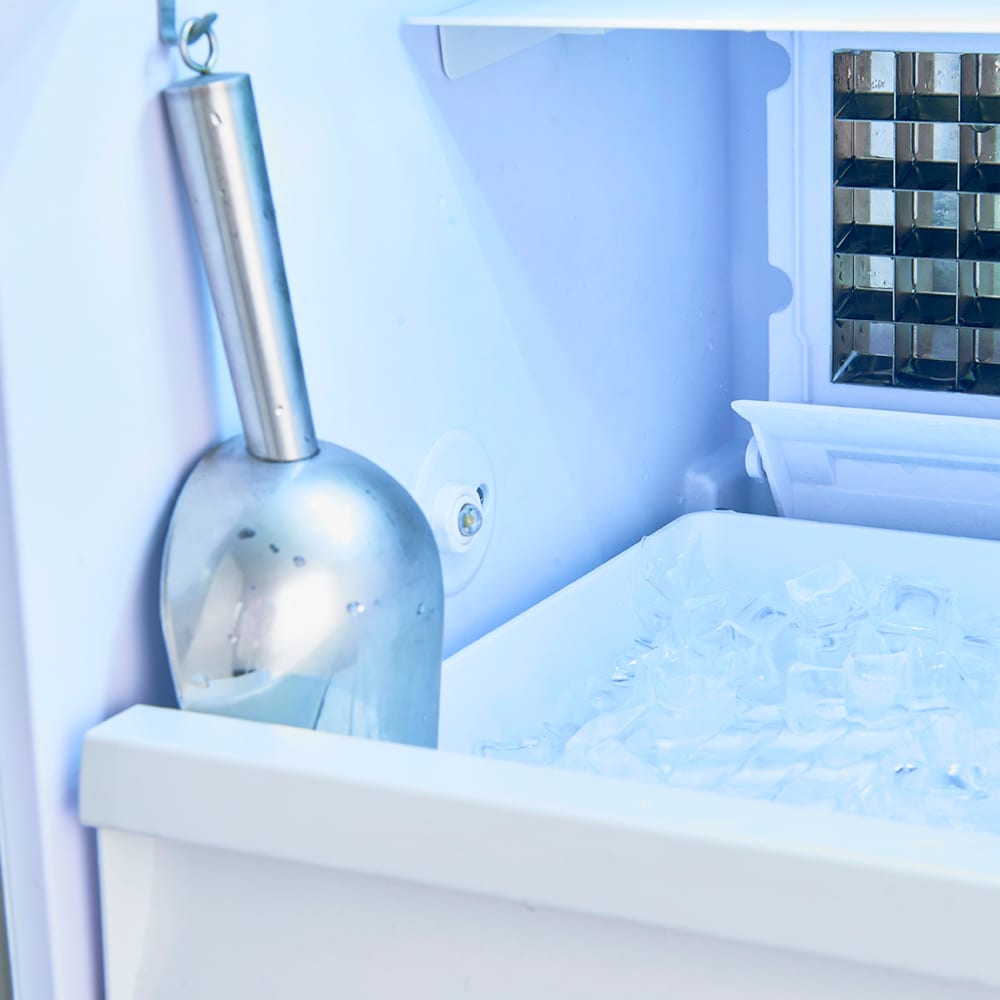

- Removable, insulated bin with 33-lb. storage volume
- Foamed-in-place polyurethane insulation
- Plastic interior

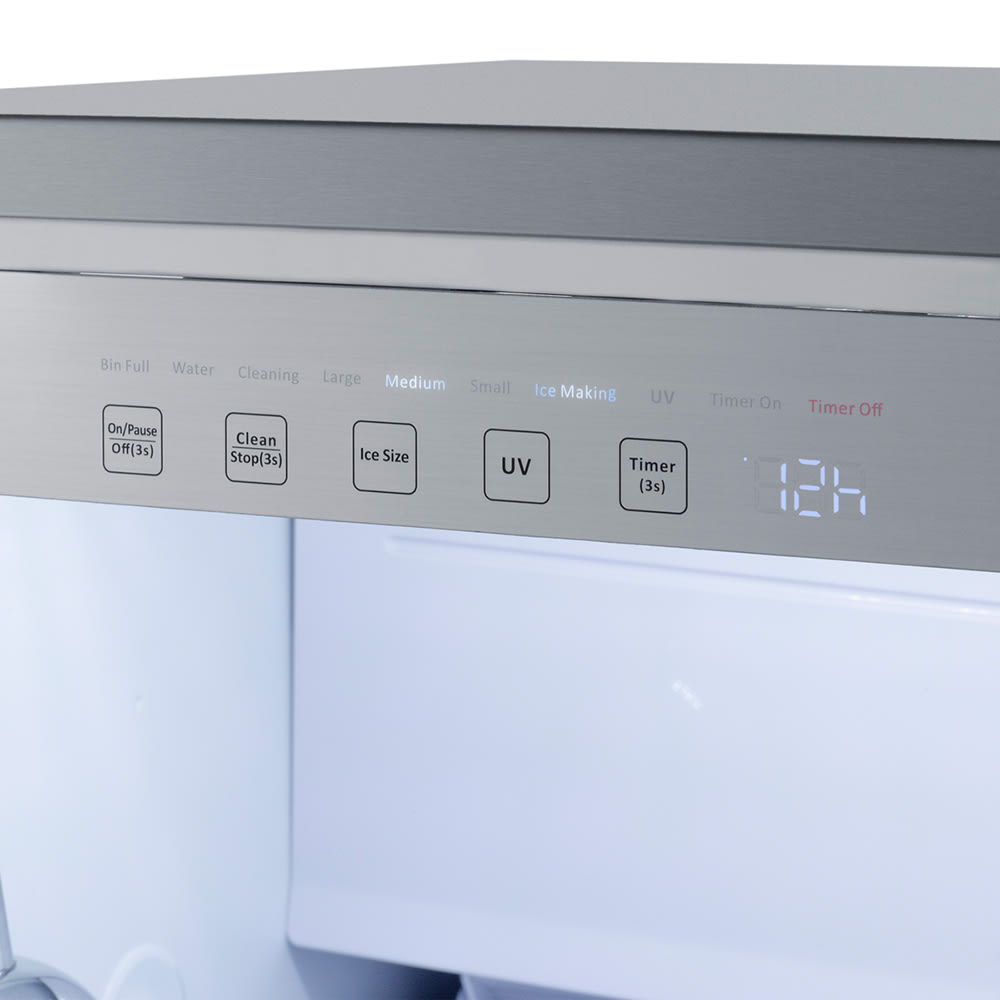

- Touch control panel with LED status indicators
- 3 cube size options: small, medium, large
- LED interior lighting
- UV interior light
- 4 leveling legs
- Front-breathing, self-contained design
- Air-cooled compressor
- Automatic defrost cycle
- Internal drain pump
- R290 hydrocarbon refrigerant
- Drain required
- Interior: 14 3⁄4 in. W x 16 3⁄4 in. D x 18 3⁄4 in. H
- Overall: 17 3⁄4 in. W x 23 3⁄4 in. D x 32 1⁄2 in. H
- 11.8 A
- 115 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
From The Manufacturer
Outdoor Icemaker, cube-style, built-in or freestanding, air-cooled, 17-3/4"W x 23-3/4"D x 32-1/2"H, ADA height compliant, (60) lbs production/24 hours, (33) lbs holding capacity, front-breathing, built-in pump, touch controls, auto defrost, ice scoop included, stainless steel finish, panel-ready, level legs, R290 hydrocarbon refrigerant, 115v/60/1-ph, 11.8 amps, ETL, ETL-C (Residential and Commercial)
Summit BIM182OSADAIFLHD Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Summit |
| 24 Hr. Production (lb) | 60 |
| Bin Capacity (lb) | 33 |
| Compressor Type | Air Cooled |
| Depth (in) | 23.75 |
| Design | ADA Height |
| Drain Type | Pump |
| Front Style | Cabinet Door |
| Height (in) | 32.5 |
| Hertz | 60 |
| Ice Type | Full Cube |
| NEMA | 5-15P |
| Phase | 1 |
| Product | Undercounter Ice Machines |
| Product Type | Ice Makers & Bins |
| Rating | Good |
| Refrigerant | R290 (Hydrocarbon) |
| Series | BIM182 Series |
| Special Features | Adjustable Leveling Feet |
| Special Features | Bacteria-Killing UV Light |
| Special Features | Custom Panel Front |
| Special Features | Digital Controls |
| Special Features | Outdoor Rated |
| Special Features | Removable & Insulated Bin |
| Suggested Use | Commercial |
| Suggested Use | Home/Office |
| Suggested Use | Outdoor |
| Voltage | 115 |
| Warranty | 1-year Limited Parts & Labor; 5-year Compressor |
| Width (in) | 17.75 |
| Weight | 75.00 |
