Summit BIM182OSADAIF 18"W Full Cube Undercounter Ice Machine - 60 lbs/day, Air Cooled, ADA
Retail Price: $3,890.00
$2,599.00 /Each
Summit BIM182OSADAIF Description
The Summit BIM182OSADAIF outdoor undercounter ice machine features a 32 1⁄2-inch height that fits beneath lower countertops. With air-cooled, front-breathing refrigeration and an internal drain pump, this model produces as much as 60 pounds of full-cube ice per day and retains 33 pounds in a removable, insulated bin. The touch control panel provides LED-guided operation and supports selection of small, medium, or large cube sizes to match user needs.
The Summit BIM182OSADAIF undercounter ice maker's interior is accessed via a factory-reversible, right-hinged stainless steel door that is mounted on a panel-ready frame to accommodate custom overlays. Built for outdoor environments, its fully finished cabinet and sealed rear support freestanding use, while interior LED lighting and integrated UV light promote visibility and sanitation. A taller kickplate is included for height extension where needed, and foamed-in-place polyurethane insulation helps maintain internal temperatures and preserve stored ice.
- Part of the BIM182 series
- Built-in or freestanding application
- Produces 60 lbs. of full-cube ice daily
- Offers 3 cube size options: small, medium, large
- 33-lb. internal storage bin
- Stainless steel cabinet
- Plastic interior
- Foamed-in-place polyurethane insulation

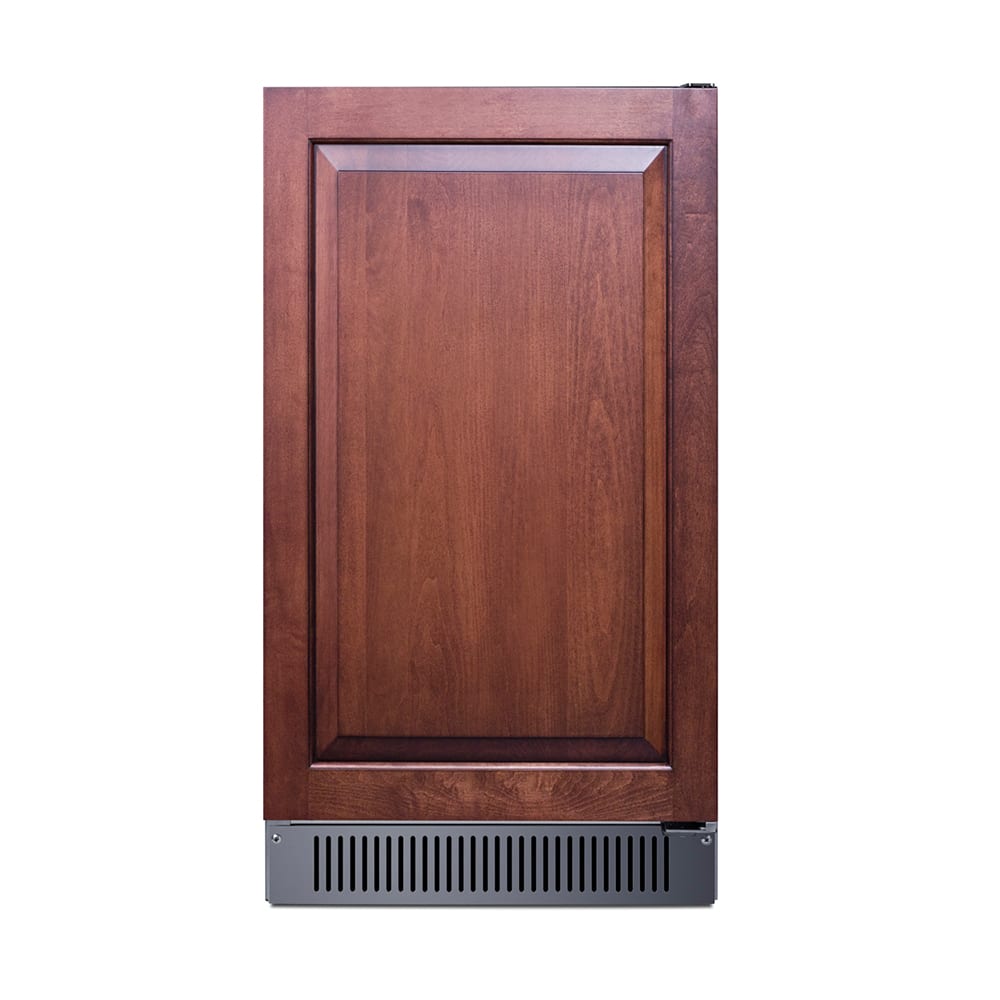

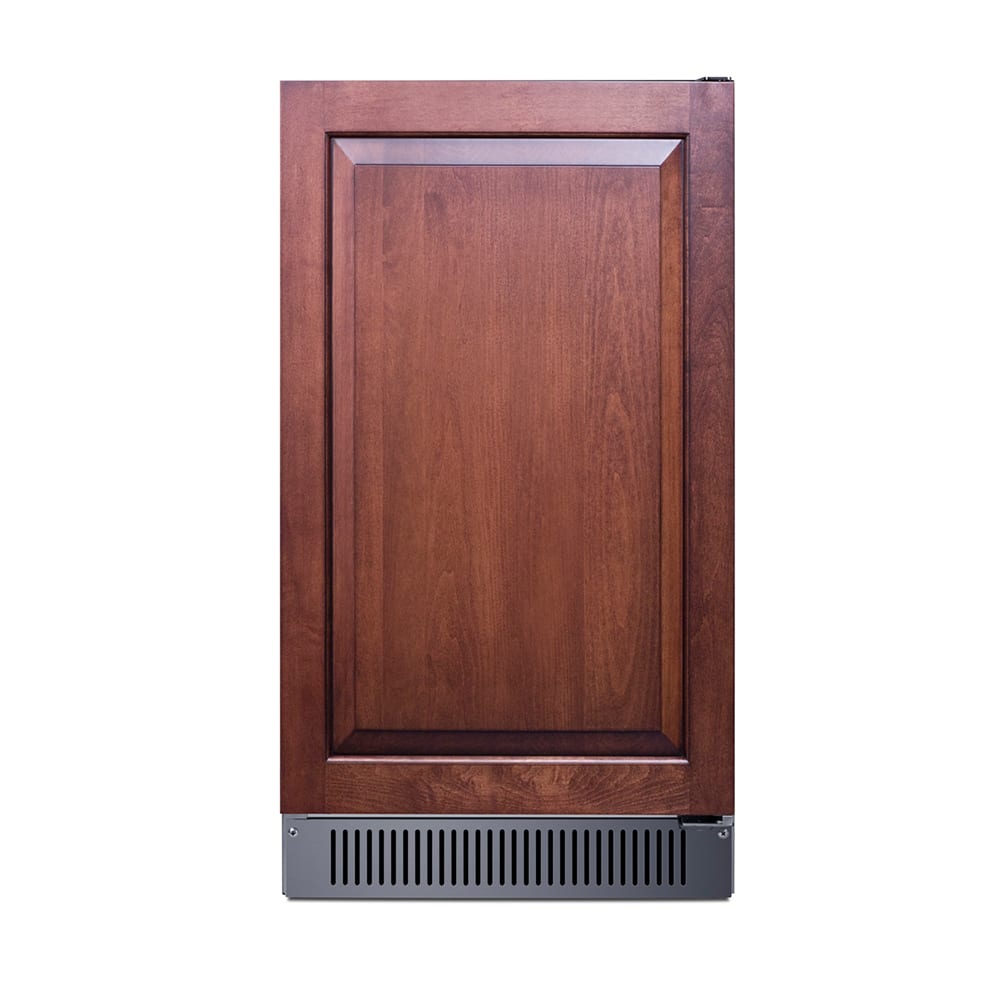

- Panel-ready door with right-hinged swing

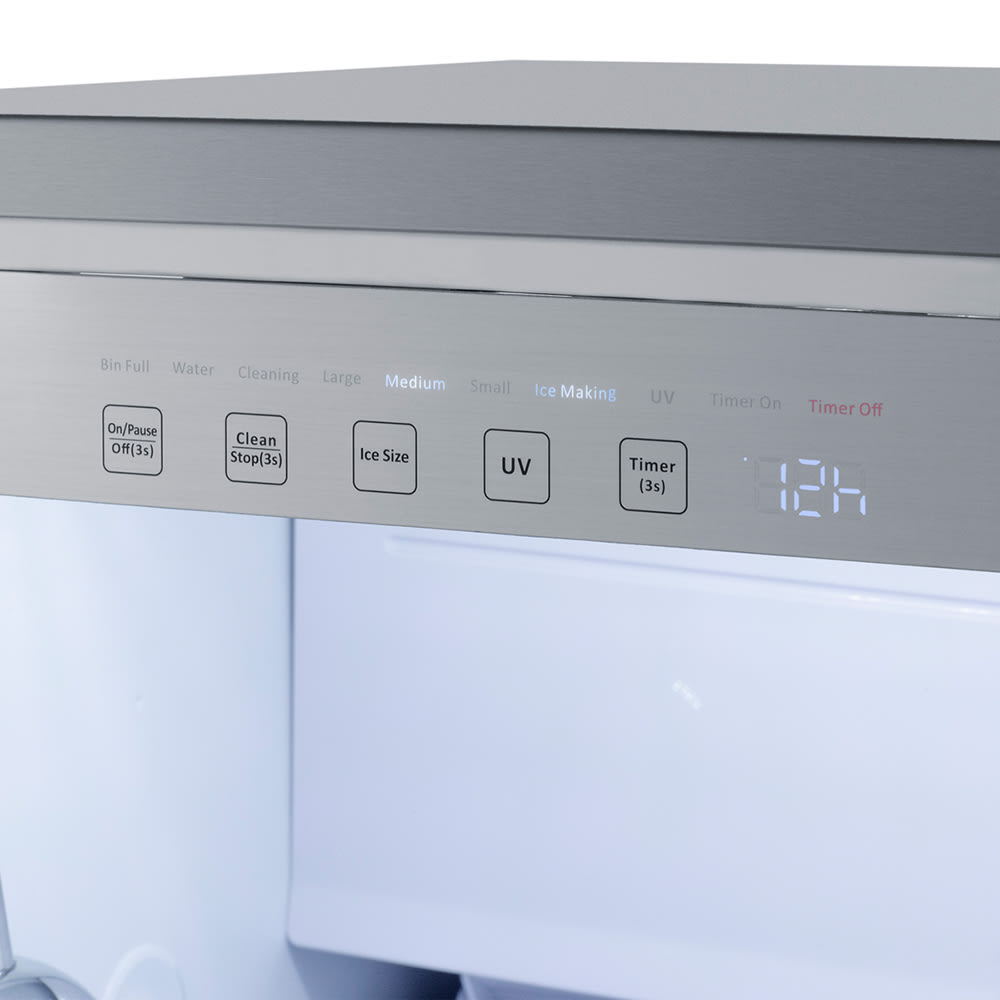

- Touch control panel with LED indicators

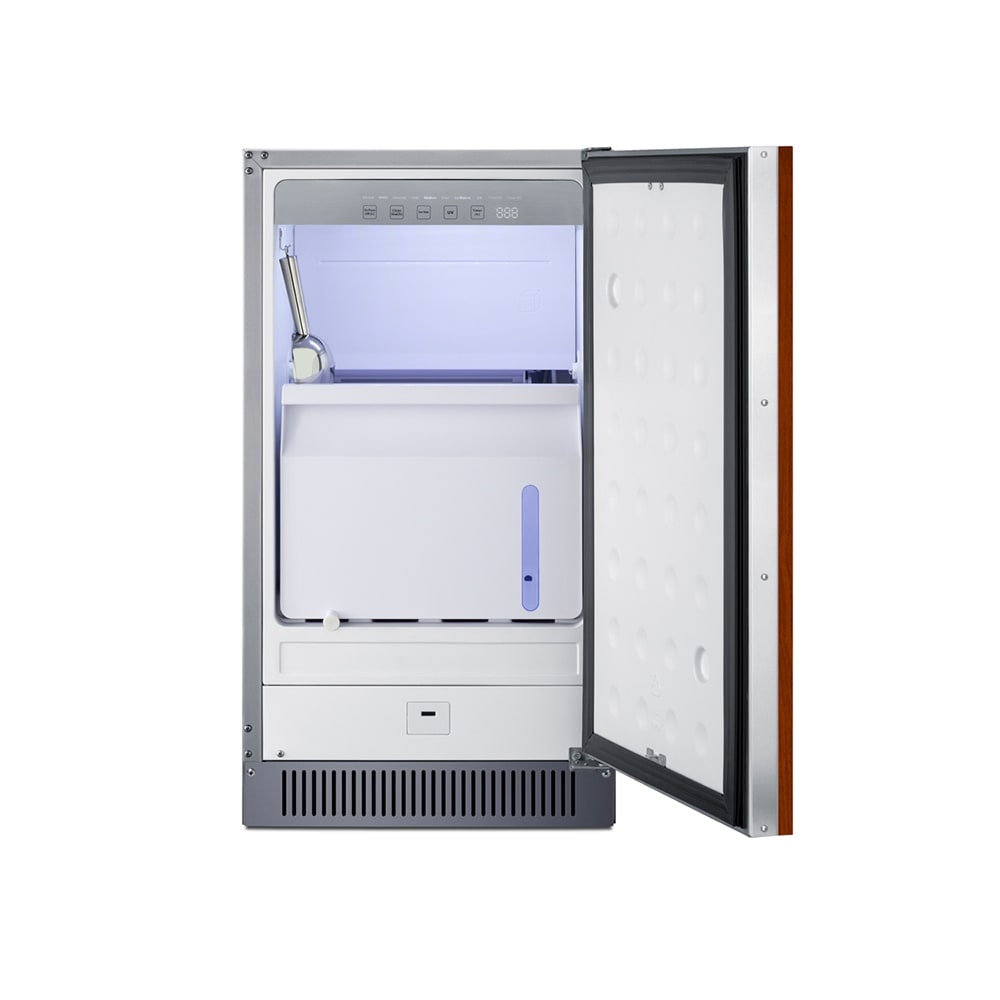

- Removable, insulated bin
- Built-in UV lighting
- LED interior lighting
- Leveling legs
- Front breathing
- Air-cooled compressor
- Automatic defrost cycle
- Internal pump
- R290 hydrocarbon refrigerant
- Drain required
- Interior: 14 3⁄4 in. W x 16 3⁄4 in. D x 18 3⁄4 in. H
- Overall: 17 3⁄4 in. W x 23 3⁄4 in. D x 32 1⁄2 in. H
- 11.8 A
- 115 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
From The Manufacturer
Outdoor Icemaker, cube-style, built-in or freestanding, air-cooled, 17-3/4"W x 23-3/4"D x 32-1/2"H, ADA height compliant, (60) lbs production/24 hours, (33) lbs holding capacity, front-breathing, built-in pump, factory reversible right-hinged door, touch controls, auto defrost, ice scoop included, stainless steel finish, panel-ready, level legs, R290 hydrocarbon refrigerant, 115v/60/1-ph, 11.8 amps, ETL, ETL-C (Residential and Commercial)
Summit BIM182OSADAIF Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Summit |
| 24 Hr. Production (lb) | 60 |
| Bin Capacity (lb) | 33 |
| Compressor Type | Air Cooled |
| Depth (in) | 23.75 |
| Design | ADA Height |
| Drain Type | Pump |
| Front Style | Cabinet Door |
| Height (in) | 32.5 |
| Hertz | 60 |
| Ice Type | Full Cube |
| NEMA | 5-15P |
| Phase | 1 |
| Product | Undercounter Ice Machines |
| Product Type | Ice Makers & Bins |
| Rating | Good |
| Refrigerant | R290 (Hydrocarbon) |
| Series | BIM182 Series |
| Special Features | Adjustable Leveling Feet |
| Special Features | Bacteria-Killing UV Light |
| Special Features | Custom Panel Front |
| Special Features | Digital Controls |
| Special Features | Outdoor Rated |
| Special Features | Removable & Insulated Bin |
| Suggested Use | Commercial |
| Suggested Use | Home/Office |
| Suggested Use | Outdoor |
| Voltage | 115 |
| Warranty | 1-year Limited Parts & Labor; 5-year Compressor |
| Width (in) | 17.75 |
| Weight | 75.00 |
