Summit BIM182OSADA 17 3/4"W Full Cube Undercounter Ice Machine - 60 lbs/day, Air Cooled, ADA
QUICK SHIP: Typically ships in 1 - 3 Business Days
Retail Price: $3,370.00
$2,249.00 /Each
Selected Height: ADA Height
| ADA Height |
| Standard Height |
Summit BIM182OSADA Description

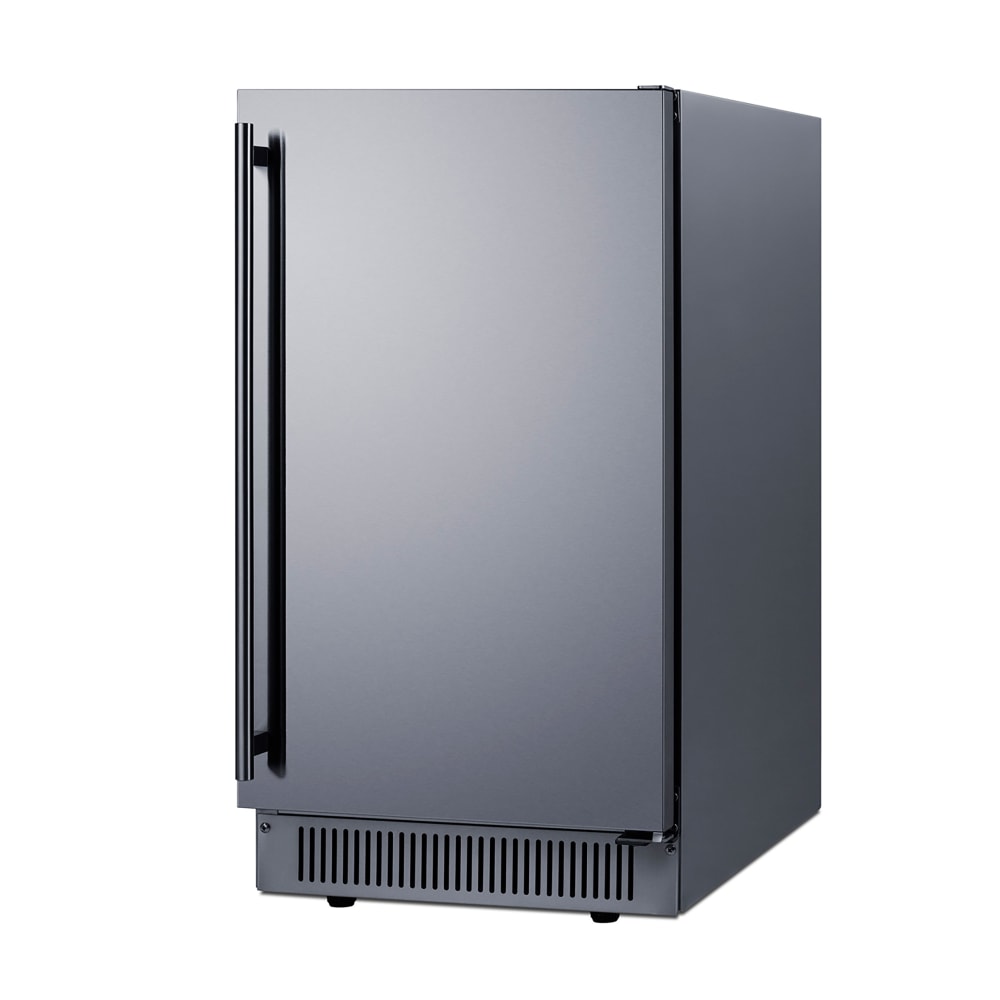

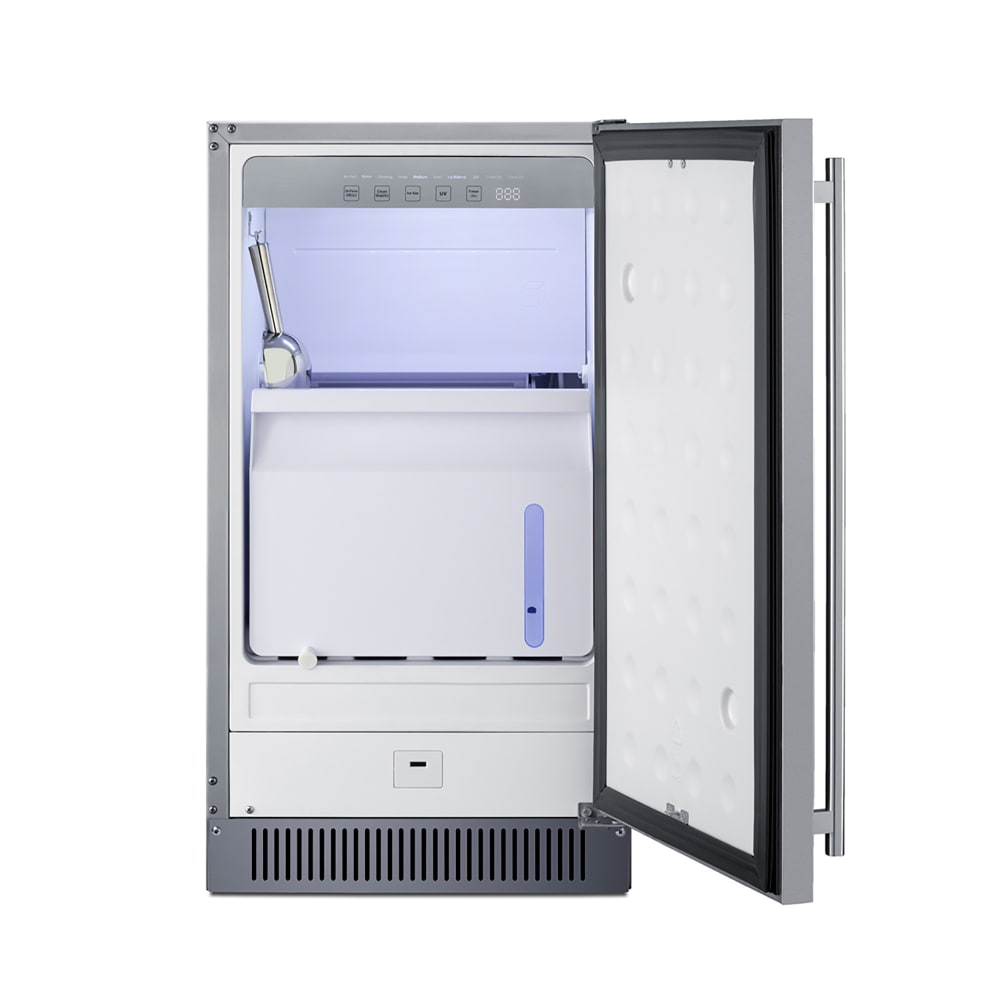

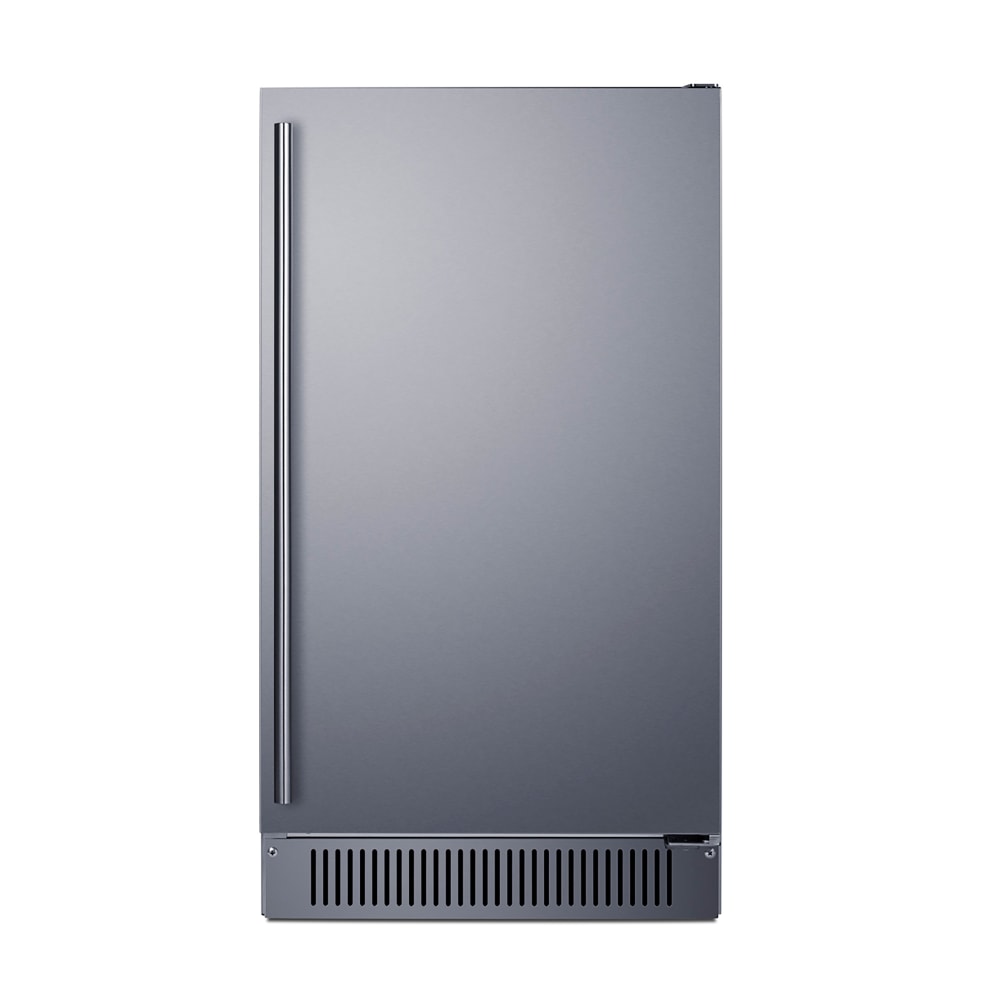

Engineered for ADA-height layouts, the Summit BIM182OSADA undercounter icemaker measures 17 3⁄4 inches wide by 25 1⁄4 inches deep by 32 1⁄2 inches high. Its sealed stainless steel construction resists degradation in indoor and outdoor areas, while a reversible door enables left- or right-hand orientation to suit changing setups. Driven by R290 refrigerant and digital controls, its air-cooled system defrosts automatically for continuous operation. Resting on adjustable leveling feet, it makes 60 pounds of full-cube ice each day, ensuring even dispensing into the 33-pound, UV-lit bin. A scoop reduces direct ice contact, and a built-in drain pump prevents standing water.
- Indoor/outdoor compatible
- ADA-compliant design
- Produces up to 60 lbs. of ice per day
- Makes clear full-cube ice (small, medium, or large)

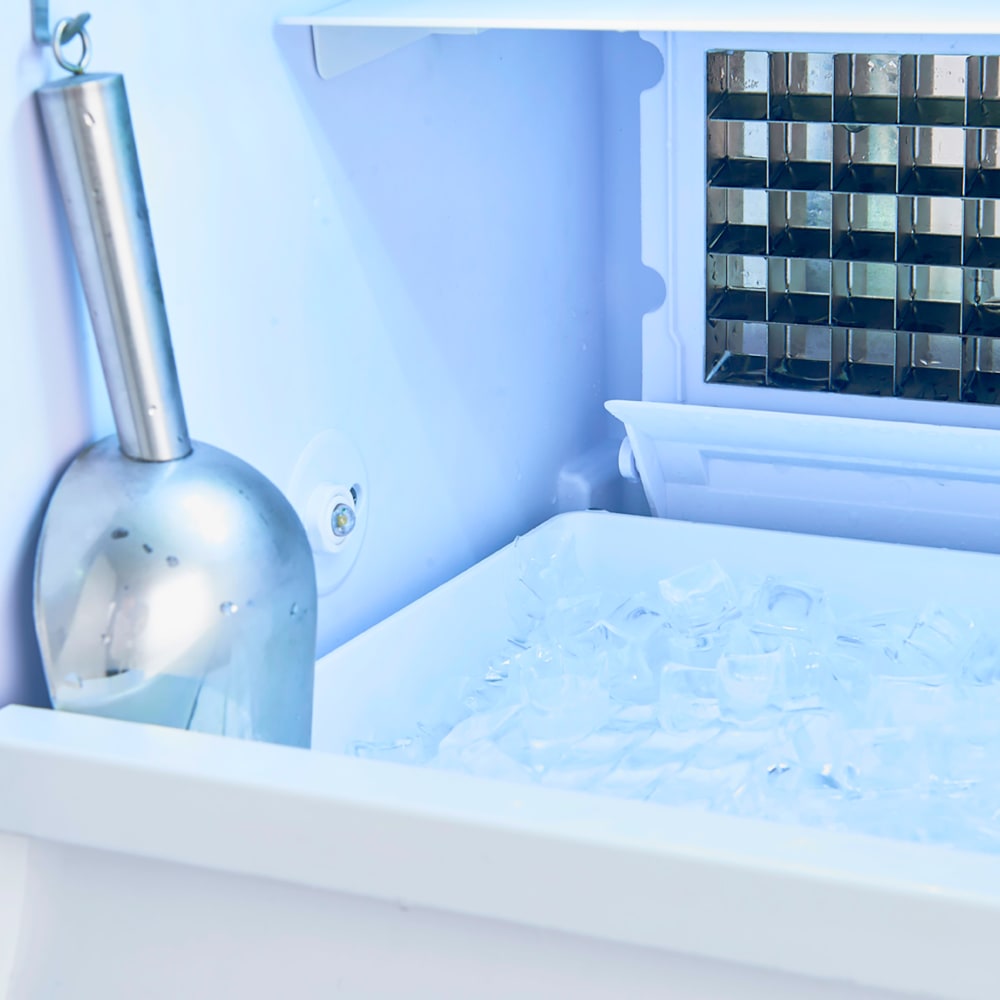

- 33-lb. insulated storage bin
- Stainless steel construction
- Reversible door
- Sealed back
- UV light
- Built-in pump
- Ice scoop
- Adjustable leveling feet
- Air-cooled compressor
- Automatic defrost

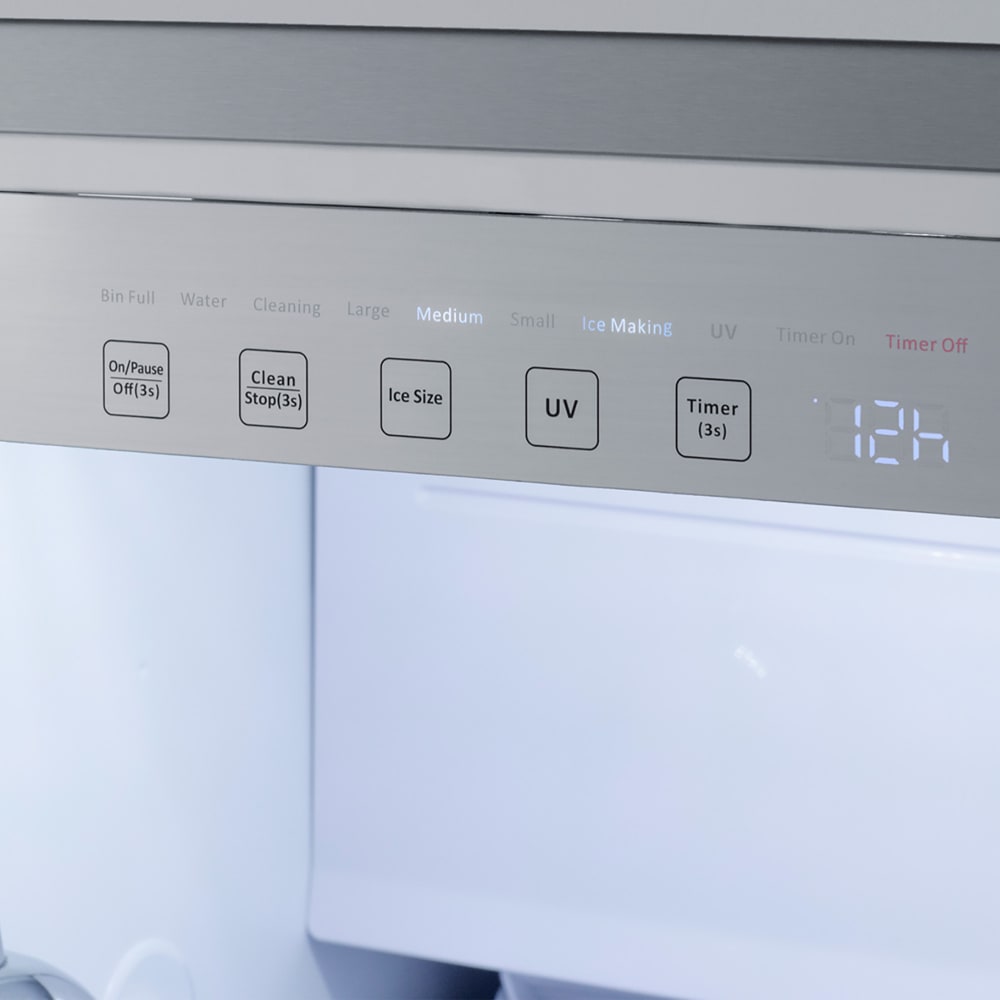

- Digital controls
- Uses R290 refrigerant
- 17 3⁄4 in. W x 25 1⁄4 in. D x 32 1⁄2 in. H
- 11.8 A
- 115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
*Image may not depict product color, inclusions or accessories.
From The Manufacturer
Summit BIM182OSADA Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Summit |
| 24 Hr. Production (lb) | 60 |
| Bin Capacity (lb) | 33 |
| Compressor Type | Air Cooled |
| Depth (in) | 25.25 |
| Design | ADA Height |
| Drain Type | Pump |
| Front Style | Stainless Door |
| Height (in) | 32.5 |
| Hertz | 60 |
| Ice Type | Full Cube |
| NEMA | 5-15P |
| Phase | 1 |
| Product | Undercounter Ice Machines |
| Product Type | Ice Makers & Bins |
| Rating | Good |
| Refrigerant | R290 (Hydrocarbon) |
| Series | BIM182 Series |
| Special Features | Adjustable Leveling Feet |
| Special Features | Bacteria-Killing UV Light |
| Special Features | Digital Controls |
| Special Features | Field Reversible Door |
| Special Features | Outdoor Rated |
| Special Features | Removable & Insulated Bin |
| Suggested Use | Commercial |
| Suggested Use | Home/Office |
| Suggested Use | Outdoor |
| Voltage | 115 |
| Warranty | 1-year Limited Parts & Labor; 5-year Compressor Parts |
| Water Inlet (in) | 0.25 |
| Width (in) | 17.75 |
| Weight | 88.00 |
