Summit BIM182OS 18"W Full Cube Undercounter Ice Machine - 60 lbs/day, Air Cooled

The Summit BIM182OS undercounter ice machine supports outdoor installation with a corrosion-resistant stainless steel cabinet and front-breathing design. Ideal for residential patios, break rooms, or poolside bars, this unit features an internal drain pump and automatic defrost to minimize maintenance. It can produce as much as 60 pounds of full-cube ice every 24 hours and holds 33 pounds in a removable insulated bin. The digital touch control panel provides access to ice size options.

The Summit BIM182OS ice machine includes a factory-reversible, right-hinged stainless steel door and vertically mounted handle for a symmetrical finish. Its 17³⁄₄-inch-wide cabinet is height adjustable, supporting both built-in and freestanding installation. The interior is outfitted with LED lighting and a UV light to promote sanitation. Its foamed-in-place polyurethane insulation helps preserve interior temperatures.

Product Details

• BIM182 series
• Built-in or freestanding application
• Produces up to 60 lbs. of full-cube ice per 24 hours
• Offers 3 cube size options: small, medium, large
• 33-lb. internal storage bin
• Stainless steel door with user-reversible, right-hinged swing

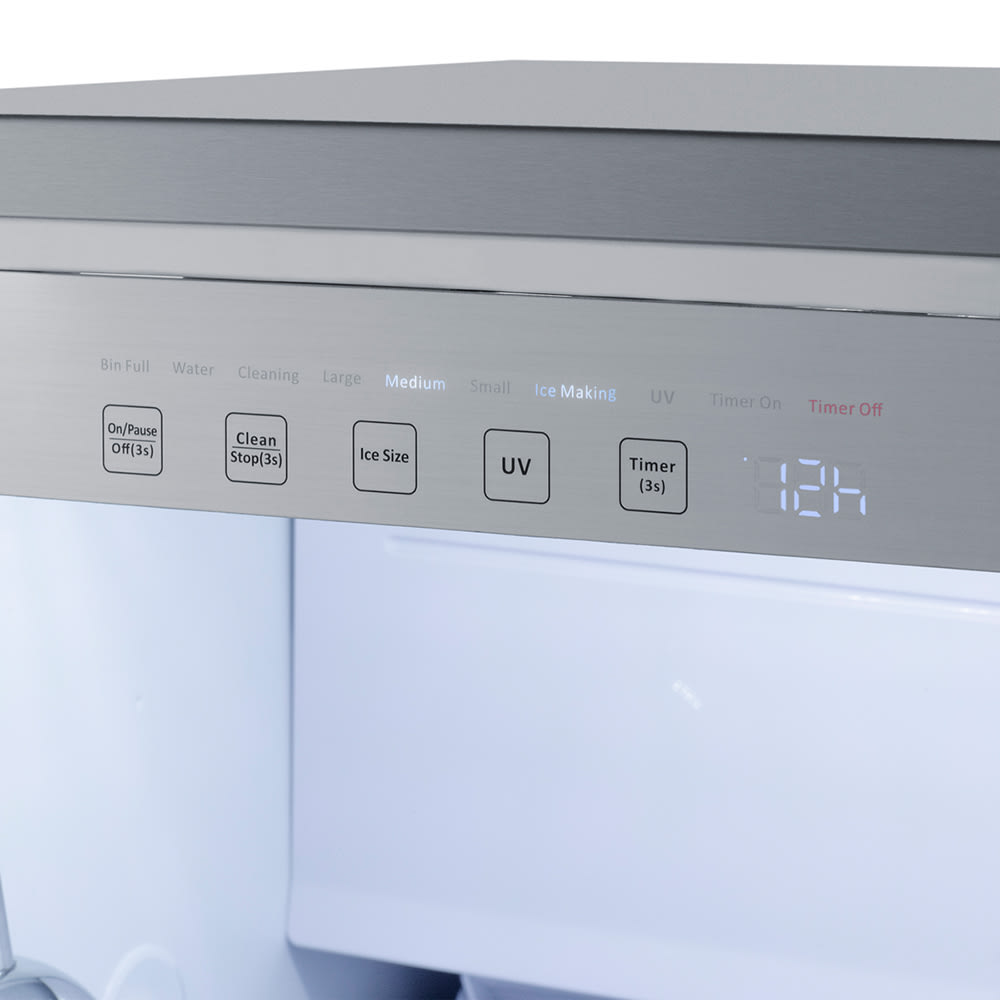

• Touch controls with illuminated status indicators
• Removable, insulated bin
• Stainless steel cabinet
• Interior constructed of plastic
• Foamed-in-place polyurethane insulation
• Built-in UV lighting
• LED interior light
• 4 factory-installed leveling legs

Refrigeration System

• Self-contained and front breathing
• Air-cooled compressor
• Automatic defrost operation
• Internal drain pump
• R290 hydrocarbon refrigerant
• Drain required

Dimensions & Utilities

• Interior: 14³⁄₄ in. W x 16³⁄₄ in. D x 18³⁄₄ in. H
• Overall: 17³⁄₄ in. W x 25¹⁄₄ in. D x 34³⁄₄ in. H
• 11.8 A
• 115 V/60 Hz/1 ph

Product Features

*Summit BIM182OS is free shipping eligible. Users must be signed in with an order total greater than $500 and be shipping to the 48 contiguous states.

From The Manufacturer

Outdoor Icemaker, cube-style, built-in or freestanding, air-cooled, 17-3/4"W x 25-1/4"D x 34-3/4"H, (60) lbs production/24 hours, (33) lbs holding capacity, front-breathing, built-in pump, user reversible right-hinged door, touch controls, auto defrost, ice scoop included, stainless steel finish, level legs, R290 hydrocarbon refrigerant, 115v/60/1-ph, 11.8 amps, ETL, ETL-C (Residential and Commercial)

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor; 5-year Compressor

Summit BIM182OS Specifications

A division of Felix Stroch, Inc., Summit Appliance provides the largest collection of undercounter and ADA-compliant refrigeration products in the industry. It also provides a diverse selection of appliances for healthcare settings, hotels, and universities, as well as its own residential brand. Summit has been creating and developing products in its New York headquarters since 1969.

Documents

Spec Sheet

Manual
