Ice-O-Matic CIMU226HA90 24 1/2"W Half Cube Undercounter Ice Machine - 241 lbs/day, Air Cooled
Typically ships in 2 - 3 weeks
$3,242.00 /Each
Selected Ice Type: Half Cube
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Ice-O-Matic CIMU226HA90 Description
Measuring 24 27⁄50 inches in width by 26 27⁄100 inches in depth by 39 inches in height, the Ice-O-Matic CIMU226HA90 half-cube ice maker is optimal for placement beneath countertops. This compact unit produces as much as 241 pounds of ice in 24 hours under ambient conditions and holds 70 pounds of ice at a time. To reduce energy consumption and enhance storage capacity, the ice maker is equipped with Harvest Assist, which consistently produces ice for the life of the unit. Enhancing sanitation between cleanings, uilt-in antimicrobial defense prevents bacterial growth on ice maker surfaces. The entire unit is made of durable stainless steel.

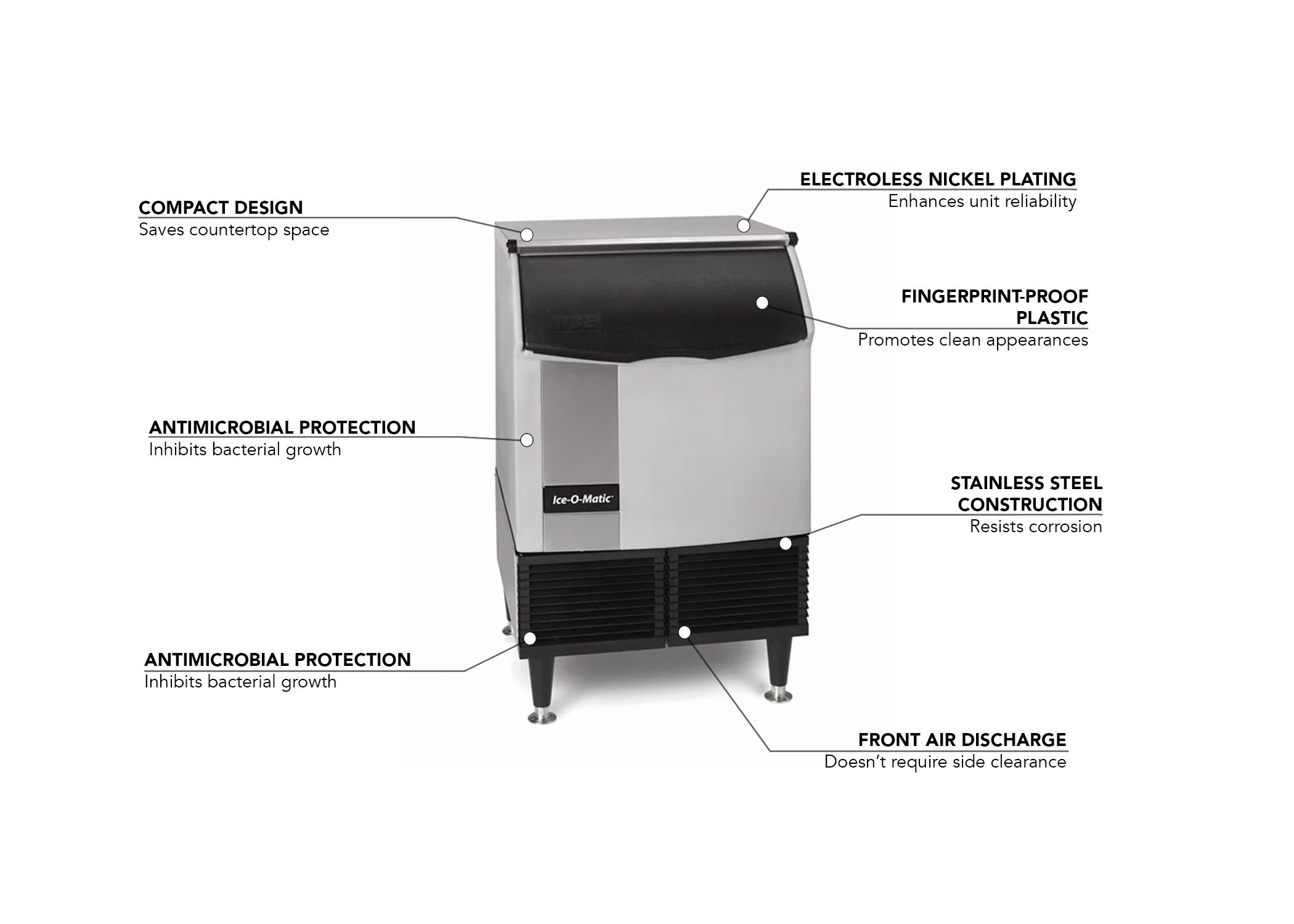

Promoting a clean appearance, the plastic components of the Ice-O-Matic CIMU226HA90 undercounter half-cube ice machine are resistant to fingerprints. This unit's door slides up to facilitate ice access, and because its air filter is located on the front, side clearance isn't necessary. Optimizing reliability, each evaporator plate in the ice machine is equipped with heavy-duty electroless nickel plating. This unit produces ice measuring 3⁄8 inch in width by 7⁄8 inch in depth by 7⁄8 inch in height.
- Produces half-cube ice
- For undercounter placement
- 241-lb. maximum daily ice production
- 168-lb. AHRI-certified daily ice production
- 70-lb. maximum ice storage capacity
- Air-cooled unit
- Corrosion-resistant stainless steel
- Fingerprint-resistant plastic
- Slide-back door facilitates access to ice
- Front-breathing system doesn't require side clearance
- Harvest Assist streamlines production
- Gravity drain type
- Pure Ice® protects internal surfaces from bacterial growth
- Electroless nickel plating on evaporator plate extends service life
- Eco-friendly R290 refrigerant
- Low profile saves counter space
- Ice dimensions: 3⁄8 in. W x 7⁄8 in. D x 7⁄8 in. H
- Ideal incoming air temperature: 50-100 degrees F
- Ideal incoming water temperature: 40-100 degrees F
- Ideal incoming water pressure: 20-60 PSIG
- Uses 25 gal. of water per 100 lbs. of ice
- 4321-BTU heat transfer capacity
- 24 27⁄50 in. W x 26 27⁄100 in. D x 39 in. H
- 3⁄8-in. FPT ice maker water in
- 3⁄4-in. FPT bin and ice maker drain
- 7⁄8-in. hole for electrical connections
- 3⁄8-in. FPT condenser water in
- 1⁄2-in. FPT condenser water out
- 6 A, 9.2 kW
- 208-230 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Ice-O-Matic CIMU226HA90 within the 48 contiguous states.
From The Manufacturer
ICE Series™ Cube Ice Maker, cube-style, undercounter, air-cooled, self-contained condenser, approximately 241 lb production/24 hours, 70 lb. built-in bin, half-size cube, 208-230v/60/1-ph, 6.0 amps, cULus, NSF, CE, ENERGY STAR®
Ice-O-Matic CIMU226HA90 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Ice-O-Matic |
| 24 Hr. Production (lb) | 241 |
| Also Known As | ICEU226HA |
| Bin Capacity (lb) | 70 |
| Compressor Type | Air Cooled |
| Depth (in) | 26.27 |
| Design | Standard Height |
| Drain Type | Gravity |
| Front Style | Lift Door |
| Height (in) | 39 |
| Hertz | 60 |
| Ice Type | Half Cube |
| Phase | 1 |
| Product | Undercounter Ice Machines |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Series | ICE Series™ |
| Special Features | Antimicrobial |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts |
| Water Inlet (in) | 0.38 |
| Width (in) | 24.54 |
| Weight | 160.00 |
