Winholt NHPL-1810HHC Half Height Non-Insulated Mobile Heated Cabinet w/ (10), 120v
QUICK SHIP: Typically ships in 1 - 3 Business Days
Retail Price: $3,028.00
$1,348.17 /Each
White Glove Delivery
Contact your sales rep for availability
Attention: Order by 06-16-2025 to save before the price increases!
Winholt NHPL-1810HHC Description
With its dual proof and heat controls, the Winholt NHPL-1810HHC proofer cabinet can generate humidity from 30 to 100 percent in temperatures as high as 115 degrees Fahrenheit or produce heat as high as 185 degrees Fahrenheit. Together, these mechanisms hold prepared dishes at safe serving temperatures for short periods of time and create an appropriate environment for dough to rise. Its air baffle and circulating air blower distribute heat evenly throughout the cabinet, and its easy-to-read LED thermometer provides a precise readout so operators can manage internal temperatures. When necessary, its control drawer can be removed for cleaning and maintenance.
For low-volume applications, this Winholt NHPL-1810HHC heater cabinet accommodates (10) 18-inch by 26-inch pans. Its clear door lends a full view into the cabinet so users can monitor proofing, and a tight-fit gasket built into the door frame is held closed with magnets to prevent heat seepage. For thorough cleaning, this door can be removed. Sized to fit beneath a counter, this 32-inch-wide by 211⁄8-inch-deep by 302⁄3-inch-high cabinet features a 5⁄8-inch polytop that doubles as a work station. Its heavy-duty aluminum construction withstands high-volume use, and to simplify transport, it's fitted with 4-inch polyurethane plate casters and corner bumpers.
Product Details
- Half-height configuration with reach-in design
- Capacity: (10) 18-in. x 26-in. pans
- Dual proof and heat controls
- Proof mode produces humidity from 30-100 percent
- Heat mode reaches temperatures as high as 185 degrees F
- Air baffle and circulating air blower for even heat distribution
- Removable control drawer with LED thermometer display
- Heavy-duty aluminum construction
- Noninsulated
- Lift-off clear door with tight-fitting gasket
- Corner bumpers
- Polytop for work station
- (4) 4-in. polyurethane plate casters (2 locking in front)
Dimensions & Utilities
- 32 in. W x 211⁄8 in. D x 302⁄3 in. H
- 14 A, 1440 W
- 120 V/60 Hz/1 ph
Product Features
From The Manufacturer
Non-Insulated Heater/Proofer Cabinet, mobile, half height, 21"W x 30-3/4"D x 30-3/4"H, aluminum construction, forced air, accommodates (10) 18" x 26" pans, dual proof/heat control, lift-off clear door, removable analog control drawer, LED thermometer display, (2) swivel plate casters & (2) swivel/brake plate casters with polyurethane tread, NEMA 5-15P, 14.0 amps, 1440 watts, 120v/60/1-ph, cETLus, NSF

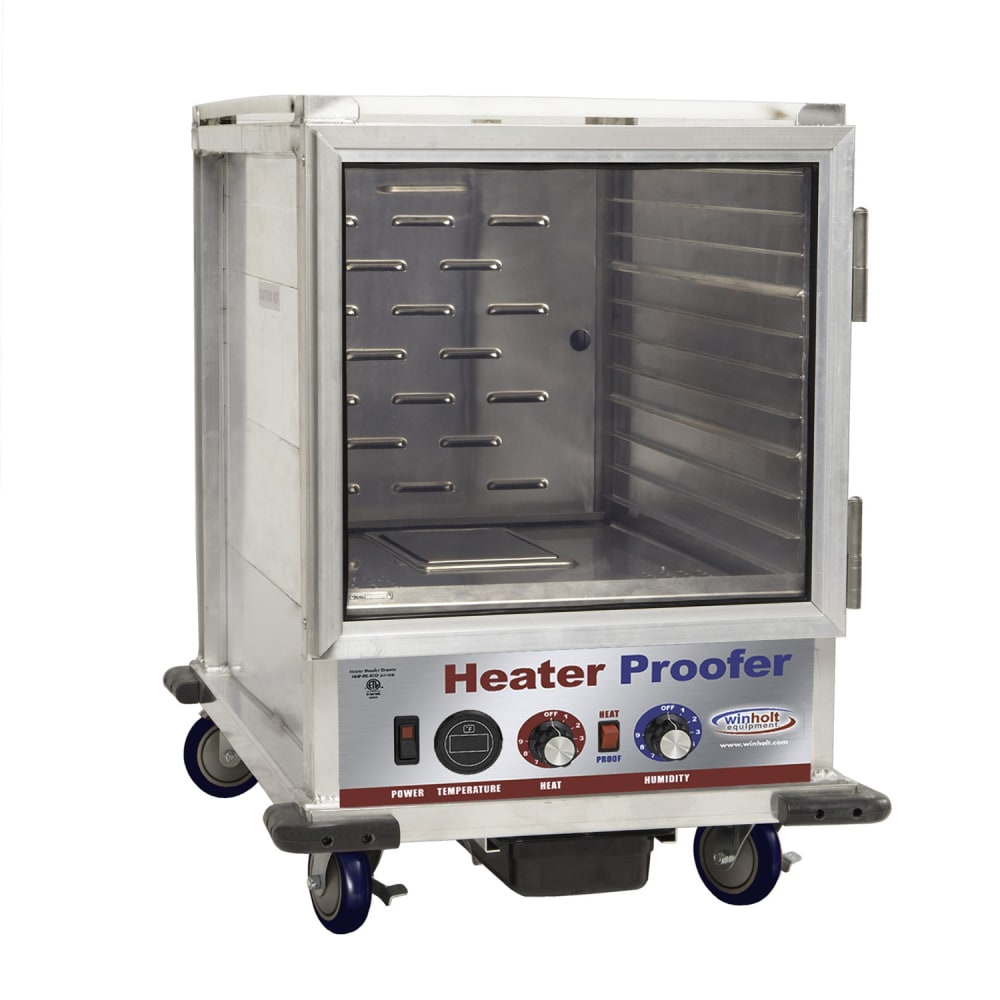

*Image may not depict product color, inclusions or accessories.
Winholt NHPL-1810HHC Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Winholt |
| Application | Heat & Humidity |
| Construction | Aluminum |
| Control Location | Bottom |
| Controls | Dial |
| Depth (in) | 30.75 |
| Door Design | Full |
| Door Type | Glass |
| Heat | Electric |
| Height (in) | 30.75 |
| Hertz | 60 |
| kW | 1.44 |
| Load Type | Reach In |
| NEMA | 5-15P |
| No. of Doors | 1 |
| Pan Capacity | 10 |
| Phase | 1 |
| Product | Heated Cabinets |
| Product Type | Food Warming Equipment |
| Sections | 1 |
| Size | 1/2 Height |
| Type | Non-Insulated |
| Voltage | 120 |
| Warranty | 1-year Against Defects in Material & Workmanship; Lifetime Against Rust or Corrosion |
| Width (in) | 21 |
| Weight | 91.00 |
