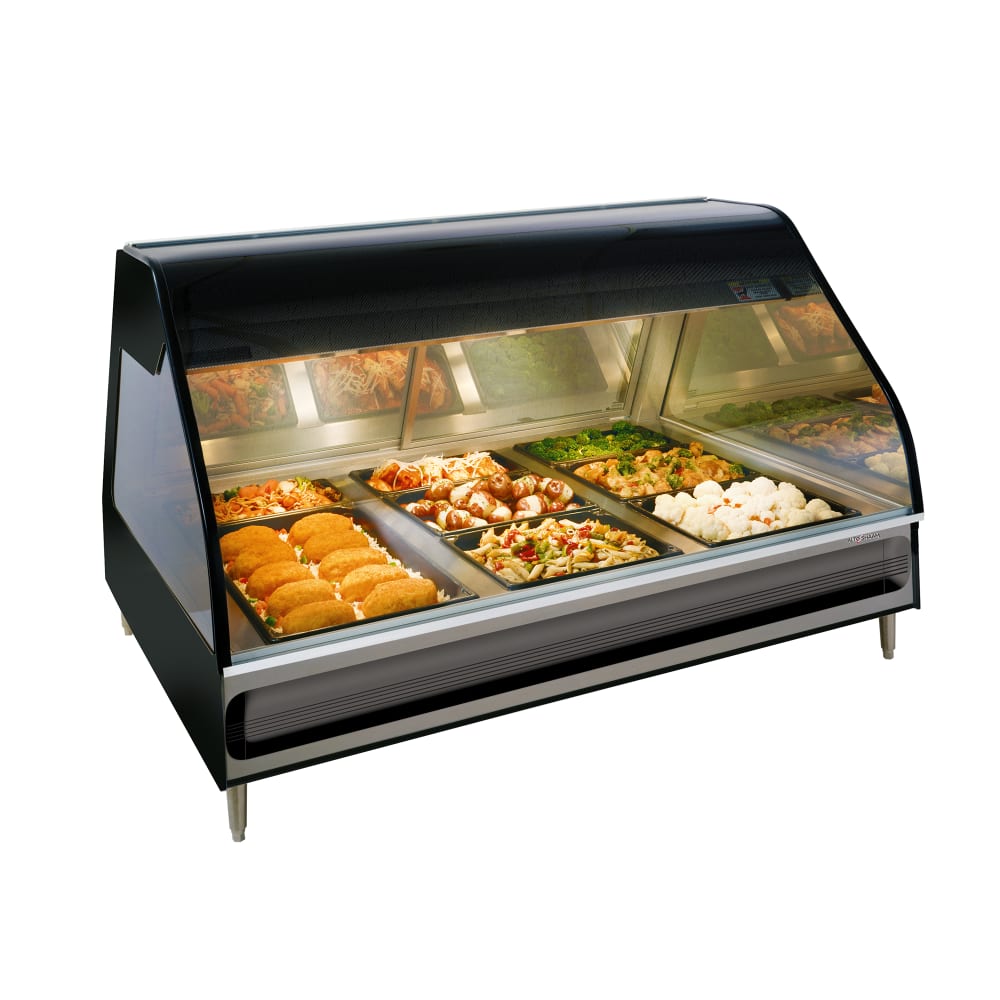

Alto-Shaam ED3-48 48" Full Service Countertop Heated Display Case - 208v
Typically ships in 4 - 6 weeks
$8,426.22 /Each
Contact us for details!
Selected Voltage: 208V, 1 Phase
| 208V, 1 Phase |
| 240V, 1 Phase |
Alto-Shaam ED3-48 Description

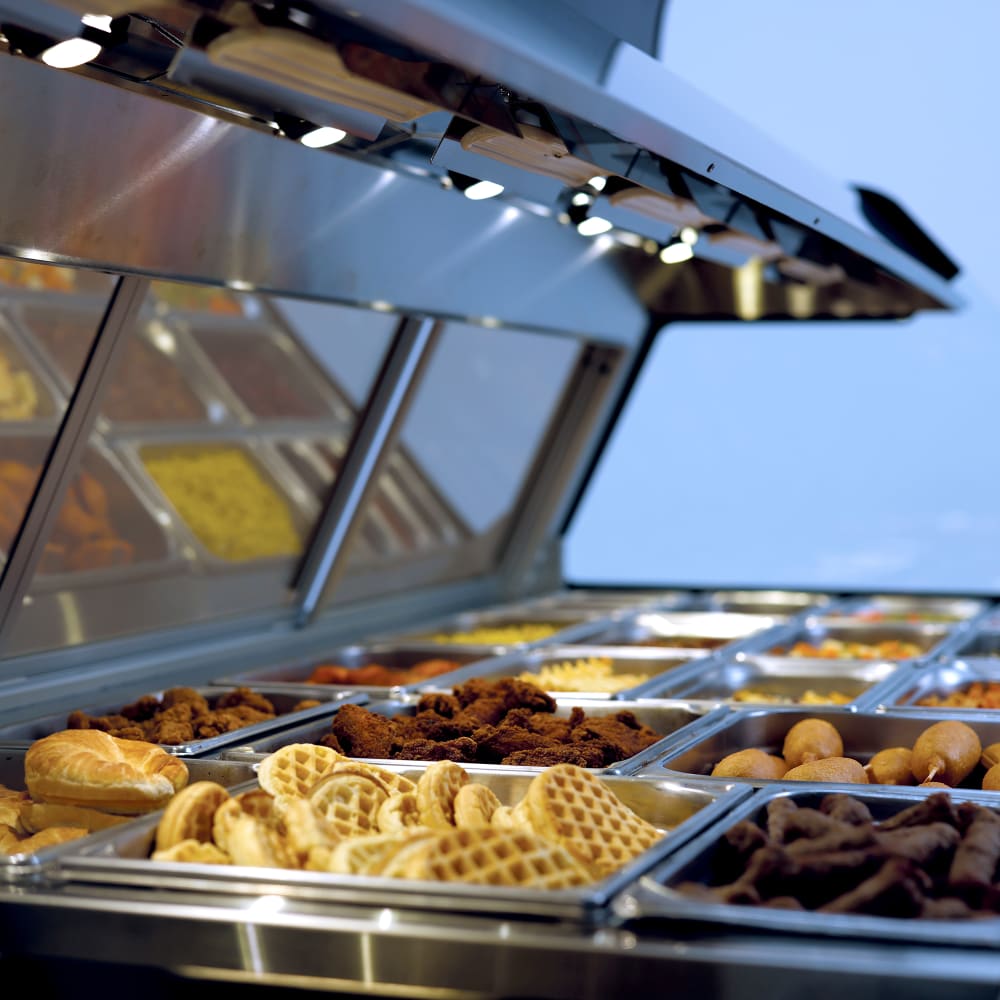

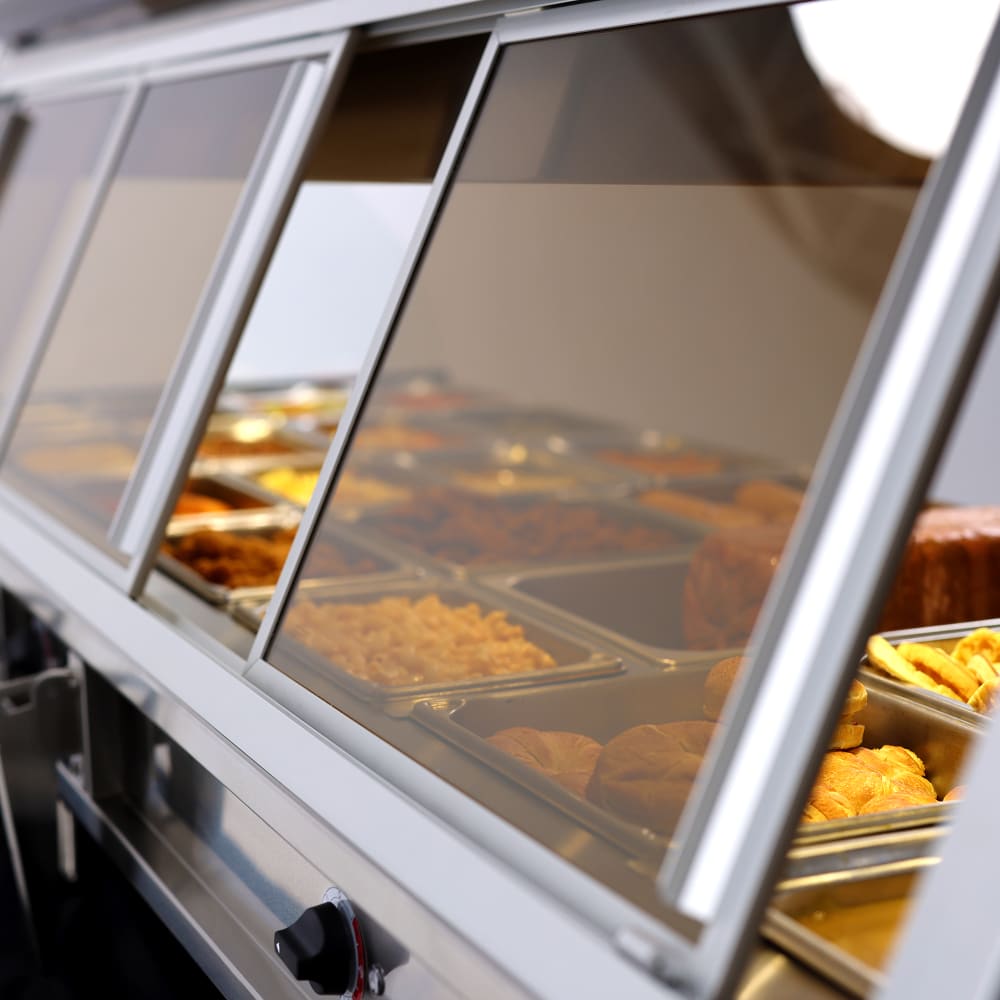

The Alto-Shaam ED3-48 full-service countertop heated display case features tempered front glass, glass side panels, and mirrored back doors for enhanced product visibility. The back doors and side panels are removable and easy to clean. For an attached workspace, this unit includes a work shelf and cutting board. This display case measures 48 5⁄16 inches wide by 43 5⁄8 inches deep by 30 3⁄16 inches high and is mounted on 4-inch legs with rubber feet.
To simultaneously accommodate multiple types of food, the Alto-Shaam ED3-48 countertop display case has two zones with separate temperature controls that radiate heat from top ceramic heaters. Each zone can be set within 1-to-10 range with individual thermostats. This unit is equipped with Halo Heat® technology, which gently heats food without added humidity or fans. This display case can hold standard pan sizes in its three pan zones.
- Features Halo Heat technology
- Individually controlled top and bottom heat zones
- Ceramic top heaters
- 2 heat-on indicators
- Tempered glass front

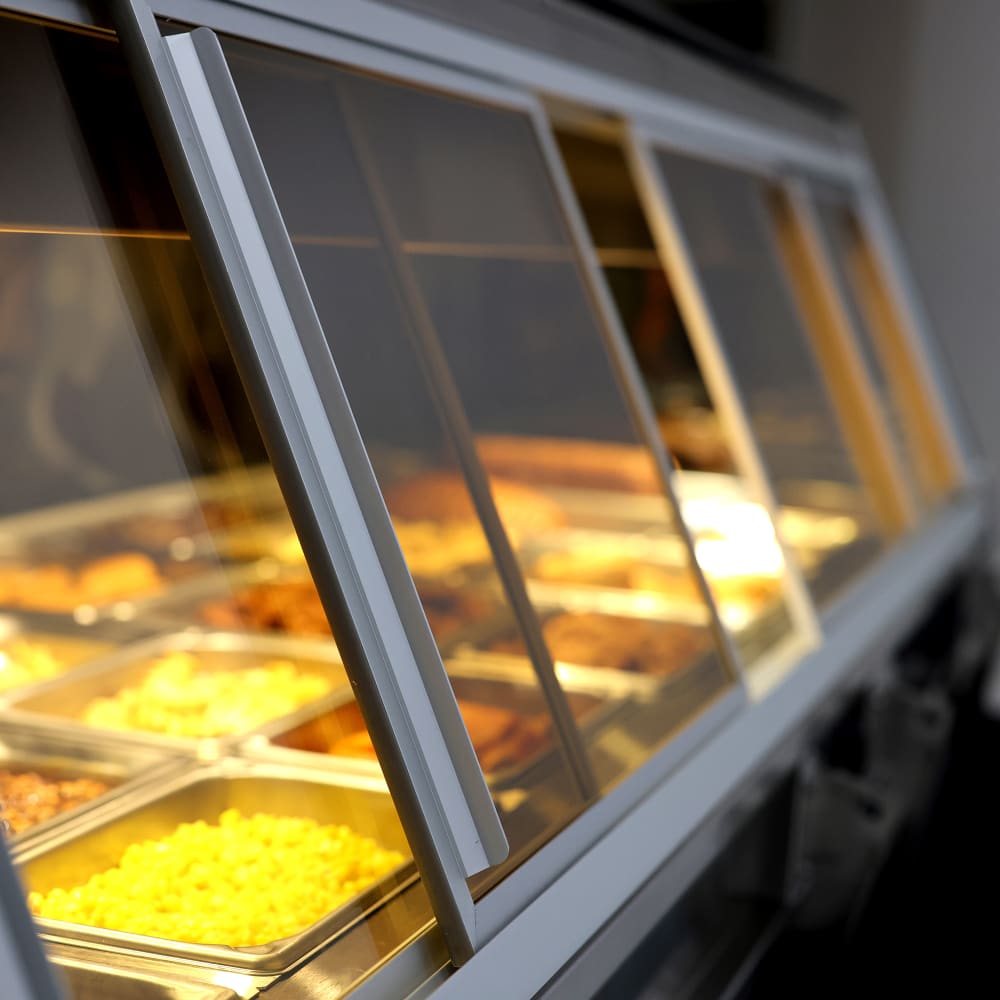

- Sliding back doors with mirrored glass
- Removable back doors and side panels

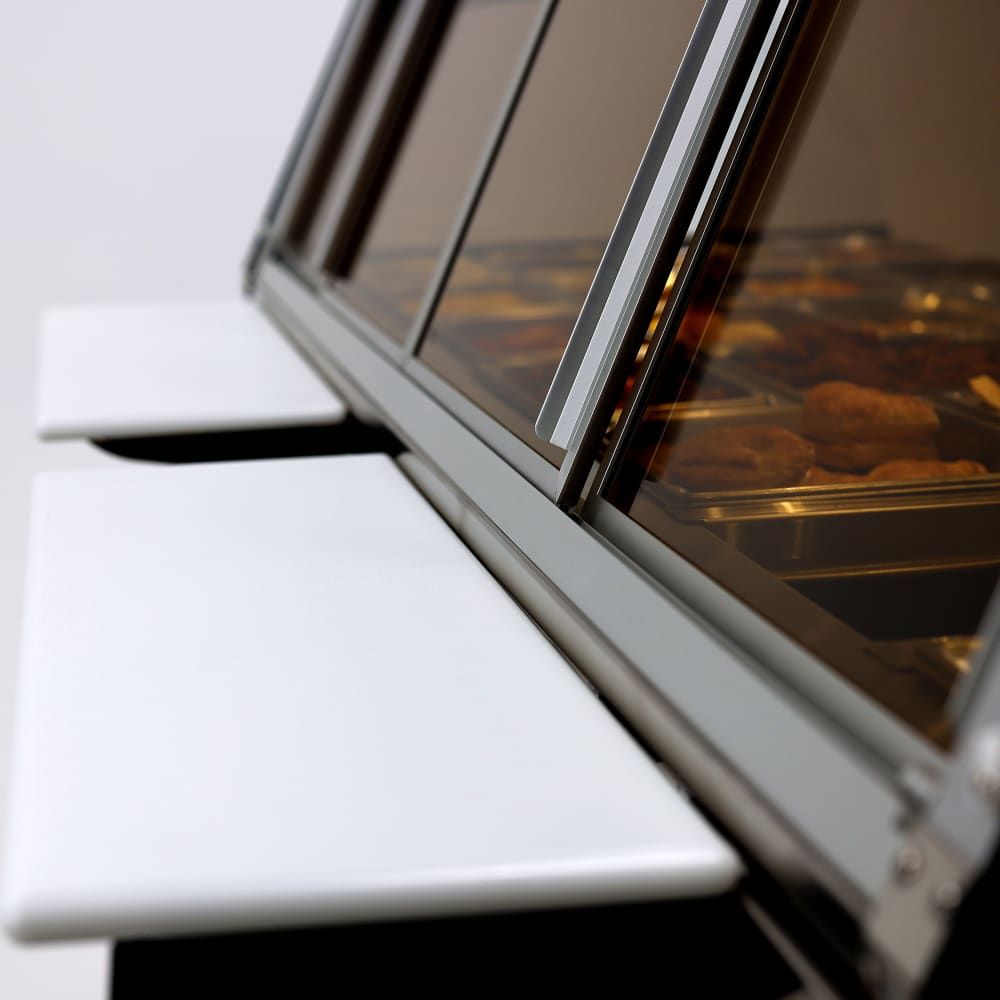

- Work shelf and cutting board
- 3 pan zones
- Overhead LED lighting
- 4-in. legs with rubber feet
- Sleek black exterior
- Well: 45 5⁄16 in. L x 27 1⁄4 in. W x 4 1⁄2 in. D
- Overall: 48 5⁄16 in. W x 43 5⁄8 in. D x 30 3⁄16 in. H
- 11.8 A, 2.45 kW
- 208 V/50-60 Hz/1 ph, 6-ft. cord with NEMA 6-20P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on Alto-Shaam ED3-48 within the 48 contiguous states.
From The Manufacturer
Heated Display Case, 48" countertop model, full-service with 3 pan sections, 2 individually controlled top and bottom heat zones featuring Halo Heat® technology and top ceramic heaters, modern overhead LED lighting, self-supporting tempered glass front, removable mirrored sliding doors and glass sides, hinged rear work shelf, 4" legs, pan divider bar package, black exterior, 208v/50/60/1-ph, 11.8 amps, 2.45kW, NEMA 6-20P
Alto-Shaam ED3-48 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Alto-Shaam |
| Access | Full Service |
| Color | Black |
| Depth (in) | 43.68 |
| Height (in) | 30.19 |
| Hertz | 50/60 |
| NEMA | 6-20P |
| Number of Levels | 1 |
| Phase | 1 |
| Product | Heated Display Cases |
| Product Type | Food Display & Merchandisers |
| Series | Halo Heat® |
| Voltage | 208 |
| Warranty | 1-year Parts & Labor |
| Width (in) | 48.31 |
| Weight | 372.00 |
