Alto Shaam 1000-UP Full Height Insulated Mobile Heated Cabinet w/ (8) Pan Capacity, 120v

Image may not depict product color, inclusions or accessories.

KaTom #: 139-1000UP120 • MPN: 1000-UP 120
Ships Free

Typically ships within 4 - 8 business days

(0 reviews)Write a Review
Retail Price: $4,259.20

Image may not depict product color, inclusions or accessories.

Alto Shaam 1000-UP Description

Alto Shaam

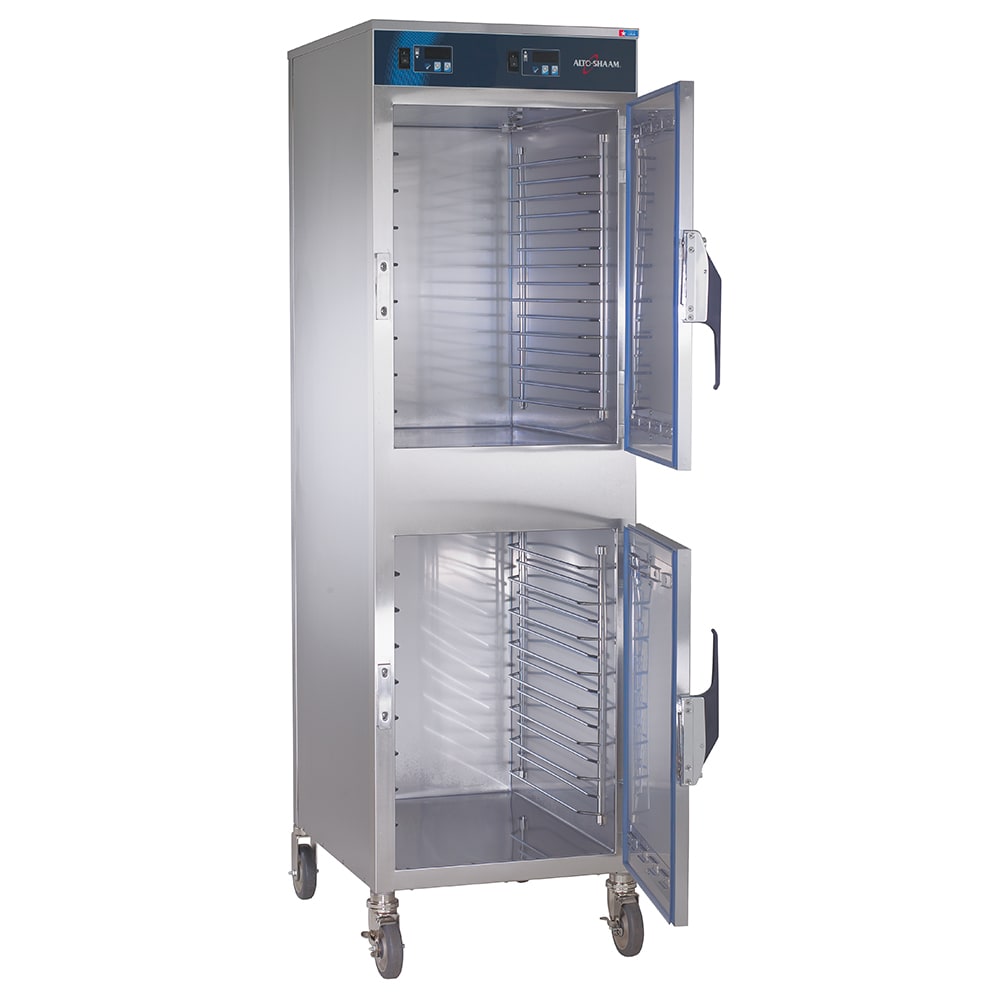

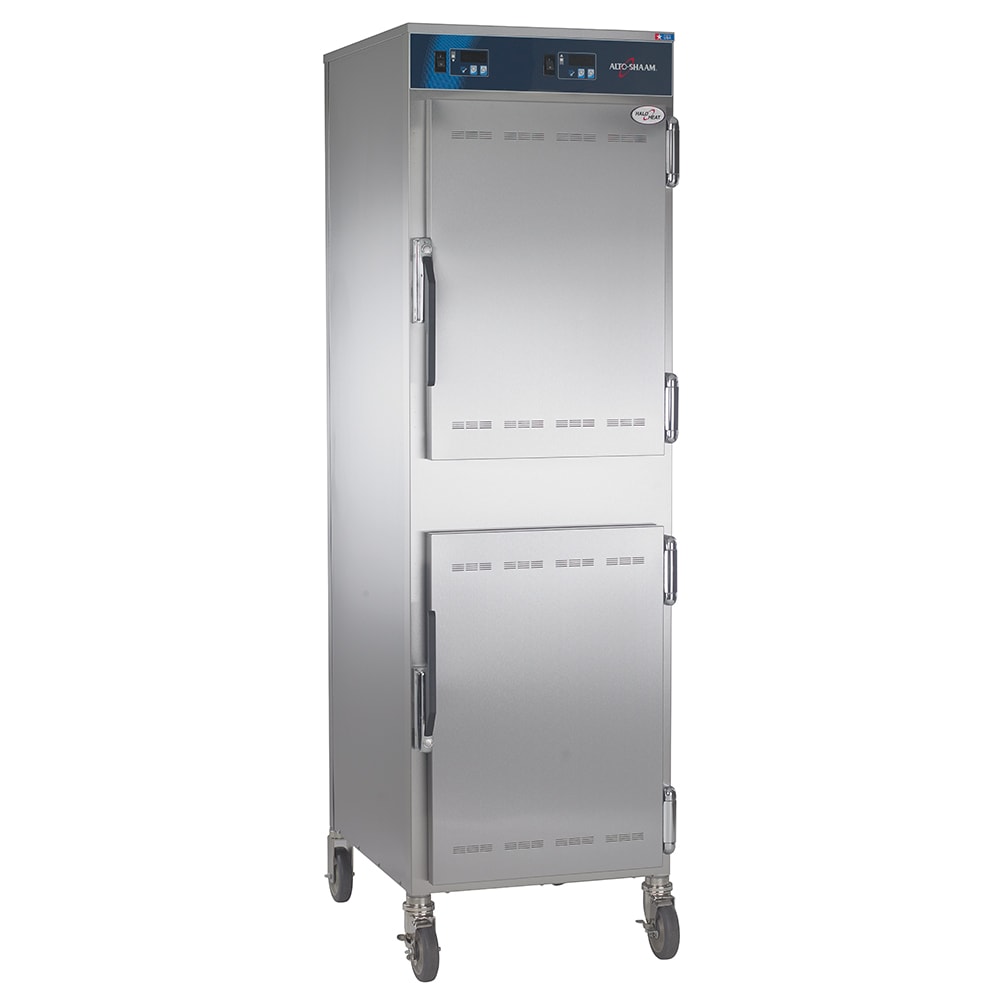

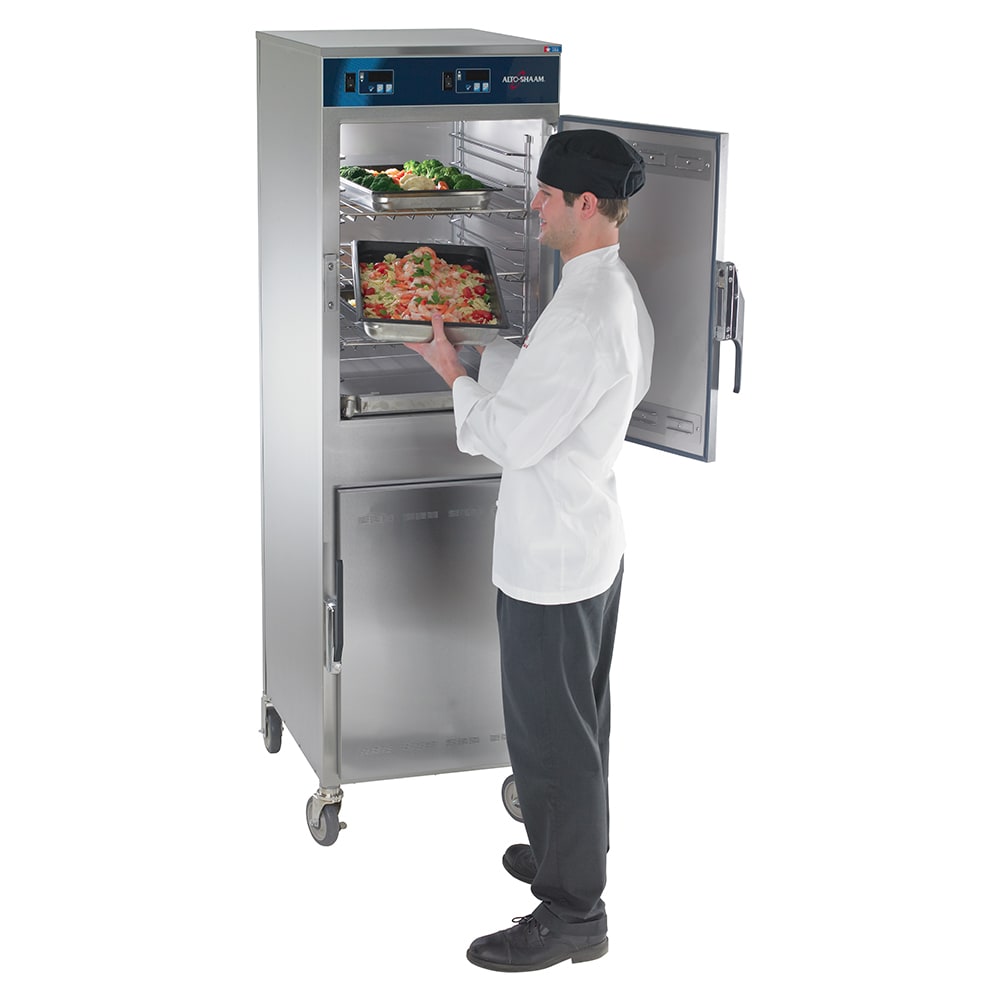

The Alto-Shaam 1000-UP 120 hot food holding cabinet can be used to hold hot food or as a dough proofer. When used as a holding cabinet, this model can hold anything from meat to casseroles to vegetables. Halo Heat, a controlled heat source that softly surrounds food for a longer holding life, keeps food at a ready-to-serve temperature. If you have two dishes that need different holding temperatures, this cabinet has two independently controlled compartments that let you warm these dishes at the same time. Heat recovery time is faster since the digital control can quickly sense when the temperature drops.

This equipment's stainless steel exterior, interior, and doors help keep heat inside the cabinet. Vents on the door keep food crisp, and the handle is made with an antimicrobial material to help slow the growth of bacteria. If you need to make the Alto-Shaam 1000-UP 120 hot food holding cabinet mobilized, the four 5-inch casters make transporting the cabinet and food much easier.

Product Details

  • Keeps meat, potatoes, vegetables, and more hot
  • Serves as a holding cabinet and dough proofer
  • Uses Halo Heat as a controlled heat source that gently heats food for a longer holding life
  • Close temperature tolerance and uniform heat distribution keeps the perfect serving temperature
  • 2 individually controlled warming compartments allow you to hold more than one dish at a time
  • Heat quickly recovers since the digital control senses temperature drops faster
  • Venting on the door keeps fried food crispier
  • Antimicrobial handle keeps bacteria from growing as quickly
  • Stainless steel interior resists corrosion
  • Stainless steel exterior is durable for long-term use
  • Stainless steel doors with a magnetic latch keeps heat inside the cabinet
  • Each compartment has a 120-lb. capacity
  • Holds 8 sheet pans
  • 4 chrome-plated side racks
  • 4 casters measuring 5 in. dia. allow for mobility
  • 2 casters swivel with brakes and other 2 are rigid
  • 120 V/60 Hz/1 ph, 16 A, 1.9 kW, NEMA 5-20P plug
  • Overall Dimensions: 231516 in. W x 321116 in. D x 751316 in. H
  • UL-EPH, cULus, and CE listed

Control Panel

  • On/off power switch allows for easy control
  • Heat indicator light lets you know the heating system is on
  • 60-200 degrees F temperature range
  • Temperature display lets you easily glance at the screen to quickly check on food

Installation Requirements

  • Must be installed on a level surface
  • Cannot be in area where the cabinet could be affected by steam, grease, dripping water, extreme temperatures, or other unfavorable conditions
  • Has to be secured to the building structure with a flexible connector if the cabinet has casters and no cord or plug

Clearance Requirements

  • Must have at least 3 in. clearance on back
  • Must have at least 2 in. clearance on top
  • Must have at least 1 in. on the right and left side

Halo HeatĀ® Heated Holding Cabinet, mobile, double-compartment, on/off simple control with adjustable thermostats, insulated, capacity for (8) 18" x 26" x 1" sheet pans in each compartment, heavy-duty stainless steel exterior and interior, 5" heavy-duty casters; 2 rigid, 2 swivel with brake, EcoSmartĀ®, cULus, UL EPH ANSI/NSF 4, CE, IP X4, TUV NORD

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

Alto Shaam 1000-UP Specifications

PDF Spec Sheet
Manufacturer Alto Shaam
Size Full Height
Slide Type Lip Load
Type Insulated
No. of Doors 2
Door Type Solid
Load Type Reach In
Pan Capacity 8 Full Size
Construction Stainless Steel
Height (in) 75.81
Width (in) 23.94
Depth (in) 32.69
Slide Spacing 2.94"
Series Halo Heat®
Application Heat Only
Control Location Top
Controls Digital
Door Design Dutch
Specialty Options All Stainless Exterior
Voltage 120
Phase 1
Hertz 60
Product Type Food Warming Equipment
Product Heated Cabinet
Weight 360.00
Alto Shaam 1000-UP Certifications
  • UL
  • NSF
