Beverage-Air UCFR48AHC 48" Undercounter Refrigerator Freezer w/ (2) Sections & (2) Doors, 115v

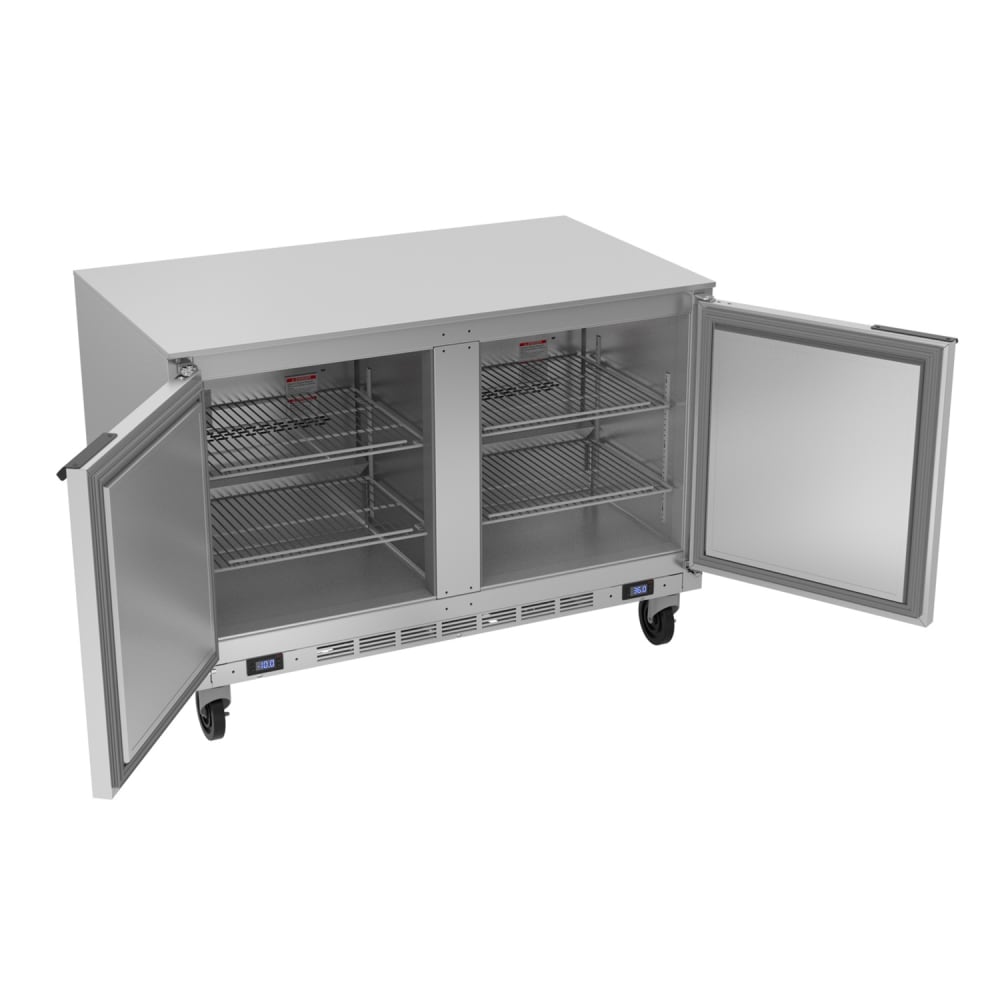

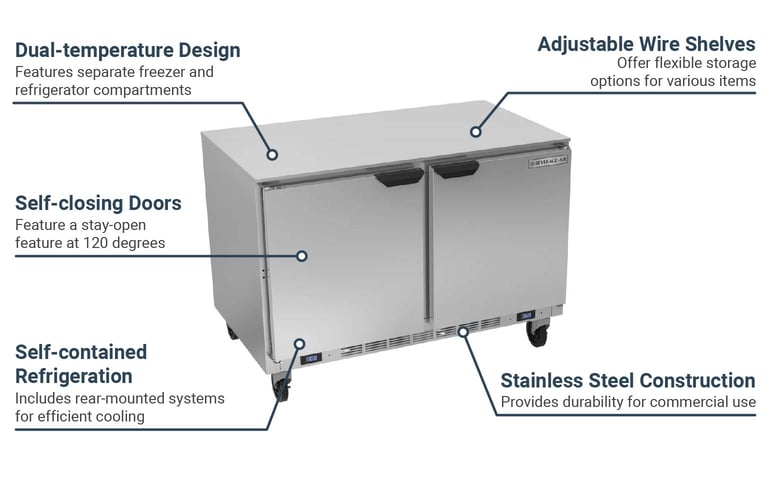

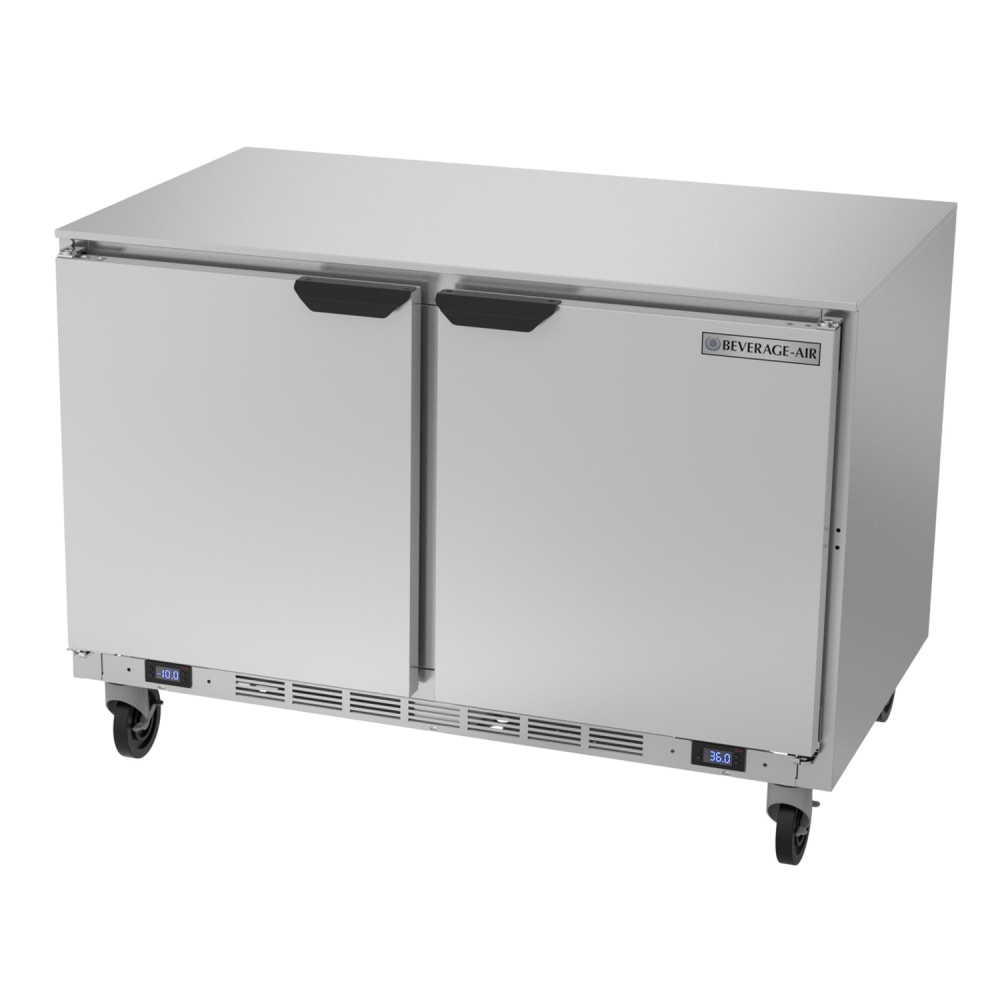

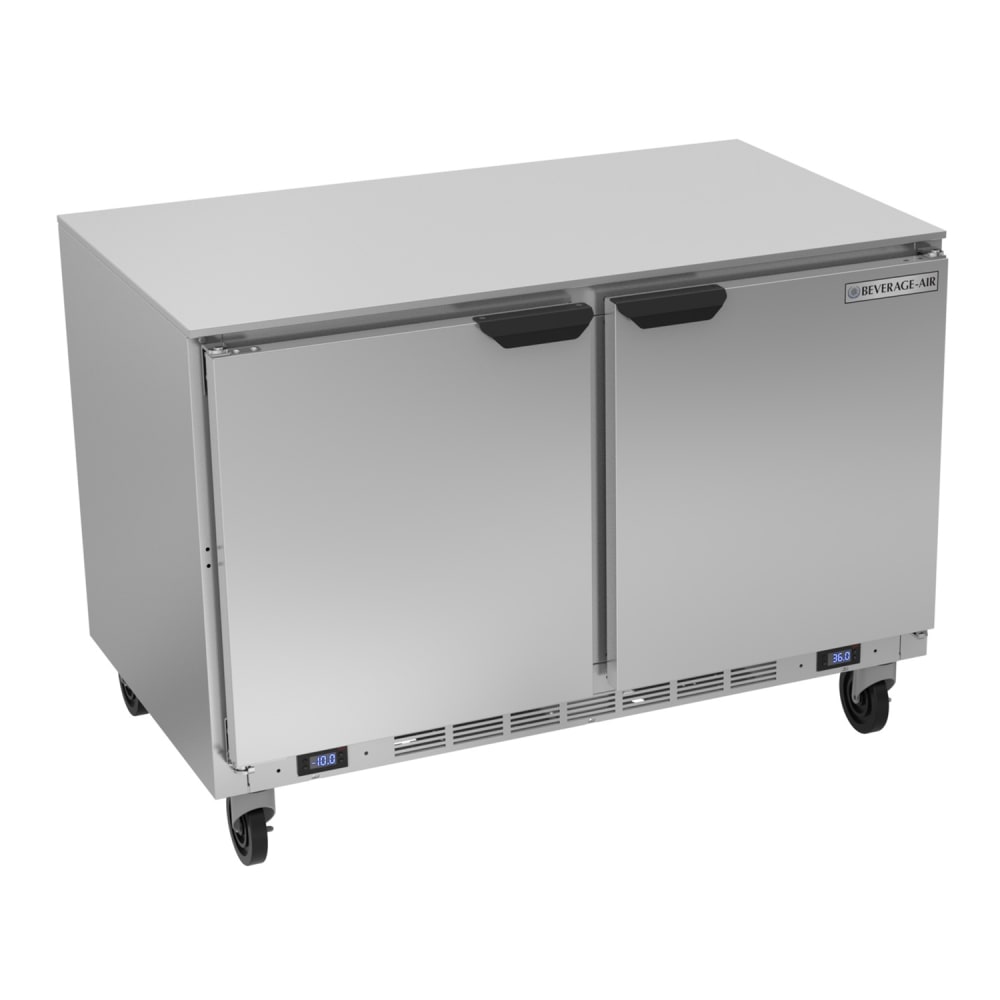

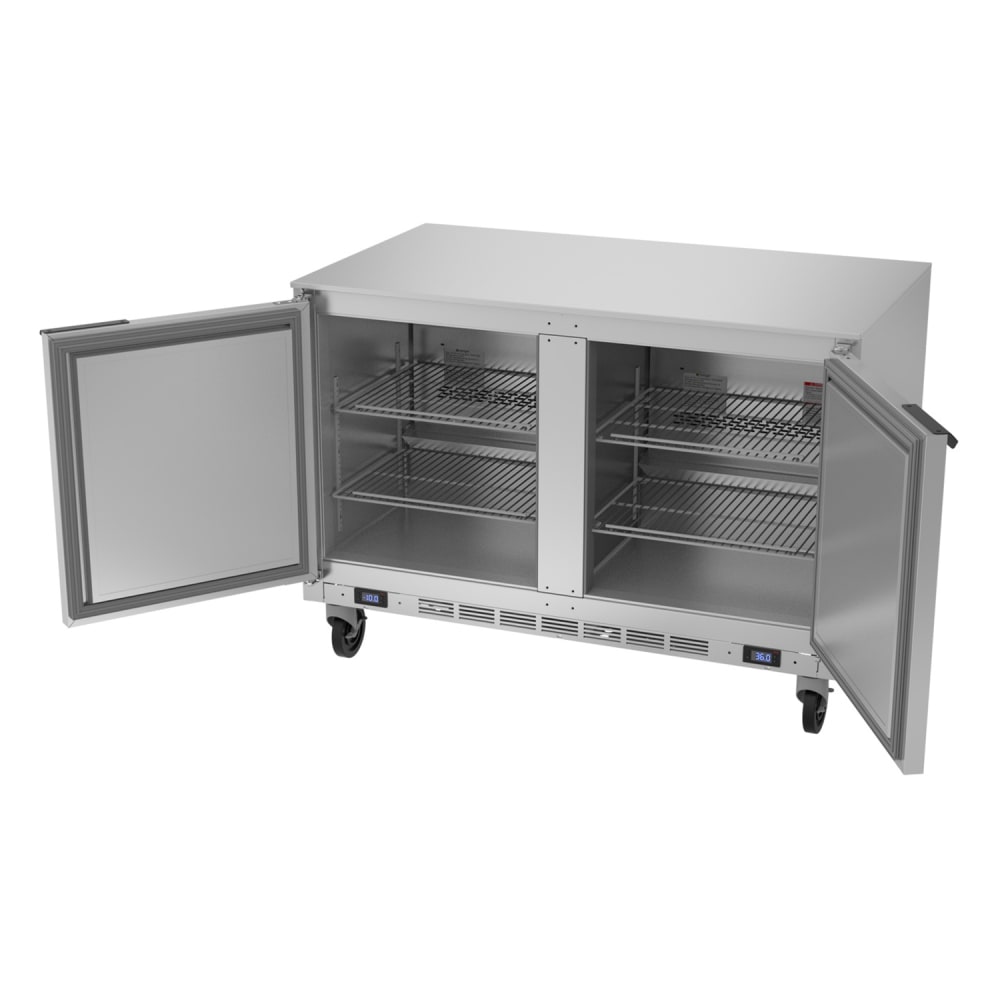

The Beverage-Air UCFR48AHC undercounter refrigerator/freezer features a dual-temperature design with a left-side freezer and a right-side refrigerator, each offering 5.31 cubic feet of storage capacity. Constructed of stainless steel on the front, sides, doors, and grille with a galvanized back and bottom, this unit is built for durability in commercial environments. The interior is lined with corrosion-resistant aluminum and includes four adjustable epoxy-coated wire shelves for flexible storage. Both solid hinged doors have a self-closing mechanism and stay-open feature.

Equipped with rear-mounted, self-contained refrigeration systems, the Beverage-Air UCFR48AHC refrigerator/freezer uses energy-efficient R290 hydrocarbon refrigerant. The freezer operates with electric defrost and maintains temperatures at -10 degrees Fahrenheit and below, while the refrigerator features a non-electric defrost system, keeping temperatures between 36 and 38 degrees Fahrenheit. A digital thermometer provides precise temperature monitoring. This unit is mounted on 6-inch casters, with two locking for stability, and includes field-reversible doors for flexible installation.

Product Details

• 2 sections
• 10.62-cu.-ft. (5.31/5.31) overall capacity
• Dual-temperature freezer (left)/refrigerator (right)
• Stainless steel front, sides, doors, and grille
• ¹/₂-in.-thick sub-top
• Galvanized steel back and bottom
• Corrosion-resistant aluminum interior liner
• 4 adjustable, epoxy-coated wire shelves
• 2 solid, hinged doors with self-closing and 120-degree stay-open features
• Magnetic door gaskets
• Field-reversible door design (hinge kit not included)
• Painted aluminum door handles
• 6-in. casters (2 locking)

Refrigeration System

• Rear mounted
• Self-contained
• R290 hydrocarbon refrigerant
• Internal digital thermometer
• Temperature holding range (freezer): -10 degrees F and below
• Temperature holding range (refrigerator): 36-38 degrees F
• Electric defrost (freezer)
• Non-electric defrost (refrigerator)
• Adaptive defrost system

Dimensions & Utilities

• Interior (per section): 21 in. W x 15³⁄₈ in. D x 23 in. H
• Overall: 48 in. W x 32 in. D x 34¹⁄₂ in. H (with casters)
• 2 A, ¹/₆ HP (refrigerator)
• 2.5 A, ¹/₄ HP (freezer)
• 115 V/60 Hz/1 ph, (2) 8-ft. cord with NEMA 5-15P plug

Product Features

*Free shipping on Beverage-Air UCFR48AHC within the 48 contiguous states.

From The Manufacturer

Undercounter Freezer/Refrigerator, two-section, 48"W, 5.31 cu. ft. capacity (freezer-left), 5.31 cu.ft. capacity (refrigerator-right), (2) solid hinged doors, (4) adjustable wire shelves, interior thermometer, automatic defrost, stainless steel front, sides, doors & grille, galvanized back & bottom, aluminum interior, (2) rear-mounted self-contained refrigeration systems, R290 Hydrocarbon refrigerant, 1/4 HP freezer, 1/10 HP refrigerator, cULus, UL EPH Classified, UL-Sanitation, ENERGY STAR®

*Image may not depict product color, inclusions or accessories.

7-year Limited Parts & Labor; 7-year Limited Compressor Parts

Beverage-Air UCFR48AHC Specifications

Documents

Spec Sheet

Manual
