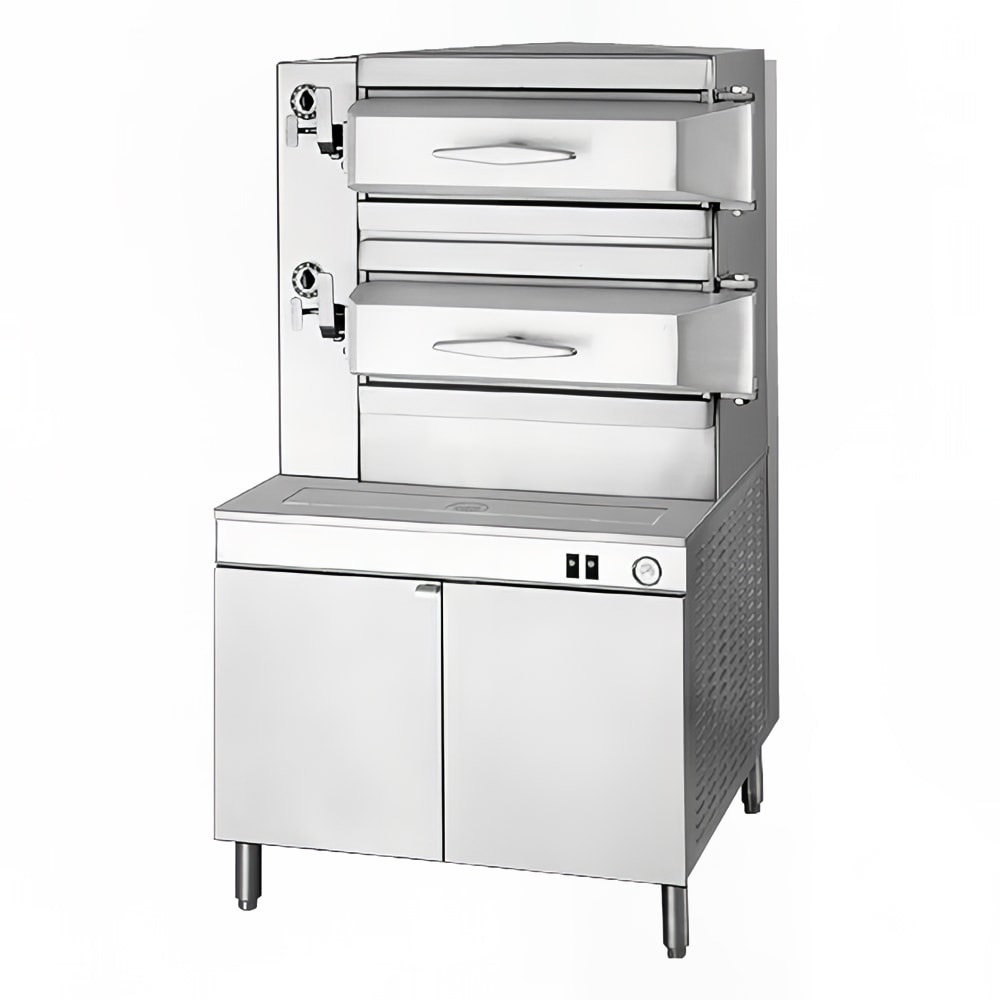

Cleveland PGM3003 (24) Pan Pressure Steamer - Cabinet, Includes Worktop, Liquid Propane

Heated with LP gas, the Cleveland PGM3003 pressure steamer’s steam generator uses an automatic water fill when it’s turned on to support frequent and spontaneous use. Easy to turn on with its electric spark ignition feature, the generator’s water levels are automatically controlled, and when the water levels dip too low, the circuit will cut off. For user safety, the generator includes a high-limit pressure safety switch. In each of its three compartments, a 5-PSI operating pressure effectively steams products, while steam inlet valves and exhaust valves work synchronously. Furthermore, an automatic venting mechanism helps relieve pressure buildup and reduce overcooking risk.

The Cleveland PGM3003 steamer’s external enclosure, table top, and cooking compartments are made of stainless steel to withstand chips and scratches from bustling kitchen environments. Each compartment is equipped with a hinged door made of cast aluminum, and their hinge pins and bushings are adjustable. For long-term use, their gaskets are replaceable, while an interlock feature prevents users to open the door when the compartments are pressurized. The compartments’ slide racks can be removed without tools for streamlined cleaning, and on the base of the unit, a modular cabinet can hold additional pans and supplies.

Product Details

• 3 cooking compartments
• Compartment capacity: 8 full-size cafeteria pans
• Uses direct steam
• 5-PSI operating pressure
• 3 hinged, cast aluminum doors with replaceable gaskets and adjustable hinge pins and self-lubricating bushings
• Mechanical interlock feature keeps doors sealed during pressurization
• 60-minute timer
• 3 pressure gauges
• Slide racks are removable
• LP gas-fired steam generator equipped with NickelGard and automatic water fill
• Electric spark ignition
• Water level control system
• High-limit pressure safety switch
• Automatic steam generator blowdown for intermittent control
• Gas pressure regulator and control valve
• Stainless steel external enclosure, table top, and cooking compartments
• 6-in. stainless steel adjustable legs with flanged feet
• Ideal incoming water pressure: 35-80 PSI
• 300,000 BTU

Dimensions & Utilities

• 35⁴³/₁₀₀ in. W x 37 in. D x 73⁵/₈ in. H
• 100 W
• 115 V/60 Hz/1 ph
• Uses LP gas
• 1-in. IPS line

*Free shipping on Cleveland PGM3003 within the 48 contiguous states.

From The Manufacturer

Pressure Steamer, gas, 36" cabinet base, (3) compartments, (8) 12" x 20" pan or (4) 18" x 26" pan capacity per compartment, manual controls, 60-minute mechanical timer, 6" adjustable legs with flanged feet, stainless steel construction, 300,000 BTU

*Image may not depict product color, inclusions or accessories.

Cleveland PGM3003 Specifications

Spec Attribute	Spec Value
Manufacturer	Cleveland
Application	High Volume
Base	Cabinet
Controls	Manual
Depth (in)	37
Gas Type	LP
Heat	Gas
Height (in)	64
Hertz	60
Includes	Worktop
No. of Compartments	3
Pan Capacity	24
Phase	1
Product	Pressure Steamers
Product Type	Cooking Equipment
Steam Generator	External Source
Steamer Type	Pressure
Total BTU	220000
Voltage	115
Warranty	1-year Parts & Labor; 5-year Pro-Rated Boiler & Steam Generator Parts
Water Source	Plumbed
Width (in)	73.63
Weight	1040.00
