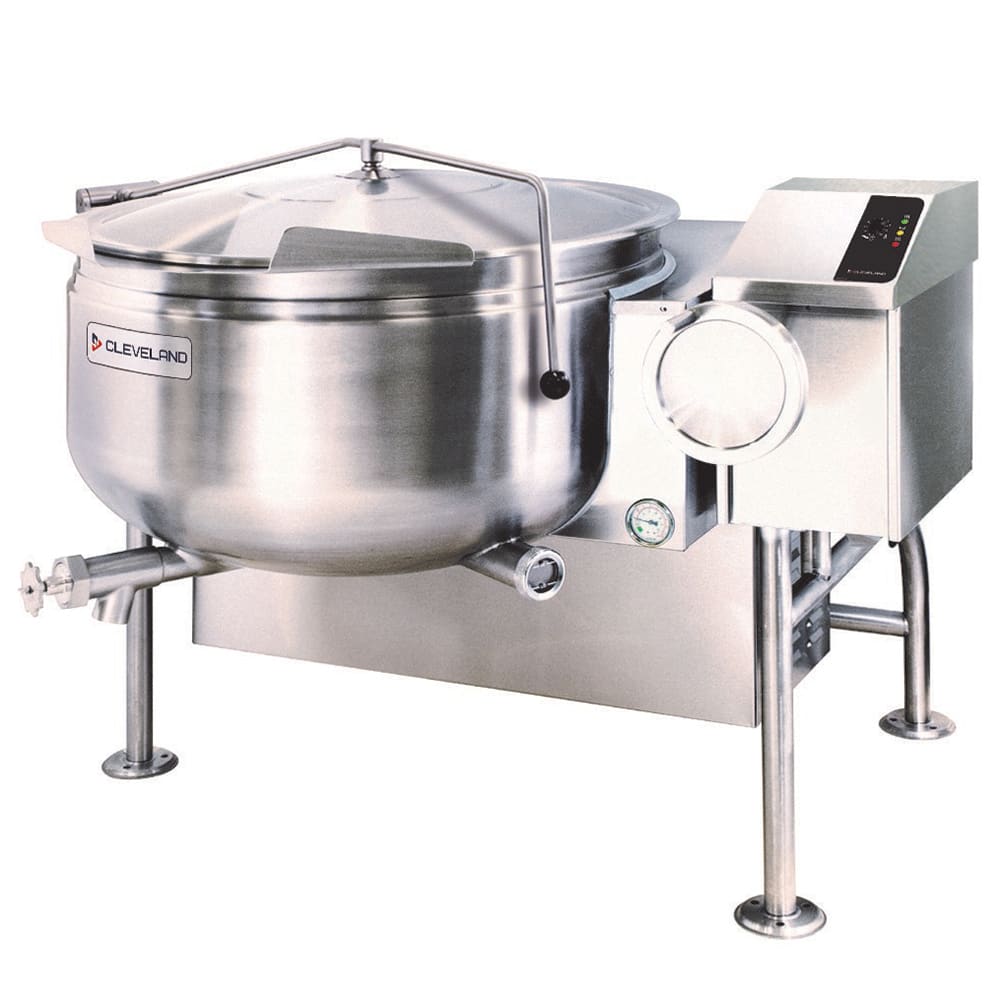

Cleveland KGL40TSH 40 gal Steam Kettle - Manual Tilt, Full Jacket, Natural Gas
$42,478.00 /Each
Login or call for details!
Selected Gas Type: Natural Gas
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Similar Products in Stock Now
Cleveland KGL40TSH Description

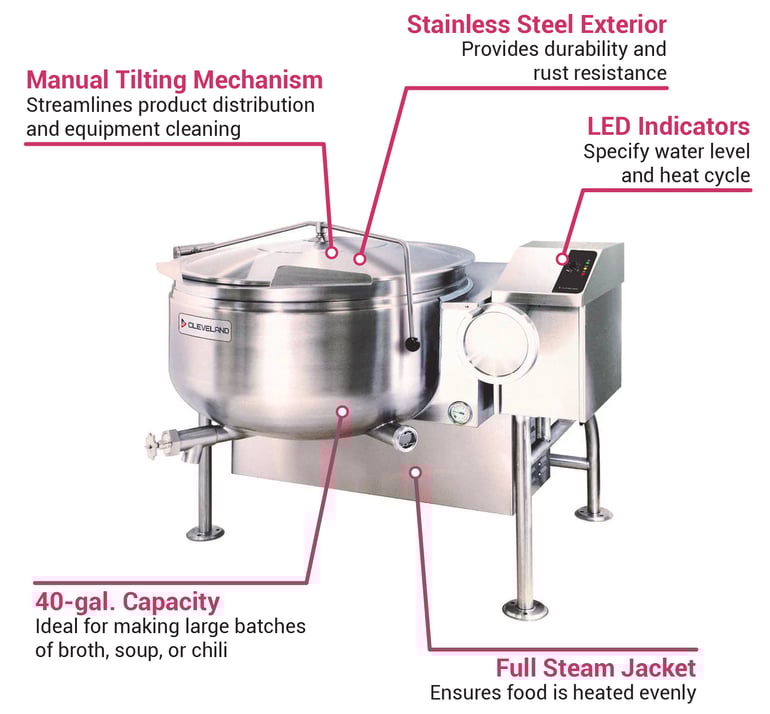

Because it's self-locking, the Cleveland KGL-40-TSH steam kettle's tilting mechanism remains in place to facilitate serving product. Large batches and bulky product are dispensed from the kettle using a large pouring lip. For security, the flanged feet can be bolted down and adjusted to enable installation on uneven floors. The solid-state temperature controls are splashproof and feature temperature and low-water controls. To inform users of heat cycle settings and the water level, the unit includes LED indicator lights.
The Cleveland KGL-40-TSH tilting kettle has a 40-gallon capacity. Its full steam jacket design enables uniform heating of soup, stew, and chili, producing product without hot or cold spots. Durable to support high-volume use, this unit is made of stainless steel that won't rust, corrode, warp, or dent. The steam jacket is permanently filled with distilled water that's treated for sanitary cooking. This natural gas unit operates at 140,000 BTU.
Product Details
- Part of the Short Series™
- 40-gal. capacity
- Full steam jacket design
- Electronic spark ignition
- Tilting mechanism is self-locking
- Splashproof, solid-state temperature and low-water controls
- LED indicators for heat cycle and low water
- On/off switch
- Permanently filled with treated, distilled water
- Floor-mounted control console supports
- 316 stainless steel interior
- 304 stainless steel construction
- Large pouring lip
- Adjustable, flanged feet
- 50 PSI
- 140,000 BTU
Dimensions & Utilities
- 493⁄8 in. W x 52 in. D x 365⁄8 in. H
- Powered by natural gas
- 3⁄4-in. NPT gas connection
- 10 A
- 120 V/60 Hz/1 ph, 6-ft. cord and plug included
Product Features
*Free shipping on Cleveland KGL40TSH within the 48 contiguous states.
From The Manufacturer
Short Series™ Steam Jacketed Kettle, gas, tilting, 40-gallon capacity, full steam jacket design, 38" rim height, floor mounted control console supports, stainless steel exterior finish, standard with flanged feet, 50 psi rating, electronic spark ignition, 140,000 BTU
*Image may not depict product color, inclusions or accessories.

Cleveland KGL40TSH Specifications
Spec Attribute | Spec Value |
---|---|
Manufacturer | Cleveland |
Base | Quad Leg |
Capacity (gallons) | 40 |
Design | Full Jacket |
Gas Type | NG |
Heat | Gas |
No. of Kettles | 1 |
Series | Short Series™ |
Tilt Mechanism | Crank |
Type | Floor Model |
Warranty | 1-year Parts & Labor |
Weight | 520.00 |
