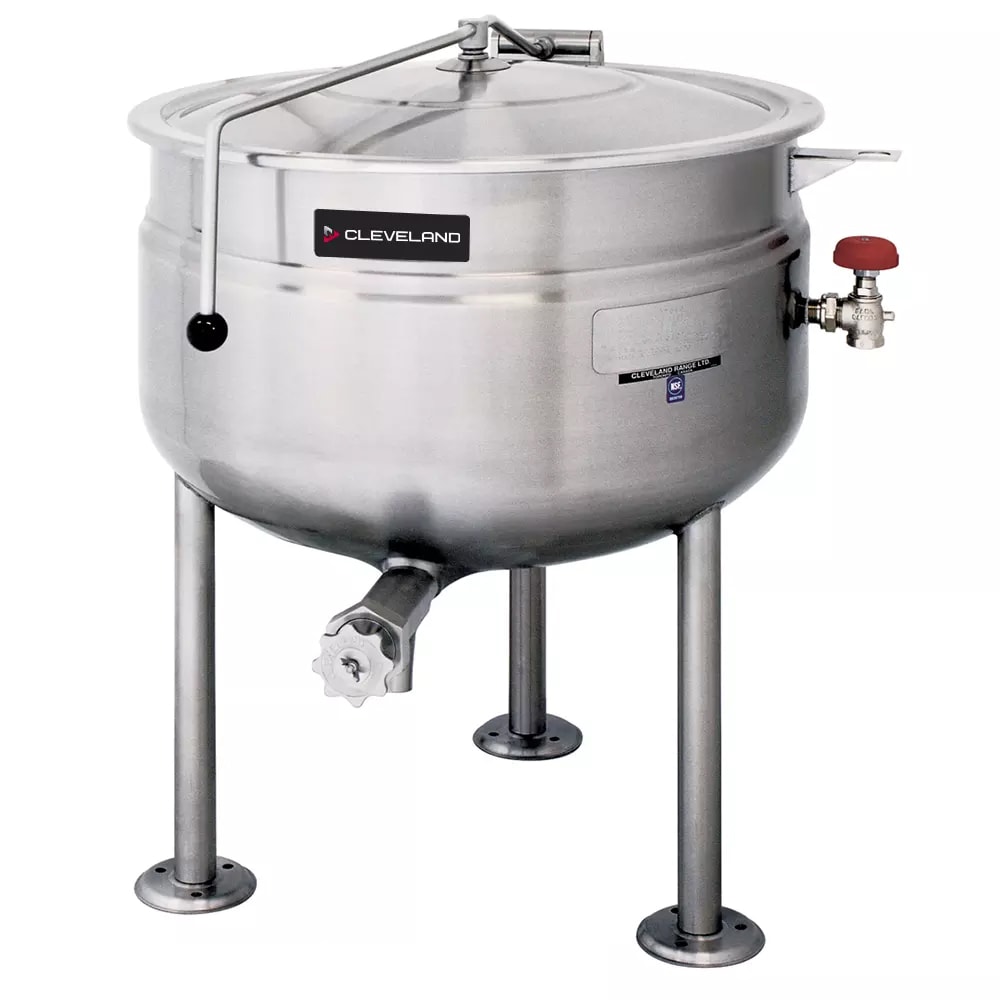

Cleveland KDL200 Description
Because it's a direct-steam unit, the Cleveland KDL200 kettle requires connection to an external steam source that supplies steam pressure between 5 and 45 PSI, so it's ideal for kitchens with boilers or steam generators. This steam fills the kettle's two-thirds steam jacket, distributing uniform heat to cook product evenly. A spring-assisted cover built onto the kettle's top protects contents while they cook; the kettle's rolled rim is reinforced to withstand repeated opening and closing. To accommodate various recipe cooking requirements, users can adjust steam pressure using the steam control inlet valve.
Once product is cooked, it must be scooped from the Cleveland KDL200 steam kettle because this stationary system doesn't have a tilting mechanism. Its 2-inch tangent draw-off valve can be used to remove excess water or broth, and a strainer ensures solid food isn't expelled. Being supported on an open, tri-leg base, this floor model has adjustable, flanged feet for floor bolting, ensuring the unit stays in place throughout use. This 501⁄8-inch-wide by 465⁄8-inch-deep by 491⁄4-inch-high unit is made of rust- and corrosion-resistant stainless steel, which is simple to clean. It can support 200 gallons of pasta, stew, or soup and stands 94 inches tall when its lid is open.
Product Details
- Stationary
- 200-gal. capacity
- Direct steam
- Two-thirds steam jacket
- Stainless steel exterior finish
- 316 series stainless steel liner
- Open tri-leg base is adjustable
- Flanged feet for floor bolting
- Spring-assisted cover
- Reinforced rolled rim
- 2-in. tangent draw-off valve with drain strainer
- Condensate drain valve with insulated handle
- Faucet mounting bracket
- Steam control inlet valve
- 35-PSI steam jacket rating
- 35-PSI chrome-plated safety valve
- Operating pressure: 5-45 PSI
- 4-in. rear clearance
Dimensions & Utilities
- 501⁄8 in. W x 465⁄8 in. D x 491⁄4 in. H (94 in. H with cover open)
- 3⁄4-in. IPS minimum line
- 1⁄2-in. NPT condensate return with strainer and trap
Product Features
*Free shipping on Cleveland KDL200 within the 48 contiguous states.
From The Manufacturer
Kettle, direct steam, 200-gallon capacity, 2/3 steam jacket design, open tri-leg base, stainless steel exterior finish with 316 series stainless steel liner, 2" tangent draw-off, spring assist cover, 35 psi rating
*Image may not depict product color, inclusions or accessories.
Cleveland KDL200 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Cleveland |
| Base | Tri Leg |
| Capacity (gallons) | 200 |
| Design | 2/3 Jacket |
| Heat | Direct Steam |
| No. of Kettles | 1 |
| Tilt Mechanism | Stationary |
| Type | Floor Model |
| Warranty | 1-year Parts & Labor |
| Weight | 560.00 |
