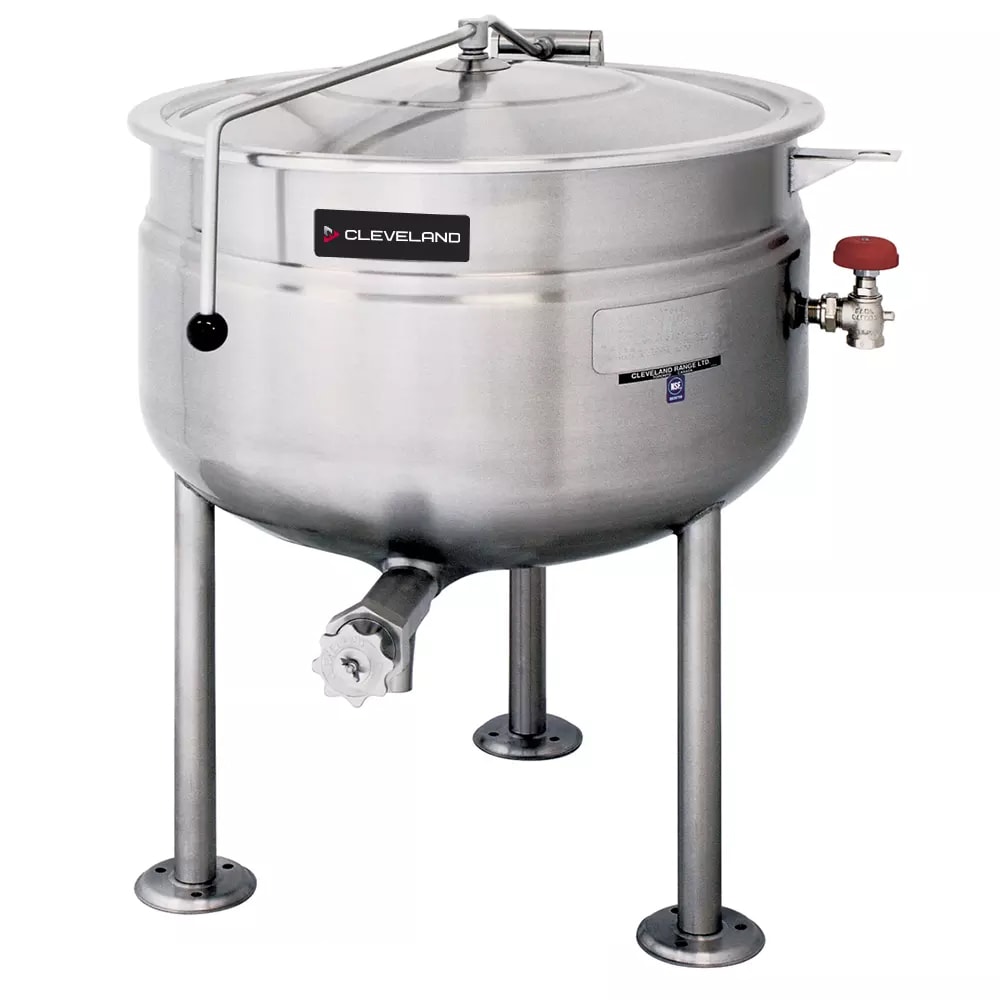

Cleveland KDL150 150 gal Steam Kettle - Stationary, 2/3 Jacket, Direct Steam

Write a Review!KaTom #: 109-KDL150 • MPN: KDL150
  • 109-KDL150 Primary Thumbnail Image
  • 109-KDL150 Multiple Thumbnail Image #1
Free Shipping Item

$35,139.00 /Each

Login or call for details!

  • Protect Your Product
  • Coverage starting at $125.25
  • Edit Remove

Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.

White Glove Delivery

Contact your sales rep for availability

Similar Products in Stock Now

Previous
Next

Cleveland KDL150 Description

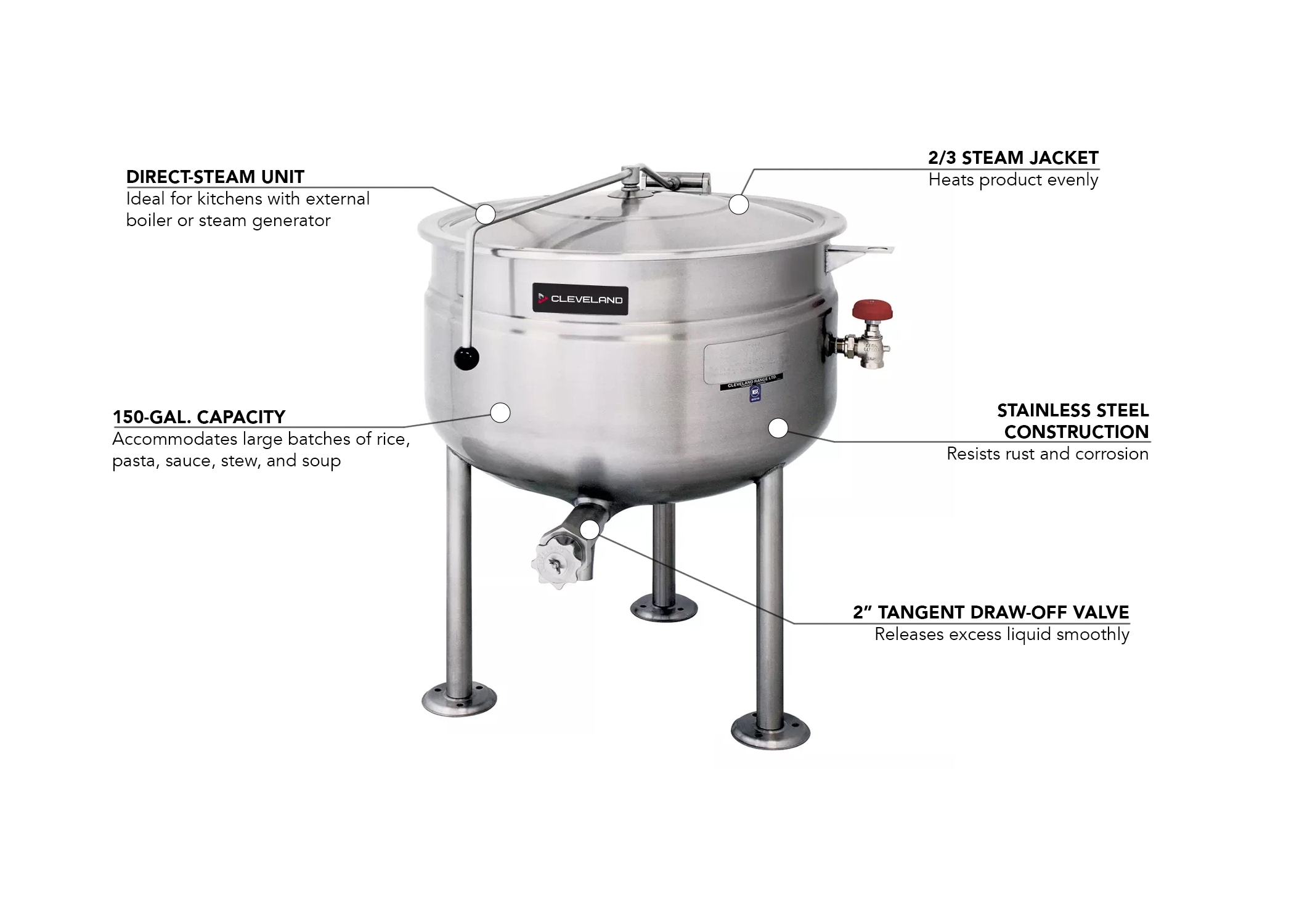

Because the Cleveland KDL150 stationary steam kettle is a direct-steam unit, it requires an external source to supply steam for the jacket, meaning it's ideal for kitchens with an external steam generator or boiler already available. The kettle's 150-gallon capacity accommodates large batches of pasta, stew, soup, gravy, and rice, while its two-thirds steam jacket heats product uniformly. A spring-assisted cover secured to the top of the kettle protects product from contaminants while preserving heat. Excess liquid can be drained via the 2-inch-diameter draw-off valve to achieve the desired consistency and taste.

Supported by an open, tri-leg base, the Cleveland KDL150 steam kettle is a floor unit. Its flanged feet can be adjusted to accommodate uneven surfaces and bolted to the floor to ensure the unit stays in place throughout use. To provide a lasting service life, its interior and exterior are heavy-duty stainless steel, resisting rust and corrosion throughout use. For a comfortable working height, it's 4518 inches wide by 4658 inches deep by 4778 inches high, or 8838 inches high when the unit's cover is opened.

Product Details

  • Direct-steam, stationary unit
  • Two-thirds steam jacket
  • Steam jacket rating: 35 PSI
  • Capacity: 150 gal.
  • Domed, hinged, spring-assisted cover
  • 316 stainless steel interior
  • 304 stainless steel exterior
  • Tri-leg base with flanged feet that can be bolted to the floor
  • 2-in.-diameter, tangent draw-off valve with drain strainer
  • 35-PSI chrome-plated safety valve
  • Condensate drain valve with insulated handle
  • Faucet mounting bracket
  • Incoming steam operating pressure: 5-45 PSI
  • Minimum clearance for rear: 4 in.

Dimensions & Utilities

  • 4518 in. W x 4658 in. D x 4778 in. H (8838 in. H when cover is open)
  • 34-in. IPS for direct steam
  • 12-in. NPT condensate return with strainer and trap
  • 12-in. NPT hot water inlet
  • 12-in. NPT cold water inlet

Product Features

Cleveland KDL150 Features

*Free shipping on Cleveland KDL150 within the 48 contiguous states.

From The Manufacturer

Kettle, direct steam, 150-gallon capacity, 2/3 steam jacket design, open tri-leg base, stainless steel exterior finish with 316 series stainless steel liner, 2" tangent draw-off, spring assist cover, 35 psi rating

*Image may not depict product color, inclusions or accessories.

Warranty Icon
1-year Parts & Labor

Cleveland KDL150 Specifications

Residential Users: The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.
