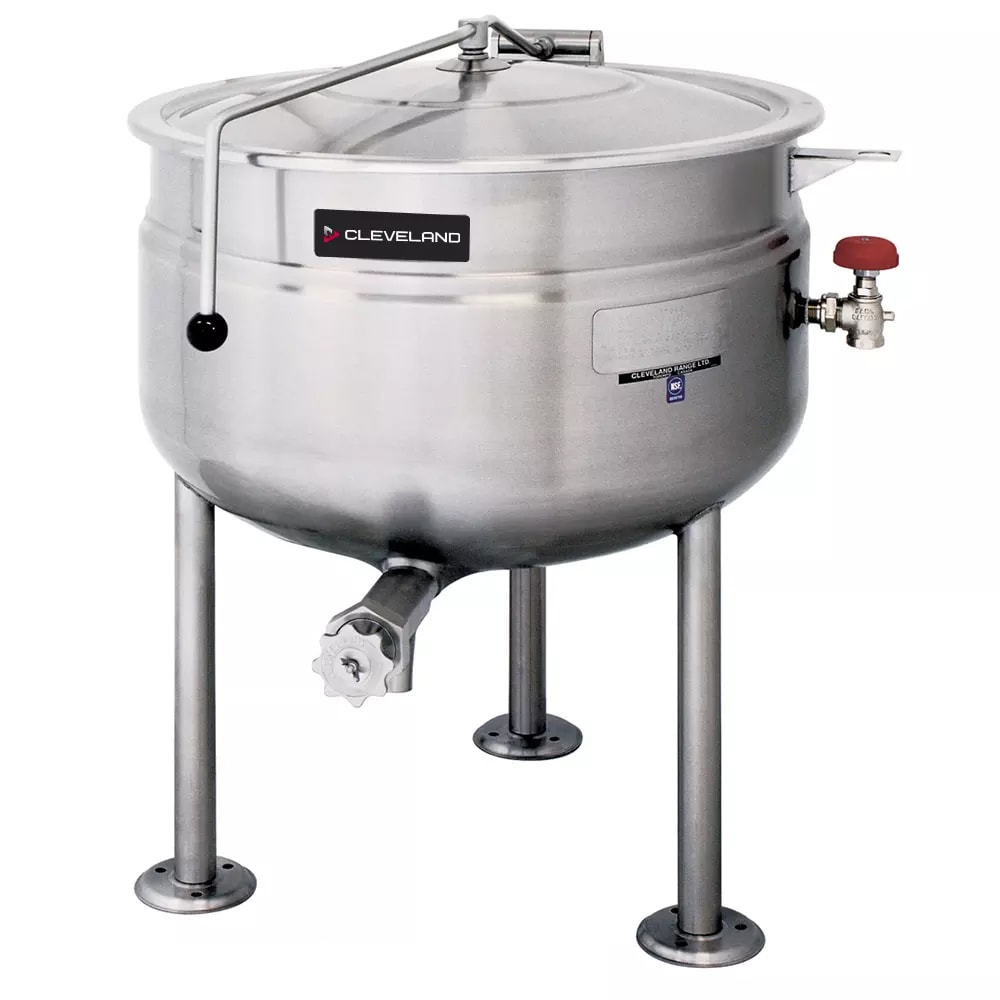

Cleveland KDL125 125 gal Steam Kettle - Stationary, 2/3 Jacket, Direct Steam
$31,656.00 /Each
Login or call for details!
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Cleveland KDL125 Description
For cooking soups, stews, rice, and sauces, the Cleveland KDL125 stationary steam kettle has a 125-gallon capacity. To ensure product is cooked uniformly, a two-thirds steam jacket is built into the kettle, and it's heated by steam from an exterior steam generator or boiler unit. A domed, hinged, spring-assisted cover built onto the kettle retains heat throughout cooking while protecting product from potential contaminants. To achieve the desired product consistency, excess liquid can be drained from the 2-inch draw-off valve.
The Cleveland KDL125 steam kettle can be bolted to the floor; its open, tri-leg base and adjustable, flanged feet stabilize the unit in place. Its durable, rust- and corrosion-resistant structure endures heavy-duty use in busy kitchens and can be wiped clean to ensure it's sanitary for future use. For a comfortable working height, it's 451⁄8 inches wide by 465⁄8 inches deep by 43 inches high, or 831⁄4 inches high with an open cover.
Product Details
- Direct steam
- Capacity: 125 gal.
- Two-thirds steam jacket
- Steam jacket rating: 50 PSI
- Stationary
- 316 stainless steel interior and 304 stainless steel exterior
- Domed, hinged, spring-assisted cover
- 2-in.-diameter, tangent draw-off valve with drain strainer
- 35-PSI chrome-plated safety valve
- Condensate drain valve
- Open tri-leg base with adjustable flanged feet
- Incoming steam operating pressure: 5-45 PSI
- Minimum rear clearance: 4 in.
Dimensions & Utilities
- 451⁄8 in. W x 465⁄8 in. D x 43 in. H (831⁄4 in. H when cover is open)
- 3⁄4-in. IPS for direct steam
- 1⁄2-in. NPT for condensate return
- 1⁄2-in. NPT hot water inlet
- 1⁄2-in. NPT cold water inlet

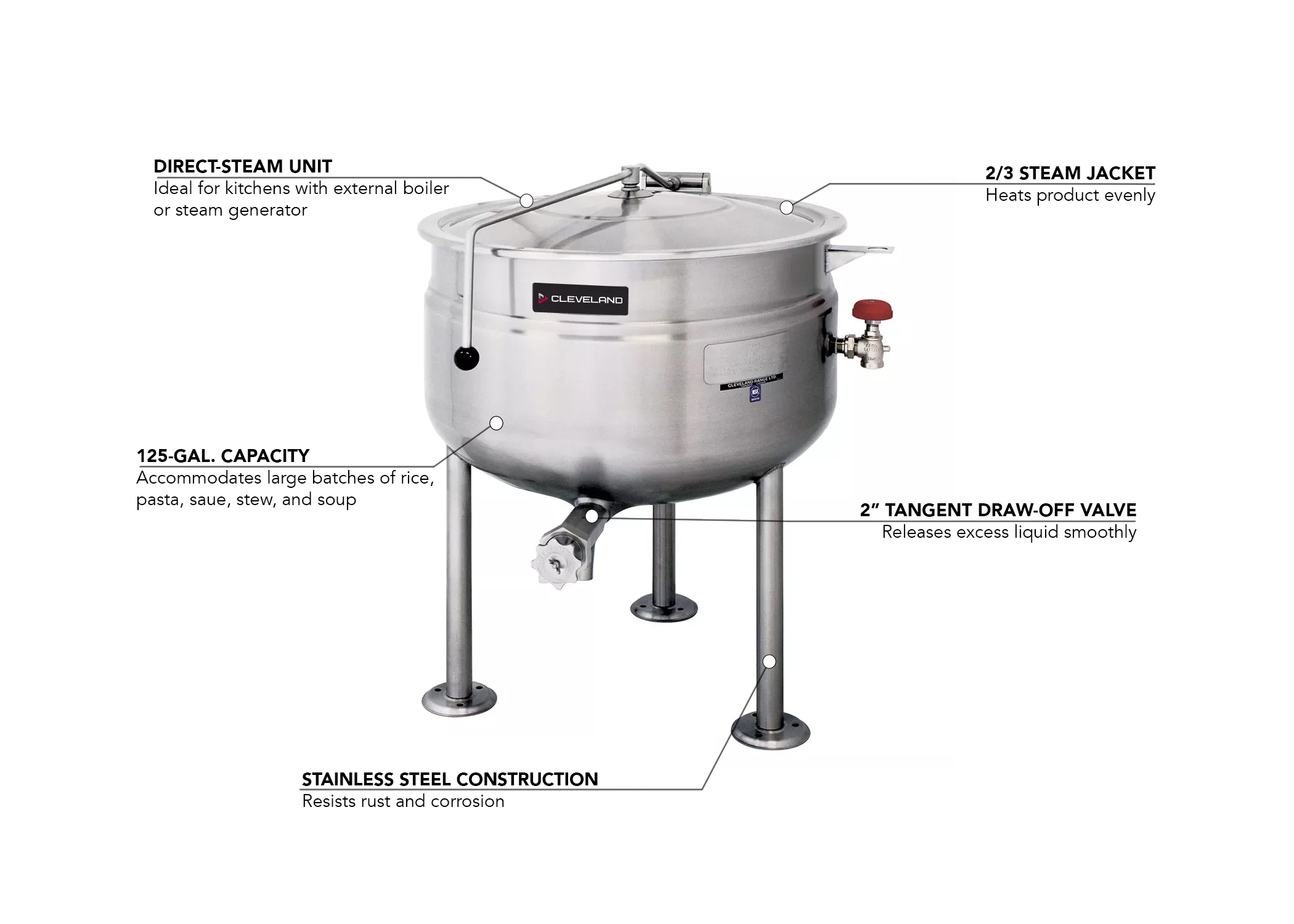

Product Features
*Free shipping on Cleveland KDL125 within the 48 contiguous states.
From The Manufacturer
Kettle, direct steam, 125-gallon capacity, 2/3 steam jacket design, open tri-leg base, stainless steel exterior finish, 2" tangent draw-off, spring assist cover, 35 psi rating
*Image may not depict product color, inclusions or accessories.
Cleveland KDL125 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Cleveland |
| Base | Tri Leg |
| Capacity (gallons) | 125 |
| Design | 2/3 Jacket |
| Heat | Direct Steam |
| No. of Kettles | 1 |
| Tilt Mechanism | Stationary |
| Type | Floor Model |
| Warranty | 1-year Parts & Labor |
| Weight | 410.00 |
