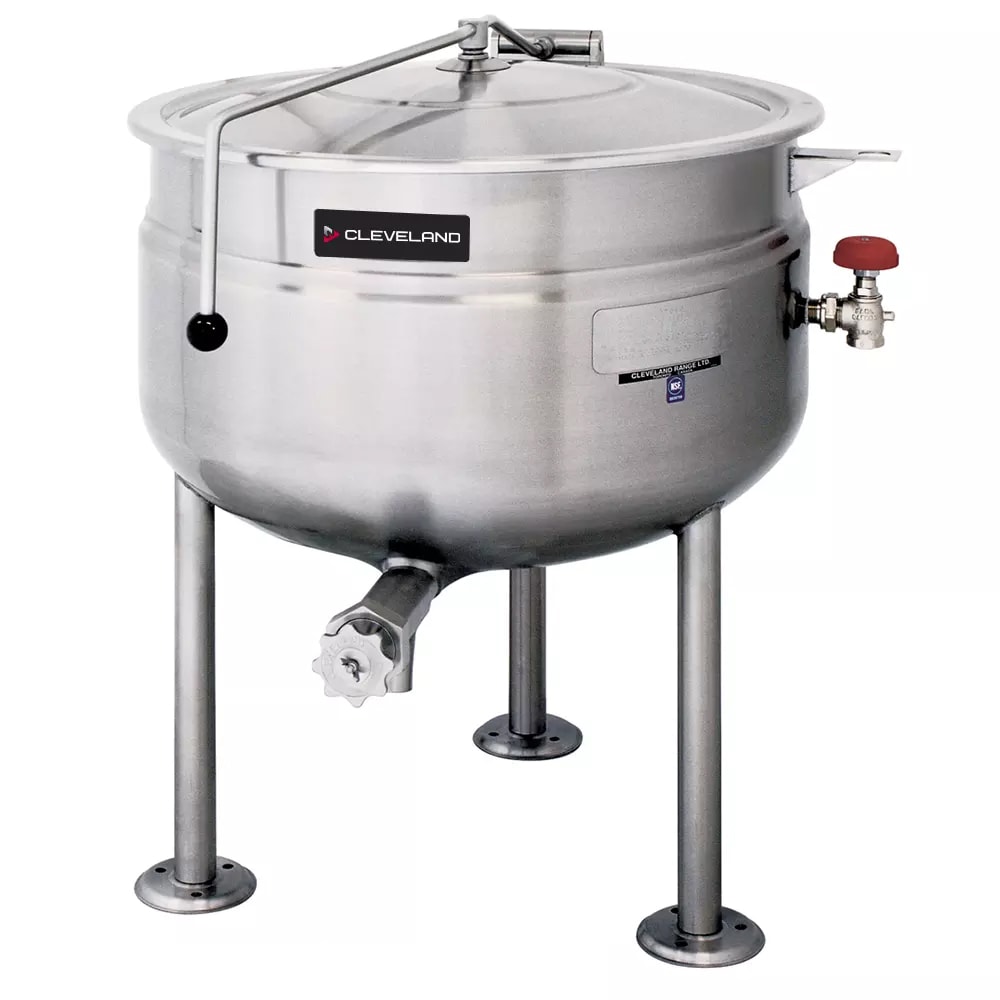

Cleveland KDL100F 100 gal Steam Kettle - Stationary, Full Jacket, Direct Steam
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Similar Products in Stock Now
Cleveland KDL100F Description
This Cleveland KDL100F steam kettle is a direct-steam model, so it requires an external boiler or steam generator to fill its steam jacket. It can be connected to a steam source that measures 30 PSI of pressure. Because it has a 100-gallon capacity, it's ideal for warming soups, rice, and gravies for busy restaurants. A full steam jacket incorporated into the kettle eliminates cold spots for even results; it heats faster than the two-thirds steam jacket design. To preserve heat and protect product from contaminants, it features a hinged, spring-assisted cover.
Throughout heating, excess liquid can be released from the Cleveland KDL100F steam kettle's 2-inch-diameter draw-off valve, which is equipped with a drain strainer. Designed for longevity, the interior is type 316 stainless steel, while the exterior is finished with type 304 stainless steel; these metals resist rust and corrosion throughout high-volume use in busy kitchens, and they're simple to clean. Supported by an open base with three legs, the unit is stabilized in place, and its flanged feet can be bolted to the floor for security.

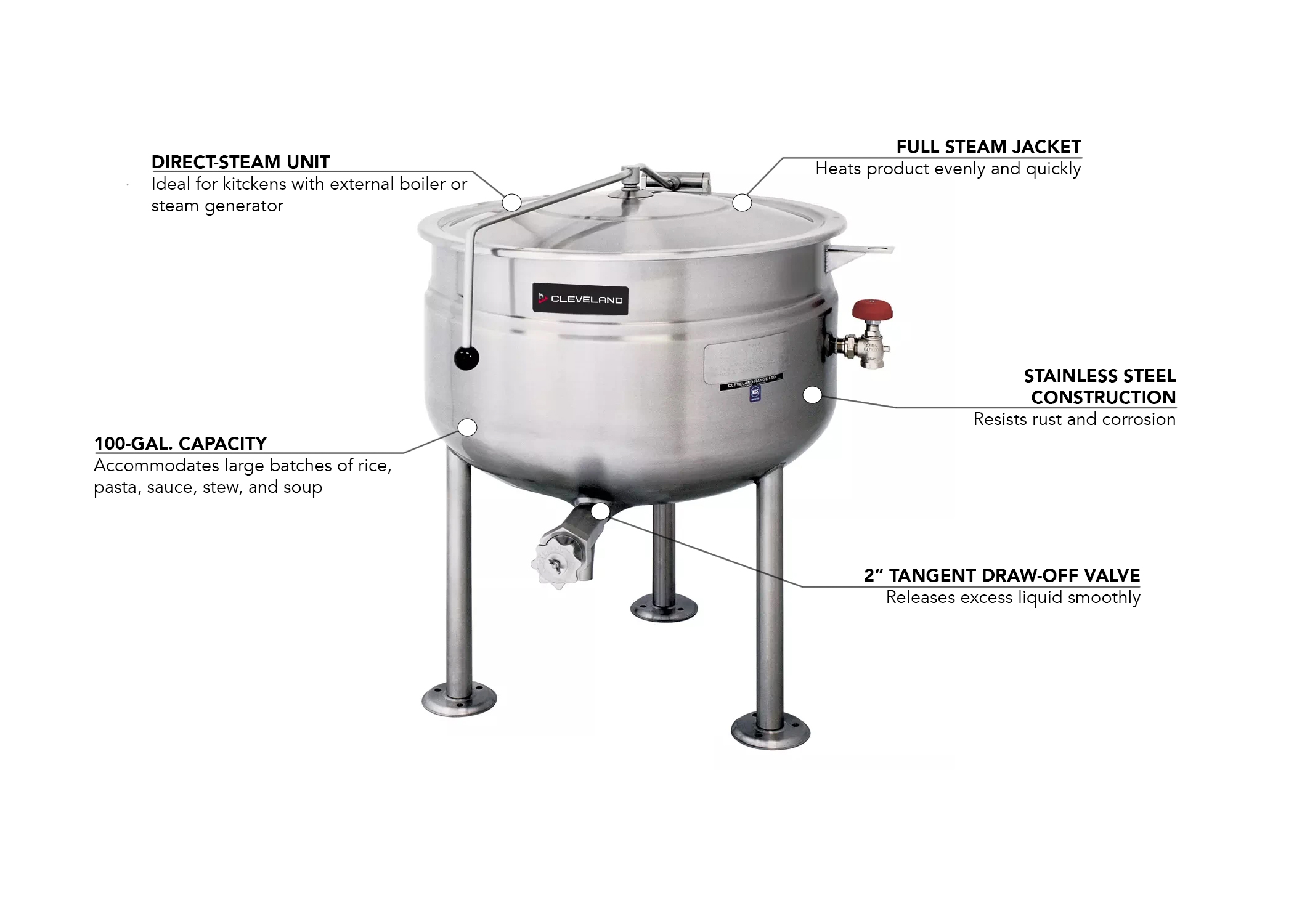

Product Details
- Direct-steam unit
- 100-gal. capacity
- Full steam jacket
- Steam jacket rating: 35 PSI
- 316 stainless steel interior
- Domed, hinged, spring-assisted cover
- 2-in.-diameter tangent draw-off valve with drain strainer
- Condensate drain valve includes insulated handle
- 35-PSI chrome-plated safety valve
- Open tri-leg base made of tubular, type 304 stainless steel
- Adjustable, flanged feet can be bolted to floor
- Faucet mounting bracket
- Steam control inlet valves
- Incoming steam operating pressure: 5-30 PSI
- Minimum rear clearance: 4 in.
Dimensions & Utilities
- 51 in. W x 47 in. D x 37 in. H (82 in. H when cover is open)
- 11⁄4-in. NPT for direct steam
- 1⁄2-in. NPT for condensate return
- 1⁄2-in. NPT for hot and cold water
- 3⁄8-in. copper tube
Product Features
*Free shipping on Cleveland KDL100F within the 48 contiguous states.
From The Manufacturer
Kettle, direct steam, 100-gallon capacity, full steam jacket design, open tri-leg base, stainless steel exterior finish, standard with flanged feet, faucet bracket, steam control valve, 2" tangent draw-off & strainer, spring assist cover, 35 psi rating
*Image may not depict product color, inclusions or accessories.
Cleveland KDL100F Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Cleveland |
| Base | Tri Leg |
| Capacity (gallons) | 100 |
| Design | Full Jacket |
| Heat | Direct Steam |
| No. of Kettles | 1 |
| Tilt Mechanism | Stationary |
| Type | Floor Model |
| Warranty | 1-year Parts & Labor |
| Weight | 360.00 |
