Cleveland 36GMK66300 (2) 6 gal Steam Kettles - Manual Tilt, 2/3 Jacket, Natural Gas

KaTom #: 109-36GMK66300NG • MPN: 36GMK66300 NG
  • 109-36GMK66300NG Primary Thumbnail Image
  • 109-36GMK66300NG Multiple Thumbnail Image #1
Free Shipping Item

$42,531.00 /Each

Login or add to cart for the price

Selected Gas Type: Natural Gas

Liquid PropaneLiquid Propane

Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.

Garren Anderson User Image
Ask a Foodservice Equipment Specialist

Attention: Order by 07-01-2026 to save before the price increases!

Cleveland 36GMK66300 Description

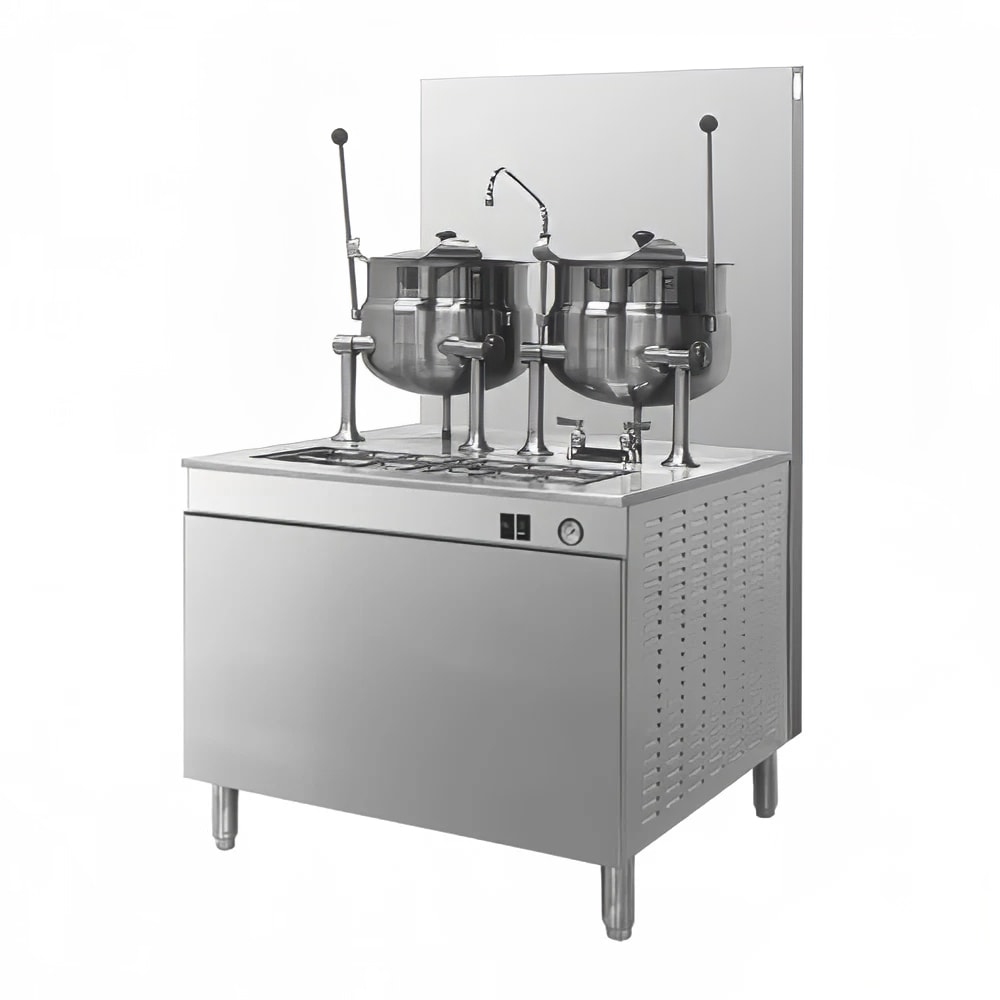

Ideal for cooking large volumes of gravy, sauce, stew, and soup, the Cleveland 36GMK66300 steam kettle cabinet assembly includes two 6-gallon kettles. Two-thirds steam jackets encase both steam kettles to heat product evenly, and a 220,000-BTU gas boiler supplies steam to the jackets. To minimize splashing and reduce heat changes, the kettles are equipped with lift-off covers. Operators can manage each kettle's steam control valve, and a pressure gauge and illuminated start and reset control switches are mounted on the console. The steam generator's water level is adjustable via the solid-state water level controls. If water levels drop too low, the steam generator turns off automatically for safety.

When product is ready to be dispensed, users can take hold of the Cleveland 36GMK66300 steam kettle cabinet assembly's handles and manually tilt the kettles to release product. This mechanism enables users to dispense a specific amount. To simplify cleanup, the steam generator drains remaining water automatically; when the unit initially starts up, it refills water instantly. The kettles are mounted on a 36-inch-wide stainless steel cabinet for stability. A hot and cold water faucet with a swing spout is built into the cabinet's top to streamline operation, and significant components are serviceable from the cabinet's front.

  • (2) 6-gal. kettles with lift-off covers and splash guard
  • Two-thirds steam jackets (1 per kettle)
  • Steam jacket rating: 50 PSI
  • Kettles made of 304 stainless steel
  • Tilt handles on sides of kettles
  • Manual tilt
  • 1 needle-type steam control valve per kettle
  • Console-mounted controls: pressure gauge and illuminated start/reset switches
  • Solid-state controls for steam boiler's water level
  • Safety cut-off for low water level
  • Steam generator drains with shutdown and refills automatically upon startup
  • Electronic spark ignition
  • 15-PSI safety valve
  • Built-in Nickelguard™ steam generator
  • Type 430 stainless steel exterior enclosure, table top, backsplash, and adjustable feet
  • 36-in.-wide cabinet base
  • Hot and cold faucet with swing spout
  • Serviceable components located at front of cabinet
  • Right, left, and rear clearances: 6 in.
  • Incoming water pressure range: 35-60 PSI
  • 220,000 BTU

  • 35 43⁄100 in. W x 37 in. D x 62 in. H
  • 25 W
  • 115 V/1 ph
  • Uses natural gas
  • 1⁄4-in. NPT hot and cold water for kettles
  • 1⁄4-in. NPT cold water
  • 1 1⁄2-in. IPS common drain
  • 3⁄4-in. IPS piping for gas

*Image may not depict product color, inclusions or accessories.

*Free shipping on Cleveland 36GMK66300 within the 48 contiguous states.

Additional Product Information

Additional Product Information

From The Manufacturer

Kettle/Cabinet Assembly, gas, 36" W cabinet base, with two 6-gallon kettles, standard height cabinet, with 300,000 BTU gas boiler, includes lift-off cover, double pantry faucet, sink & drain, splash guard, 316 stainless steel liner, factory installed steam control kit(s)

Warranty Icon
1-year Parts & Labor; 5-year Pro-Rated Boiler & Steam Generator Parts
