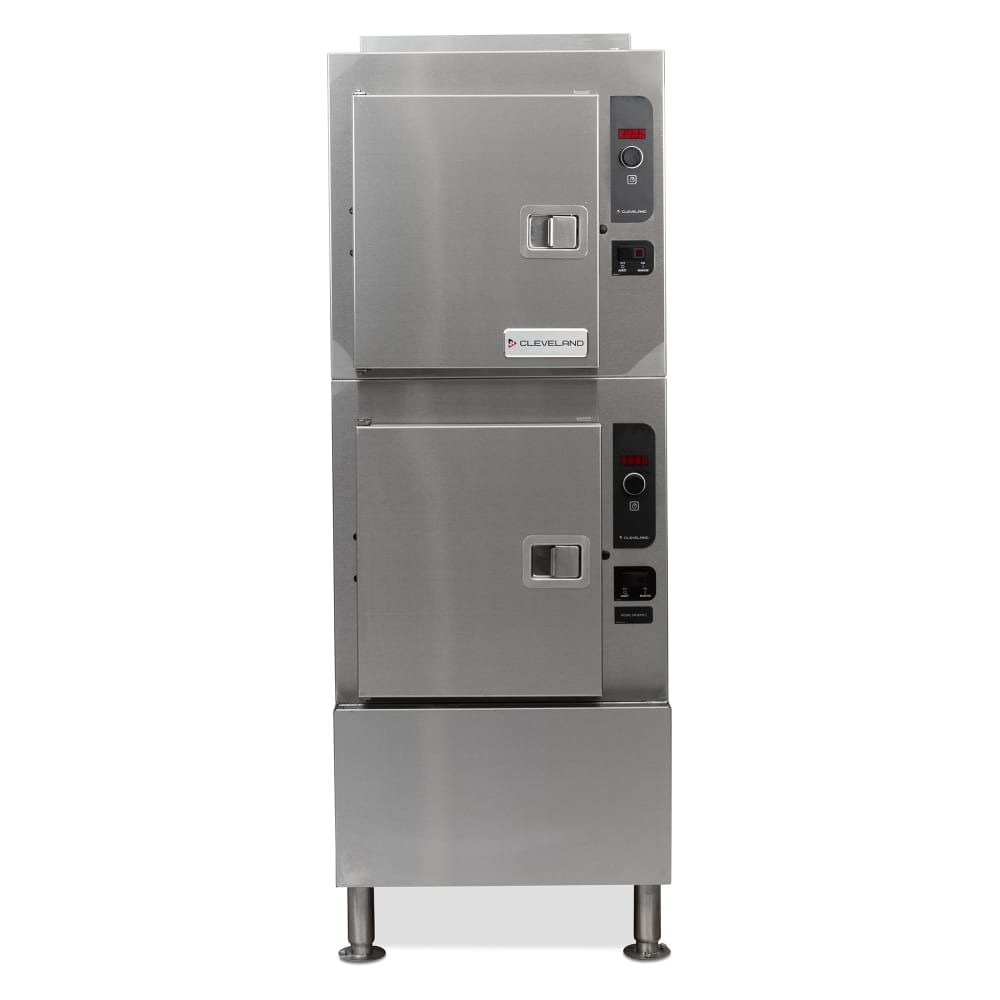

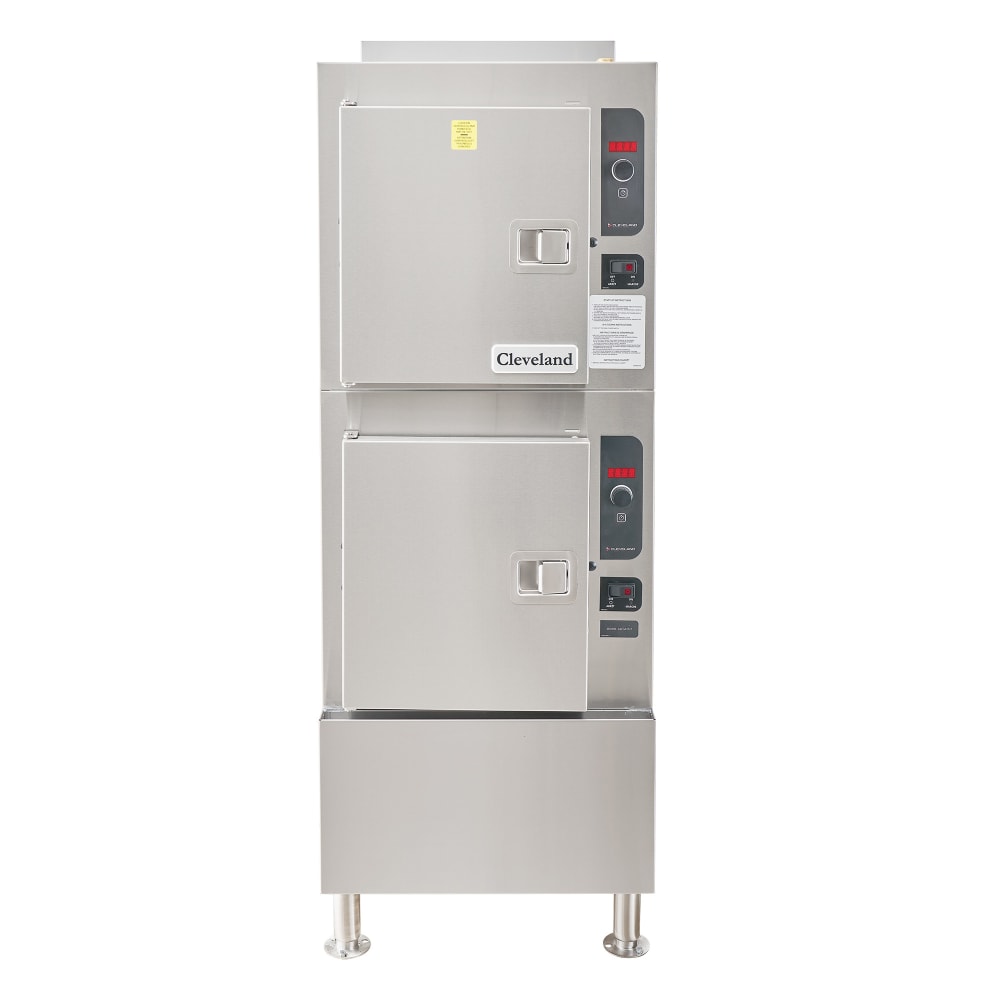

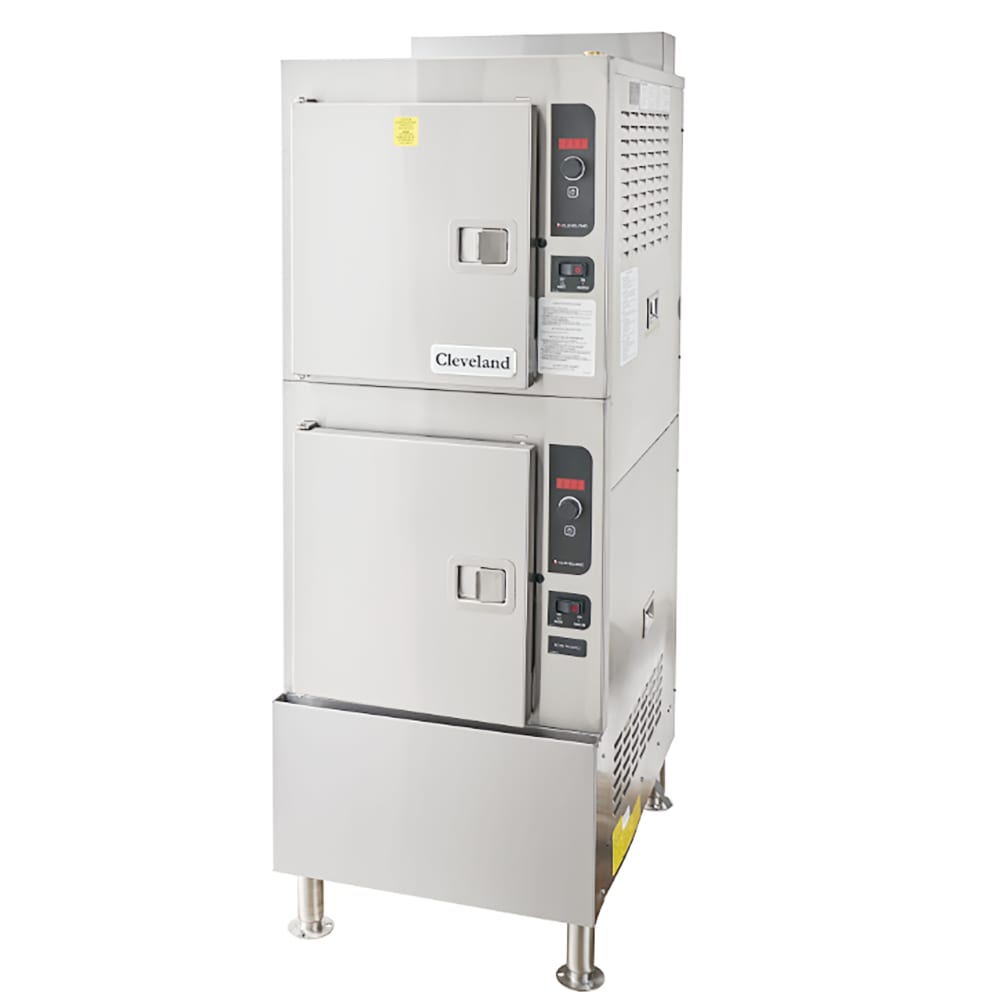

Cleveland 24CGA10 (10) Pan Convection Steamer - Cabinet, Descaling Port, Natural Gas
IN STOCK: Ships in 1 Business Day
Less Than 5 in Stock, Order Soon!
$25,651.00 /Each
Login or call for details!
Selected Gas Type: Natural Gas
White Glove Delivery
Contact your sales rep for availability
Attention: Order by 06-01-2025 to save before the price increases!
Cleveland 24CGA10 Description

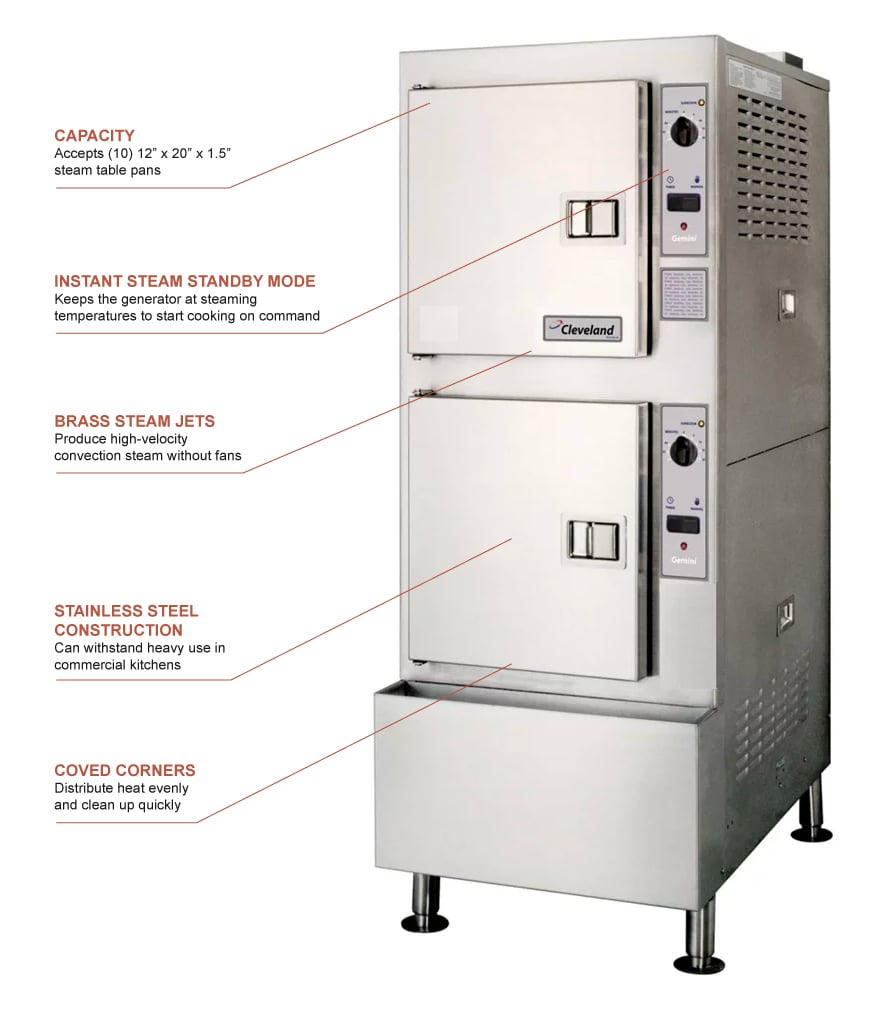

Using brass steam jets to fill its cooking compartments with high-velocity steam, the Cleveland 24CGA10 SteamCraft® Ultra 10 convection steamer can cook 10 full-size cafeteria pans. Its two-compartment layout is stacked, supporting five pans each, and each individual compartment includes its 60-minute electro-mechanical timers and switches for manual operation to personalize different cooking methods. The PowerPak gas steam generator creates the steam with its 7.5-gallon reservoir. To maintain high temperatures for extended periods of time, it’s rear mounted and fully insulated.

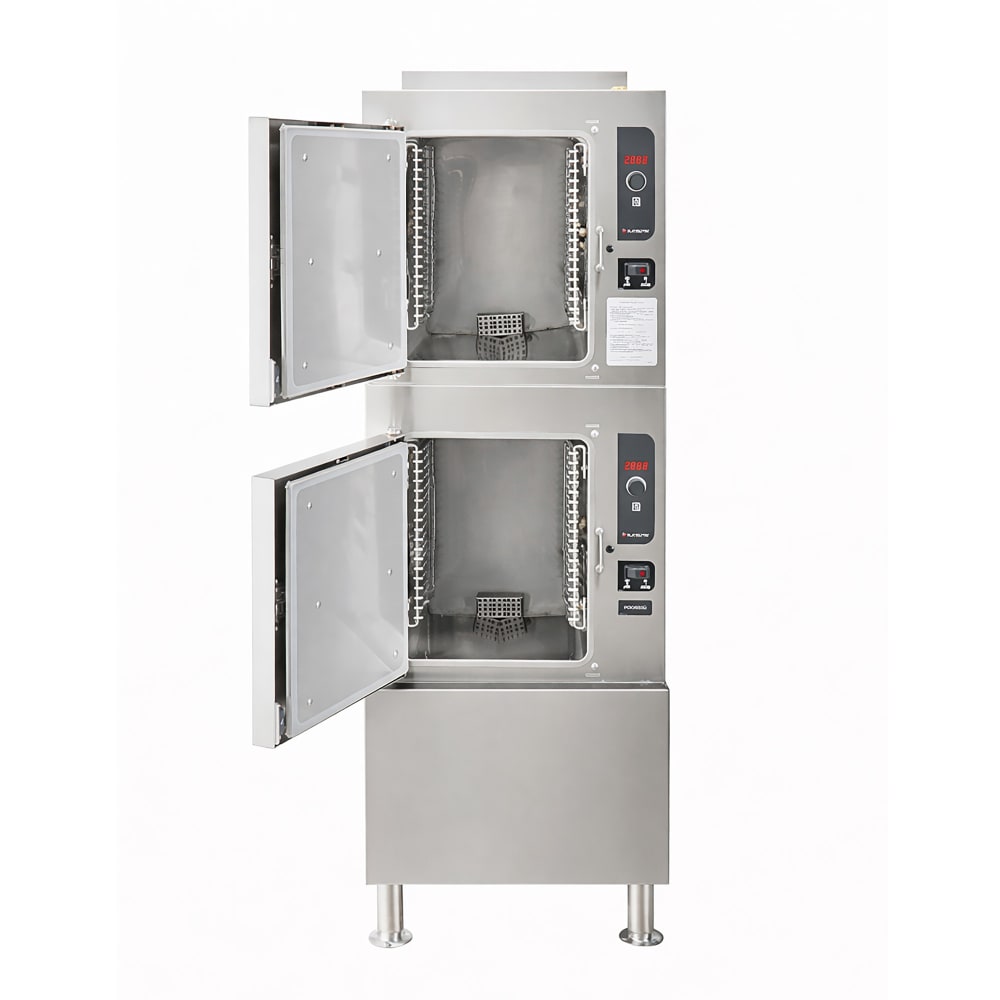

The Cleveland 24CGA10 steamer’s doors, cavities, and steam generators have a 14-gauge stainless steel construction that withstands dents and scratches from back-to-back loading and unloading. Each compartment is equipped with a left-hinged door that can be slammed, and its gasket seals the door in place to reduce heat loss. Inside the insulated compartments, easy-to-clean coved corners enable heat to flow freely around products, while the slide racks can be removed to streamline cleaning. Able to be adjusted to as much as 1 inch, the 6-inch stainless steel legs include flanged feet for unlevel surfaces.
Product Details
- Brass steam jets blow steam into cooking cavities
- 2 stacked cooking compartments

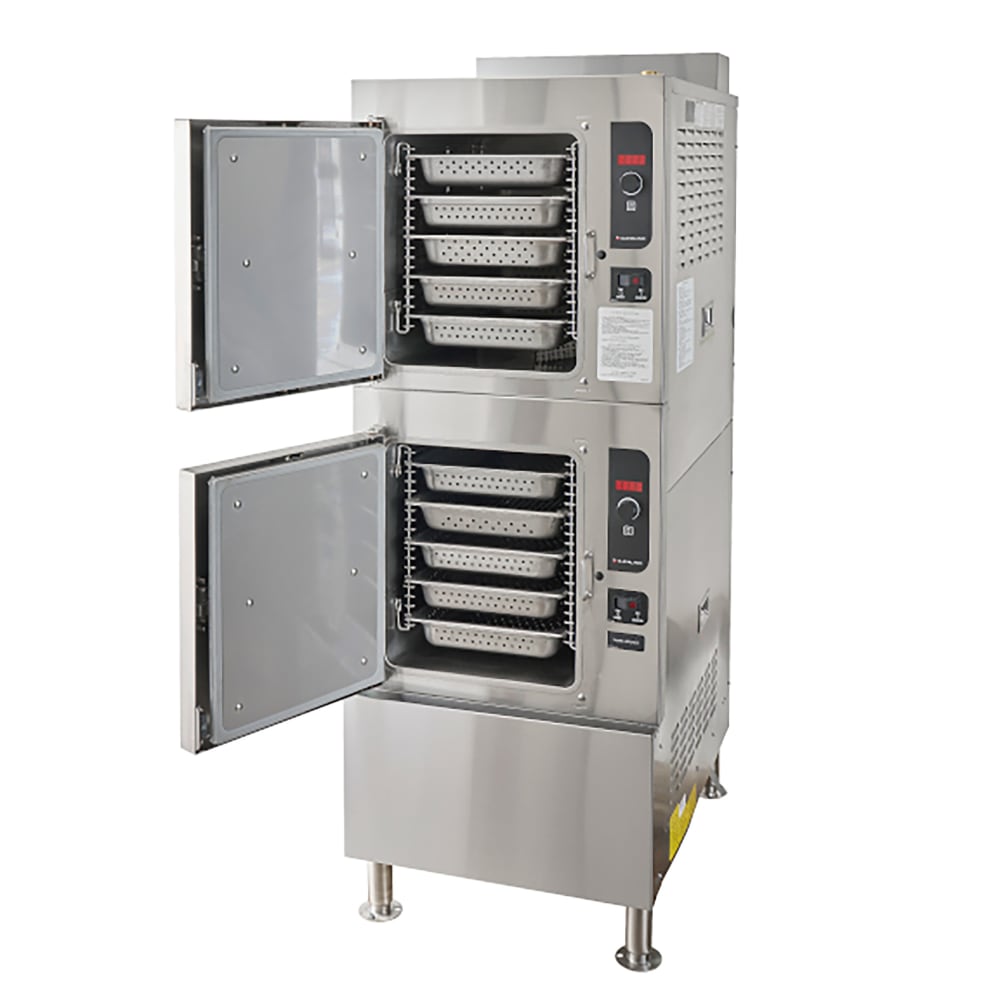

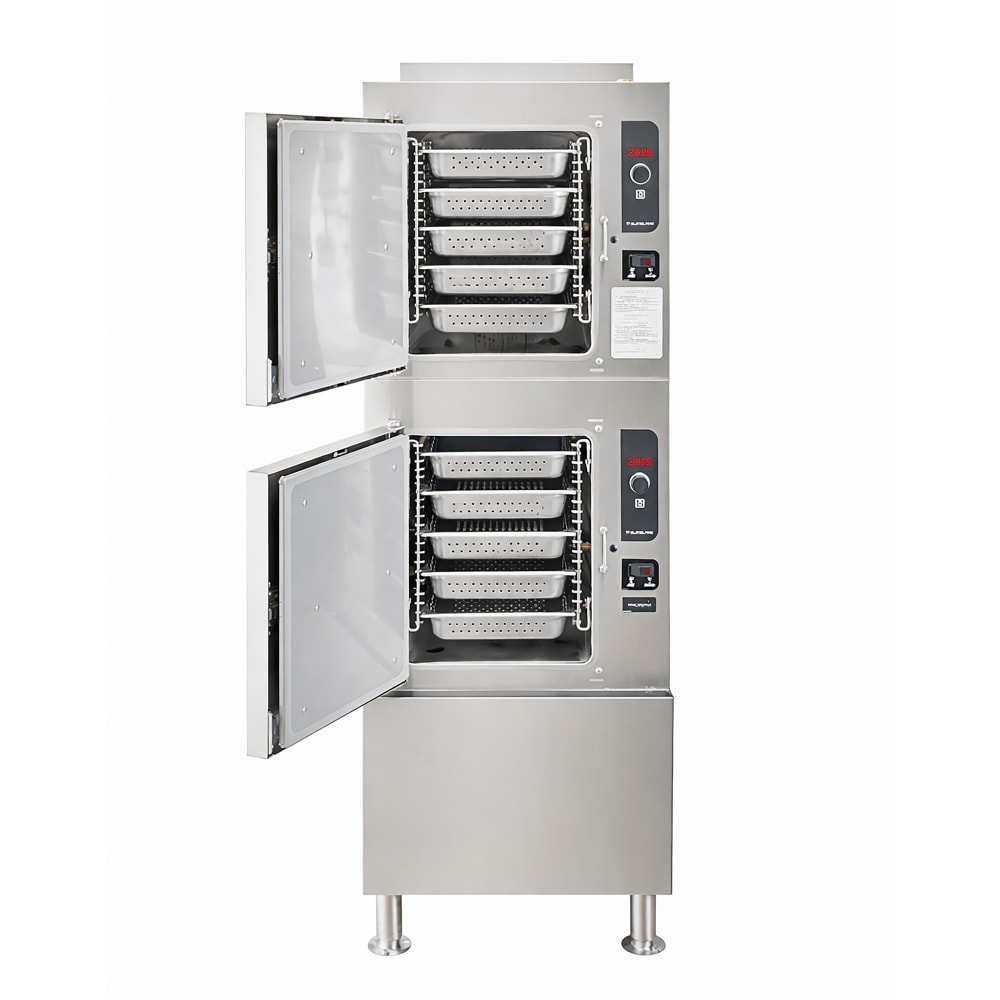

- Each compartment holds 5 full-size cafeteria pans
- 14-ga. stainless steel compartment doors, steam cooking cavities, and steam generators
- 2 left-hinged, 2-piece doors
- 60-minute electro-mechanical timer and manual operation switch for each compartment
- Automatic spark ignition eases generator start up
- Steam shut-off switch
- Auto-drain feature
- 6-in. stainless steel legs with flanged feet
- Left, right, and rear clearances: 3 in.
- Ideal incoming water pressure: 35-60 PSI
- 120,000 BTU
Dimensions & Utilities
- 24 in. W x 331/8 in. D x 657/16 in. D
- Uses natural gas
- 3⁄4-in. NPT
Product Features
*Free shipping on Cleveland 24CGA10 within the 48 contiguous states.
From The Manufacturer
Steamcraft® Ultra 10 Convection Steamer, pressureless, gas, 2 compartments, (5) 12 x 20 x 2 1/2 pans/compartment capacity, manual controls, 60-minute mechanical timer & manual (continuous steaming) bypass switch, left-hand hinged door, controls on right, steam shut-off switch, electronic spark ignition, 1 standard treated & tap water connection, stainless steel construction, 6" adjustable legs with flanged feet, 125,000 BTU
*Image may not depict product color, inclusions or accessories.
Cleveland 24CGA10 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Cleveland |
| Application | High Volume |
| Base | Cabinet |
| Controls | Manual |
| Depth (in) | 33 |
| Gas Type | NG |
| Heat | Gas |
| Height (in) | 65.44 |
| No. of Compartments | 2 |
| Pan Capacity | 10 or More Pans |
| Product | Steamers |
| Product Type | Cooking Equipment |
| Series | Steamcraft® Ultra |
| Special Features | Descaling Port |
| Steam Generator | External Source |
| Steamer Type | Convection |
| Total BTU | 125000 |
| Warranty | 1-year Parts & Labor; 3-year Door; 5-year Pro-Rated Parts Boiler & Steam Generator |
| Water Source | Plumbed |
| Width (in) | 24 |
| Weight | 565.00 |
