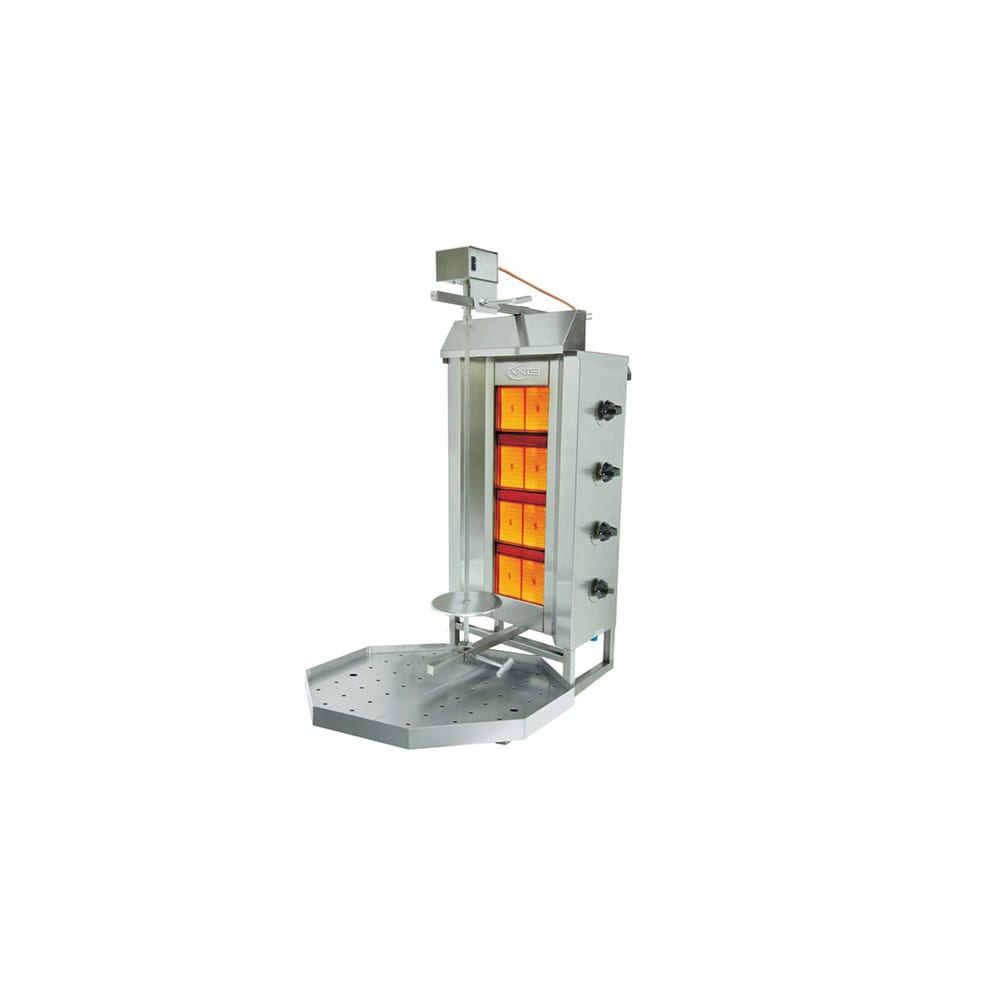

Axis AX-VB4 Gyro Machine w/ 110 lb Capacity - Stainless Steel, Convertible
QUICK SHIP: Typically ships in 1 - 3 Business Days
$1,730.20 /Each
Axis AX-VB4 Description
Equipped with a 125-millimeter disk and a 36-inch spit, the Axis AX-VB4 vertical broiler supports 110 pounds of meat to accommodate continuous carving. Four individual infrared burners generate 47,770 BTU, while the adjustable heat deflectors direct radiant heat for even cooking from top to bottom. The EZ Slide dual-rail system modifies proximity to the burners to avoid overcooking or drying out the product.
For clean, uninterrupted operation, the Axis AX-VB4 broiler features an enclosed motor that shields critical components from grease and a 24-inch octagonal drip pan that collects rendered juices. A meat shovel simplifies product handling and transfer. This stainless steel broiler measures 23 inches wide by 31 inches deep by 47 inches high.
- 110-lb. capacity
- Stainless steel construction
- 4 individual infrared burners
- Adjustable left and right heat deflectors
- Enclosed motor
- EZ Slide dual-rail system
- 36-in. spit
- 125-mm disk
- Meat shovel
- 24-in. octagonal drip pan
- 23 in. W x 31 in. D x 47 in. H
- 120 V/60 Hz/1 ph, cord with NEMA 5-15P plug
- Powered by natural gas (includes LP conversion kit)
- 47,770 BTU
*Image may not depict product color, inclusions or accessories.
*Free shipping on Axis AX-VB4 within the 48 contiguous states.
From The Manufacturer
Axis Vertical Broiler, natural gas, (4) individual controlled infrared burners, 36" spit, adjustable heat deflectors on left & right, removable drip tray, dual rails, enclosed motor, stainless steel, includes: 24" x 31" octagonal drip pan, 47,770 BTU, 120v/60/1-ph, cord with NEMA 5-15P (LP conversion kit is included)
Axis AX-VB4 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Axis |
| Burner Type(s) | Infrared Burner |
| Capacity (lbs) | 110 |
| Gas Type | Convertible |
| Gas Type | LP |
| Gas Type | NG |
| Heat | Gas |
| Height (in) | 47 |
| Hertz | 60 |
| NEMA | 5-15P |
| Number of Burners | 4 |
| Phase | 1 |
| Product | Vertical Broilers |
| Product Type | Cooking Equipment |
| Total BTU | 47770 |
| Voltage | 120 |
| Warranty | 1-year Parts & Labor |
| Weight | 78.00 |
