Jackson RACKSTAR 44 RackStar® High Temp Conveyor Dishwasher w/ 223 Racks/hr Capacity, L-to-R Conveyor, 208v/3ph
Typically ships in 8 - 10 weeks
$25,566.00 /Each
Call for details!
Selected Voltage: 208V, 3 Phase
| 208V, 1 Phase |
| 208V, 3 Phase |
| 230V, 3 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Jackson RACKSTAR 44 Description

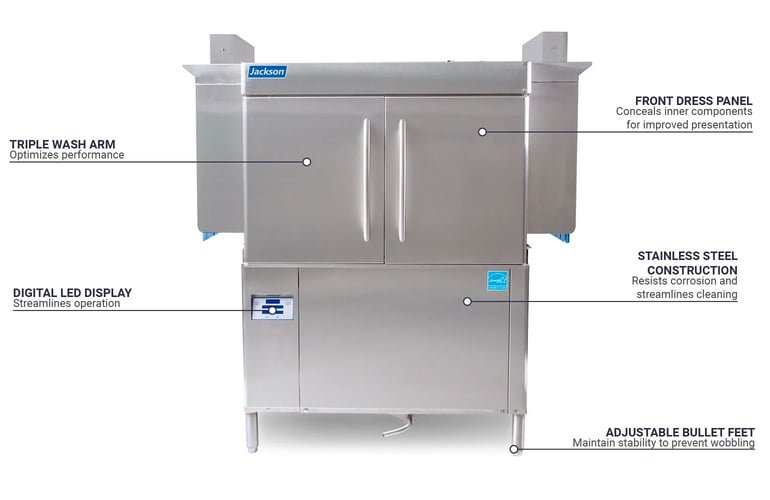

The Jackson RACKSTAR 44 high-temp dishmachine is made of stainless steel to withstand high-volume use, resist corrosion, and ease cleaning. While its front dress panel hides the machine's inner components, the double-wall insulated doors retain heat for improved efficiency. To account for uneven flooring, its bullet feet can be adjusted, and to streamline operation, this unit features a digital LED control panel, self-cleaning wash arms, and a self-draining wash pump.
With a 25-gallon wash tank, the Jackson RACKSTAR 44 commercial dishwasher can sanitize 223 racks per hour to keep up with busy commercial kitchens. This conveyor-type, left-to-right model features a Dual Rainbow Rinse™ system with an arched rinse arm design to optimize performance. In Econo-rinse mode, this unit uses 0.35 gallons of water per rack, and in Turbo-rinse mode, it uses 0.52 gallons. This unit measures 44 inches wide by 30 inches deep by 681⁄2 inches high overall.
Product Details
- Part of the RackStar® series
- Washes 223 racks per hour
- Conveyor-type unit with single tank
- Left-to-right configuration
- Wash tank capacity: 25 gal.
- Econo-rinse system uses 0.35 gal. of water per rack
- Turbo-rinse system uses 0.52 gal. of water per rack
- Electric tank heat
- Durable stainless steel
- Digital LED control panel
- EnergyGuard™ controls
- Fully automatic
- WSIR® cleaning system
- Dual Rainbow Rinsesystem with arched rinse arm design
- Self-draining stainless steel wash pump
- Splash shields
- Front dress panel
- Double-wall insulated doors preserve heat
- Self-cleaning wash arms
- Adjustable vent cowl collars
- Adjustable bullet feet
- Exhaust vent fan control
- Strike plate table limit switch
- 193⁄4-in. chamber clearance
- Minimum wash temperature: 160 degrees F
- Minimum rinse temperature: 180 degrees F
- Required incoming water temperature: 110-140 degrees F
- Required incoming flow pressure: 15 PSI
- Minimum flow rate: 1.3 GPM
Dimensions & Utilities
- 44 in. W x 30 in. D x 681⁄2 in. H
- 51.9 A, 31⁄4 HP
- 208 V/60 Hz/3 ph
- Minimum waterline size: 1⁄2-in. IPS
- Minimum drain line size: 11⁄2-in. IPS
Product Features
*Free shipping on Jackson RACKSTAR 44 within the 48 contiguous states.
From The Manufacturer
RackStar 44 Dishwasher, left to right conveyor type, high temperature sanitizing with electric tank heat, single tank design, approximately (223) racks/hour capacity (0.35 gallons per rack), fully automatic including auto-fill, adjustable conveyor speed, 19-3/4" clearance, digital temperature readout, double-wall insulated doors on front, EnergyGuard™ controls, Dual Rainbow Rinse™ - Econo (0.35 gpr) or Turbo (0.51 gpr), vent fan control, strike plate table limit switch, splash shields, stainless steel construction, adjustable bullet feet, 3 HP pump, 1/4 HP conveyor, NSF, cETLus, ENERGY STAR®, 208v/60/1ph
*Image may not depict product color, inclusions or accessories.
Jackson RACKSTAR 44 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Jackson |
| Cavity Height (in) | 19.75 |
| Door Type | Swing |
| Heat | Electric |
| Height (in) | 69 |
| Hertz | 60 |
| Length (in) | 64 |
| Phase | 3 |
| Product | Dishwashers |
| Product Type | Dishwashing Equipment & Supplies |
| Racks per Hour | 223 |
| Rating | Better |
| Sanitizing | High Temp |
| Series | RackStar® |
| Special Features | Auto Clean Cycle |
| Special Features | Insulated Door |
| Voltage | 208 |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 30 |
| Weight | 802.00 |
