Jackson DYNATEMPVER High Temp Door-Type Dishwasher w/ Built-In Booster, 230v/1ph

Image may not depict product color, inclusions or accessories.

KaTom #: 099-DYNATEMPVER2301 • MPN: DYNATEMPVER 230/1
Ships Free

Typically ships within 9 - 13 business days

(0 reviews)Write a Review
Retail Price: $11,151.00

Selected Voltage: 230V, 1 Phase

230V, 1 Phase
230V, 3 Phase

Image may not depict product color, inclusions or accessories.

Jackson DYNATEMPVER Description

Jackson

The Jackson DYNATEMPVER electric, high-temp, door-type dishwasher has an automatic 88-second normal cycle, but it also hasas well as heavy and extra-heavy cycles. This warewasher is ventless, so it does not need a hood to operate to comply with most local codes. The low-profile condensing system minimizes water vapor, and the water vapor that is produced is used to preheat incoming rinse water through the energy recovery systembut the energy recovery system collects any of the vapor that is produced and uses it to preheat incoming rinse water. There is a built-in booster heat that increases rinse water temperature to an ideal level for sanitizing, and Sani-Sure™ assures the temperature stays remains consistent.

Triple wash arms ensure that the dishes are cleaned properly, and their stainless steel nozzles enhance this design. There are sScrap baskets in the Jackson DYNATEMPVER electric, high-temp, door-type dishwasher, and these collect food scraps that could clog the drain, wash arms, or rinse arms. The control system is digital, so the operator can easily begin a wash cycle, start a deliming cycle, or diagnose system issues.

Product Details

  • 88-sec. normal cycle, 138-sec. heavy cycle, and 268-sec. extra-heavy cycle
  • 39 racks per hr. with the normal cycle, 25 racks per hr. with the heavy cycle, and 13 racks per hr. with the extra-heavy cycle
  • Auto-start and auto-fill features simplifyies operation when initiating the cycle
  • Does not require a hood to operate
  • Low-profile, internal condensing system minimizes water vapor in the unit
  • Two-pass energy recovery system collects water vapor, using it to preheat incoming rinse water
  • Built-in booster heater has a Sani-Sure feature to ensure water temperature is at proper sanitizing levels
  • Triple wash arms provide consistent results by reaching allowing water to reach all of the entire rack
  • Interchangeable wash and rinse arms easily screw out for cleaning
  • Stainless steel nozzles provide a superior wash
  • Interchangeable scrap baskets do not allow food scraps debris to clog the drain or arms
  • 18-in. trays fit in the 1714-in. door opening
  • Stainless steel construction resists corrosion, provides strength, and makes unit simple to clean
  • Front and side dress panels protect the unit's integral components in the unit
  • Bullet feet are adjustable for use on uneven floors
  • 230 V/60 Hz/1 ph, 83.6 A, 1 HP
  • Overall Dimensions: 30516 in. W x 2912 in. D x 6318 in. H
  • cETLus and ETL-Sanitation listed; ENERGY STAR certified

Product Features

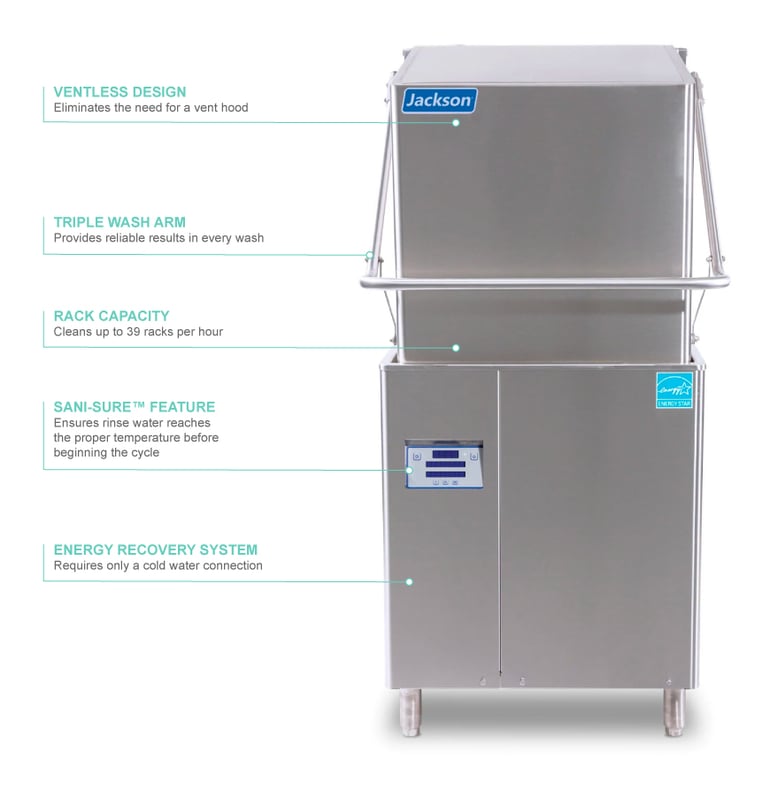

Jackson dynatempver2301 Features

Digital Control System

  • Control system operates digitally to make the unit easy tofor easy use
  • Multi-cycle timer allows for monitoring of the cycle
  • Self-diagnosing controls detect common issues within the system
  • Manual deliming switch removes hard water deposits in the washer
  • High-limit thermostat does not allow the unit to operate at temperatures that are too high
  • Low water protection prevents overheating when the water is too low

DynaTemp® Dishwasher, door type, ventless, high temperature, 30-5/16"W x 29-1/2"D x 63-1/8"H, approximately (39) racks/hour, Sani-Sure™ rinse feature, multi-cycle timer, 17-1/4" clearance, auto-fill/auto-start, delime/manual wash switch, safety door interlock, self-diagnosing digital controls, two-pass energy recovery system, triple wash arm, (3) timed cycles, electric tank heater, pressure regulator, universal (straight-thru/corner) type, stainless steel exterior, (dishtable not included), cETLus, ETL-Sanitation, ENERGY STAR®, 203v/60/1ph

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

Jackson DYNATEMPVER Specifications

PDF Spec Sheet
Manufacturer Jackson
Height (in) 63.13
Width (in) 30.31
Design Standard
Type High Temp
Heat Electric
Racks per Hour 39
Door Type Lift Up
Depth (in) 29.5
Specialty Options Corner Convertible
Cavity Height (in) 17.25
Control Location Lower Front
Phase 1
Hertz 60
Voltage 230
Weight 385.00
Jackson DYNATEMPVER Certifications
  • NSF
  • Energy Star
  • ETL
