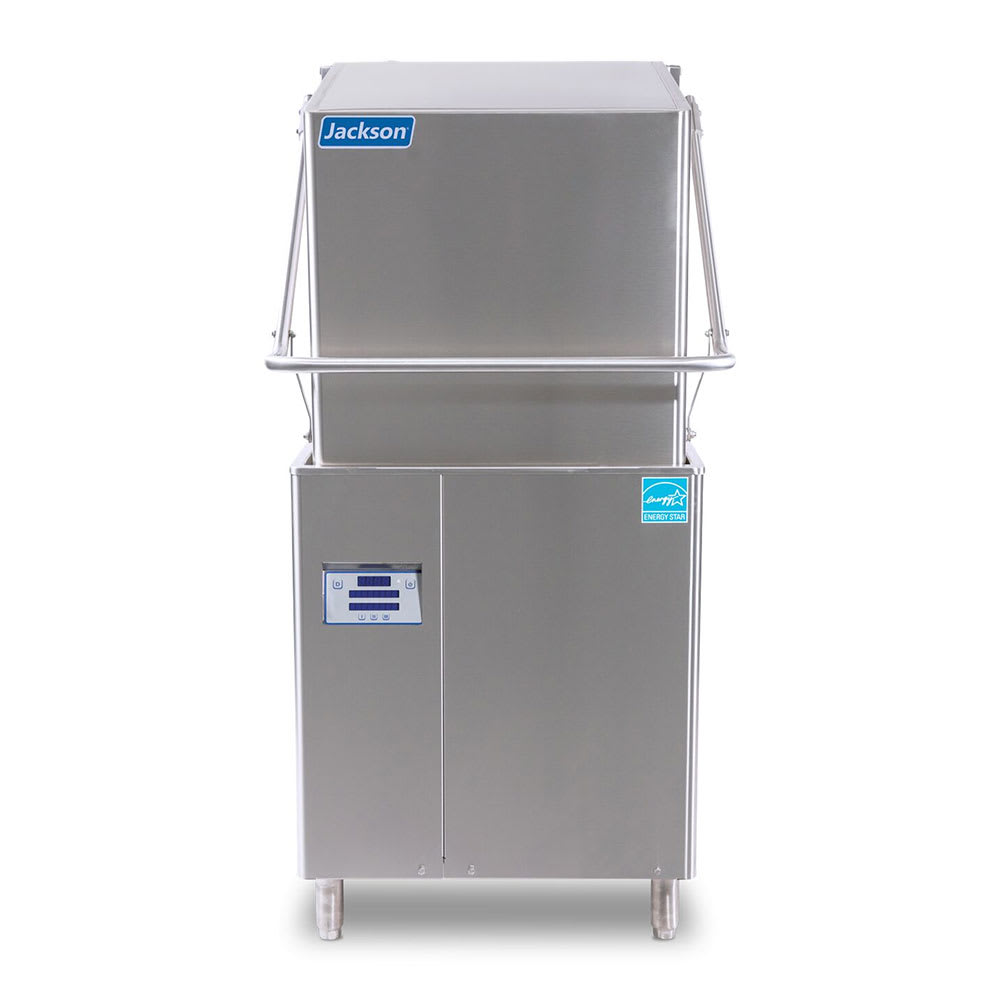

Jackson DYNATEMP VER High Temp Door-Type Dishwasher w/ Built-In Booster, 208v/1ph

The Jackson DYNATEMP VER electric door-type dishwasher is constructed from stainless steel for durability and corrosion resistance. The front and side dress panels protect internal components from water and damage. Wash and rinse arms are interchangeable when you take them out to clean. The scrap baskets in the unit collect food scraps and remove to make cleaning them out simple. The stainless steel pump drains itself, and adjustable bullet feet keep the unit level on uneven surfaces.

This dishmachine comes with a booster heater that heats cold water 70 degrees Fahrenheit rise when it comes in through the line to ideal wash and rinse temperatures. An internal condensing system minimizes the amount of water vapor that is produced, eliminating the need for a vent hood. Digital controls make the warewasher easy to use. A door switch shuts off the cycle if the door is opened. The Jackson DYNATEMP VER electric door-type dishwasher is field convertible from a straight through to a corner model and vice versa.

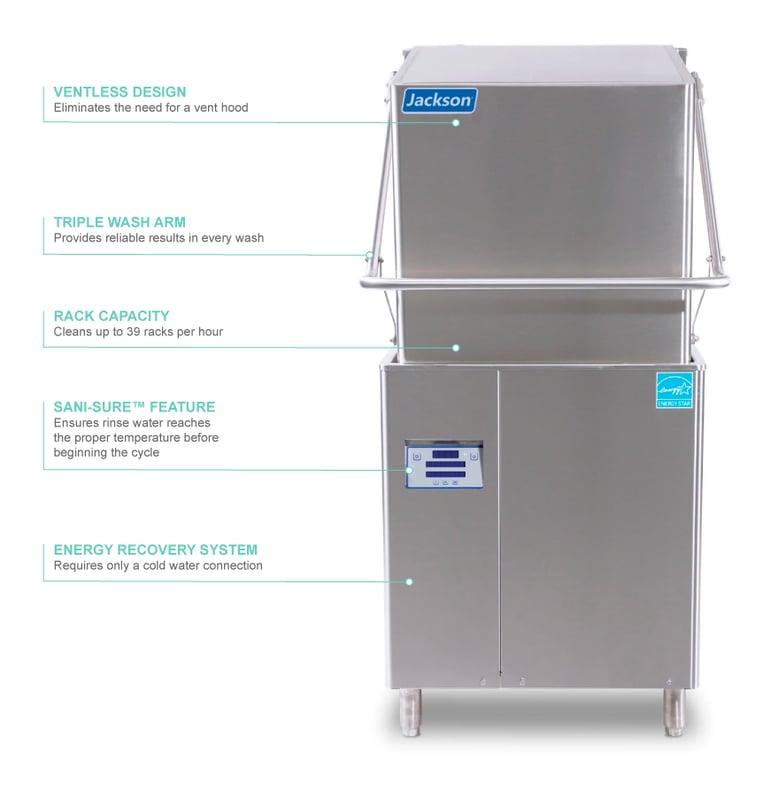

Product Details

• 70 degrees F rise booster heater
• Ventless and does not require a hood
• Energy recovery system uses a cold water connection only
• Internal condensing system minimizes the amount of water vapor produced
• Sani-Sure™ feature ensures rinse water is at the proper temperature
• Multi-cycle timer lets you know which cycle the unit is on
• Digital controls are easy to use
• Self-diagnosing controls indicate issues that need to be addressed
• Auto-fill and auto-start for easy use
• Door switch shuts off the cycle if the door is opened
• Delime/manual wash switch ensures the machine is properly cleaned
• Electric wash tank heater
• High-limit thermostat and low water protection
• 0.69 gal. of water used per rack
• Automatic normal cycle runs 88 sec.
• Able to produce up to 39 racks per hour
• Uses standard 20 in. x 20 in. racks
• Field convertible from a straight through to a corner model
• 208 V/60 Hz/1 ph, 1 HP
• Overall Dimensions: 30 5⁄16 in. W x 29 1⁄2 in. D x 63 1⁄8 in. H

Product Features

Durable Construction

• Stainless steel construction makes the unit durable and resistant to corrosion
• Adjustable bullet feet are designed to level the unit on uneven ground
• Front and side dress panels protect internal components
• Detergent/rinse additive signal connection fuse box
• Stainless steel pump drains itself
• Scrap baskets are interchangeable and make cleaning food scraps out easier
• Triple wash arms provide reliable results
• Stainless steel nozzles create ideal cleaning results
• Interchangeable wash/rinse arms easily come out for cleaning
• Built-in pressure regulator and door interlock
• Single point connection for all utilities
