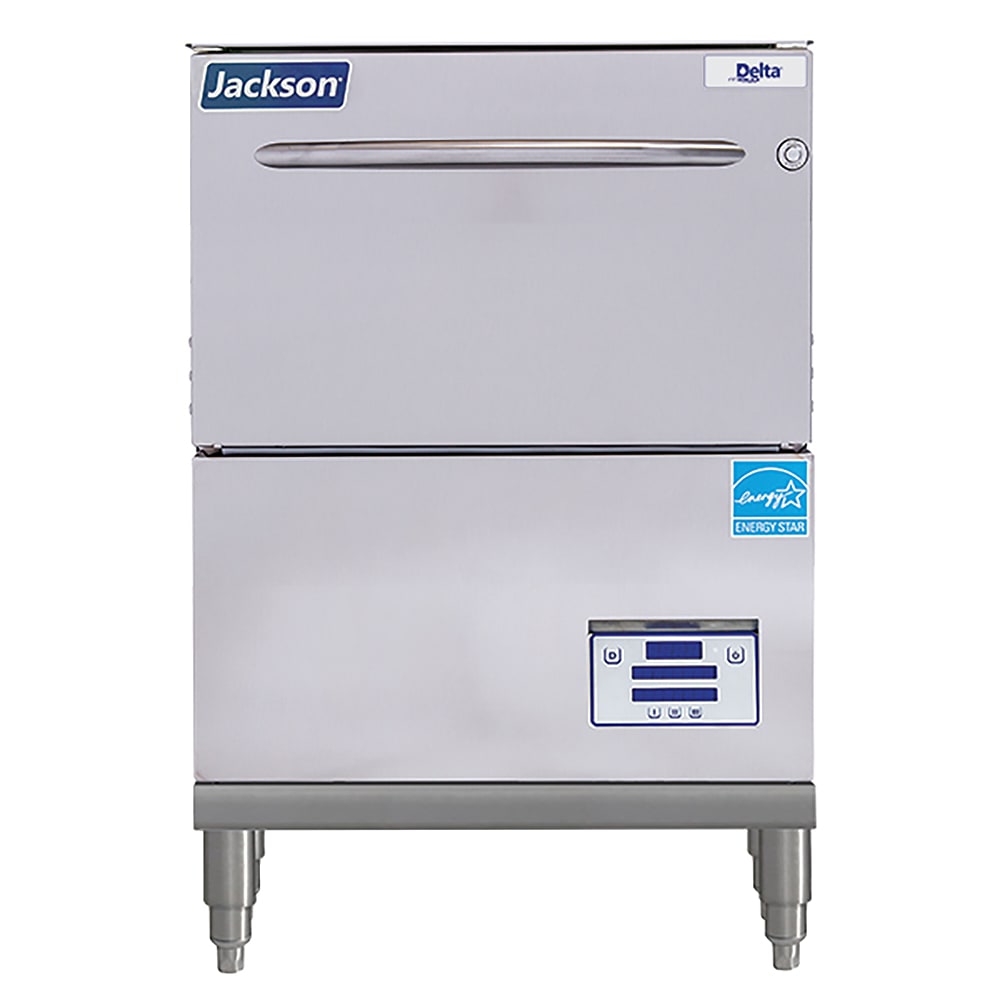

Jackson DELTA HT-E-SEER-S High Temp Rack Undercounter Glass Washer w/ 24 Racks/hr Capacity - Built-in Booster, 230v/1ph

KaTom #: 099-DELTAHTESEERS230 • MPN: DELTAHT-E-SEER-S 230/1
  • 099-DELTAHTESEERS230 Primary Thumbnail Image
Free Shipping Item

$9,552.00 /Each

Call for details!

Add-ons & Options

  • Protect Your Product
  • Coverage starting at $125.25
  • Edit Remove
Kyle Cates User Image
Ask a Foodservice Equipment Specialist

Jackson DELTA HT-E-SEER-S Description

Able to clean 720 glasses per hour using 13 gallons of water, the Jackson Delta® HT-E-SEER-S undercounter dishwasher maximizes energy efficiency. When preheating incoming rinse water, it uses hot water vapor created inside the unit to warm the water. It also reduces steam to prevent humidity buildup in dishrooms. By operating on a single cold water connection, its tank automatically fills, and it self-regulates pressure. A built-in booster heater maintains its wash operating temperature of 155 degrees Fahrenheit and its rinse operating temperature of 180 degrees Fahrenheit. To clean breakable dishes thoroughly, its soft-start mechanism reduces pressure upon initial startup. A delime cycle also is available to ensure a clean interior.

The Jackson Delta HT-E-SEER-S commercial undercounter dishwasher is constructed of stainless steel to endure common wear from back-to-back loading and unloading. Users can push up the front bar to open the unit and expose its peg rack and combination rack for dish organization. When it's time for cleaning, the operator can pull down the bar. Operations management is streamlined by the digital LED display on the unit's front; a timer alerts users when the cycle completes. This 24 1⁄4-inch-wide, 26 7⁄8-inch-deep, and 36 1⁄4-inch-high unit has a 6-inch clearance to clean beneath the machine.

  • Undercounter structure
  • Single cold water connection
  • Uses 13 gal. of water per hour
  • Cleans 20 racks or 720 glasses per hour
  • Normal, heavy, and extra-heavy cycles
  • 1 peg rack and 1 combination rack
  • Stainless steel construction
  • Booster heater built in
  • Steam elimination
  • Energy recovery system
  • Soft-start mechanism
  • Delime cycle
  • Sani-Sure™ final rinse system
  • Automatic fill
  • Pressure regulator and water hammer arrestor
  • Wash pump
  • Pumped drain for floors and walls
  • Chemical pumps and priming switches
  • Push-to-start design
  • Door interlock
  • Digital LED control panel
  • Timer
  • 6-in. clearance
  • 12-in. chamber clearance
  • Wall clearance: 1⁄4 in.
  • Operating wash temperature: 155 degrees F
  • Operating rinse temperature: 180 degrees F
  • Ideal incoming water temperature: 40-90 degrees F
  • Ideal incoming water pressure: 10 PSI

  • 24 1⁄4 in. W x 26 7⁄8 in. D x 36 1⁄4 in. H
  • 26.7 A, 1 HP
  • 230 V/60 Hz/1 ph
  • Water inlet: 3⁄4 in.
  • Water outlet: 1 3⁄8 in.

*Image may not depict product color, inclusions or accessories.

*Free shipping on Jackson DELTA HT-E-SEER-S within the 48 contiguous states.

Additional Product Information

Additional Product Information

From The Manufacturer

Delta® Underbar Dish/Glasswasher, door type, 24-1/4"W x 26-7/8"D x 36-1/4"H, high temperature sanitizing, built-in booster with Sani-Sure™ final rise system, steam elimination & energy recovery system, approximately (24) racks or (864) glasses/hour, built-in dispensing pumps & priming switches, delime cycle, digital LED display, solid state controls, auto-fill, push-button start, pressure regulator, automatic pumped drain, water hammer arrestor, includes (1) peg rack & (1) combination rack, stainless steel construction, cETLus, ETL-Sanitation, ENERGY STAR®

Warranty Icon
1-year Limited Parts & Labor
