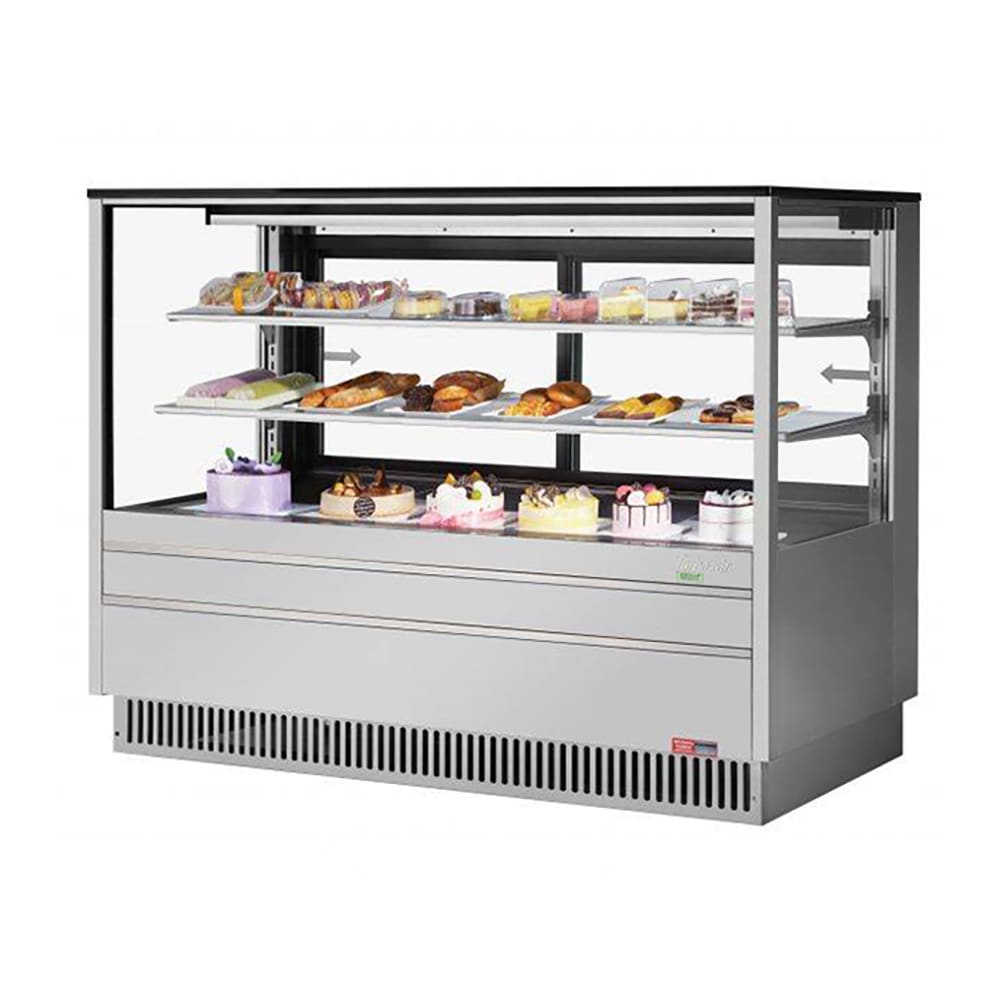

Turbo Air TCGB-72UF-S-N 72 1/2" Full Service Bakery Display Case w/ Straight Glass - (3) Levels, 115v
Retail Price: $51,001.00
$19,048.87 /Each
Turbo Air TCGB-72UF-S-N Description
To hold fruit pies, cheesecakes, mousse, and other desserts requiring refrigeration, the Turbo Air TCGB-72UF-S-N display case maintains average temperatures from 33 to 41 degrees Fahrenheit. This unit is foamed in place with CFC-free, high-density polyurethane insulation that preserves the generated temperatures. Its solar-powered digital thermometer provides a bold, accurate readout of interior temperatures, and as inventory changes, operators can adjust the interior climate with the digital electronic thermostat, which includes defrost control. For efficiency, its condenser automatically cleans itself of dust, and the compressor compartment is accessible through the rear. So this dessert case can produce desired temperatures, it should be installed in areas that don't exceed 55 percent humidity and 75 degrees Fahrenheit. It's should also be installed away from HVAC vents, fans, and doorways that could affect the air curtain.
For a European appearance that doesn't sacrifice durability, this refrigerated bakery case features a straight front panel; tempered glass front, side, and rear panels; and a minimal frame. This 72 1⁄2-inch-wide by 33 1⁄8-inch-deep by 50 3⁄4-inch-tall unit's exterior, floor, and airflow grille are made of stainless steel for lasting wear, rust and corrosion resistance, and simple cleaning. This silver-colored metal also complements most themes in bakeries and convenience stores. For stability on uneven flooring, it's positioned on 5⁄8-inch-tall bolts that can be raised to 2 3⁄4 inches.
The Turbo Air TCGB-72UF-S-N dessert case is a full-service unit, meaning employees must retrieve customer purchases. The two rear sliding glass doors grant full access to the unit's three display levels. While the display deck is made of stainless steel, the two shelves are made of tempered glass with stainless steel front and back edges. To accommodate changing product offerings, these shelves can be raised and lowered as needed. For full visibility that attracts customer attention, LED lights are built beneath the shelves.
- Interior capacity: 23.2 cu. ft.
- Full-service unit
- 3 display levels
- Stainless steel display deck
- 2 adjustable tempered glass shelves with stainless steel front and back edges
- LED lights built beneath each shelf
- Minimal case frame
- Low-E, coated, double-panel, and tempered glass panels
- Straight front glass
- 2 rear sliding doors
- Stainless steel airflow grille and exterior
- CFC-free, high-density polyurethane insulation is foamed in place
- Bolt height adjustable 5⁄8 to 2 3⁄4 in.
- Solar-powered digital thermometer
- Digital electronic thermostat with defrost control
- Rear-accessible compressor compartment
- Should not be installed in settings that exceed 75 degrees F and 55 percent humidity
- Should not be installed near HVAC vents, fans, or doorways
- Self-contained
- Environmentally friendly R-290 hydrocarbon refrigerant
- Average operating temperature: 33-41 degrees F
- Automatic self-cleaning condenser
- Top shelf: 63 3⁄8 in. W x 16 3⁄4 in. D
- Bottom shelf: 68 3⁄8 in. W x 18 3⁄4 in. D
- Interior: 69 1⁄4 in. W x 21 1⁄2 in. D x 22 5⁄8 in. H
- Overall: 72 1⁄2 in. W x 33 1⁄8 in. D x 50 3⁄4 in. H
- 8.6 A, 3⁄4 HP
- 115 V/60 Hz/1 ph, 4 7⁄8-ft. cord with NEMA 5-15P plug
*Nominal cubic footage measurements sometimes provided by refrigeration manufacturers may not indicate actual usable space. If you require a specific capacity, please call one of our customer care representatives to ensure the unit you order meets your needs.
*Image may not depict product color, inclusions or accessories.
*Free shipping on Turbo Air TCGB-72UF-S-N within the 48 contiguous states.
From The Manufacturer
Display Case, refrigerated, 23.2 cu.ft. capacity, 72-1/2"W x 32-3/4"D x 50-3/4"H, self-contained refrigeration with self-cleaning condenser, straight front tempered glass, sliding rear doors, electronic thermostat with defrost control, 33°F - 41°F temperature range, LED interior lighting, (2) adjustable tempered glass shelves, stainless steel floor & air flow grille, stainless steel exterior, rear access compressor compartment, R290 Hydrocarbon refrigerant, 3/4 HP, 115v/60/1-ph, 8.6 amps, cord with NEMA 5-15P, cETLus, ETL-Sanitation
Watch a video about this product
Turbo Air TCGB-72UF-S-N Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Turbo Air |
| Access | Full Service |
| Color | Silver |
| Cubic Feet | 23.2 |
| Depth (in) | 32.75 |
| Design | Straight |
| Door Type | Sliding |
| Height (in) | 50.75 |
| Hertz | 60 |
| Number of Levels | 3 |
| Phase | 1 |
| Product | Bakery Display Cases |
| Product Type | Commercial Refrigeration |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Refrigeration Type | Refrigerated |
| Shelving Type | Glass |
| Voltage | 115 |
| Warranty | 2-year Limited Parts & Labor; 5-year Compressor Parts |
| Width (in) | 72.5 |
| Weight | 992.00 |
