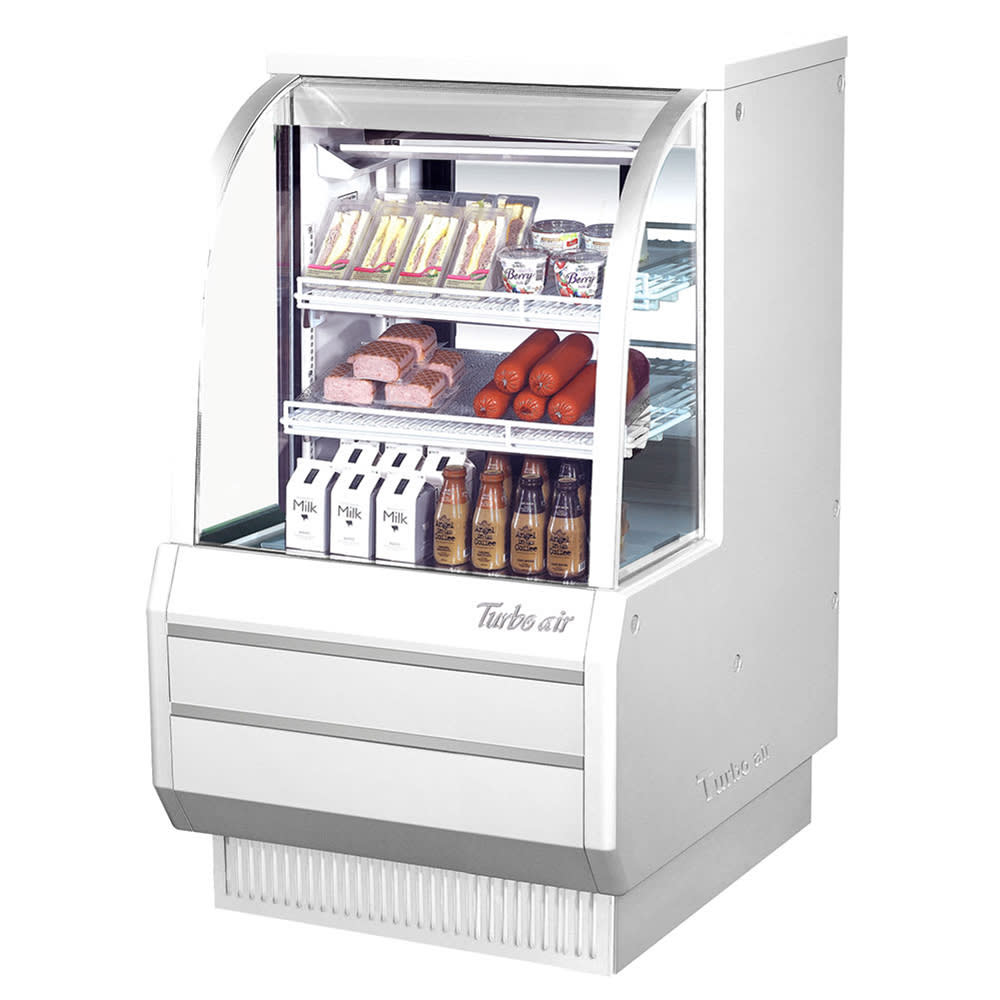

Turbo Air TCDD-36H-W-N 36-1/2" Full Service Deli Case w/ Curved Glass - (3) Levels, 115v

The Turbo Air TCDD-36H-W-N deli case holds product on two adjustable shelves and a stainless steel floor. With LED interior lighting, guests can easily see the displayed items. Front and side glass panels provide multiple views of the interior, and since the panels are tempered, they are safe around food. To prevent overhead light glares, the front glass has a curved design. Thanks to sliding rear doors, product is easy to load and unload from the unit.

Temperatures range from 33 to 41 degrees Fahrenheit thanks to the R-290 hydrocarbon refrigerant. The refrigeration system is self-contained, so plumbing is not required for installation of the Turbo Air TCDD-36H-W-N deli case. The solar-powered digital thermometer measures the interior temperature, while the digital electronic thermostat provides defrost control. A self-cleaning condenser device collects and removes dust to prevent system failure.

Product Details

• Product is held on 2 adjustable shelves that can be moved up and down and tilted
• Stainless steel floor creates a third display level
• LED lighting illuminates the interior to increase visibility
• Front and side glass provides visibility from multiple angles
• Curved design of the front glass provides a modern feel
• Low-E-coated, double-pane glass is safe since it is tempered
• Sliding rear doors simplify loading and unloading product
• High-density polyurethane insulation retains cold air and creates structure
• 115 V/60 Hz/1 ph, 7 A, ¹⁄₃ HP, NEMA 5-15P plug
• Interior Dimensions: 33¹⁄₄ in. W x 24 in. D x 23⁵⁄₈ in. H
• Overall Dimensions: 36¹⁄₂ in. W x 30 in. D x 50¹⁄₈ in. H

Product Features

Self-Contained Refrigeration System

• R-290 hydrocarbon refrigerant ensures temperatures range from 33-41 degrees F
• Solar-powered digital thermometer measures the interior temperature
• Digital, electronic thermostat provides defrost control
• Coating on the evaporator is corrosion resistant for durability
• Access the compressor compartment from the rear for maintenance
• Self-contained system is easy to service since all the components are built together
• Designed to operate in an environment that does not exceed 75 degrees F
• Designed to operate in an environment that does not exceed 55 percent humidity

Self-Cleaning Condenser

• Fine mesh filter collects dust buildup
• Rotating brush moves up and down the filter 2-3 times a day
• Brush removes dust outward and away from the condenser
• Does not allow dust to accumulate, which maintains high efficiency while preventing system failure

From The Manufacturer

Deli Case, refrigerated, 36 1/2" W, 12.1 cu.ft., high profile, self contained refrigeration system, self-cleaning condenser device equipped, curved front tempered glass, non-peel anti-rust coated paint steel exterior, sliding rear doors, (2) adjustable cantilevered wire shelves, LED interior lighting, stainless steel floor & air flow grille, white exterior color, rear access compressor compartment, 33°F-41°F temp range, R290 Hydrocarbon refrigerant, 1/3 HP, 115v/60/1-ph, 7.0 amps, NEMA 5-15P, CSA-Sanitation, cCSAus

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Natural Refrigerant

Product made with Hydrocarbon Refrigerants

2-year Parts & Labor; 5-year Limited Compressor Parts
