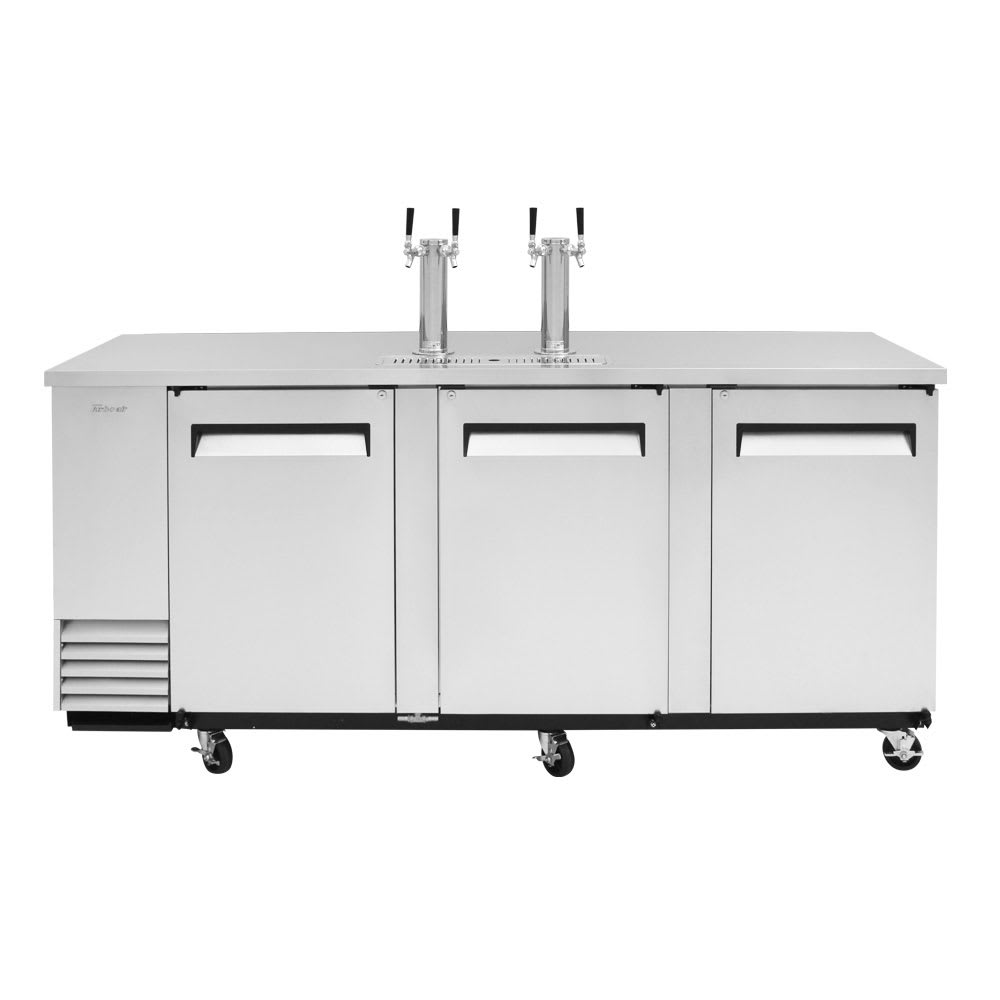

Turbo Air TBD-4SD-N 90.38" Draft Beer System w/ (4) Keg Capacity - (2) Columns, Stainless, 115v

Image may not depict product color, inclusions or accessories.

KaTom #: 083-TBD4SDN • MPN: TBD-4SD-N
Ships Free

Typically ships within 1 - 3 business days

(0 reviews)Write a Review
Retail Price: $10,543.00
$3,653.15 / Each

Selected Color: Stainless Steel

Stainless Steel

Image may not depict product color, inclusions or accessories.

Turbo Air TBD-4SD-N Description

Turbo Air

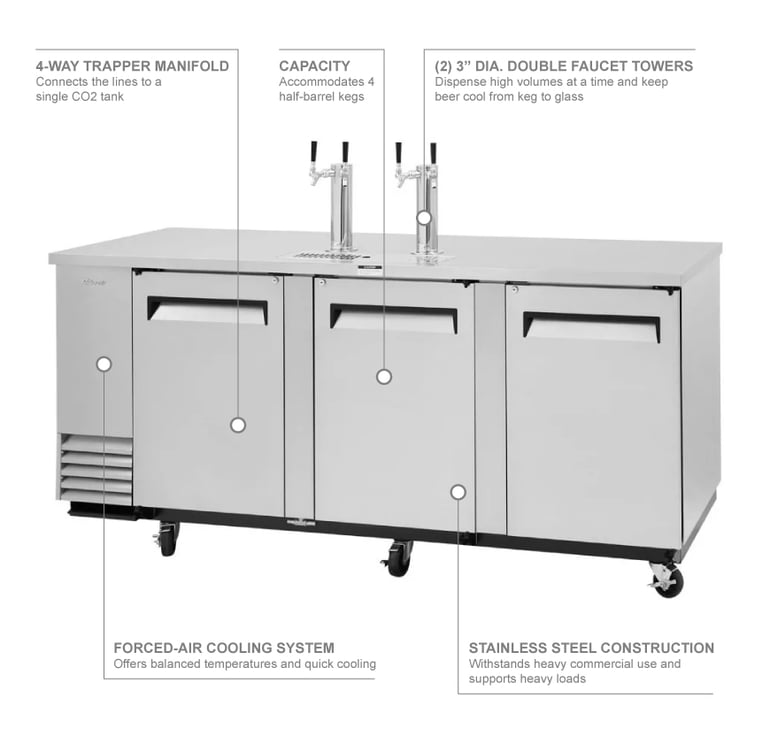

The Turbo Air TBD-4SD-N draft beer system has a stainless and galvanized steel exterior that can endure long-term use. Beer is dispensed from two 3-inch-diameter draft towers that are insulated to keep beer chilled until it is dispensed. This unit can hold four half-barrels in its three-door cabinet and includes a four-way tapper manifold. Polyurethane insulation retains cold air in the cabinet, and a lock on each door prevents unauthorized access.

Debris is removed from the condenser by a built-in device that brushes it every 24 hours. To keep temperatures cool, the Turbo Air TBD-4SD-N kegerator uses R290 hydrocarbon refrigerant. A forced-air cooling system pushes cold air throughout the cabinet, ensuring all product is evenly chilled. Its evaporator has a corrosion-resistant coating, and its compressor can be accessed through the side.

Product Details

  • Stainless steel exterior with a galvanized steel back and bottom resists scratches
  • Countertop can house blenders and other tools
  • Galvanized and stainless steel interior cleans quickly
  • Cold air stays in the polyurethane-insulated cabinet

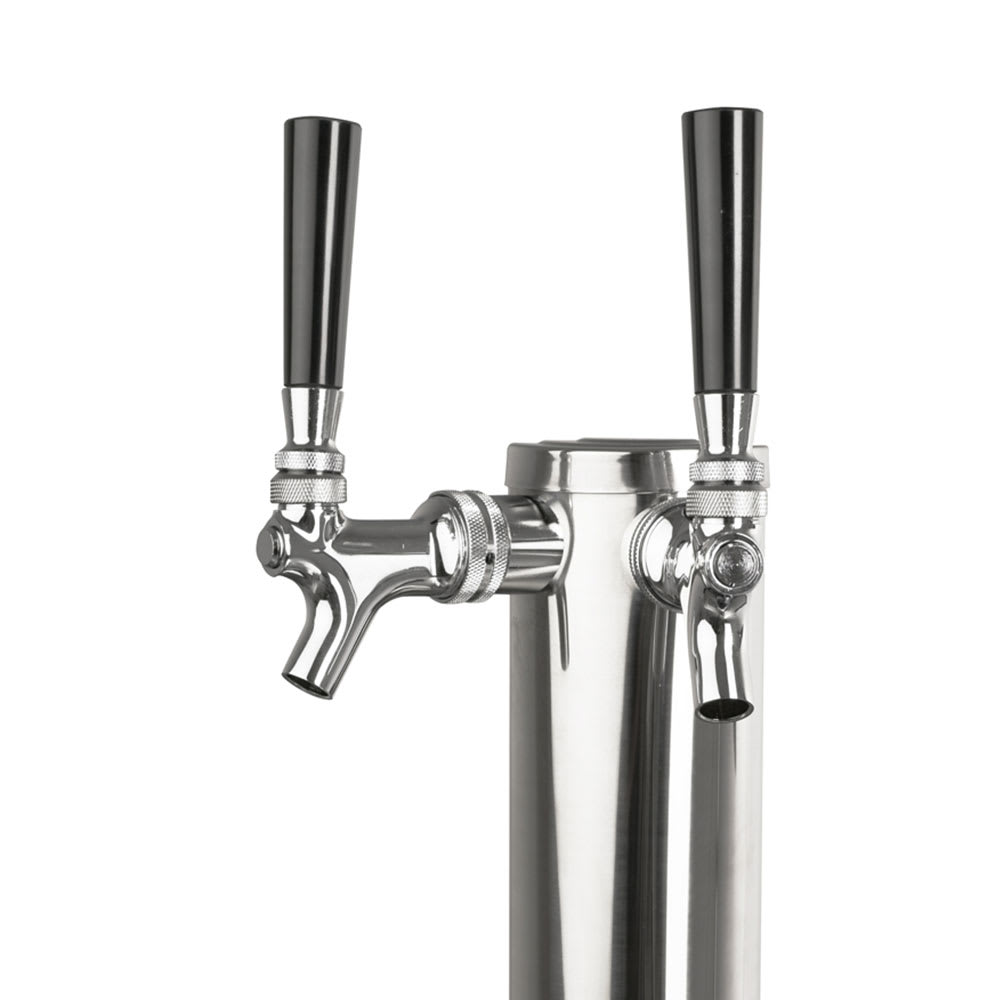

  • (2) 3-in.-dia. beer towers are insulated to keep liquid chilled

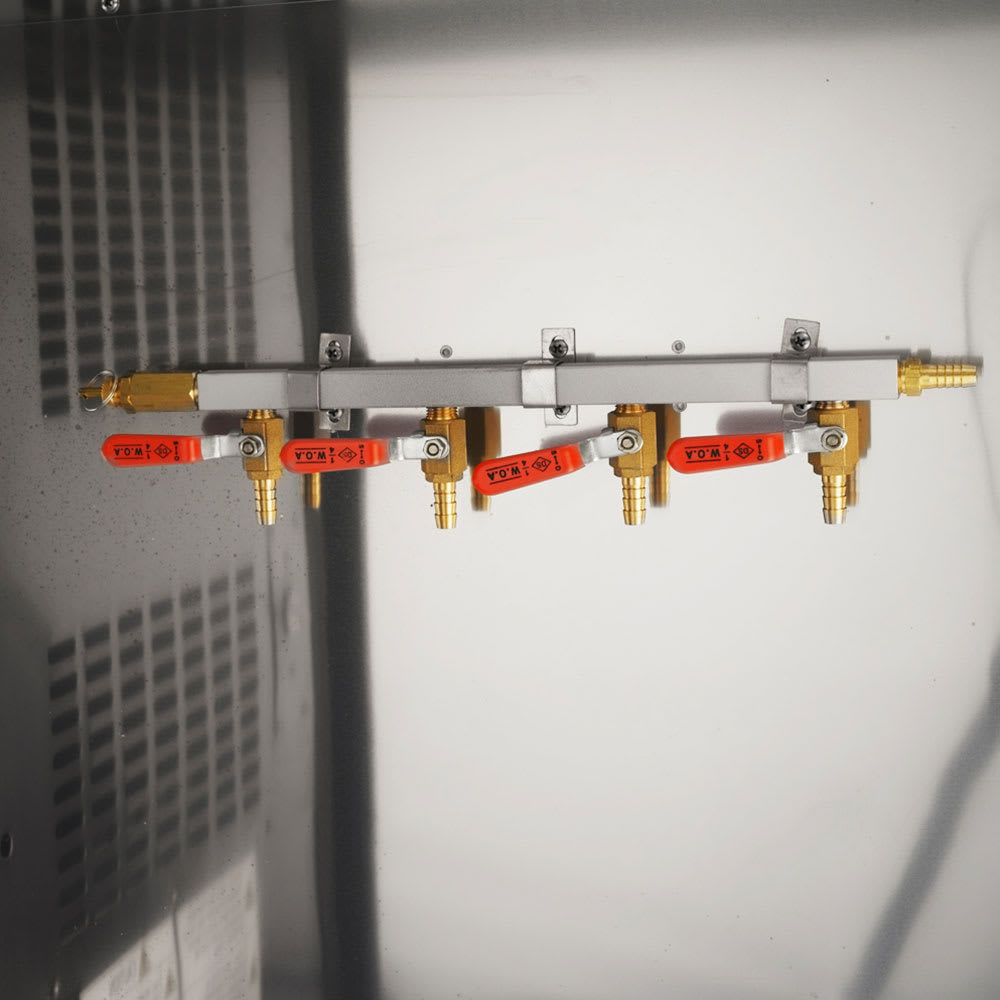

  • Includes a four-way tapper manifold
  • 3 swing doors have locks to prevent theft
  • (6) 4-in.-dia. swivel casters
  • 4 half-barrel keg capacity
  • 36.47-cu.-ft. interior space
  • 2.7 A, 13 HP
  • 115 V/60 Hz/1 ph, 8.5-ft. cord with a NEMA 5-15P plug
  • Overall dimensions: 9038 in. W x 2918 in. D x 5718 in. H
  • cETLus and ETL-sanitation listed; ISO 9001:2008 and ENERGY STAR certified

Self-contained Refrigeration System

  • Condenser’s self-cleaning device removes debris
  • Uses R290 hydrocarbon refrigerant
  • Forced-air cooling system ensures all product is evenly chilled
  • Side-mount compressor
  • Temperature range: 33-38 degrees F
  • Evaporator is coated to resist corrosion

Not sure if a draft system is what you need? Get more information on them from our beer dispenser buyers' guide.

Super Deluxe Beer Dispenser, 90-3/8"W, self-cleaning condenser equipped, (3) swing doors with locks, stainless steel countertop & exterior, stainless steel inside walls & floor, galvanized steel interior top, (4) 1/2 barrel capacity, (2) 3" dia. stainless steel insulated beer columns with double faucet, door locks, recessed handles, side mount, front breathing, R290 Hydrocarbon refrigerant, 1/3 HP, 115v/60/1-ph, 2.7 amps, NEMA 5-15P, cETLus, ETL-Sanitation, ENERGY STAR®

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Warning Small Important Prop 65 information for California residents.

Turbo Air TBD-4SD-N Specifications

PDF Spec Sheet
Manufacturer Turbo Air
Base Casters
Compressor Location Side
Exterior Finish Stainless Steel
Keg Capacity 4
Number of Columns 2
Number of Taps 4
Width (in) 90.38
Also Known As TBD-4SD
Warranty 3 year parts & labor; 5 year compressor
Hertz 60
Voltage 115
Phase 1
Product Beer Dispenser
Product Type Commercial Refrigeration
Weight 440.00
Turbo Air TBD-4SD-N Certifications
  • Energy Star
  • ETL
