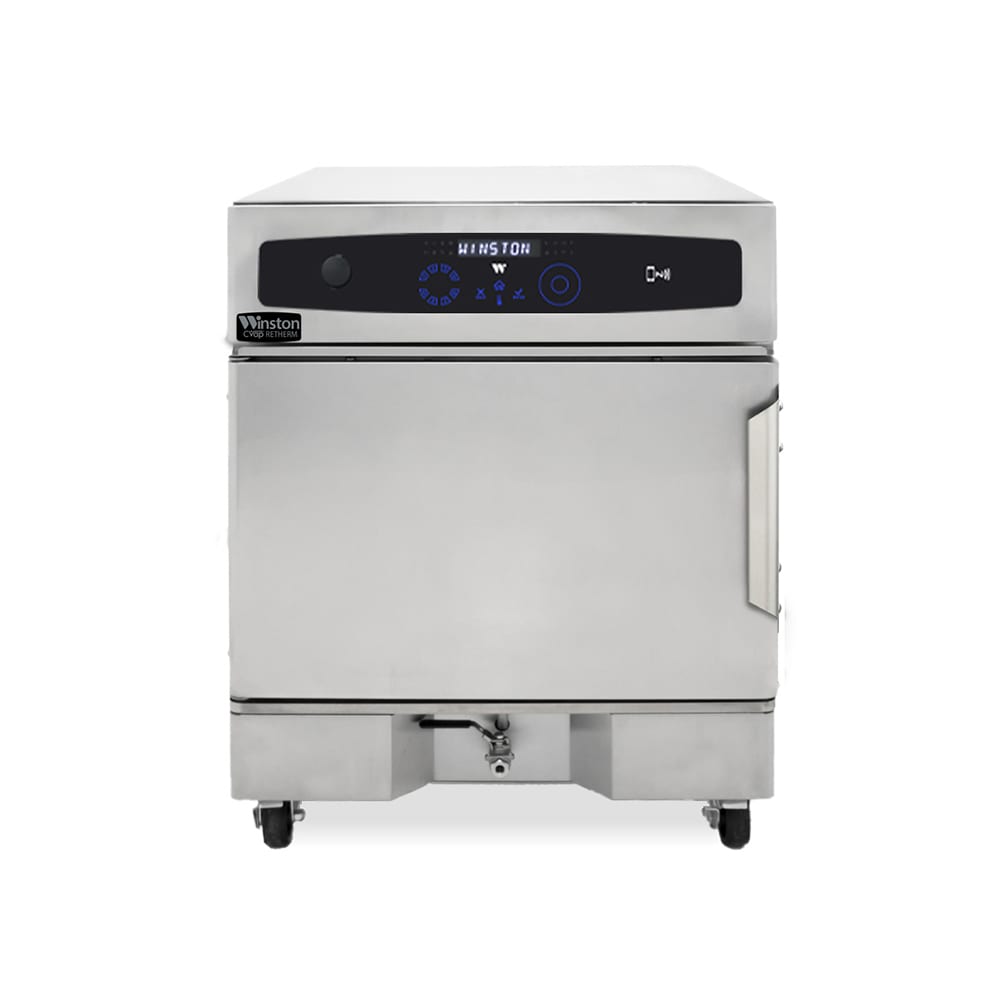

Winston RTV5-04UV Half Size CVap® Rethermalizer Oven - Right Hinge, 240v/1ph

KaTom #: 081-RTV504UV2401 • MPN: RTV5-04UV 240/1 RH
  • 081-RTV504UV2401 Primary Thumbnail Image
  • 081-RTV504UV2401 Multiple Thumbnail Image #1

$8,425.00 /Each

Login or add to cart for the price

  • Protect Your Product
  • Coverage starting at $125.25
  • Edit Remove

Selected Voltage: 240V, 1 Phase

Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.

Non Returnable Item

 User Image
Ask a Foodservice Equipment Specialist

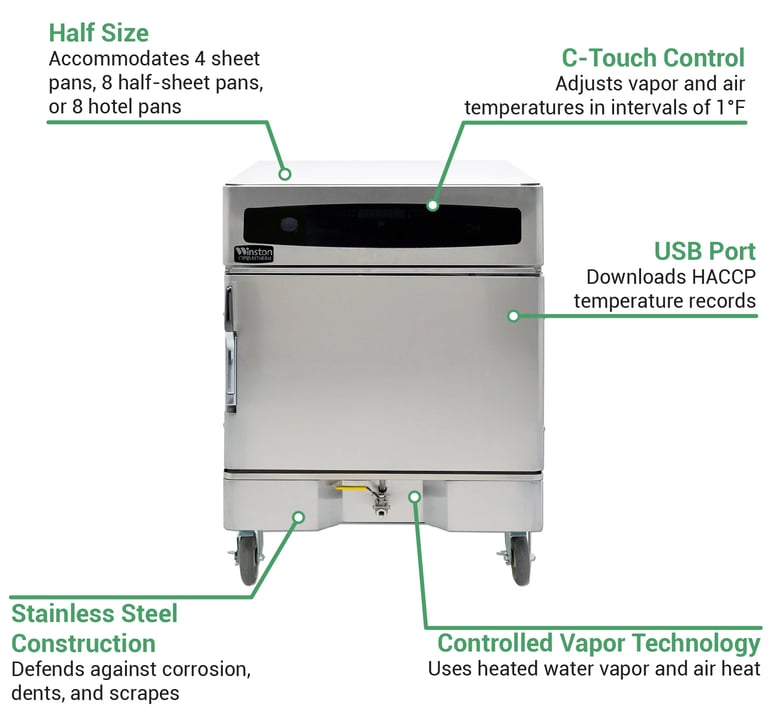

Winston RTV5-04UV Description

Foods are cooked to safe temperatures with the Winston RTV5-04UV CVap® retherm oven's controlled vapor technology—a mechanism that combines hot air and heated water vapor to produce ideal texture and food temperatures, respectively. Temperatures are adjustable in 1-degree-Fahrenheit increments on the C-Touch control, which uses a process and a calibration-free thermistor to modify the evaporator and air temperatures. Operators can track temperature and convection fan operation trends using a USB HACCP download on their computer to ensure foods safely cook and the unit is performing correctly. To reduce preparation time, time settings and temperatures can be plugged into this unit's eight programmable channels, which can be locked to prevent accidental adjustment.

The Winston RTV5-04UV commercial retherm oven accepts four 18-inch by 26-inch sheet pans, eight 18-inch by 13-inch half-size sheet pans, or eight 12-inch by 20-inch by 2 1⁄2-inch hotel pans. Ideal for medium-capacity applications, each racks holds as much as 65 pounds. Made of stainless steel, this 27 7⁄10-inch-wide by 34 23⁄100-inch-deep by 35 7⁄10-inch-high cabinet withstands dents, scrapes, and scuffs that commonly occur in bustling kitchen environments, and it also resists corrosion to support long-term use. Its solid hinged door provides access to product and opens fully for easy loading and unloading, and it's insulated to minimize risk of operator injury. Installable on a countertop, this unit can also be stacked on top of other pieces of equipment to save counterspace.

  • Part of the RTV5 series
  • Half-size structure
  • 1 compartment
  • Stainless steel construction
  • Accepts (4) 18-in. x 26-in. sheet pans, (8) 18-in. x 13-in. half-size sheet pans, or (8) 12-in. x 20-in. x 2 1⁄2-in. hotel pans
  • 65-lb. rack capacity
  • Field-reversible solid door
  • Magnetic handle
  • Fanless
  • Side clearances: 2 in.

  • C-Touch controls
  • Evaporator and air temperatures can be raised or lowered in 1-degree-F intervals
  • Processor-controlled thermistors
  • 8 programmable channels
  • Downloadable HACCP records for temperature and convection fan operation
  • USB and audio ports
  • Automatic water fill mechanism

  • 27 7⁄10 in. W x 34 23⁄100 in. D x 35 7⁄10 in. H
  • 30 A, 7212 W
  • 240 V/60 Hz/1 ph, 84-in. power cord with a NEMA 6-50P plug

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Additional Product Information

From The Manufacturer

CVap® Thermalizer Oven, electric, half-size, right hinge, one compartment, insulated, convection cooking, accommodates (4) 18" x 26" sheet pans or (8) 13" x 18" sheet pans or (8) 12" x 20" hotel pans, load limit 65 lbs (29.25 kg) per rack, (1) field reversible hinged solid door, magnetic door handle, C-Touch control with processor, HACCP temperature downloads, CVap technology, USB & audio ports, fanless, auto water fill, stainless steel interior & exterior, NSF, CE, UL, cUL, UL-Sanitation

Warranty Icon
1-year Limited Parts & Labor

Winston RTV5-04UV Specifications
