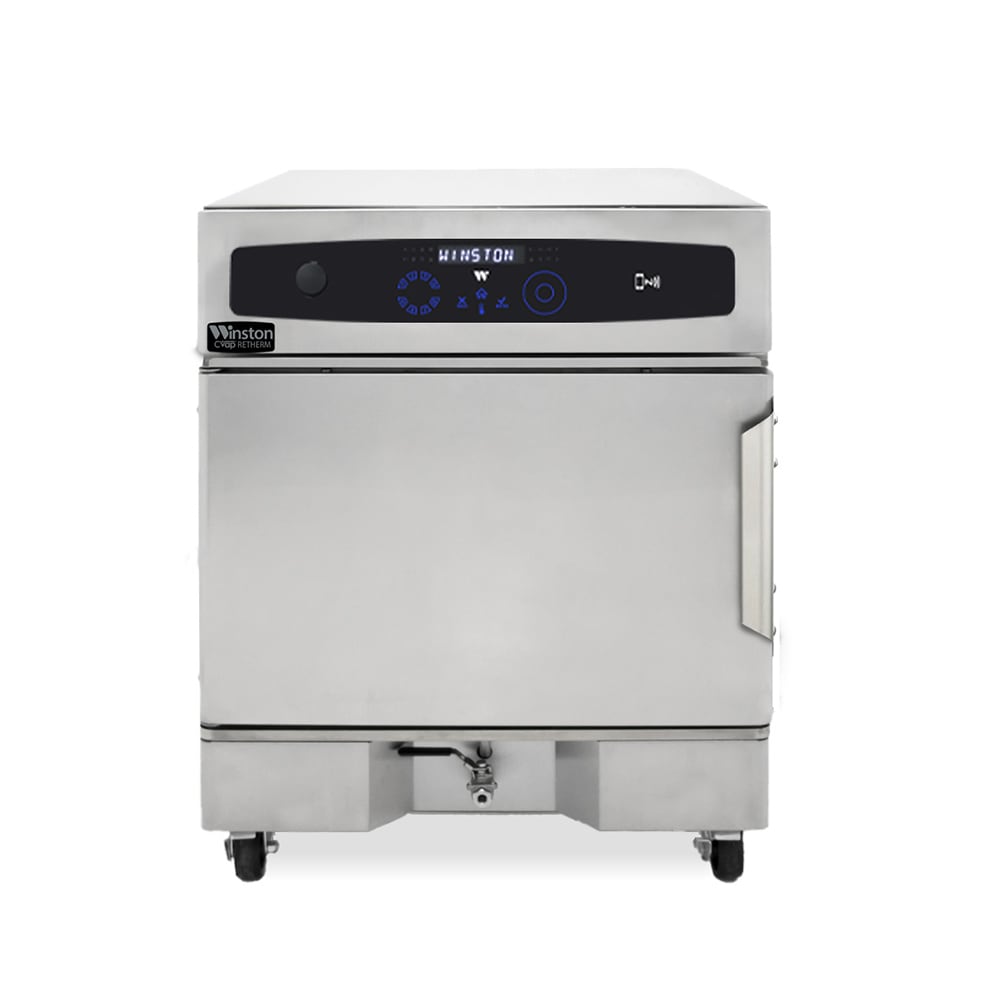

Winston RTV5-04UV Half Size CVap® Rethermalizer Oven - Right Hinge, 208v/3ph
$8,425.00 /Each
Login or add to cart for the price
Selected Voltage: 208V, 3 Phase
| 208V, 3 Phase |
| 208V, 1 Phase |
| 240V, 1 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Non Returnable Item
Winston RTV5-04UV Description
Made of strong stainless steel, the Winston RTV5-04UV CVap® thermalizer oven withstands common wear, such as scrapes, dents, and corrosion, from bustling kitchen environments. It measures 27 7⁄10 inches wide by 34 23⁄100 inches deep by 35 7⁄10 inches high, and its single compartment accepts four sheet pans, eight half-size sheet pans, or eight hotel pans, making it a good option for medium-volume applications. The solid door provides direct access to product, and it's insulated to reduce risk of user injury. Depending on spacing, the hinge can be reversed to fit in specific environments.
Using controlled vapor technology, the Winston RTV5-04UV rethermalizer oven combines heated vapor and hot air to cook foods and maintain their cooked textures, respectively. To ensure foods are cooked at safe temperatures, HACCP records can be downloaded onto a computer from a USB port, enabling operators to track trends. A C-Touch control comes with a processor that can adjust air and temperature evaporators by a degree for specific results. Reducing preparation time, its eight programmable channels can store temperatures and time settings thoroughly cook signature dishes. It automatically refills its water to minimize maintenance frequency.
- Part of the RTV5 series
- Half size with a single compartment
- Stainless steel construction
- Accommodates (4) 18-in. x 26-in. sheet pans, (8) 18-in. x 13-in. half-size sheet pans, or (8) 12-in. x 20-in. x 2 1⁄2-in. hotel pans
- Load capacity per rack: 65 lbs.
- Field-reversible solid door
- Magnetic handle
- Side clearances: 2 in.
- C-Touch controls for evaporator and air temperature adjustment
- Temperature can be raised or lowered in 1-degree-F intervals
- Processor-controlled thermistors
- 8 programmable channels
- Downloadable HACCP records for temperature and convection fan operation
- USB and audio ports
- Automatic water fill mechanism
- 27 7⁄10 in. W x 34 23⁄100 in. D x 35 7⁄10 in. H
- 23.7 A, 7212 W
- 208 V/60 Hz/3 ph, 84-in. power cord with a NEMA 15-30P plug
*Image may not depict product color, inclusions or accessories.
From The Manufacturer
CVap® Thermalizer Oven, electric, half-size, right hinge, one compartment, insulated, convection cooking, accommodates (4) 18" x 26" sheet pans or (8) 13" x 18" sheet pans or (8) 12" x 20" hotel pans, load limit 65 lbs (29.25 kg) per rack, (1) field reversible hinged solid door, magnetic door handle, C-Touch control with processor, HACCP temperature downloads, CVap technology, USB & audio ports, fanless, auto water fill, stainless steel interior & exterior, NSF, CE, UL, cUL, UL-Sanitation
Winston RTV5-04UV Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Winston |
| Base | Casters |
| Cavities | 1 |
| Controls | Digital |
| Depth (in) | 34.23 |
| Door Construction | Solid Only |
| Door Type | Independent |
| Heat | Electric |
| Height (in) | 35.7 |
| Hertz | 60 |
| Hinge Configuration | Right |
| Interior Construction | Stainless Steel |
| kW | 7.2 |
| Number of Ovens | Single |
| Pan Capacity | 4 |
| Phase | 3 |
| Product | Rethermalizers |
| Product Type | Food Warming Equipment |
| Series | CVap® |
| Size | Half Size |
| Type | Floor Model |
| Voltage | 208 |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 27.7 |
| Weight | 198.00 |
