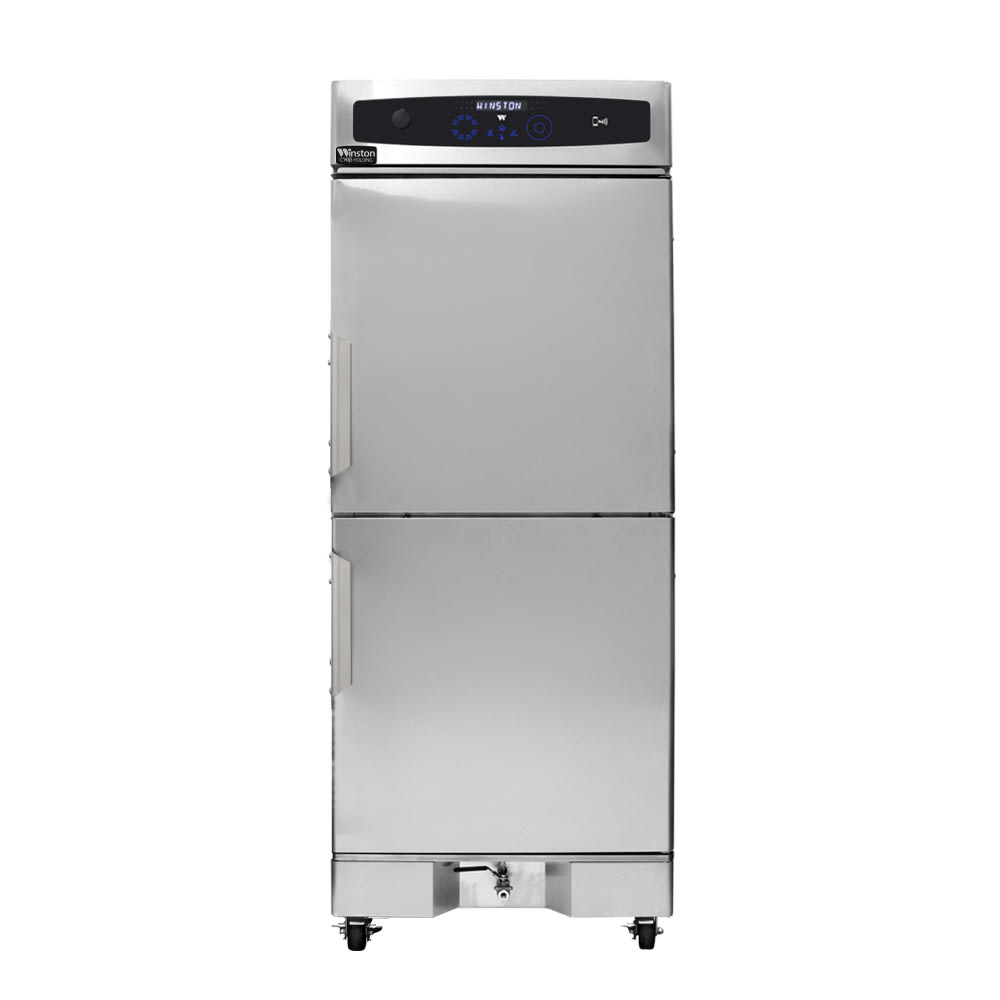

Winston HOV5-14UV Full Height Insulated Mobile Heated Cabinet w/ (14) Pan Capacity - Right Hinge, 120v

The Winston HOV5-14UV CVap® holding cabinet uses controlled vapor technology to manage air and vapor temperatures to maintain ideal food temperatures and textures prior to being served. This unit's C-Touch control uses calibration-free thermistors to modify evaporator and air temperatures in increments of 1 degree Fahrenheit to prevent foods from drying out. To ensure foods are being held at safe temperatures, operators can simply insert a USB into the unit and into their computers to download HACCP temperature and convection fan records. Food preparation prior to serving is also simplified with the eight programmable channels, which can be locked for accessibility. A low-water detection mechanism notifies users when water needs to be changed, minimizing maintenance pileups.

Designed with a full-size structure, the Winston HOV5-14UV commercial cabinet works best for high-volume operations. Each rack has a 65-pound capacity, and the cabinet holds 14 full-size sheet pans, 28 half-size sheet pans, and 28 full-size hotel pans. This unit's interior and exterior are made of sturdy stainless steel, which resists corrosion and defends against common wear, such as scrapes and dents, to maintain its original form over time. To minimize heat loss, two dutch doors open individually so users have direct access to specific food pans. They're insulated to reduce risk of user injury, and they're equipped with a magnetic door handle. Overall, this cabinet measures 27⁷/₁₀ inches wide by 34²³/₁₀₀ inches deep by 73¹/₅₀ inches high.

Product Details

• Part of the HOV5 series
• Full-size
• Interior and exterior made of stainless steel
• Holds 14 sheet pans, 28 half-size sheet pans, or 28 hotel pans
• Load capacity per rack: 65 lbs.
• 2 solid, field-reversible dutch doors with magnetic handles
• Water refill is manual
• Side clearances: 2 in.

CVap Technology

• C-Touch controls adjust air and evaporator temperatures in 1-degree-F intervals
• Processor-controlled thermistors
• 8 programmable and lockable channels
• HACCP temperature records downloadable by USB
• USB and audio ports

Dimensions & Utilities

• 27⁷/₁₀ in. W x 34²³/₁₀₀ in. D x 73¹/₅₀ in. H
• 19.1 A, 2292 W
• 120 V/60 Hz/1 ph, 84-in. power cord with a NEMA 5-20P plug

Product Features

*Winston HOV5-14UV is free shipping eligible. Users must be signed in with an order total greater than $500 and be shipping to the 48 contiguous states.

From The Manufacturer

CVap® Holding Cabinet, mobile, full-size, right hinge, insulated, convection holding, accommodates (14) 18" x 26" sheet pans or (28) 13" x 18" sheet pans or (28) 12" x 20" hotel pans, load limit 65 lbs (29.25 kg) per rack, (2) field reversible hinged solid dutch doors, magnetic door handle, C-Touch control with processor, HACCP temperature downloads, USB & audio ports, manual water fill, stainless steel interior & exterior, NSF, CE, UL, cUL, UL-Sanitation

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor

Winston HOV5-14UV Specifications

Documents

Spec Sheet

Manual
