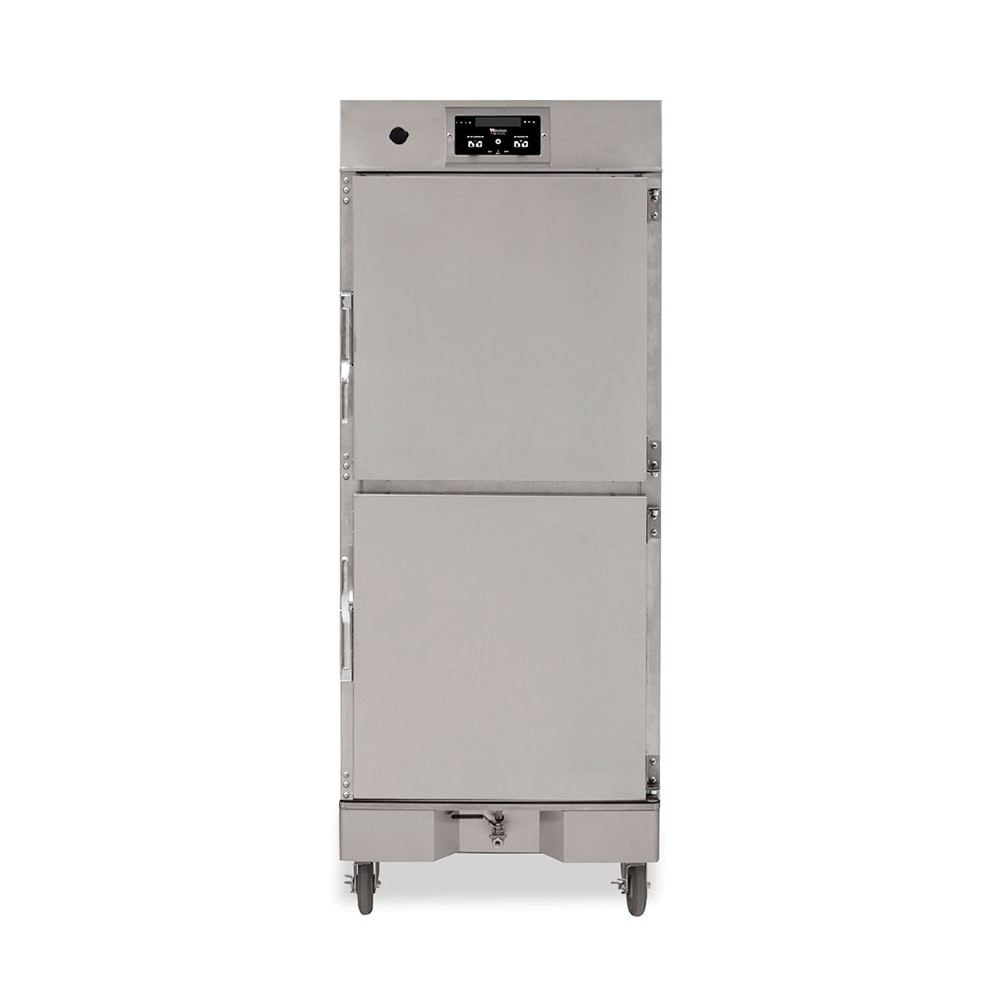

Winston HOV3-14UV Full Height Insulated Mobile Heated Cabinet w/ (14) Pan Capacity - Right Hinge, 120v
$6,450.00 /Each
Login or add to cart for the price
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Non Returnable Item
Winston HOV3-14UV Description
For space-saving, high-volume holding, the Winston HOV3-14UV holding cabinet measures 27 7⁄10 inches wide by 34 23⁄100 inches deep by 75 33⁄50 inches tall and accommodates (14) 18-inch by 26-inch sheet pans, (28) 18-inch by 13-inch half-size sheet pans, or (28) 12-inch by 20-inch by 2 1⁄2-inch hotel pans. Its stainless steel interior and exterior provide lasting resiliency and rust and corrosion resistance and can match other back-of-house equipment. So staff can access a specific section of the unit to save energy, this unit is built with two field-reversible Dutch doors with magnetic handles. To ease transport for cleaning or maintenance, this unit is positioned on four 5-inch casters that enable smooth mobility.
Great for meats, vegetables, baked goods, and proofing bread, this Winston HOV3-14UV heated holding cabinet's CVap® technology uses a combination of moist vapor heat and dry air heat to keep foods at warm serving temperatures while preserving original textures. With the corresponding membrane control, staff can adjust air and vapor temperatures in 1-degree-Fahrenheit increments as menus changes. The calibration-free thermistors gauge evaporator and cabinet temperatures within 2-degree-Fahrenheit accuracy. Its evaporator requires manual filling, while a low-water detection alerts operators when more water should be added.
- Part of the HOV3 series
- Capacity: (14) 18-in. x 26-in. sheet pans, (28) 18-in. x 13-in. half sheet pans, or (28) 12-in. x 20-in. x 2 1⁄2-in. hotel pans
- 14 universal pan racks with 65-lb. capacity per rack
- Full-height unit
- Resilient, rust- and corrosion-resistant stainless steel interior and exterior
- 2 right-hinged, insulated Dutch doors with magnetic handles
- Field-reversible door hinges
- Equipped with (4) 5-in. casters
- CVap technology uses moist vapor heat and dry air heat
- Membrane control with 1-degree-F air and vapor temperature adjustment
- Processor-controlled, calibration-free thermistors
- Can upgrade software via USB connection
- HACCP temperature downloads
- Manual water fill with low-water detection
- 2-in. clearance required on sides
- Shouldn't be installed near heat-emitting units that could raise cabinets' surface temperature to more than 200 degrees F
- Overall: 27 7⁄10 in. W x 34 23⁄100 in. D x 75 33⁄50 in. H
- 19.1 A, 2292 W
- 120 V/60 Hz/1 ph, includes cord with NEMA 5-20P plug
*Image may not depict product color, inclusions or accessories.
From The Manufacturer
CVap® Holding Cabinet, mobile, full-size, insulated, convection holding, accommodates (14) 18” x 26” sheet pans or (28) 13” x 18” sheet pans or (28) 12” x 20” hotel pans, load limit 65 lbs (29.25 kg) per rack, (2) field reversible hinged solid doors, magnetic door handle, membrane control, HACCP temperature downloads, CVap technology, USB port, manual water fill, stainless steel interior & exterior, CE, UL EPH ANSI/NSF4, cUL, UL-Sanitation
Watch a video about this product
Winston HOV3-14UV Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Winston |
| Application | Heat & Humidity |
| Color | Silver |
| Construction | Stainless Steel |
| Control Location | Top |
| Controls | Digital |
| Depth (in) | 34.23 |
| Door Design | Half |
| Door Type | Solid |
| Heat | Electric |
| Height (in) | 73.02 |
| Hertz | 60 |
| Hinge Configuration | Right |
| Kitchen Innovations Awards | 2009 |
| kW | 2.29 |
| Load Type | Reach In |
| NEMA | 5-20P |
| No. of Doors | 2 |
| Pan Capacity | 14 |
| Phase | 1 |
| Product | Heated Cabinets |
| Product Type | Food Warming Equipment |
| Sections | 1 |
| Series | CVap® |
| Size | Full Height |
| Slide Spacing (in) | 3.5 |
| Slide Type | Bottom Load |
| Type | Insulated |
| Voltage | 120 |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 27.7 |
| Weight | 420.00 |
