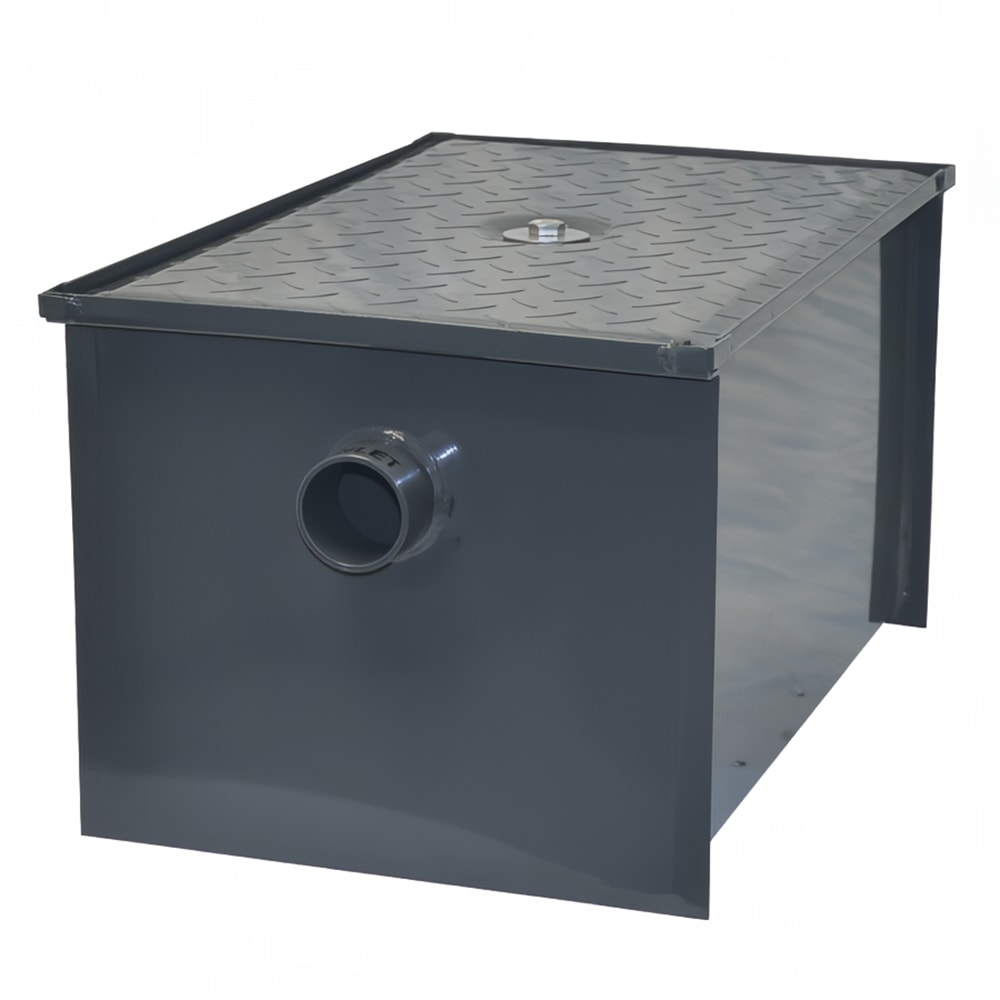

Splash Grease Interceptor w/ 10 GPM Capacity, Carbon Steel, Size #20 (GI-20)
Typically ships in 4 - 8 Business Days
Retail Price: $474.00
$251.79 /Each
Splash GI-20 Description
Suspended below sinks and other equipment to prevent clogging from oil and grease, the Splash GI-20 grease interceptor has a 2-inch inlet and outlet for proper pipe connections. The inlet and outlets support 10-gallon per minute flow rates to eventually capture 20 pounds of grease from heavily trafficked sinks, high-volume fryers, or consistently used woks. Other design features benefitting its operation are a T-vent, vented inlet flow control device, and removable baffle. When it’s reached the maximum capacity, this interceptor’s cover is removable with a nonskid design that doesn't slip from the hands during disposal.
- 20-lb. grease capacity
- 10-GPM rate
- Made of 11-ga. carbon steel
- Finished in a corrosion-resistant coat
- No-hub connections
- Design includes T-Vent, nonskid cover, removable baffle, and vented inlet flow control device
- 2-in. inlet and outlet connections
- Overall dimensions: 14 1⁄2 in. W x 20 1⁄8 in. D x 12 1⁄8 in. H
*Image may not depict product color, inclusions or accessories.
From The Manufacturer
Grease Interceptor, 20 lb. grease capacity, 10 gallons per minute flow rate, 2" inlet/outlet, no-hub connections, T-Vent included, no-skid cover, removable baffle, easy removable cover, integral trap, vented inlet flow control device, 1/8" thick carbon steel, PDI certified
Splash GI-20 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Splash |
| Capacity (lbs) | 20 |
| Flow Rate | 10 GPM |
| Height (in) | 12.13 |
| Length (in) | 20.13 |
| Part Type | Flow Control |
| Product | Grease Traps |
| Product Type | Cleaning & Janitorial |
| Width (in) | 14.5 |
| Weight | 68.00 |
