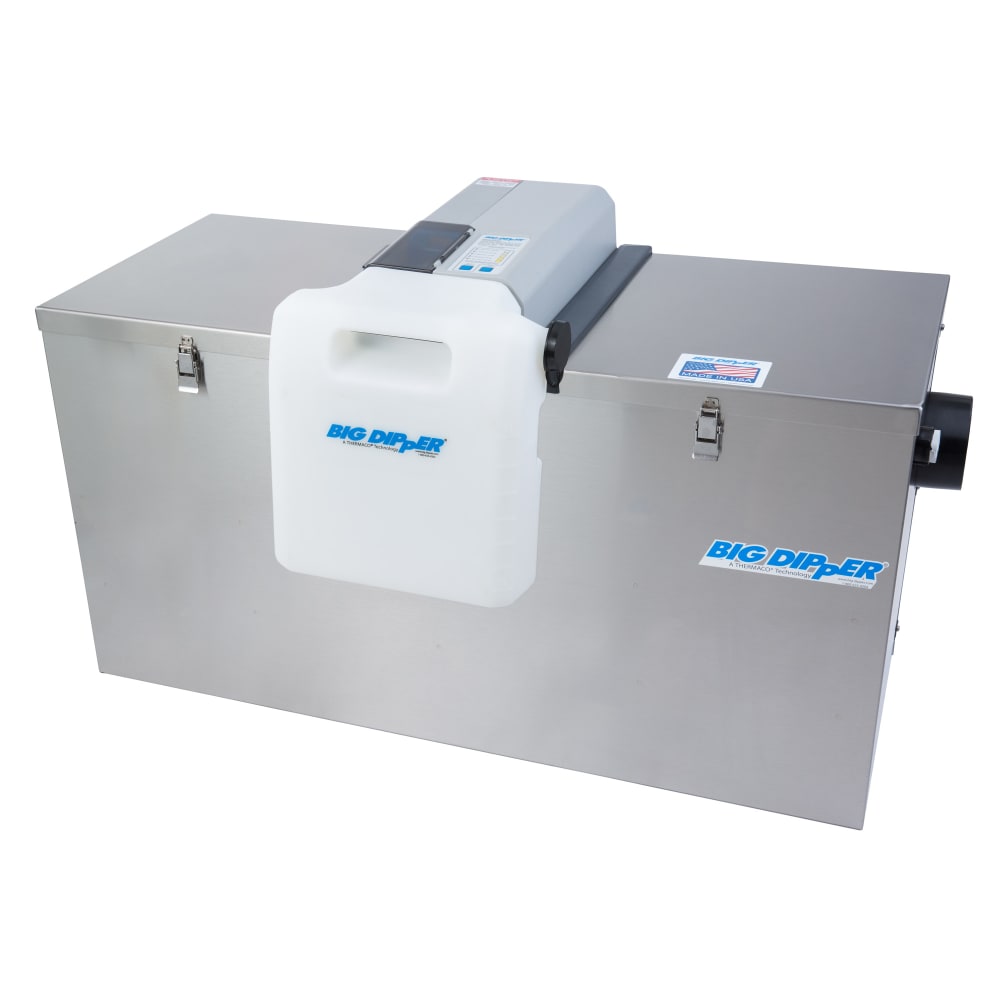

Thermaco W-750-IS-X 168 15/16 lb Big Dipper® Pro Grease Trap w/ 75 GPM Capacity, Polyethylene/Stainless Steel
Retail Price: $7,241.00
$6,791.16 /Each
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Thermaco W-750-IS-X Description
The Thermaco W-750-IS-X Big Dipper® Pro grease trap features a digital control system for programmable grease removal cycles, enabling hands-free operation in high-capacity foodservice environments. Its 4-inch inlet and outlet support a 75-gallon-per-minute flow rate, while a 1-inch vessel vent helps maintain internal pressure balance. The system uses a self-regulating electric immersion heater with thermostatic control to maintain optimal separation conditions. An integral gas trap helps minimize odors during daily operation.
The Thermaco W-750-IS-X grease trap includes a field-reversible motor assembly and grease/oil sump outlet to support flexible installation across different plumbing configurations. Its internal strainer basket enhances durability and simplifies waste removal. Quick-release stainless steel lid clamps offer convenient, tool-free access for servicing. The unit’s interior is rotationally molded polyethylene, housed within a 304 stainless steel exterior, and it retains up to 168 15⁄16 pounds of grease for high-capacity performance.
- From the Big Dipper Pro series
- 168 15⁄16-lb. grease capacity
- Rated for 75-GPM flow
- 304 stainless steel exterior
- Rotationally molded polyethylene interior
- Internal polymer/stainless steel strainer basket
- Quick-release stainless steel lid clamps
- Field-reversible motor assembly and grease/oil sump outlet
- Self-regulating immersion heater with thermostatic control
- Digital programmable operation
- 1-in. vessel vent
- 4-in. inlet and outlet connections
- Silver
- Smart skimming only skims when grease is ready
- Smart mainetenance streamlines upkeep
- Smart control via Big Dipper Connect app
- 46 in. L x 24 3⁄10 in. W x 25 55⁄100 in. H
- 10.2 A, 1,173 W
- 115 V/50⁄60 Hz/1 ph, cord with NEMA 5-15P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on Thermaco W-750-IS-X within the 48 contiguous states.
From The Manufacturer
Big Dipper® Pro Grease Trap, automatic, 168.95 lbs. grease capacity, 75 gallons per minute, 4" inlet/outlet size, 1" vessel vent, self-regulating electric immersion heater with thermostatic control, integral gas trap, digital control for programmable operation, field reversible motor assembly and grease/oil sump outlet, quick release stainless steel lid clamps, internal polymer/stainless steel strainer basket, rotationally molded polyethylene interior, 304 stainless steel exterior, 1173 watts, 10.2 amps, 115v/50-60hz/1-ph, cCSAus, PDI Certified
Watch a video about this product
Thermaco W-750-IS-X Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Thermaco |
| Also Known As | W-750-IS |
| Capacity (lbs) | 168.95 |
| Color | Silver |
| Flow Rate | 75 gpm |
| Height (in) | 25.92 |
| Hertz | 50/60 |
| Length (in) | 46 |
| Material | Polyethylene/Stainless Steel |
| NEMA | 5-15P |
| Phase | 1 |
| Product | Grease Traps |
| Product Type | Cleaning & Janitorial |
| Series | Big Dipper® Pro |
| Type | Automatic Grease Traps |
| Voltage | 115 |
| Warranty | Limited Lifetime; 3-year Electrical Components |
| Width (in) | 24.3 |
| Weight | 170.00 |
