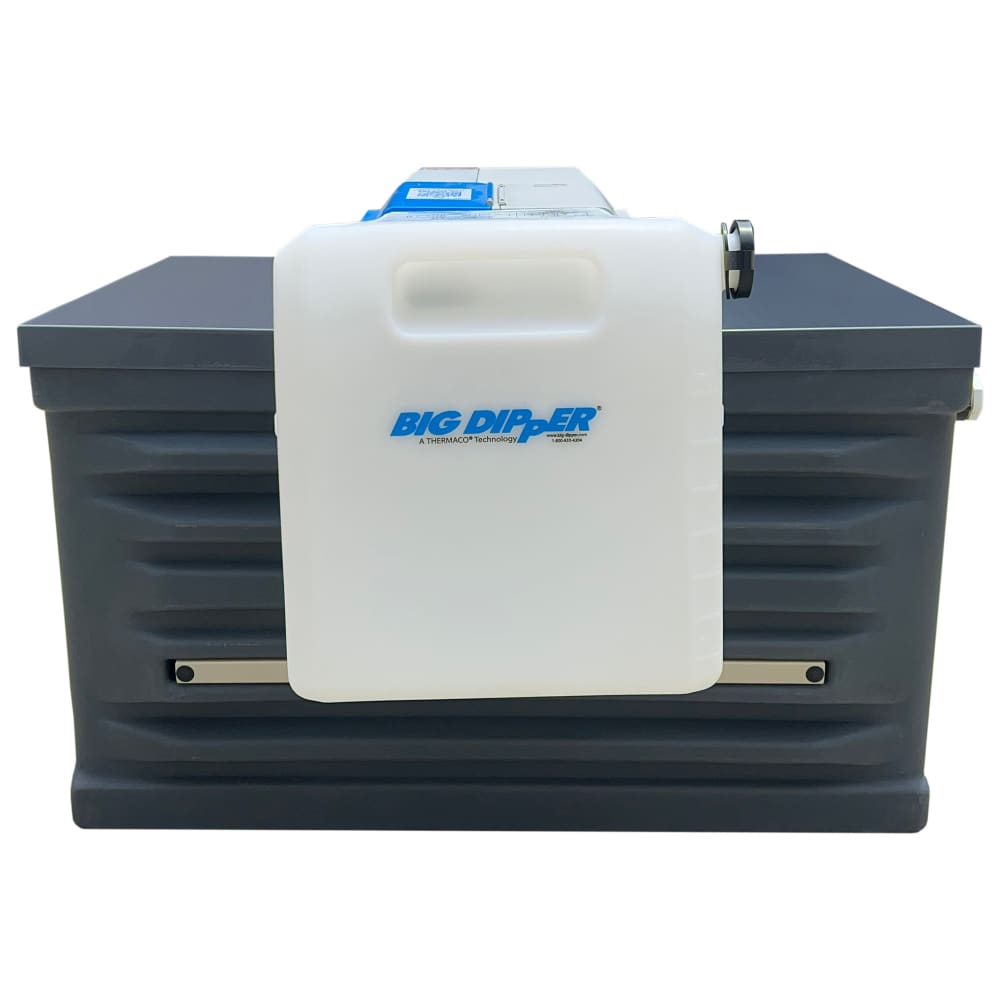

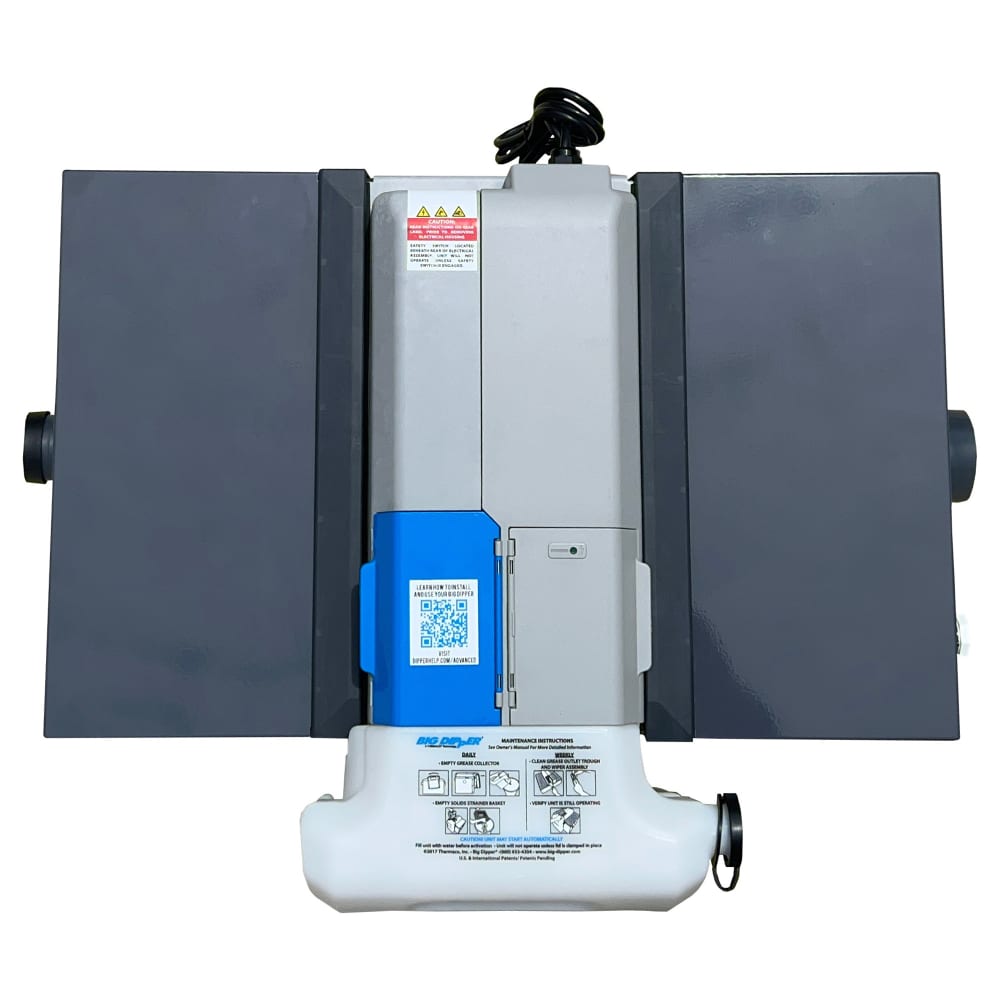

Thermaco W-350-IS-T 85 1/5 lb Big Dipper® Essential Grease Trap w/ 35 GPM Capacity, Polyethylene
Retail Price: $3,560.00
$3,291.92 /Each
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Thermaco W-350-IS-T Description
The Thermaco W-350-IS-T Big Dipper® Essential grease trap manages grease separation with a flow capacity of 35 gallons per minute and supports up to 85 1⁄5 pounds of grease retention. Its analog controller enables programmable scheduling, while a 2-inch inlet and 3-inch outlet help accommodate higher-volume wastewater lines. A 1-inch vessel vent helps maintain pressure equilibrium, and the integral gas trap minimizes odors released during operation. The unit is also equipped with a self-regulating electric immersion heater that includes thermostatic control for temperature consistency.
The Thermaco W-350-IS-T grease trap's rotationally molded polyethylene body enhances resistance to corrosion, and the removable polymer lid is secured using magnetic lid tensioners for quick, tool-free maintenance access. A dual-material strainer basket made of polymer and stainless steel supports dependable performance and cleaning access. A field-reversible motor assembly and grease/oil sump outlet are included to accommodate variable plumbing layouts, supporting flexible installation.
- Part of the Big Dipper Essential series
- 85 1⁄5-lb. grease capacity
- Rated for 35-GPM flow
- Rotationally molded polyethylene construction
- Internal polymer/stainless steel strainer basket
- Fully removable polymer lid with magnetic lid tensioners
- Field-reversible motor assembly and grease/oil sump outlet
- Self-regulating immersion heater with thermostatic control
- Analog programmable operation
- 1-in. vessel vent
- 2-in. inlet and 3-in. outlet connections
- Gray
- 31 1⁄2 in. L x 23 7⁄10 in. W x 20 2⁄3 in. H
- 10.2 A, 1,173 W
- 115 V/50⁄60 Hz/1 ph, NEMA 5-15P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on Thermaco W-350-IS-T within the 48 contiguous states.
From The Manufacturer
Big Dipper® Essential Grease Trap, automatic, 85.18 lbs. grease capacity, 35 gallons per minute, 2" inlet size, 3" outlet size, 1" vessel vent, self-regulating electric immersion heater with thermostatic control, integral gas trap, analog control for programmable operation, field reversible motor assembly and grease/oil sump outlet, fully removeable polymer lid with magnetic lid tensioners, internal polymer/stainless steel strainer basket, rotationally molded polyethylene construction, 1173 watts, 10.2 amps, 115v/50-60hz/1-ph, cCSAus, CE
Watch a video about this product
Thermaco W-350-IS-T Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Thermaco |
| Capacity (lbs) | 85.18 |
| Color | Gray |
| Flow Rate | 35 gpm |
| Height (in) | 20.68 |
| Hertz | 50/60 |
| Length (in) | 31.5 |
| Material | Polyethylene |
| NEMA | 5-15P |
| Phase | 1 |
| Product | Grease Traps |
| Product Type | Cleaning & Janitorial |
| Series | Big Dipper® Essential |
| Type | Automatic Grease Traps |
| Voltage | 115 |
| Warranty | Limited Lifetime; 1-year Electrical Components |
| Width (in) | 23.87 |
| Weight | 75.00 |
