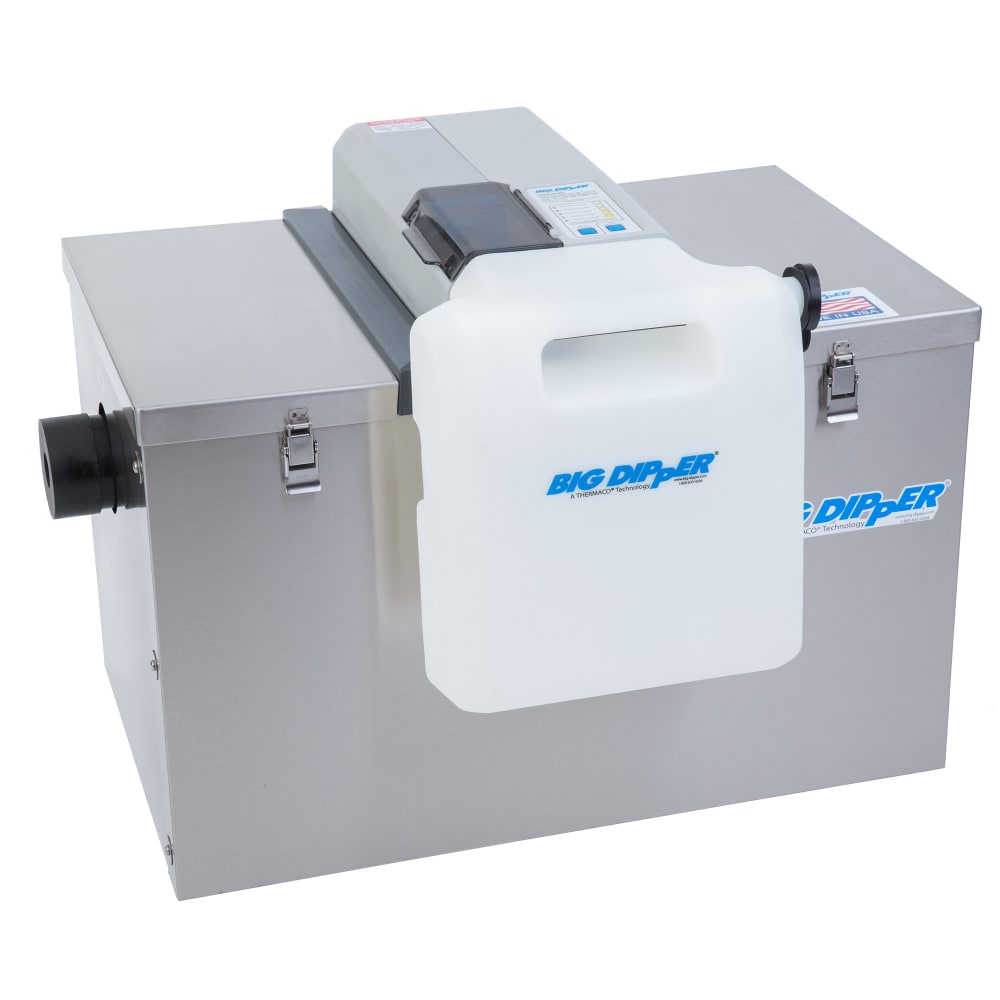

Thermaco W-350-IS-X 85 1/5 lb Big Dipper® Pro Grease Trap w/ 35 GPM Capacity, Polyethylene/Stainless Steel
Typically ships in 4 - 8 Business Days
Retail Price: $4,344.00
$4,010.96 /Each
Thermaco W-350-IS-X Description
The Thermaco W-350-IS-X Big Dipper® Pro grease trap uses a digital control panel to manage programmable grease removal cycles, enabling precise operation for demanding commercial environments. A self-regulating electric immersion heater with thermostatic control supports consistent internal temperatures during grease separation. The system includes a 3-inch inlet and outlet, along with a 1-inch vessel vent to help maintain proper flow balance. A field-reversible motor assembly and grease/oil sump outlet make installation adaptable to various plumbing layouts.
The Thermaco W-350-IS-X grease trap features quick-release stainless steel lid clamps for tool-free access and an internal strainer basket composed of polymer and stainless steel for added strength and longevity. Its rotationally molded polyethylene interior is housed inside a 304 stainless steel exterior for durability and corrosion resistance. An integral gas trap reduces odors during operation. This unit retains up to 85 1⁄5 pounds of grease and operates at a flow rate of 35 gallons per minute.
- Big Dipper Pro series
- 85 1⁄5-lb. grease capacity
- Rated for 35-GPM flow
- 304 stainless steel exterior
- Rotationally molded polyethylene interior
- Internal polymer/stainless steel strainer basket
- Quick-release stainless steel lid clamps
- Field-reversible motor assembly and grease/oil sump outlet
- Self-regulating immersion heater with thermostatic control
- Digital programmable operation
- 1-in. vessel vent
- 3-in. inlet and outlet connections
- Silver
- Smart skimming only skims when grease is ready
- Smart mainetenance streamlines upkeep
- Smart control via Big Dipper Connect app
- 32 in. L x 24 3⁄10 in. W x 21 5⁄6 in. H
- 10.2 A, 1,173 W
- 115 V/50⁄60 Hz/1 ph, cord with NEMA 5-15P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on Thermaco W-350-IS-X within the 48 contiguous states.
From The Manufacturer
Big Dipper® Pro Grease Trap, automatic, 85.18 lbs. grease capacity, 35 gallons per minute, 3" inlet/outlet size, 1" vessel vent, self-regulating electric immersion heater with thermostatic control, integral gas trap, digital control for programmable operation, field reversible motor assembly and grease/oil sump outlet, quick release stainless steel lid clamps, internal polymer/stainless steel strainer basket, rotationally molded polyethylene interior, 304 stainless steel exterior, 1173 watts, 10.2 amps, 115v/50-60hz/1-ph, cCSAus, CE, PDI Certified
Watch a video about this product
Thermaco W-350-IS-X Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Thermaco |
| Also Known As | W-350-IS |
| Capacity (lbs) | 85.18 |
| Color | Silver |
| Flow Rate | 35 gpm |
| Height (in) | 21.83 |
| Hertz | 50/60 |
| Length (in) | 32 |
| Material | Polyethylene/Stainless Steel |
| NEMA | 5-15P |
| Phase | 1 |
| Product | Grease Traps |
| Product Type | Cleaning & Janitorial |
| Series | Big Dipper® Pro |
| Type | Automatic Grease Traps |
| Voltage | 115 |
| Warranty | Limited Lifetime; 3-year Electrical Components |
| Width (in) | 24.3 |
| Weight | 75.00 |
